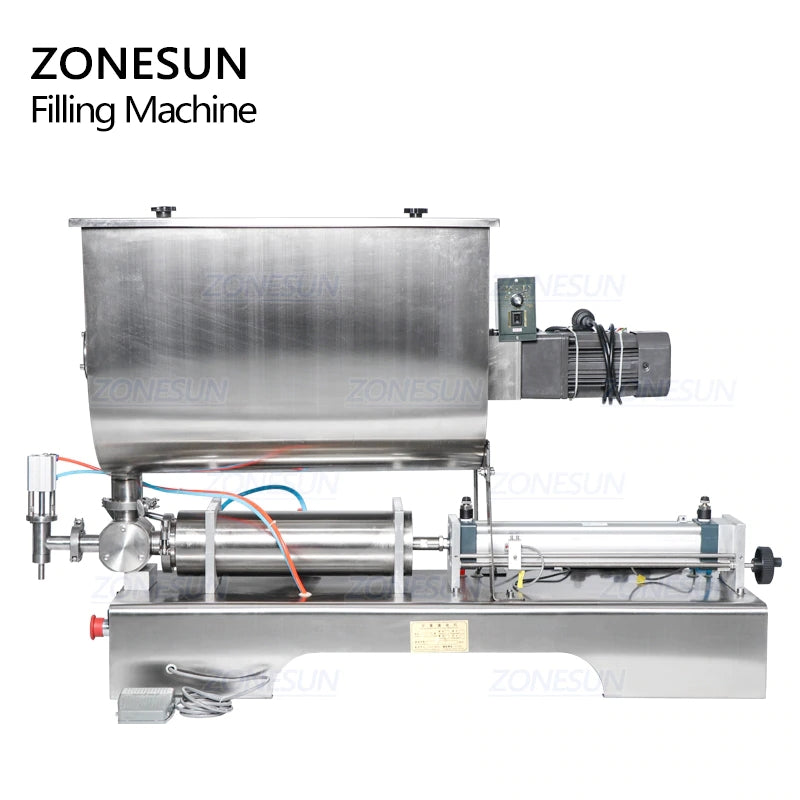

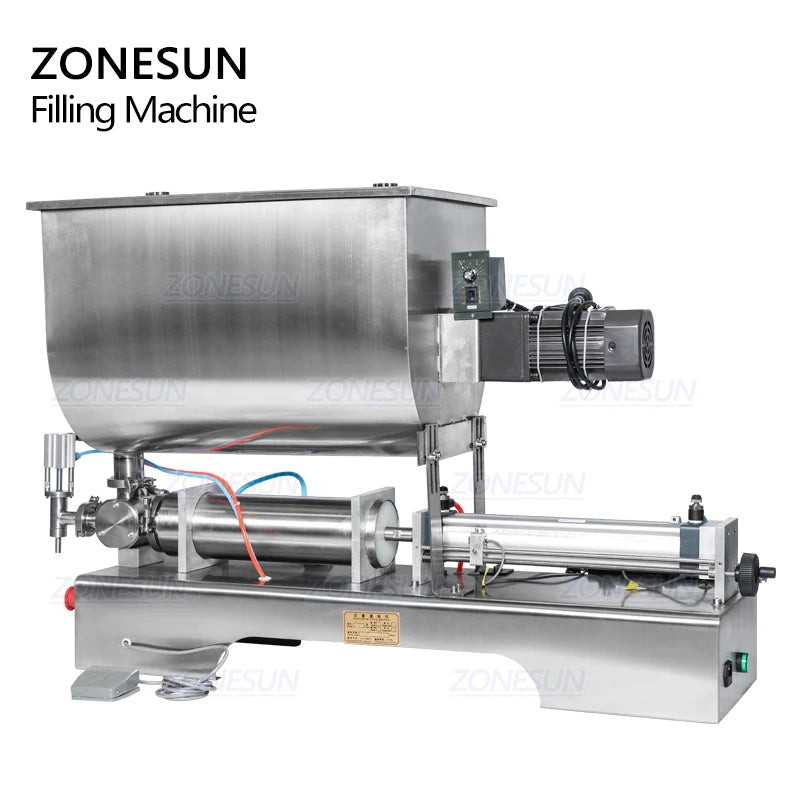

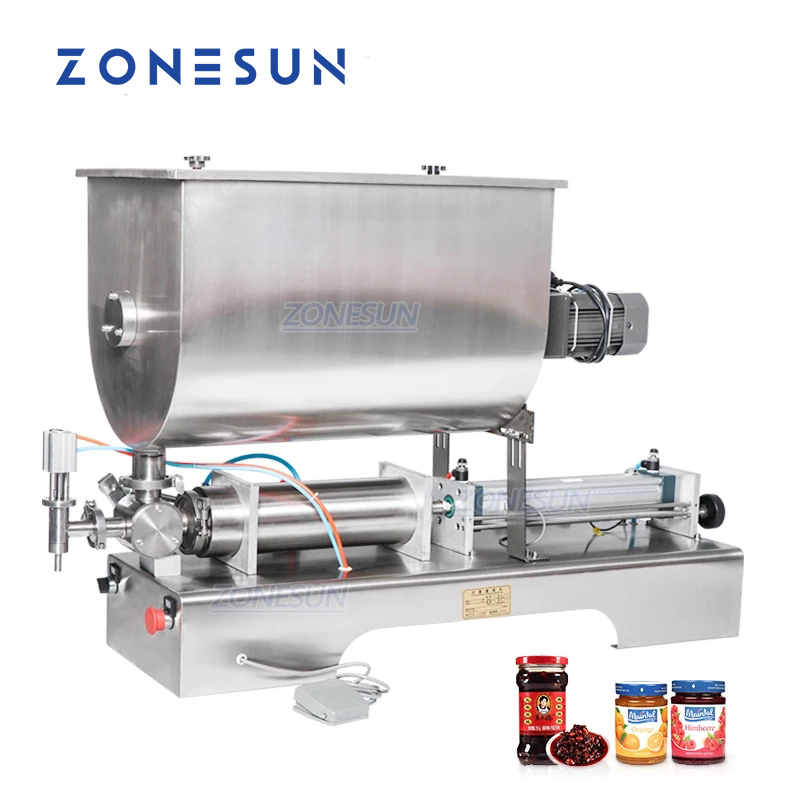

ZONESUN ZS-GTU1 Semi-Automatic Pneumatic Paste Filler Machine with Auto Mixer & Multi-Nozzles for High Viscosity Liquids
ZONESUN ZS-GTU1 Semi-Automatic Pneumatic Paste Filler Machine with Auto Mixer & Multi-Nozzles for High Viscosity Liquids
Couldn't load pickup availability
Description
The ZONESUN ZS-GTU1 pneumatic filling machine is designed for high viscosity materials such as honey, sauces, chili sauce, bean paste, sesame sauce and so on.Equipped with a built-in mixing function, it ensures consistent texture and flow during operation. Available with 1, 2, or 4 customizable filling nozzles, this machine supports a wide range of filling volumes from 10ml to 5000ml. Its pneumatic system delivers accurate dosing with ≤1% deviation, making it ideal for food, cosmetic, and chemical industries. Compact yet powerful, it operates at speeds of 8–25 bottles per minute and is compatible with both 110V and 220V power supplies.This one is designed with mixing function and it can mix paste automatically.
| Specification | Details |
|---|---|
| Machine Model | ZS-GTU1 |
| Voltage | 220V / 110V |
| Filling Nozzles | 1 / 2 / 4 nozzles (customizable) |
| Filling Range | 10–100 ml / 10–200 ml / 30–300 ml / 50–500 ml / 100–1000 ml / 500–2500 ml / 1000–5000 ml |
| Filling Speed | 8–25 bottles/min |
| Filling Accuracy | ≤1% |
| Air Pressure | 0.4–0.6 MPa |
| Machine Size (L×W×H) | 1130 × 315 × 740 mm |
| Net Weight | 54.5 kg |
| Packing Size (L×W×H) | 1280 × 515 × 810 mm |
| Gross Weight | 76 kg |
Applications
1. Food & Beverage Industry
Ideal for packaging various viscous food products, condiments, and spreads while maintaining food safety standards and uniform texture:
- Sauces & Condiments: Chili sauce, hot sauce, table sauces, tomato paste, ketchup, mayonnaise, salad dressing, mustard, and barbecue sauce.
- Spreads & Pastes: Honey, peanut butter, sesame paste, tahini, fruit jam, chocolate syrup, condensed milk, and bean paste.
- Oils & Extracts: Thick edible oils, oyster sauce, and concentrated flavor extracts.
2. Cosmetics & Daily Chemical Industry
Provides clean, precise, and efficient filling for personal care items and viscous beauty formulations:
- Skincare & Haircare: Facial creams, body lotions, moisturizing gels, shampoos, hair conditioners, and hair masks.
- Hygiene & Oral Care: Toothpaste, liquid soaps, facial cleansers, and shower gels.
3. Industrial & Chemical Sector
Suited for packaging thick chemical substances and industrial compounds requiring accurate quantitative dispensing:
- Adhesives & Sealants: Industrial glues, silicone sealants, and paste adhesives.
- Lubricants & Pastes: Grease, lubricating pastes, and high-viscosity chemical coatings.

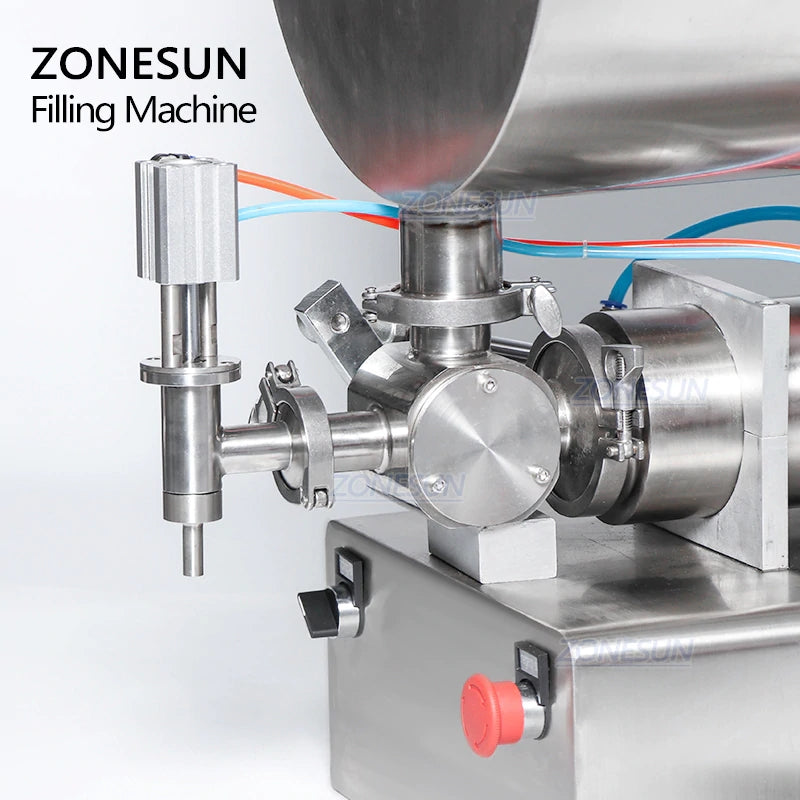

FILLING NOZZLE
- Anti-Dripping Fine Steel Nozzle: Features a professional anti-dripping fine steel nozzle that shuts off instantly, ensuring stable, accurate paste filling with zero post-fill leaks.
- Adjustable Filling Volume: Precision-engineered pneumatic volume calibration ensure the filling volume is fully adjustable to match various bottle profiles and capacities.
- Scalable 1/2/4 Nozzle Options: Built with exceptional modular flexibility, the system is available in 1, 2, or 4 nozzle options to seamlessly scale up with your daily output targets.

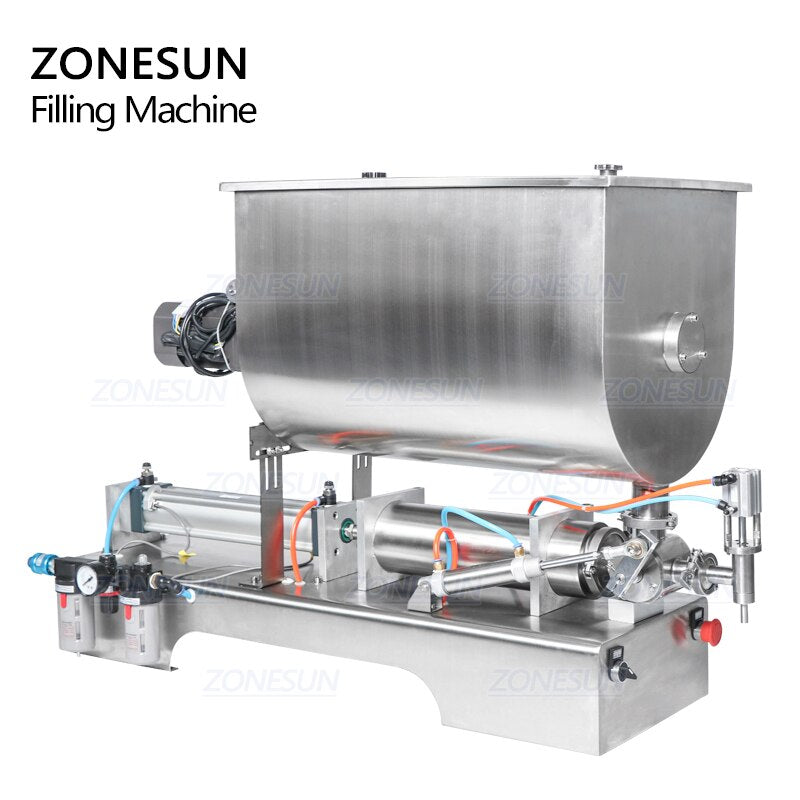

MIXING HOPPER
- Ribbon Rotary Vane Bracket: Engineered with a scientific rotary vane bracket layout that mixes paste uniformly, thoroughly eliminating dead zones.
- Flawless Flawless Sedimentation Prevention: Continuous, gentle mechanical folding effectively prevents composite elements or thick pastes from separating and sedimenting, guaranteeing absolute output dosing consistency.
- Adjustable Dynamic Viscosity Speed: Features highly adjustable velocity configurations, ensuring the mixing speed is fully adjustable to match different fluid viscosities flawlessly—from light creams to heavy pastes.

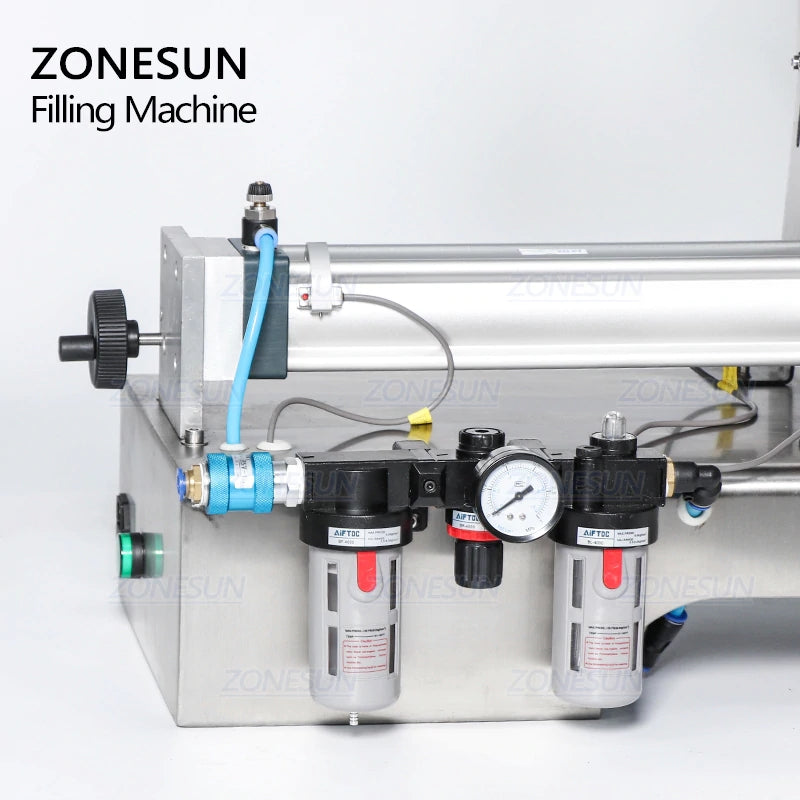

FILLING CYLINDER
- Consistent Volumetric Filling: Engineered with a heavy-duty pneumatic piston that perfectly controls paste intake and discharge for consistent volumetric filling, eliminating measurement drift completely.
- Visual Scale Micro-Adjustments: Outfitted with a high-contrast blue anodized ruler, ensuring the filling volume is fully adjustable and can be instantly observed and calibrated by the integrated scale.
PEDAL SWITCH
- Easier Calibrations Control: Specially engineered to enable much easier control during daily machine working and testing operations, ensuring a near-zero learning curve for operators.
- Hands-Free Operation: Tactile foot-pedal control drives effortless single-cycle triggers, leaving the operator's hands 100% focused on material alignment and container handling.
- Seamless Automatic Transition: Fully synchronized with the central terminal; after data setting, the system can trade smoothly into automated operation for continuous high-speed workflows.
MOTOR
-
Rock-Solid Stable Operation: Built with a premium-grade heavy-duty motor, guaranteeing continuous and stable operation under full loads to deliver unwavering mechanical force.
- Elite Low-Noise Performance: Features precise dynamic balancing calibrations, delivering supreme low-noise performance that effectively eliminates workplace acoustic fatigue.
