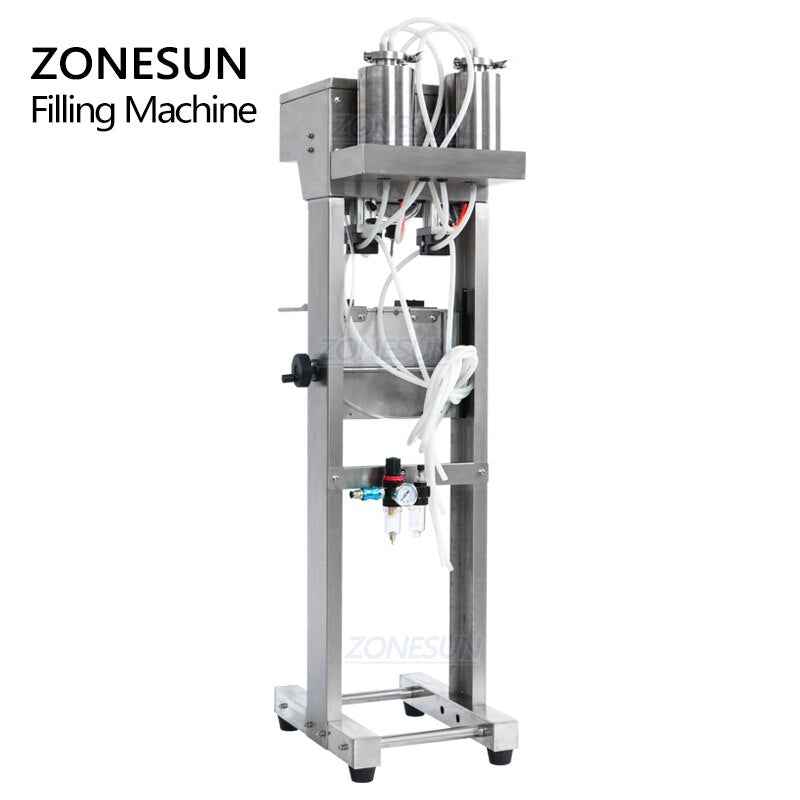

ZONESUN ZS‑G400 Pneumatic Vacuum Liquid Filling Machine for Perfume
ZONESUN ZS‑G400 Pneumatic Vacuum Liquid Filling Machine for Perfume
Couldn't load pickup availability
Description
The ZONESUN ZS‑G400 is a pure pneumatic vacuum liquid filling machine that requires no electricity, making it safe and fragrance‑friendly — perfect for perfume, essential oils, and other aromatic liquids. Using the vacuum constant liquid level principle, it ensures every bottle is filled to the same height, regardless of volume. This precision system is also suitable for beverages, cosmetics, and light industrial liquids. Durable, easy to operate, and adaptable for small‑scale production or artisanal workshops, it’s a reliable choice for consistent, spill‑free filling.
Parameter
| Model | Liquid Filling Machine – Multi‑Head |
|---|---|
| Air Pressure | 0.5 – 0.8 MPa |
| Liquid Level Accuracy | ± 1 mm |
| Viscosity Range | Max applicable viscosity 20 Cps (static viscosity) |

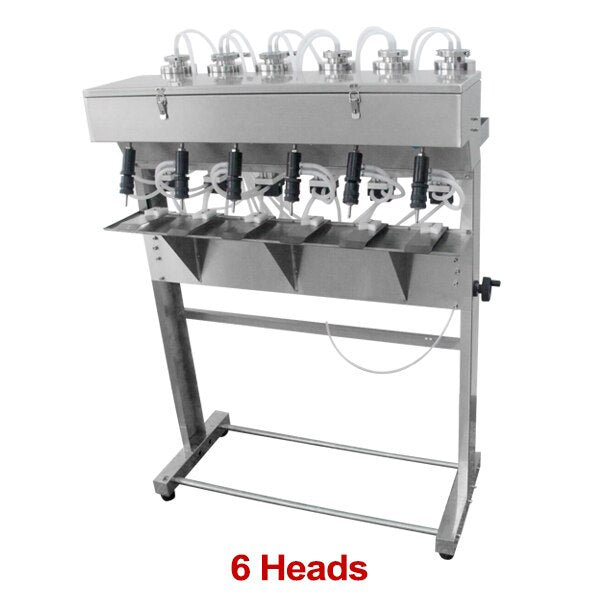

| Speed | 2 Heads: 20 bottles/min<br>4 Heads: 40 bottles/min<br>6 Heads: 60 bottles/min |
| Bottle Height | ≤ 250 mm |
| Bottle Opening Size | φ5 mm ~ φ28 mm |
| Adjustable Liquid Level (from bottle mouth) | 15 – 50 mm |
| Package Size (mm / Weight) | 2 Heads: 1350 × 380 × 460 / 30.5 kg<br>4 Heads: 1350 × 770 × 480 / 45 kg<br>6 Heads: 1060 × 1390 × 520 / 83 kg |
| Pumping Rate | 5.5 L/s |
Application

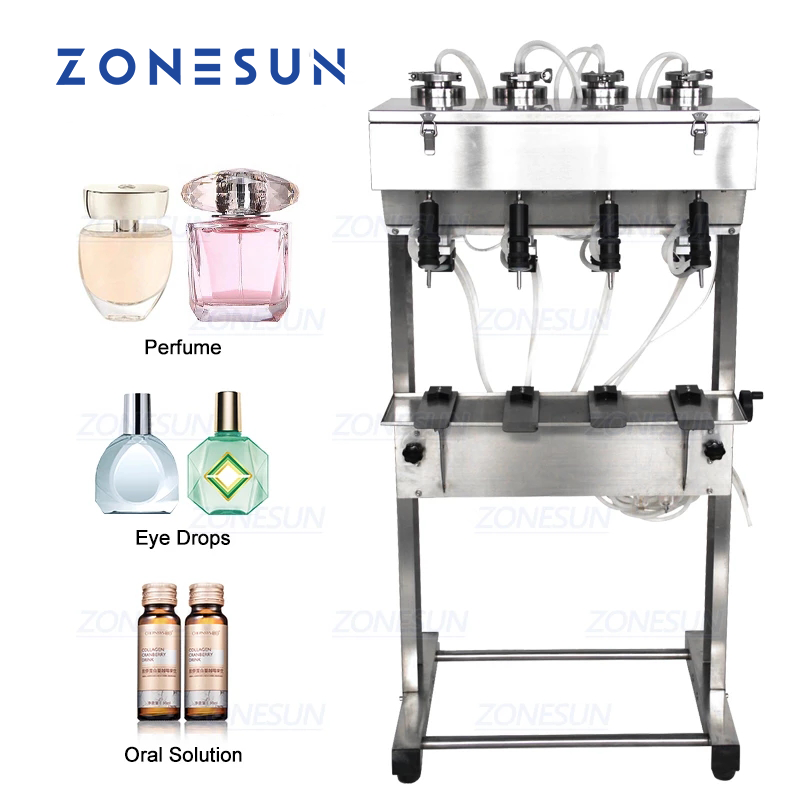

This machine is mainly used for filling small doses of liquid materials such as toilet water, perfume, skin care water, eye drops, oral liquid, sesame oil, fruit juice drinks, carbonated drinks, mineral water, purified water, alcohol, battery liquid, detergent, etc.
The main power of this machine is air source, customers need to buy the air compressor separately.
