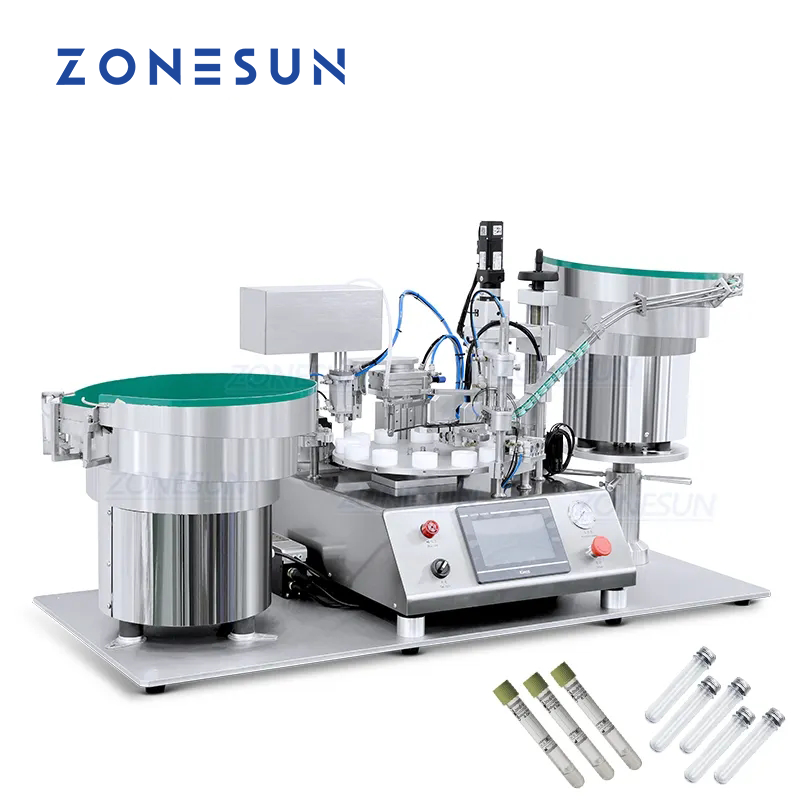

ZONESUN ZS-AFC16 Automatic Ceramic Pump Tube Filling Capping Machine
ZONESUN ZS-AFC16 Automatic Ceramic Pump Tube Filling Capping Machine
Regular price
$13,667.49 USD
Regular price
Sale price
$13,667.49 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The ZONESUN ZS-AFC16 is a compact, desktop-style automatic filling and capping machine designed for precision liquid packaging. Featuring a high-accuracy ceramic plunger pump, it’s ideal for filling solvents, reagents, and other low-viscosity liquids. The integrated vibratory bowl sorter automates the feeding of caps and tubes, significantly enhancing operational efficiency. This machine is perfect for laboratories, cosmetic manufacturers, and small-scale production environments requiring reliable and consistent tube filling and sealing.
Parameter
| Machine Model | ZS-AFC16 |
|---|---|
| Voltage | 220V 50–60Hz |
| Power | About 300W |

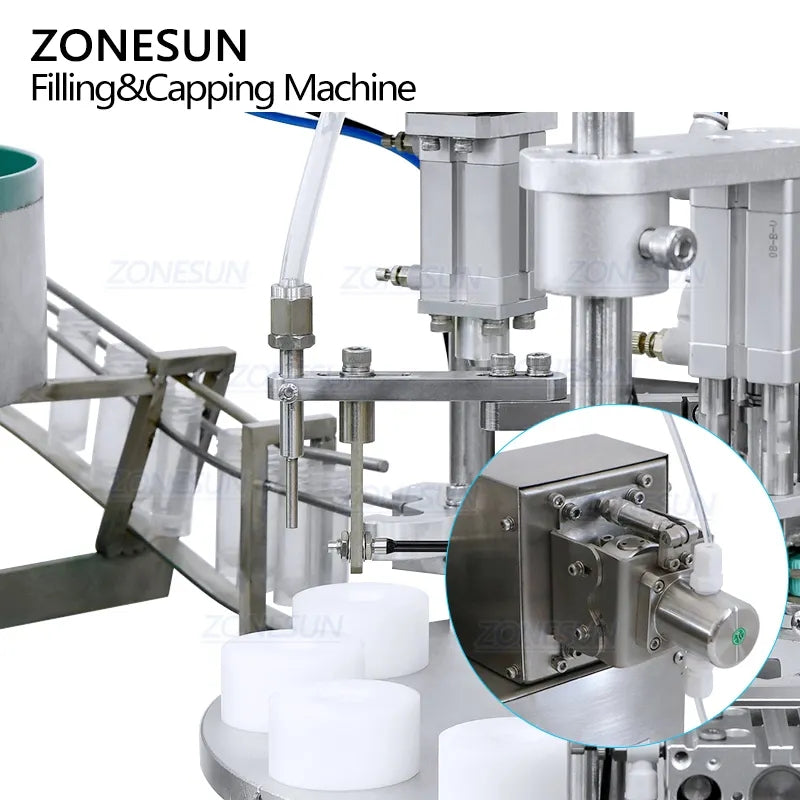

| Filling Pump | Ceramic Plunger Pump |
| Production Capacity | About 22–28pcs/min (depending on liquid and bottle size) |
| Filling Range | Can be customized |
| Filling Accuracy | ±≤0.5 |
| Suitable Bottle Size | Can be customized |
| Air Pressure | 0.4–0.6MPa |
| Machine Size | About 1460×630×720mm |
| Machine Weight | About 200kg |
Applications
- Pharmaceutical & Medical Diagnostics: Precision filling of diagnostic reagents, PCR reaction buffers, blood collection tubes, cell culture media, and test kit liquids into microcentrifuge tubes or cryovials.
- Cosmetics & Personal Care: Ideal for high-end skincare serums, essential oils, perfume sample vials, facial oils, and ampoules that require accurate dosing and tight sealing.
- Chemical & Laboratory Dosing: Perfect for handling organic solvents, fine liquid chemicals, e-liquids, biological samples, and laboratory reagents with strict volumetric accuracy requirements.
Suitable Container & Closure Types:
- Containers: Plastic test tubes, reagent vials, glass ampoules, small dropper bottles, cryotubes, and micro-vials.
- Caps/Closures: Screw caps, plastic plugs, snap caps, and rubber stoppers (customizable vibratory feeder bowl designed per your exact bottle/cap specifications).

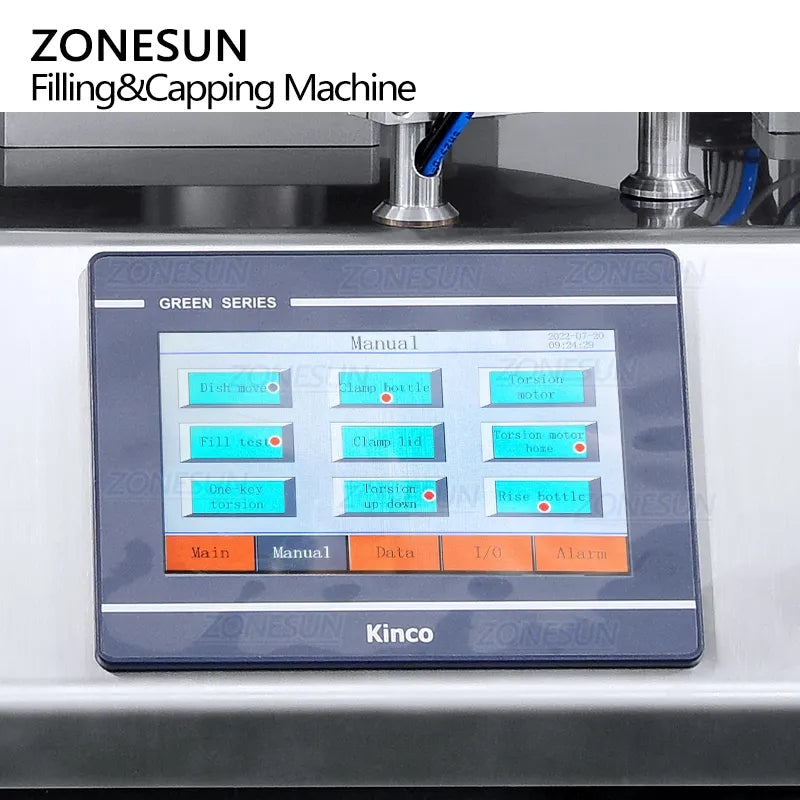

- Intelligent PLC Control Panel: Built with a premium touchscreen interface that makes it easy to set or adjust working parameters on the fly. The screen language can be fully customized as your need to match global trade standards.

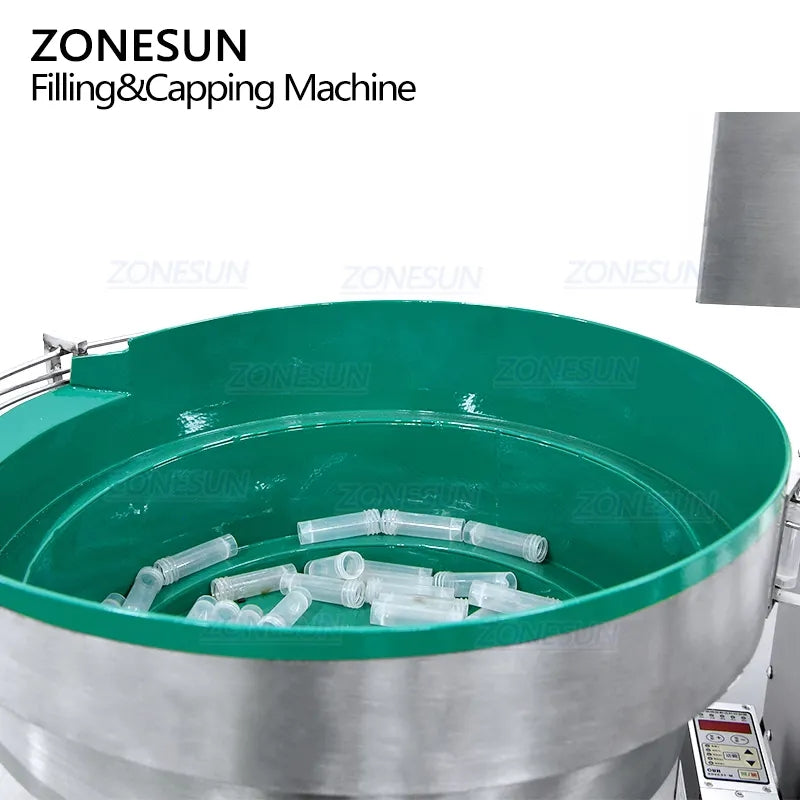

- Automated Vibratory Bowl: Specially designed for sorting and feeding test tubes, seamlessly organizing items to save manual labor and drastically improve production efficiency.
- Customizable Product Scaling: The sorting bowl is highly flexible and can be customized according to your product size, ensuring total compatibility with different containers.

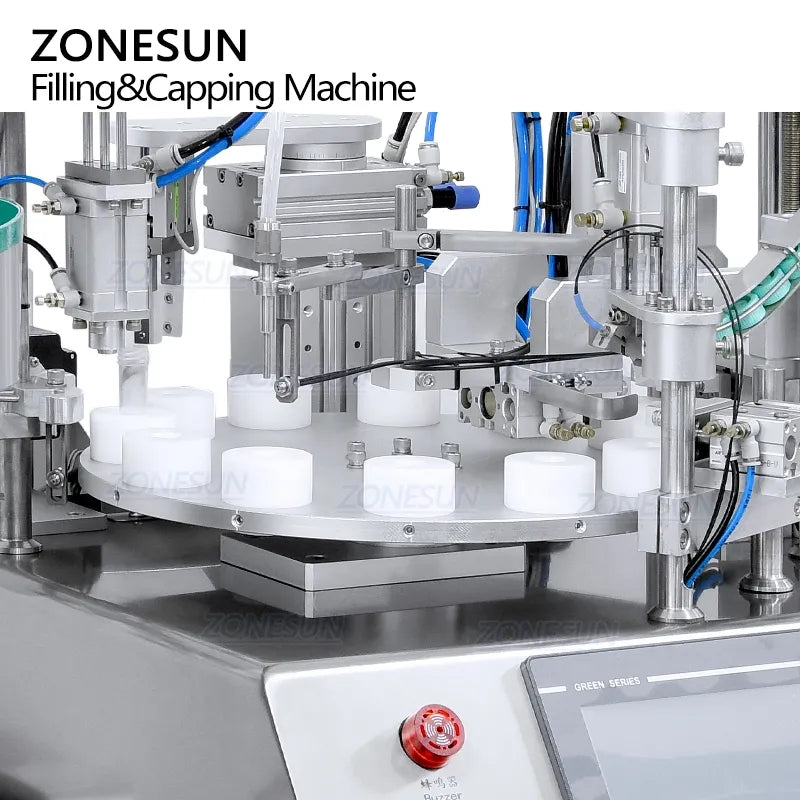

- Secure Fixing & Transit: The rotary plate is designed for fixing test tubes and conveying them during production, ensuring rock-solid stability at every station.
- Tailored Product Scaling: Features highly versatile formatting molds that can be customized according to product size, perfectly fitting your unique container specifications.
- Seamless Synchronized Workflow: Provides the ideal foundation to bridge feeding, filling, capping, and discharging into a continuous, non-stop automated line.
