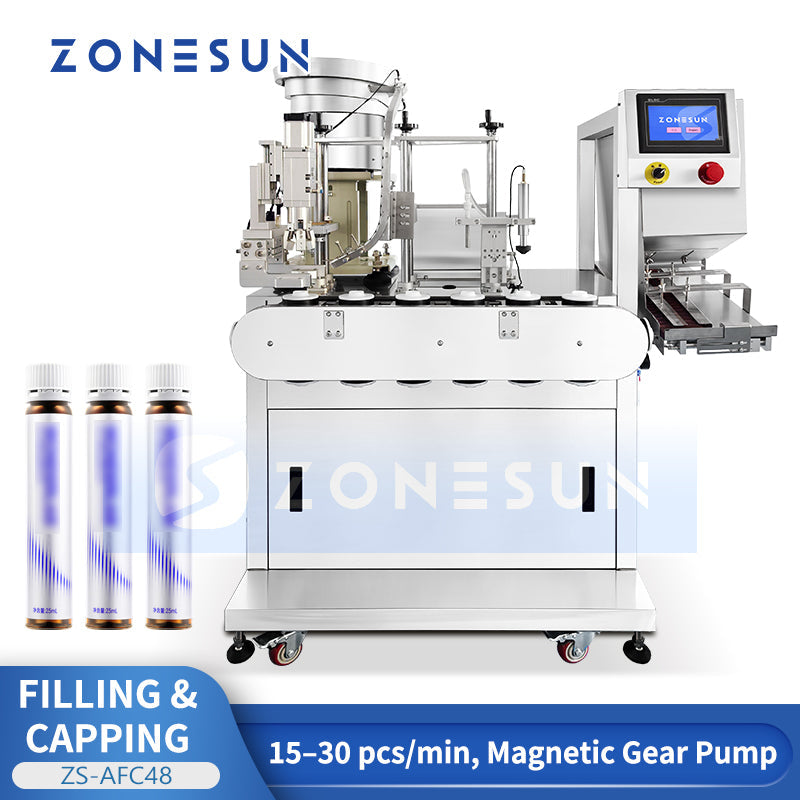

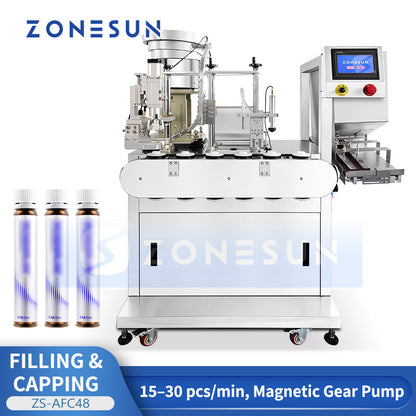

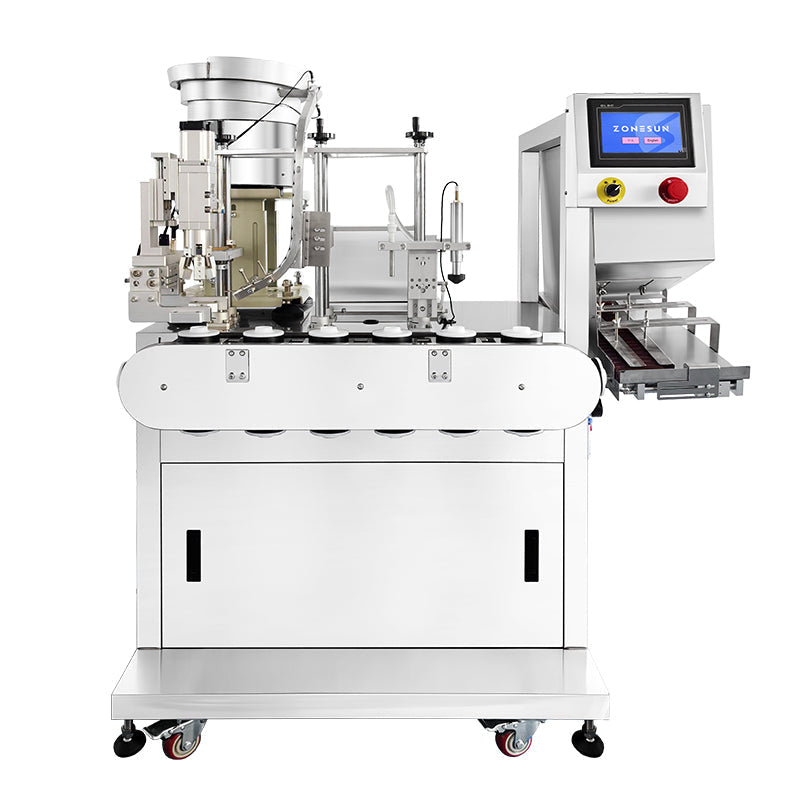

ZONESUN ZS-AFC48 Automatic Small Bottle Tube Oral Liquid Bottles Filling and Capping Machine

ZONESUN ZS-AFC48 Automatic Small Bottle Tube Oral Liquid Bottles Filling and Capping Machine

Regular price $9,855.00 USD
Regular price $0.00 USD Sale price $9,855.00 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

Description

The ZONESUN ZS-AFC48 is a compact, fully automatic filling and capping machine engineered for precision filling and reliable sealing of small bottles. It integrates bottle feeding, servo-controlled magnetic gear pump filling, cap sorting and feeding, and servo-driven capping into a streamlined packaging system. The advanced servo system ensures high filling accuracy and consistent torque control during capping. Ideal for cosmetics and chemical production lines, can be customized to accommodate various bottle formats and meet diverse production requirements.



Parameter

Parameter Specification / Value
Model ZS-AFC48
Voltage 220V / 110V, 50–60Hz
Power 3 kW
Working Speed About 15–30 pcs/min (depending on filling range and materials)
Minimum Filling Volume 3 ml
Filling Pump Magnetic Gear Pump
Filling Accuracy ±1%
Bottle Diameter Ø15–50 mm
Bottle Height 50–250 mm (customizable)
Air Pressure 0.6–0.7 MPa
Machine Size About 1200 × 800 × 1200 mm
Machine Weight About 220 kg
ZONESUN ZS-AFC48 Compact Auto Filling and Capping Machine for Small Bottles in Cosmetics & Chemicals
ZONESUN ZS-AFC48 Compact Auto Filling and Capping Machine for Small Bottles in Cosmetics & Chemicals

Applications

The ZONESUN ZS-AFC48 automatic filling and capping machine is specifically designed for low to medium-viscosity liquids housed in small bottles, vials, and tubes. Its versatile, customizable mold design and precise dosing make it an ideal choice for multi-industry packaging needs, including:

  • Pharmaceuticals & Healthcare: Oral liquid solutions, syrup bottles, liquid supplements, reagent vials, tincture bottles, and eye drop containers.
  • Cosmetics & Personal Care: Facial serums, essential oils, liquid perfumes, sample-size tubes, lotion vials, and cosmetic oils.
  • Chemicals & Specialty Liquids: E-liquids, liquid flavorings, laboratory reagents, specialty chemical additives, and concentrated extracts.
ZONESUN ZS-AFC48 Compact Auto Filling and Capping Machine for Small Bottles in Cosmetics & Chemicals
ZONESUN ZS-AFC48 Compact Auto Filling and Capping Machine for Small Bottles in Cosmetics & Chemicals

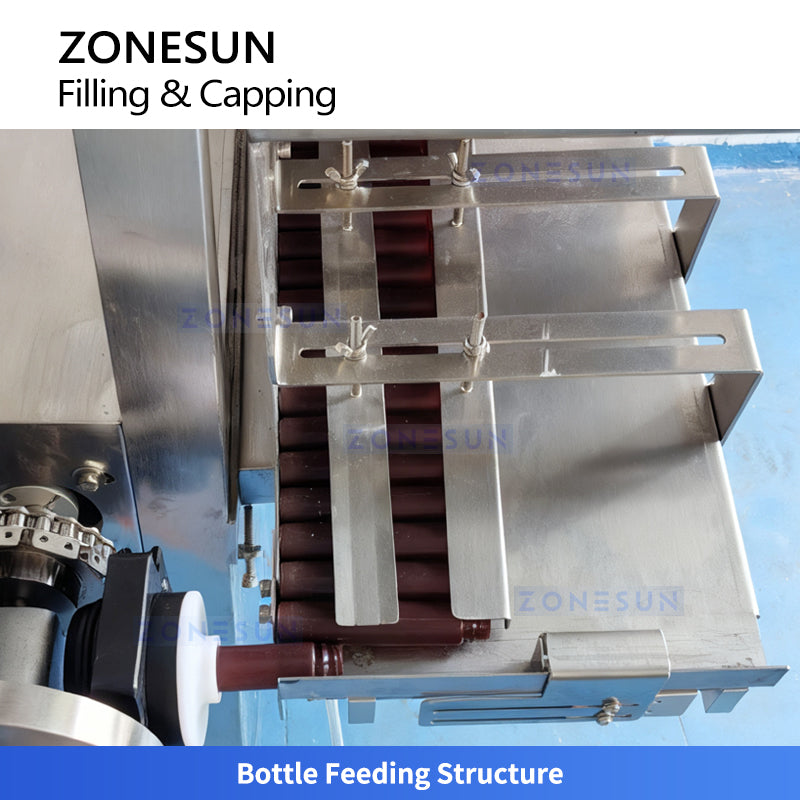

ZONESUN ZS-AFC48 Compact Auto Filling and Capping Machine for Small Bottles in Cosmetics & ChemicalsBOTTLE FEEDING

  • Flawless Automated Mold Nesting: The custom guide rails are engineered to sync perfectly with the downstream fixing molds. Bottles travel smoothly and lock into their designated positions with zero jamming or tilting.
  • Optimized for Micro & Small Vials: Specifically engineered to tackle the challenges of handling small bottles, oral liquid vials, or mini cans, guaranteeing they stay perfectly upright and orderly during high-velocity feeding.
ZONESUN ZS-AFC48 Compact Auto Filling and Capping Machine for Small Bottles in Cosmetics & Chemicals

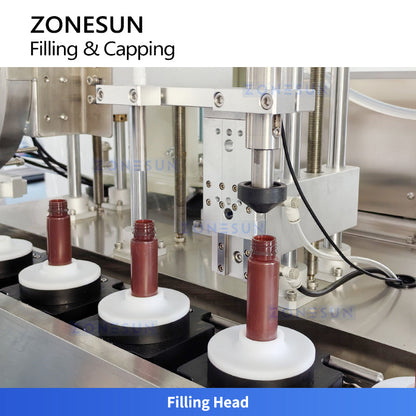

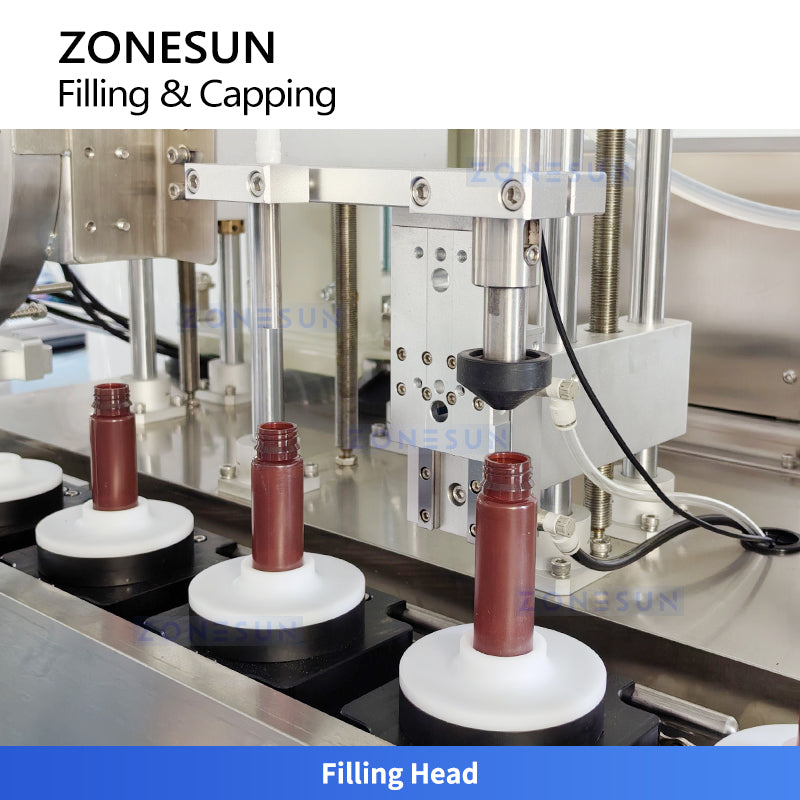

SERVO-DRIVEN FILLING HEAD

  • Servo Magnetic Gear Pump Technology: Provides highly uniform and ripple-free flow. The seal-less magnetic drive resists wear and corrosion, ensuring long-term, ultra-stable performance for both free-flowing and slightly viscous liquids.
  • Exceptional Metrological Accuracy: By tracking the precise rotation and speed of the servo motor, the system ensures flawless bottle-to-bottle volume consistency, minimizing product giveaway and avoiding costly overflows.
ZONESUN ZS-AFC48 Compact Auto Filling and Capping Machine for Small Bottles in Cosmetics & Chemicals

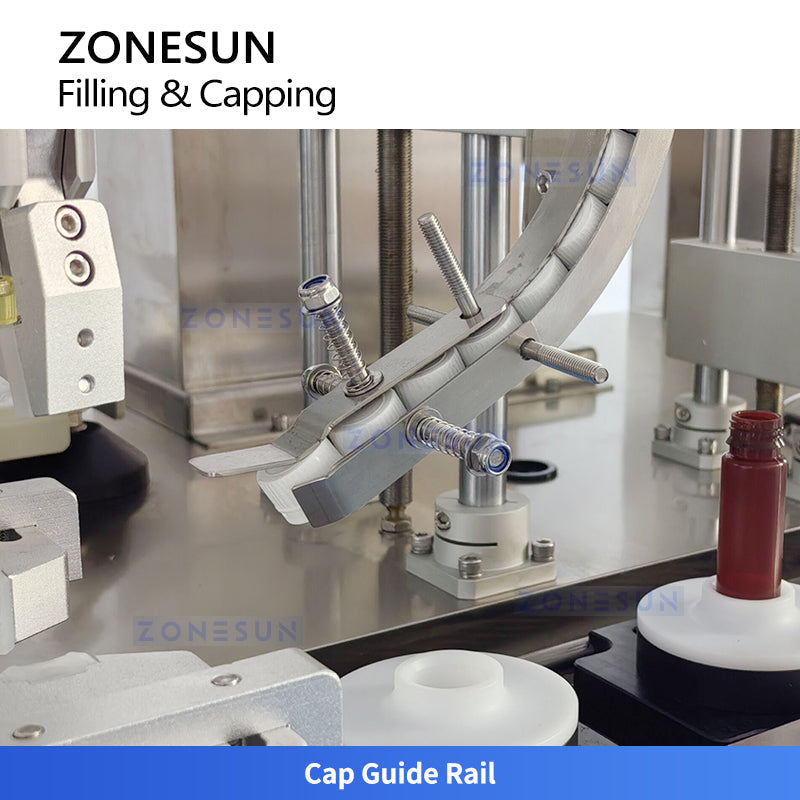

AUTOMATIC CAP GUIDE RAIL

  • Fully Automated High-Speed Feeding: Eliminate tedious manual cap placement! Caps glide down the track effortlessly, executing precision timing to drop onto the moving bottles below without breaking standard line speeds.
  • Tailor-Made to Your Exact Cap Specifications: Maximum structural flexibility! The rail width, curvature, and guiding clearance can be custom-engineered to perfectly match your specific cap geometry and dimensions.
ZONESUN ZS-AFC48 Compact Auto Filling and Capping Machine for Small Bottles in Cosmetics & Chemicals

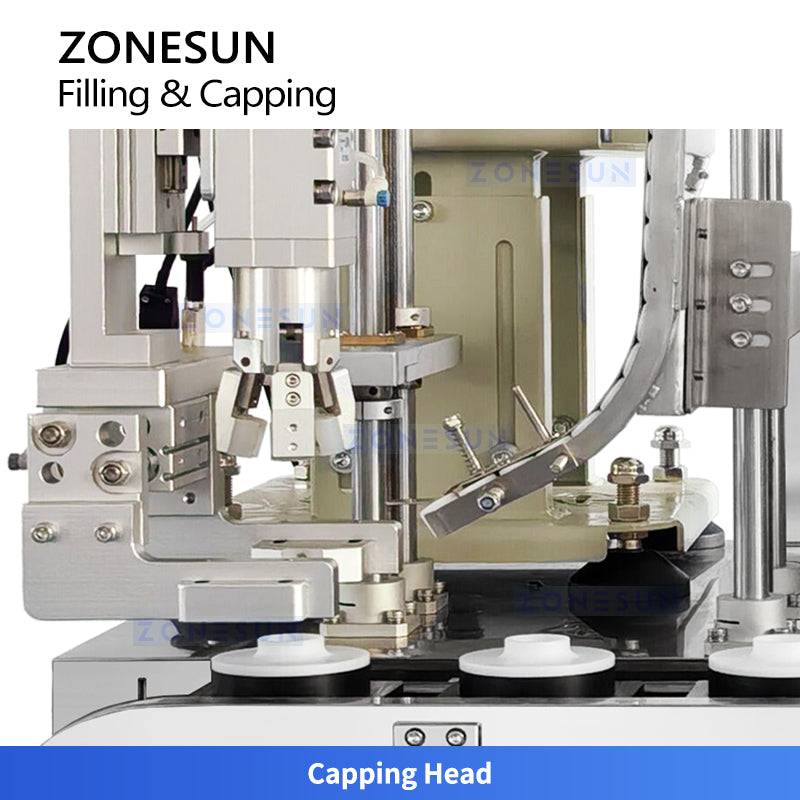

SERVO-DRIVEN CAPPING HEAD

  • Precision Servo Torque Regulation: The downward stroke and rotational force applied to every cap are meticulously calculated by the servo system, maintaining an unyielding, reliable torque standard across your entire batch.
  • Consistent, Damage-Free Tightness: The system intelligently ceases rotation once the exact pre-set torque threshold is met, entirely preventing scratches, scuffs, or structural distortion on your premium closures.
ZONESUN ZS-AFC48 Compact Auto Filling and Capping Machine for Small Bottles in Cosmetics & Chemicals

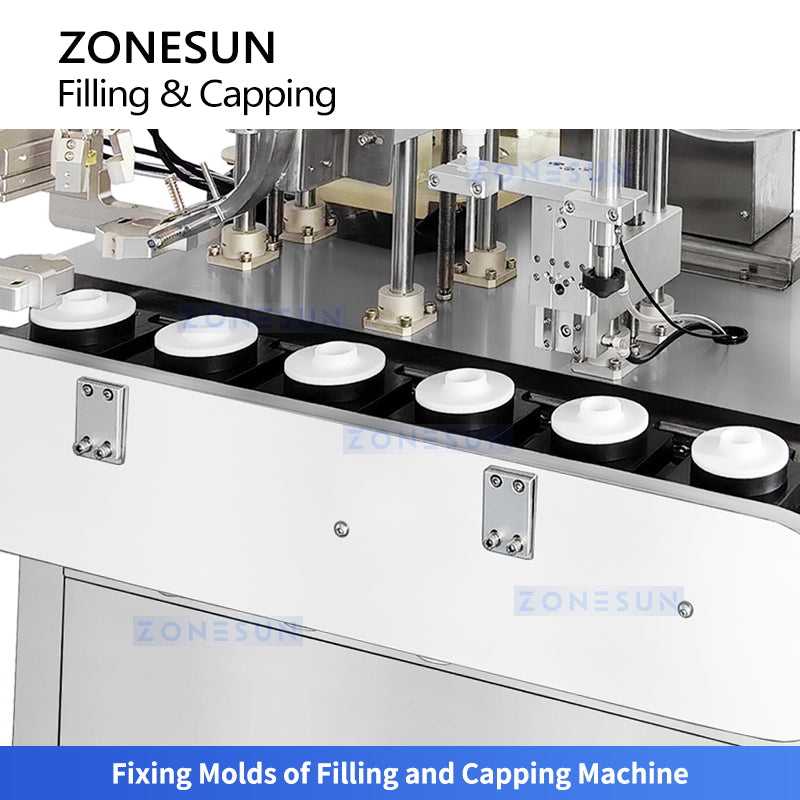

CUSTOMIZABLE FIXING MOLDS

  • 1-on-1 Dimensional Customization: Tailor-made flexibility! Whether your containers are round, square, miniature, or uniquely contoured, we custom-engineer each nest to perfectly match your specific dimensions for a 100% seamless, snug fit.
  • Rigid Anti-Wobble Micro-Nesting: Features an engineered recessed nest geometry. Even under high-frequency indexed indexing, containers stay dead-on vertical and concentric, entirely eliminating line jams or product spills.
ZONESUN ZS-AFC48 Compact Auto Filling and Capping Machine for Small Bottles in Cosmetics & Chemicals
ZONESUN ZS-AFC48 Compact Auto Filling and Capping Machine for Small Bottles in Cosmetics & Chemicals
