ZONESUN ZS-AFC9C Automatic Perfume Vacuum Bottle Filling and Capping Packaging Machine
ZONESUN ZS-AFC9C Automatic Perfume Vacuum Bottle Filling and Capping Packaging Machine
Couldn't load pickup availability
Description

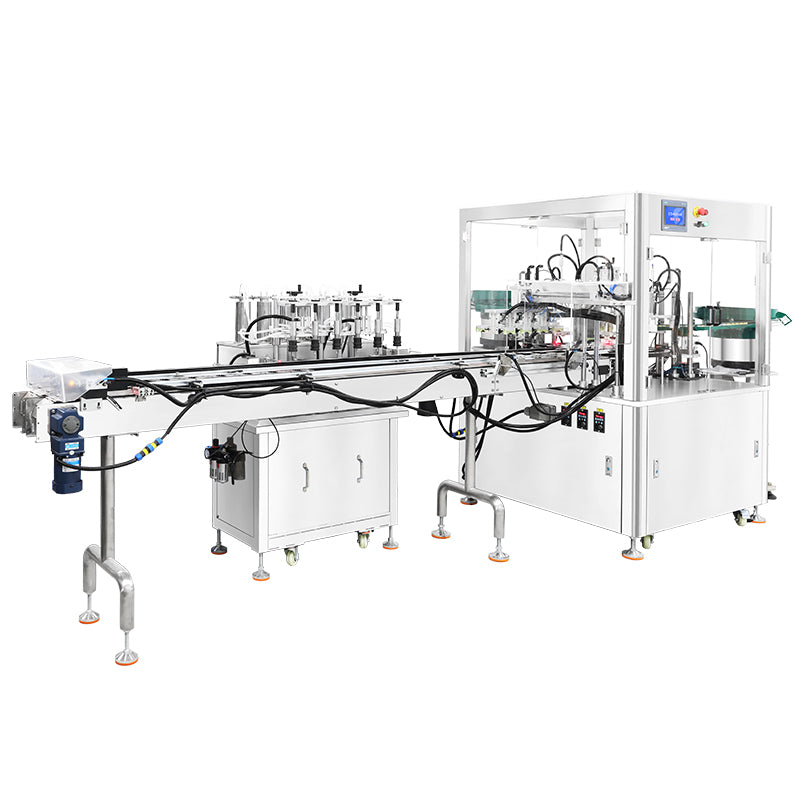

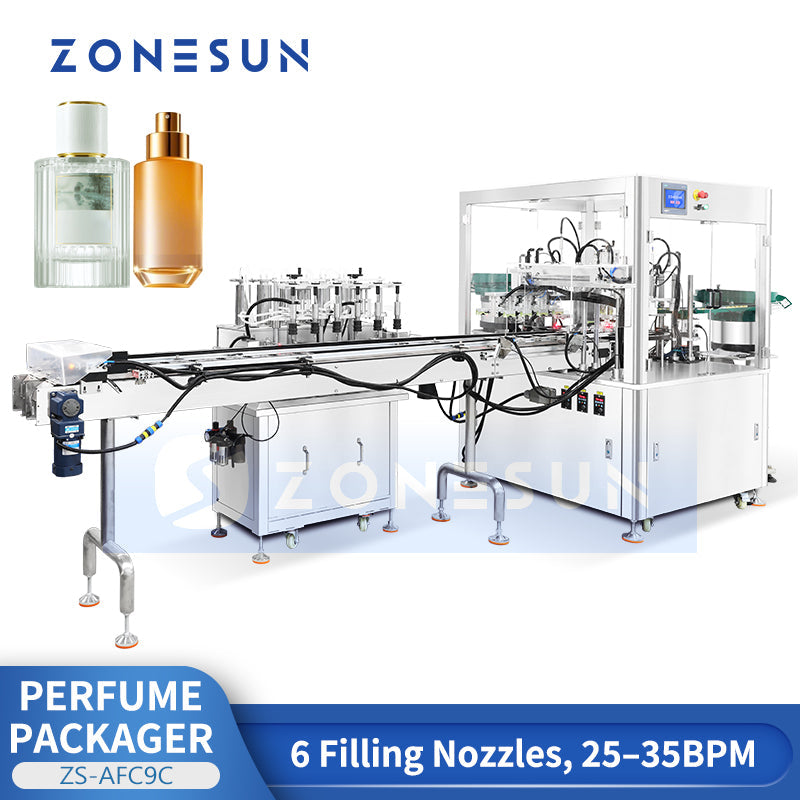

The ZONESUN ZS-AFC9C is a fully automatic perfume filling and capping line designed for high-speed, hygienic, and precise liquid packaging. It integrates bottle infeed, 6-head vacuum filling, pump head placement, screwing, cap placement, crimping, and cartoning into one streamlined system. Featuring a U-shaped conveyor track and vibratory bowl sorting system, it ensures smooth bottle transfer and accurate component positioning. With a production speed of 25–35 bottles per minute, it supports various bottle shapes and cap types, making it ideal for perfumes, essential oils, and cosmetic liquids in scalable production environments.
Parameter
| Parameter Item | Specification |
|---|---|
| Model | ZS-AFC9C |
| Bottle Type | Round bottles / Square bottles |
| Filling Volume Range | 10–200 ml |
| Filling Nozzles | 6 heads |
| Production Speed | 25–35 bottles/min |
| Applicable Bottle Diameter | 20–40 mm |
| Applicable Bottle Height | 60–120 mm |
| Cap Diameter for Capping | 15–50 mm (customizable) |
| Power Supply | AC 220V / 50 Hz |
| Power Consumption | 2.8 kW |
| Main Machine Dimensions | 2020 × 1580 × 1940 mm |
| Conveyor Dimensions | 3310 × 580 × 520 mm |
| Machine Weight | 1630 kg |
| Application Fields | Perfume / Cosmetics / Essential oils, etc. |
| Optional Modules | Bottle feeding / Capping / Crimping |

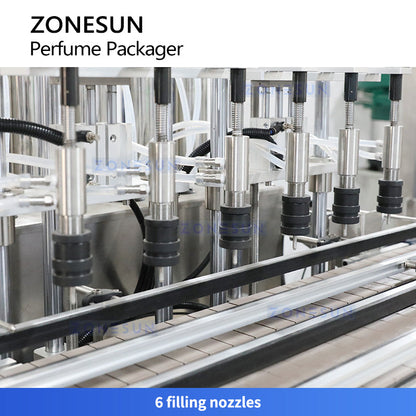

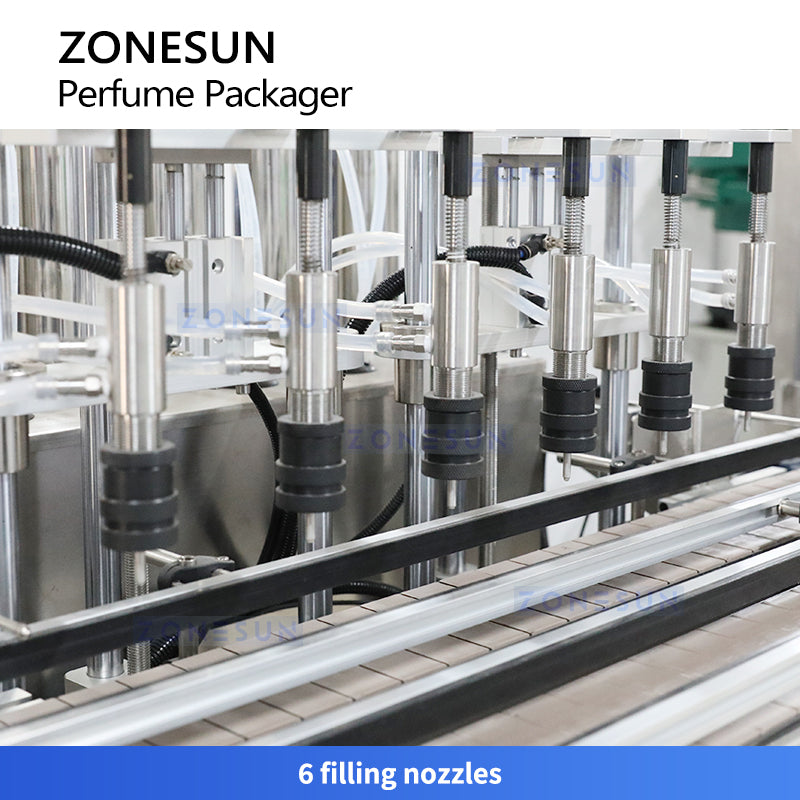

6 Filling Nozzles
Equipped with 6 synchronized pneumatic nozzles, this machine dispenses liquid into perfume bottles with ultra-high accuracy and efficiency—ensuring a clean, hygienic, and smooth packaging process every time.

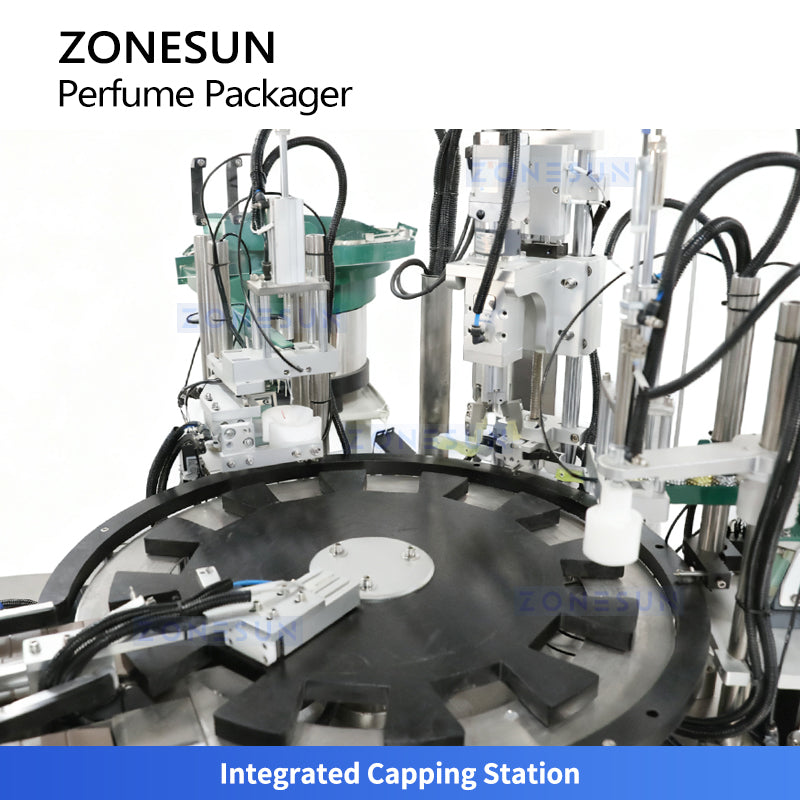

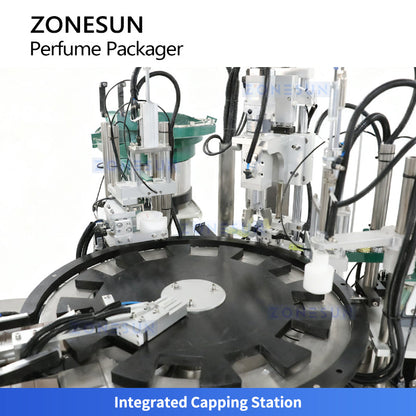

Integrated Capping System
Combines cap placement, screwing, and crimping into a single compact unit. Multi-station parallel operation boosts production speed and efficiency while maximizing floor space.

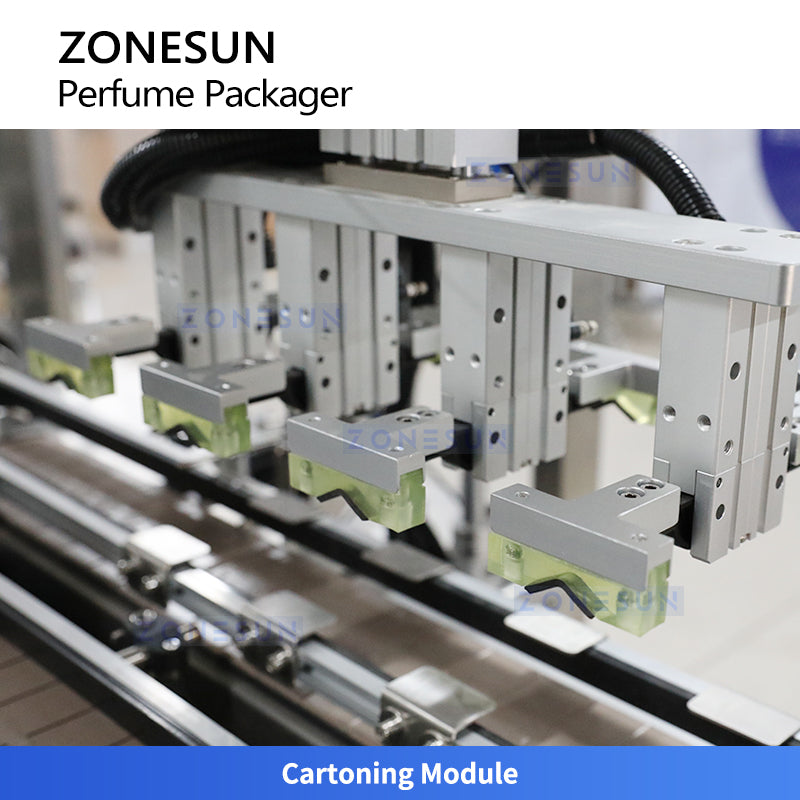

Automatic Cartoning Module
Automatically packs filled perfume bottles into cartons with precise alignment—ensuring fast, secure downstream logistics and optimal space utilization.

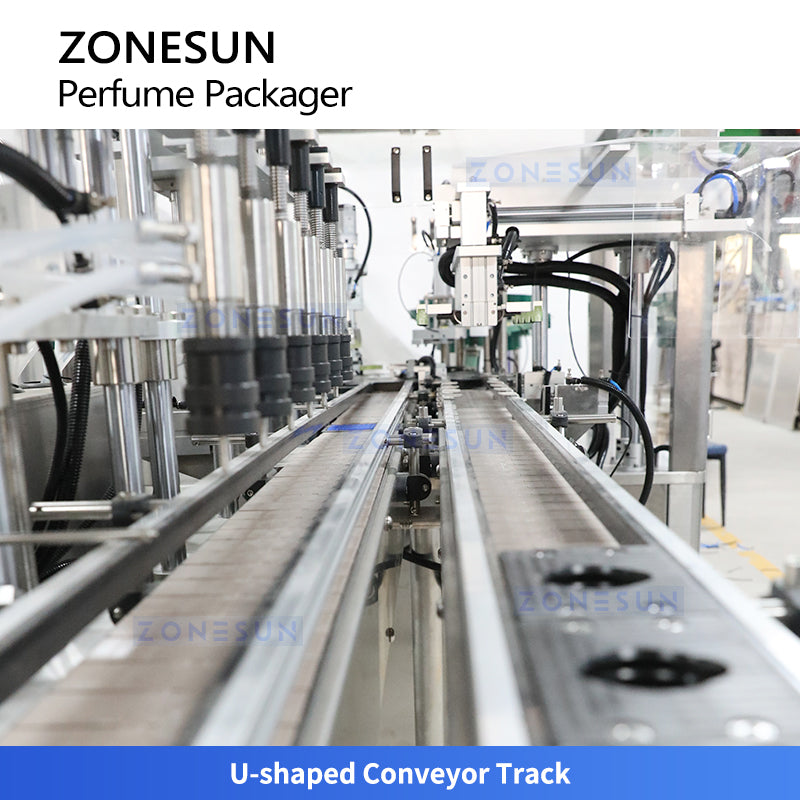

Compact U-Shaped Conveyor
Guides perfume bottles through a streamlined loop for efficient filling, precise positioning, and smooth workstation transfer while saving valuable floor space.
Transfer Pusher System
Assists perfume bottles in smoothly negotiating U-shaped track corners, ensuring continuous production flow and stable transfer without jams.

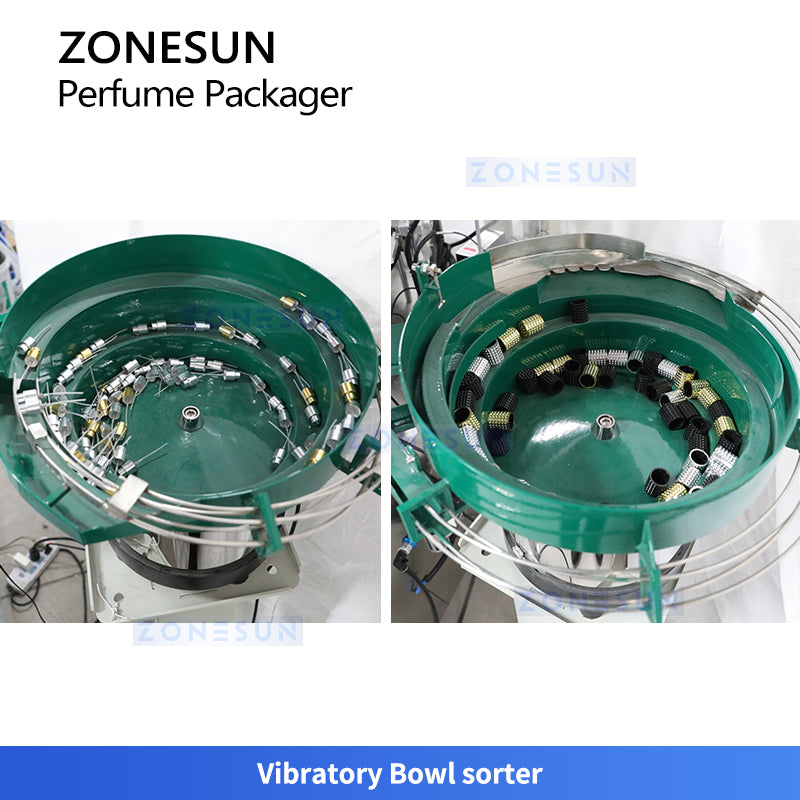

Automated Vibratory Bowl Feeder
