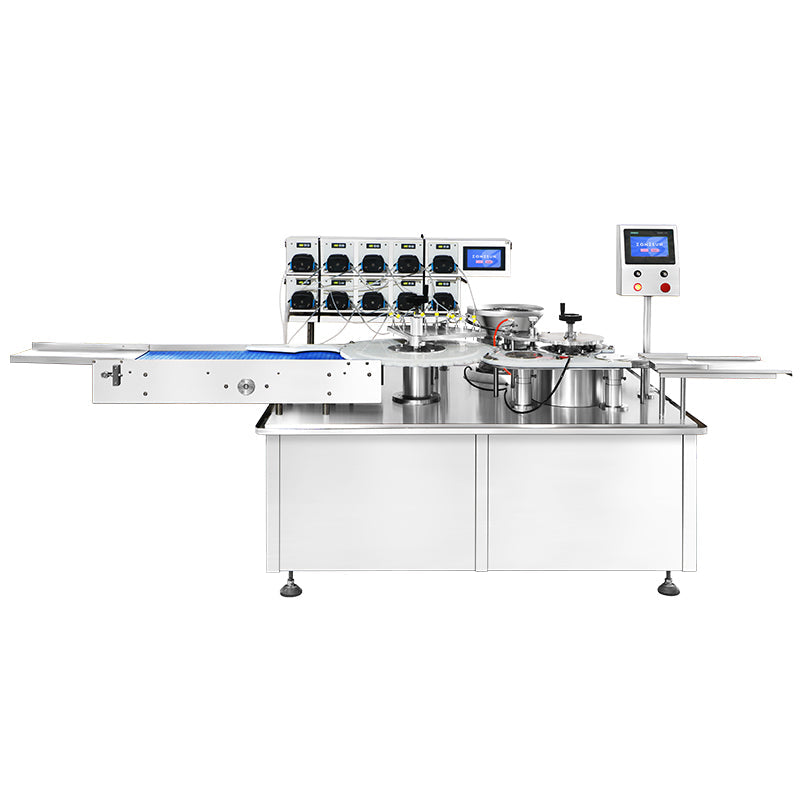

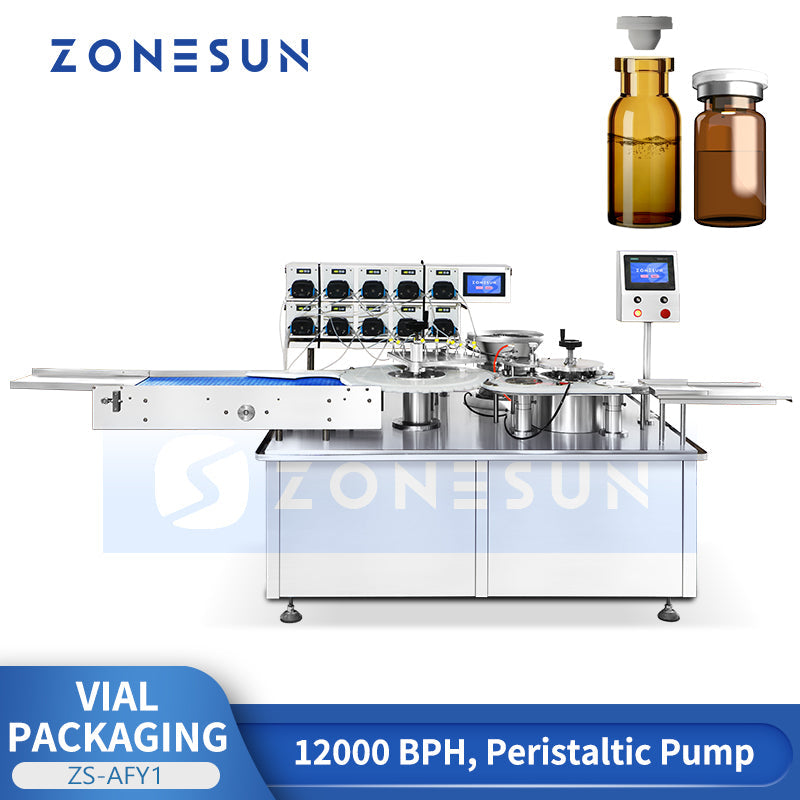

ZONESUN ZS-AFY1 Automatic Laboratory Vial Filling and Capping Machine Monoblock Equipment

Description

The ZONESUN ZS-AFY1 automatic vial packaging machine is designed for small or medium volume packaging production. It combines bottle unscrambling, liquid filling (peristaltic pump), stopper sorting and inserting, stopper pressing, and vial collection into one compact unit. Bottles are precisely transported via a star wheel mechanism, ensuring accurate positioning throughout the process. Ideal for working with vial crimping machines for a complete production.



Parameter

• Machine Model: ZS-AFY1
• Machine Voltage: 220V / 50Hz / 4 kW
• Filling Pump: Peristaltic Pump
• Filling Range: 2 ml (customizable)
• Filling Accuracy: ±1–2%
• Working Capacity: 12,000 BPH
• Suitable Bottle Size: Customizable
• Suitable Cap Size: Customizable
• Machine Size: About 3060 × 1380 × 1480 mm
• Package Size: About 2390 × 1420 × 1620 mm
• Package Weight: About 1147 kg

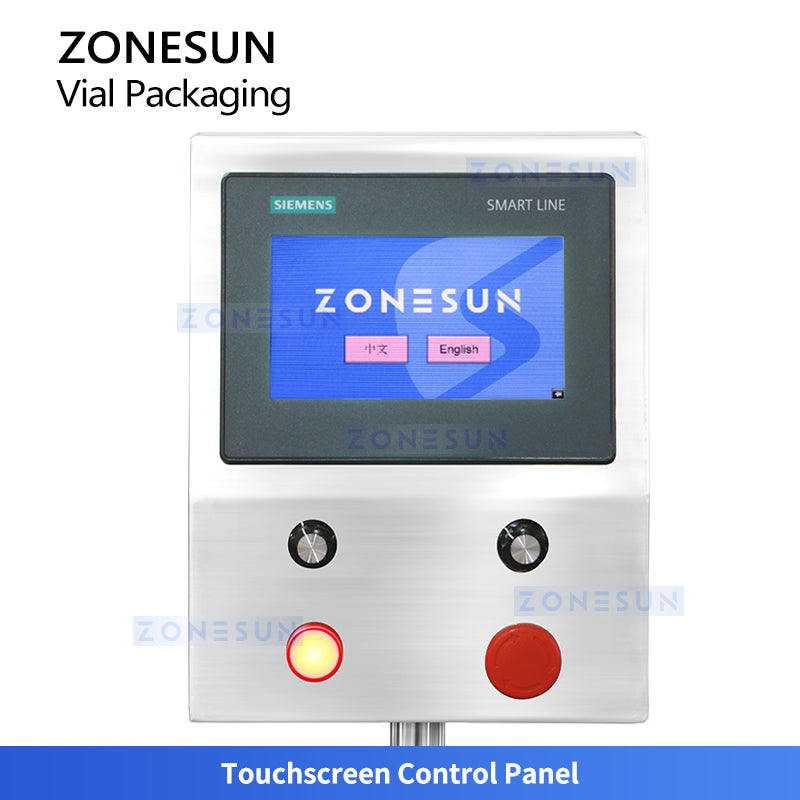

Control Panel

User-friendly interface for intuitive operation, parameter adjustment, and real-time monitoring.

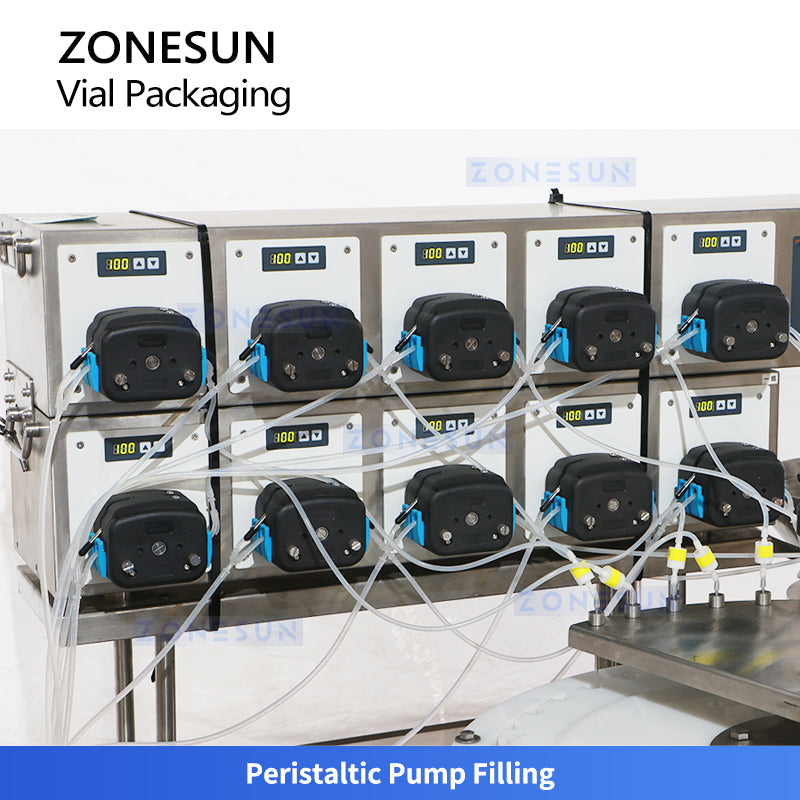

PERISTALTIC PUMP

Ensures high precision and clean dosing, ideal for material changeover and avoiding cross-contamination.

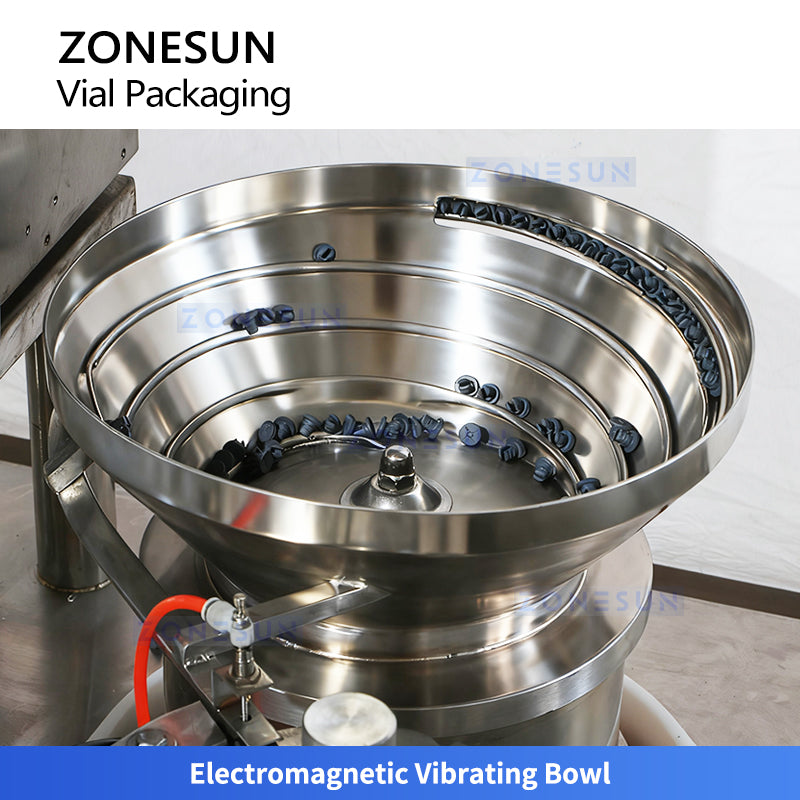

VIBRATING BOWL

Provides stable and low-noise feeding of rubber stoppers, improving working environment and accuracy.

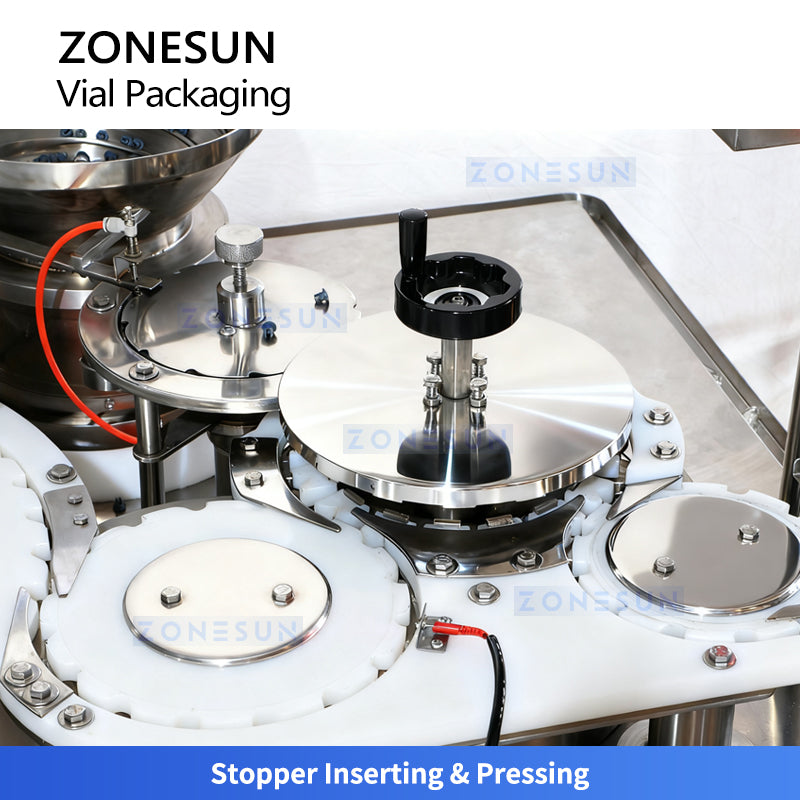

INSERTING & PRESSING

Equipped with precise alignment and pressing units, stopper pressing depth is fully adjustable.

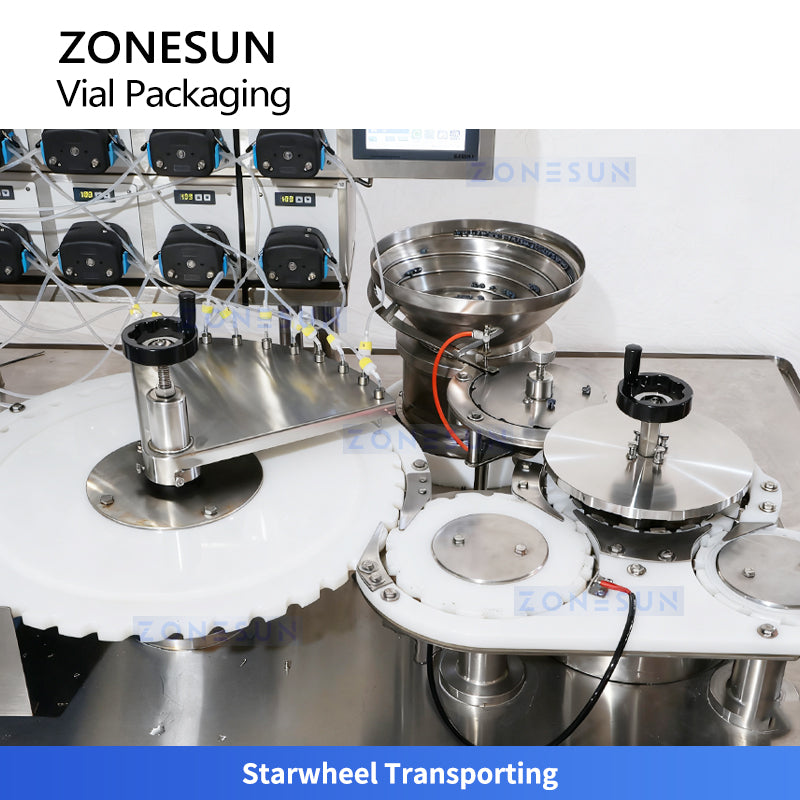

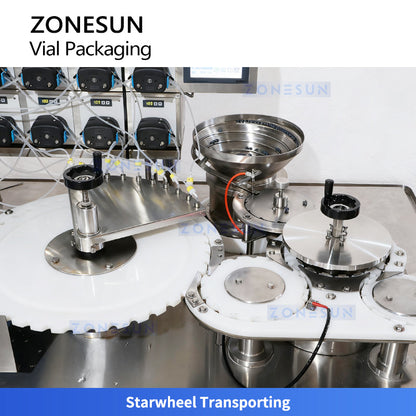

STARWHEEL TRANSPORTING

Bottles are conveyed smoothly and accurately via star wheel for synchronized processing across all stations.

COLLECTING TRAY

Finished vials are automatically collected at the discharge area or directed to a capping unit for further processing.
