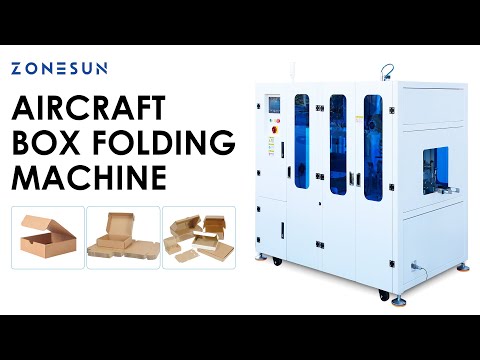

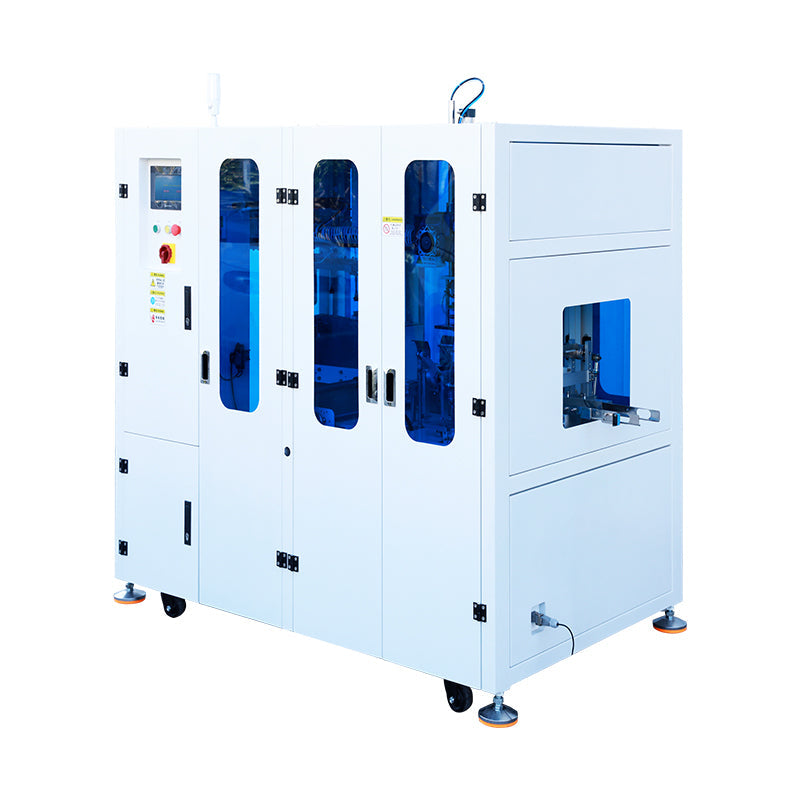

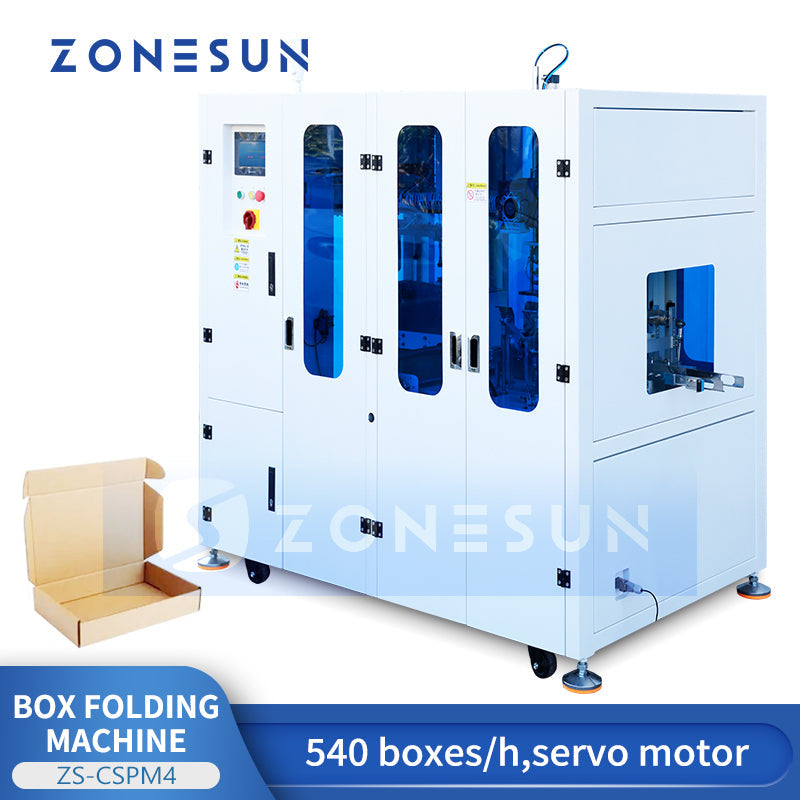

ZONESUN ZS-CSPM4 Automatic Corrugated Aircraft Box Folding Machine High-Speed Industrial Carton Former
ZONESUN ZS-CSPM4 Automatic Corrugated Aircraft Box Folding Machine High-Speed Industrial Carton Former
Regular price
$13,500.00 USD
Regular price
$0.00 USD
Sale price
$13,500.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The ZONESUN ZS-CSPM4 is a state-of-the-art automatic box folding machine engineered for high-efficiency corrugated box forming. It features automated shaping and folding of aircraft-style boxes without the need for extra materials. With intuitive operation and flexible adjustments for different carton sizes, it significantly cuts down on labor while enhancing speed and consistency in packaging workflows.
| ZS-CSPM4 Technical Specification | |
|---|---|
| Model | ZS-CSPM4 |
| Voltage Power | Single Phase 220V, 50Hz, 1000W |
| Control Voltage | DC 24V |
| Air Pressure | 0.6 MPa |
| Air Power Consumption | 250 NL/min |
| Folding Speed | 7–9 boxes/min (varies by carton size) |
| Applicable Carton Sizes | Small: 75×125×36 mm / Large: 123×125×35 mm |
| Bin Storage Capacity | 300 pieces (based on 1.5 mm thickness) |
| Machine Dimensions | L1800 × W1160 × H1700 mm (table height: 800 mm) |
| Machine Weight | 450 kg |
| Folding Size Error Range | ±0.2% |
| Carton Thickness | Single-layer corrugated paper ≥ 2 mm |
| Carton Strength | Bursting strength: ≥ 1370 KPa |
Applications
1. E-Commerce Fulfillment Centers
- Streamlines high-volume daily order processing by rapidly forming aircraft boxes (plane boxes) before packing, eliminating bottlenecks during peak sales seasons.
2. Electronics & 3C Accessories
- Delivers clean, uniform packaging for delicate electronics, phone accessories, and small gadgets where protective and professional presentation is essential.
3. Cosmetics & Personal Care
- Ideal for packaging beauty products, skincare sets, and gift boxes, maintaining a neat and high-end brand image right out of the box.
4. Food, Snacks, & Consumer Goods
- Ensures hygienic, reliable, and standardized carton preparation for various consumer retail goods and food packaging lines.
4.Express Delivery & 3PL Warehouses
- Designed for fast-paced logistics environments that require heavy-duty, continuous operation to handle diverse corrugated paper specifications.

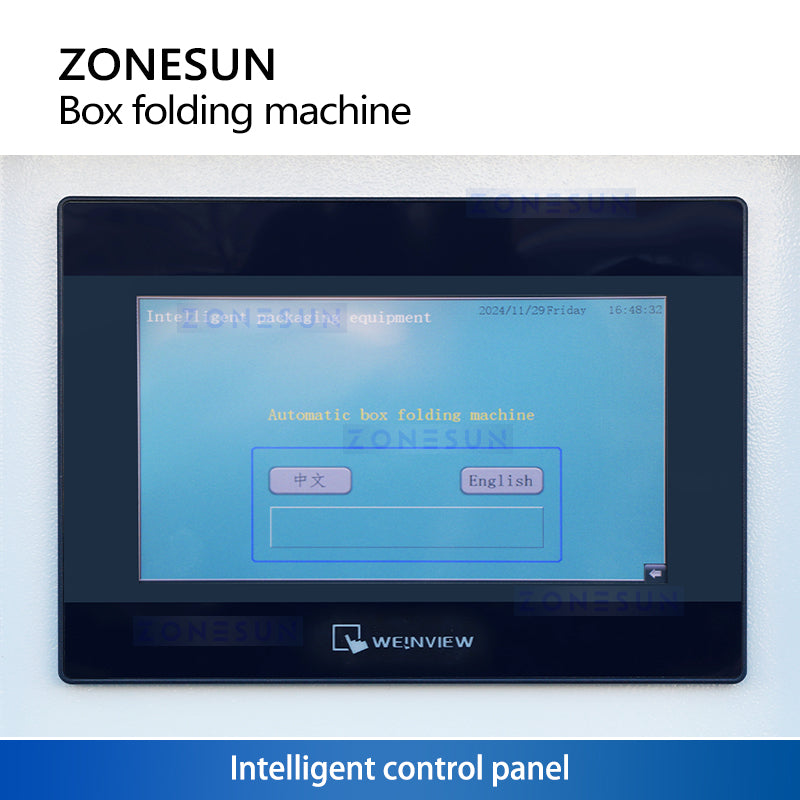

INTELLIGENT CONTROL PANEL
- Advanced PLC & Intuitive Touchscreen: Equipped with an industrial PLC and an intuitive touch screen interface, making it exceptionally simple to operate and conveniently control various settings.
- Optimized for Automatic Box Folding: The smart OS is deeply integrated for automatic box folding machines and intelligent packaging lines, accurately controlling suction, folding, and forming.
MATERIAL PLACEMENT PART
- Adaptive Storage Bin Lifting: Features smart automation that automatically lifts and lowers the storage bin to maintain the optimal height for picking up materials.
- Automatic Material Identification: Equipped with highly sensitive sensors to automatically identify the presence of materials, preventing mechanical idling or feeding errors.
- High-Efficiency Vacuum Suction: Works flawlessly with a mechanical suction cup mechanism to efficiently and securely pick up the required paper/cardboard one by one.

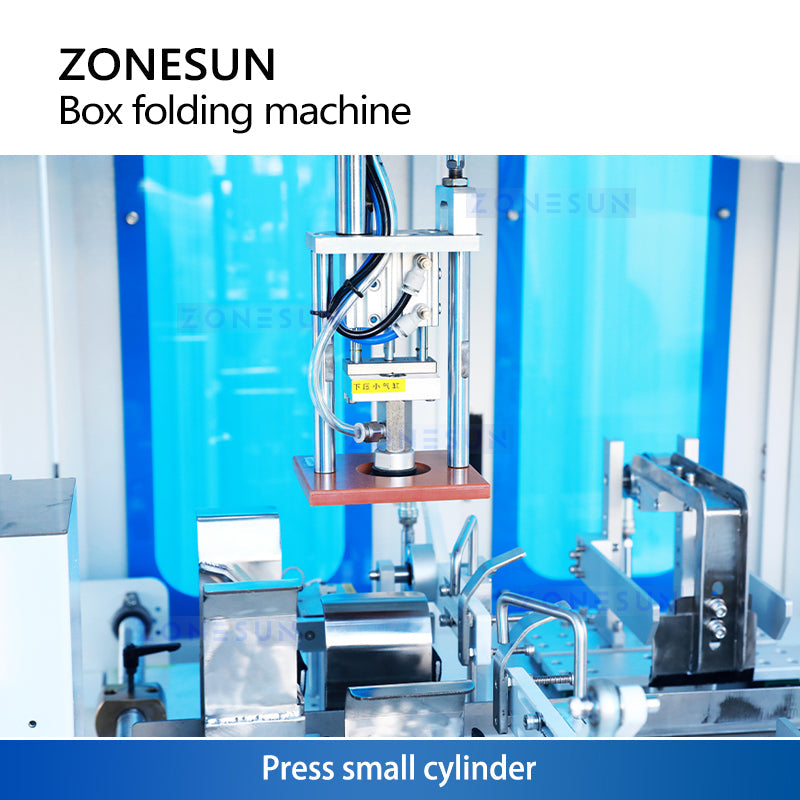

PRESS SMALL CYLINDER
- Balanced Downward Pressure: The professional small cylinder exerts steady and precise downward pressure on the carton, keeping the cardboard firmly positioned.
- Beneficial to Precise Folding: Delivers highly uniform force that is greatly beneficial to the precise folding and razor-sharp shaping of the box, ensuring zero edge defects.

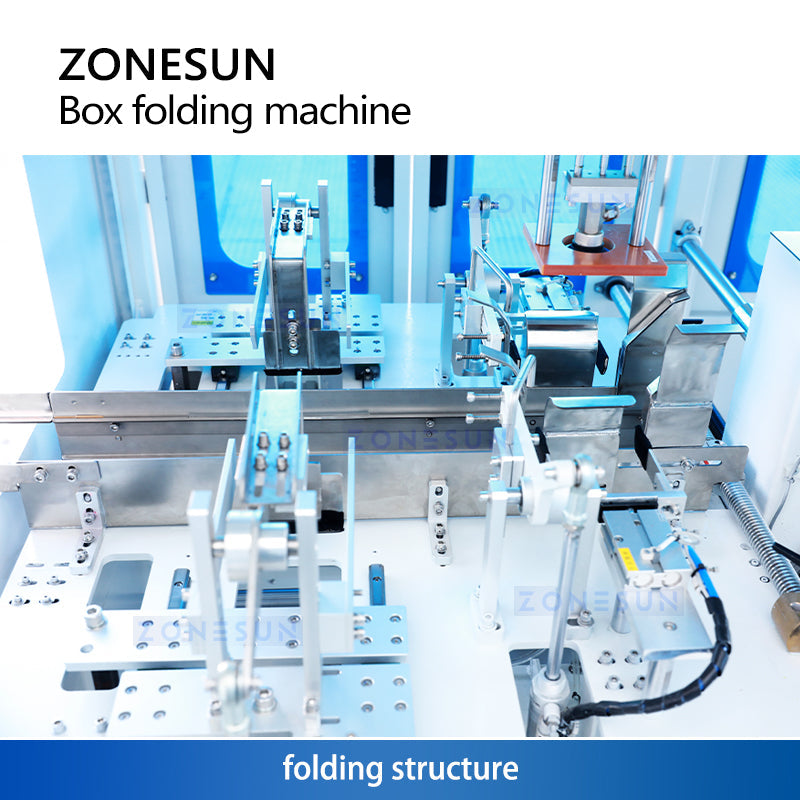

FOLDING STRUCTURE
- Smart Buckle Interlocking: Features a specialized qualitative function of buckle leaves to securely fix the box ears in place, ensuring tight and stable closure.
- High-Precision Mechanical Folding: Perfectly engineered link-mechanisms deliver sharp, uniform folds, dramatically reducing the risk of creasing or unlocking.

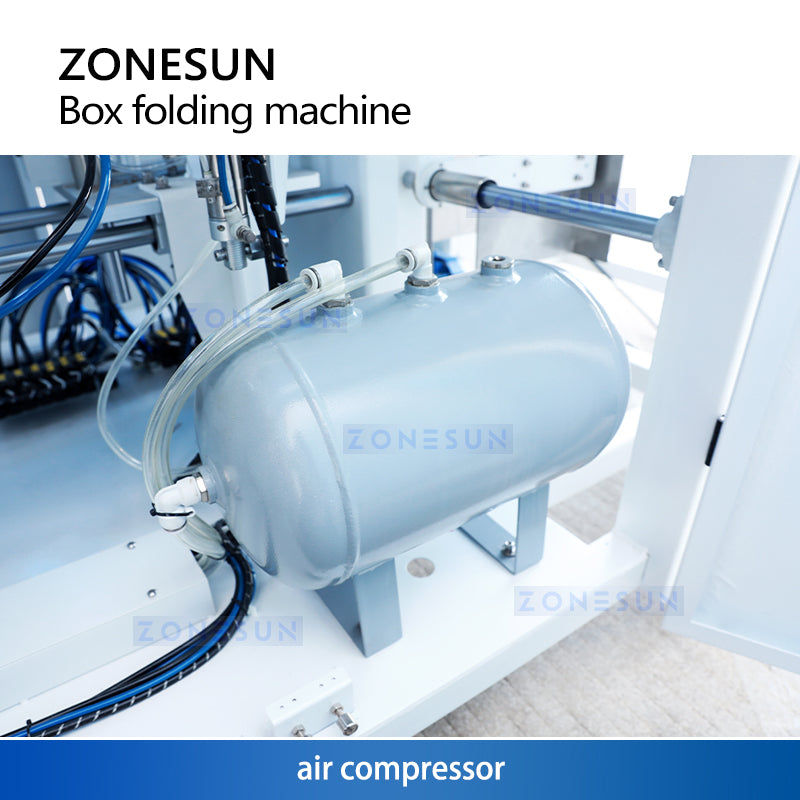

AIR COMPRESSOR
- Efficient Gas Storage: Engineered specifically for pneumatic packaging lines to efficiently store compressed gas, creating powerful energy reserves.
- Stable & Continuous Gas Supply: Effectively eliminates airflow fluctuations to provide a highly stable and continuous gas supply for smooth machine operation.
