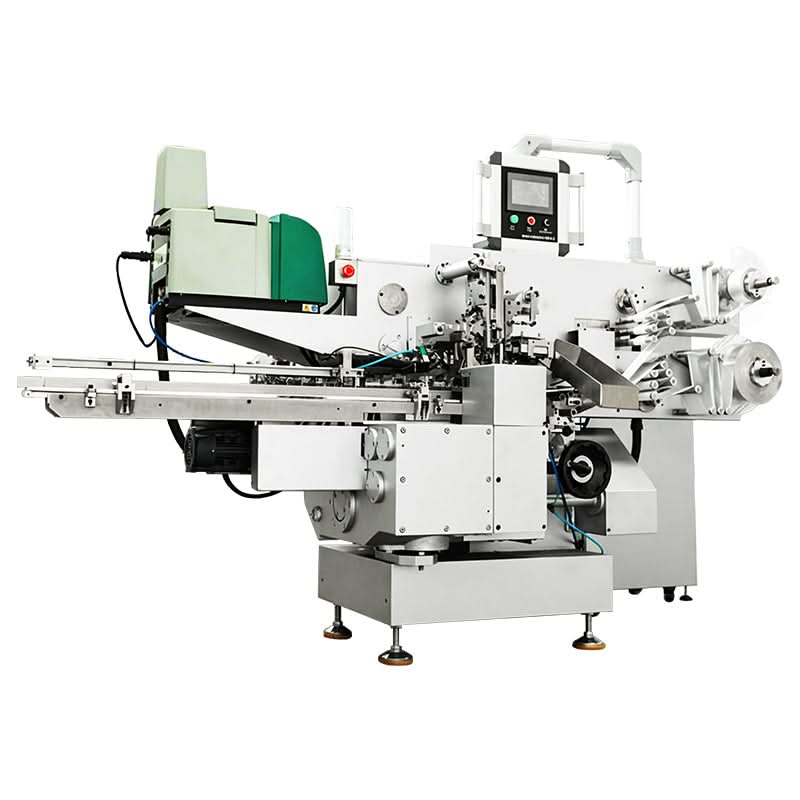

ZONESUN ZS-CWM2 Automatic Envelope Fold Wrapping Machine for Chocolate Bars & Tablets
ZONESUN ZS-CWM2 Automatic Envelope Fold Wrapping Machine for Chocolate Bars & Tablets
Couldn't load pickup availability
The ZONESUN ZS-CWM2 is a high-speed automatic chocolate folding and wrapping machine designed for square, rectangular, and trapezoidal chocolate bars, cookies, and similar confectionery products. It supports envelope and fold-style wrapping with pre-printed film, achieving 200–260 pcs/min. With PLC control, photoelectric eye tracking, and hot melt sealing, it delivers precise, attractive packaging for confectionery production lines.
Key Features
- Hot Melt Sealing – Advanced heating technology ensures gentle, uniform melting of adhesives for superior sealing quality without carbonization.
- Photoelectric Sensor – Real-time detection prevents defective output by identifying missing, overlapping, or misaligned products.
- Photoelectric Eye Tracking – High-sensitivity sensors correct film positioning in real time to keep printed designs perfectly centered.
- PLC Control – Color touchscreen and PLC system provide automatic fault diagnosis, real-time monitoring, and easy parameter adjustment.
- Versatile Folding Styles – Supports envelope and fold styles for various product shapes and sizes.
Technical Specifications
- Model: ZS-CWM2
- Packaging Speed: 200–260 pcs/min
- Voltage: 380 V / 50 Hz / 3-Phase
- Product Size: L 10–80 mm × W 4–45 mm × H 4–35 mm
- Packaging Materials: Foil, PET, Plastic Film, etc.
- Qualification Rate: ≥ 98%
- Main Motor Power: 3.5 kW
- Conveyor Power: 2.2 kW
- Compressed Air: 0.6 MPa
Applications
- Chocolate Bars & Tablets: Perfect for individual chocolate bars, large multi-segment chocolate tablets, and artisanal chocolate blocks.
- Napolitains & Minis: Smoothly packages bite-sized miniature chocolates and hotel-turndown style chocolates.
- Wafers & Biscuits: Ideal for chocolate-coated wafers, crisp biscuits, and layered confectionery bars that require gentle handling.
- Chewing Gums & Mints: Continuous high-speed envelope wrapping for stick chewing gums and rectangular mint packs.
- Pure Aluminum Foil Wrap: Directly molds and tightly seals embossed or smooth gold/silver aluminum foils around chocolate shapes for a timeless premium aesthetic.
- Wax Paper & Laminated Composites: Smoothly runs heat-sealable or cold-sealable laminated foil papers and glossy wax wraps.
- Paper-Backed Foils: Perfectly handles premium packaging papers lined with aluminum layers to provide excellent barrier protection against moisture and light.
Hot Melt Sealing
Advanced heating technology ensures gentle and uniform melting of various hot melt adhesives, preventing carbonization and guaranteeing superior sealing quality
Photoelectric Sensor
Provides real-time feedback to the PLC via sensors to instantly trigger self-protection to prevent defective output upon detecting missing, overlapping, or misaligned products.
Photoelectric Eye Tracking
Corrects film positioning in real-time via high-sensitivity photoelectric sensors to ensure accurate cutting trajectories, keeping the printed designs perfectly centered on the package.
PLC Control
Manages operational configurations via a PLC program and a color touchscreen interface, supporting automatic fault diagnosis and real-time status monitoring.
Versatile Folding Styles
It achieves various exquisite wrapping styles such as envelope and fold styles, suitable for square, rectangular, or trapezoidal products.
