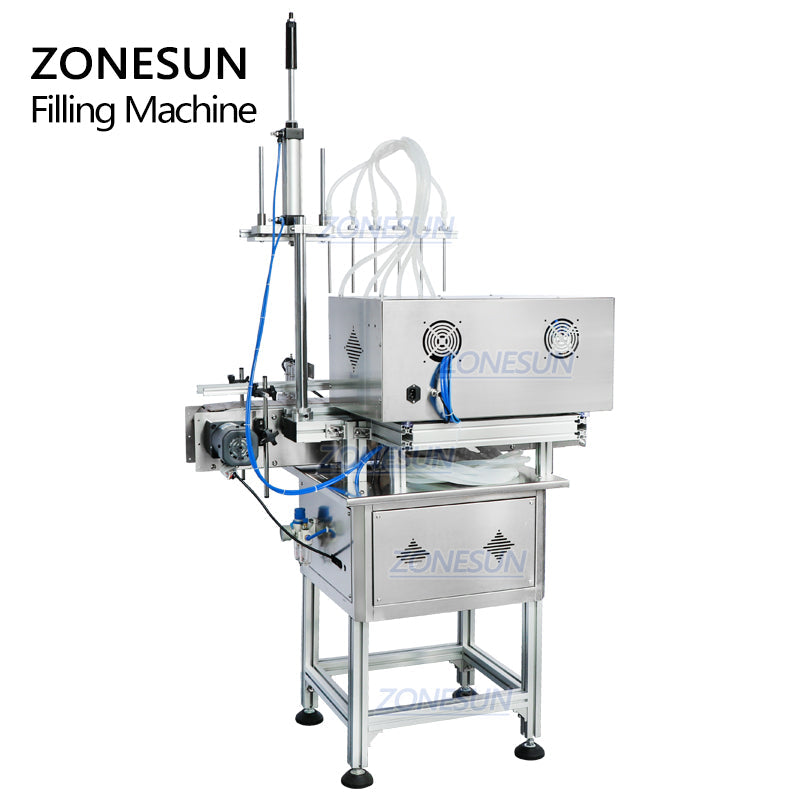

ZONESUN ZS-DTMP6M 6-Nozzle Magnetic Pump Liquid Filling Machine
ZONESUN ZS-DTMP6M 6-Nozzle Magnetic Pump Liquid Filling Machine
Couldn't load pickup availability
Description
The ZONESUN ZS-DTMP6M is a high-precision automatic liquid filling machine equipped with six diving nozzles and magnetic pumps. Designed for low-viscosity liquids such as essential oils, soy sauce, juice, and vinegar, it ensures accurate and splash-free filling. The diving nozzle system minimizes foam and improves filling consistency, making it ideal for delicate or foamy liquids. With its adjustable bracket, the machine can be seamlessly integrated into automated production lines alongside capping and labeling machines. Widely used in cosmetics, pharmaceuticals, and beverage industries, it boosts productivity and packaging quality.
Parameter
|
Machine model |
ZS-DTMP6M |
|
Power supply |
110/220V 50-60HZ 300W |
|
Maximum flow velocity |
7500ml/min (Each nozzle and base on 250ml water) |
|
Working speed |
40-50 bottles/min (base on 250ml water) |
|
Air pressure |
0.3-0.4MPa |
|
Filling accuracy |
≤±1% (For water) |
|
Diameter of filling nozzle |
6/8mm |
|
Delay range |
0.01-999.9s |
|
Count range |
1-99999 Times |
|
Filling volume |
3-1000ml |
|
Size of air compressor connector |
OD8mm |
|
Package size |
About 860*720*1330mm |
|
Package weight |
About 118kg |
