ZONESUN ZS-FAL180F4 Rotary Syrup Thick Paste Sauce Filling & Labeling Production Line
ZONESUN ZS-FAL180F4 Rotary Syrup Thick Paste Sauce Filling & Labeling Production Line
Couldn't load pickup availability
Description

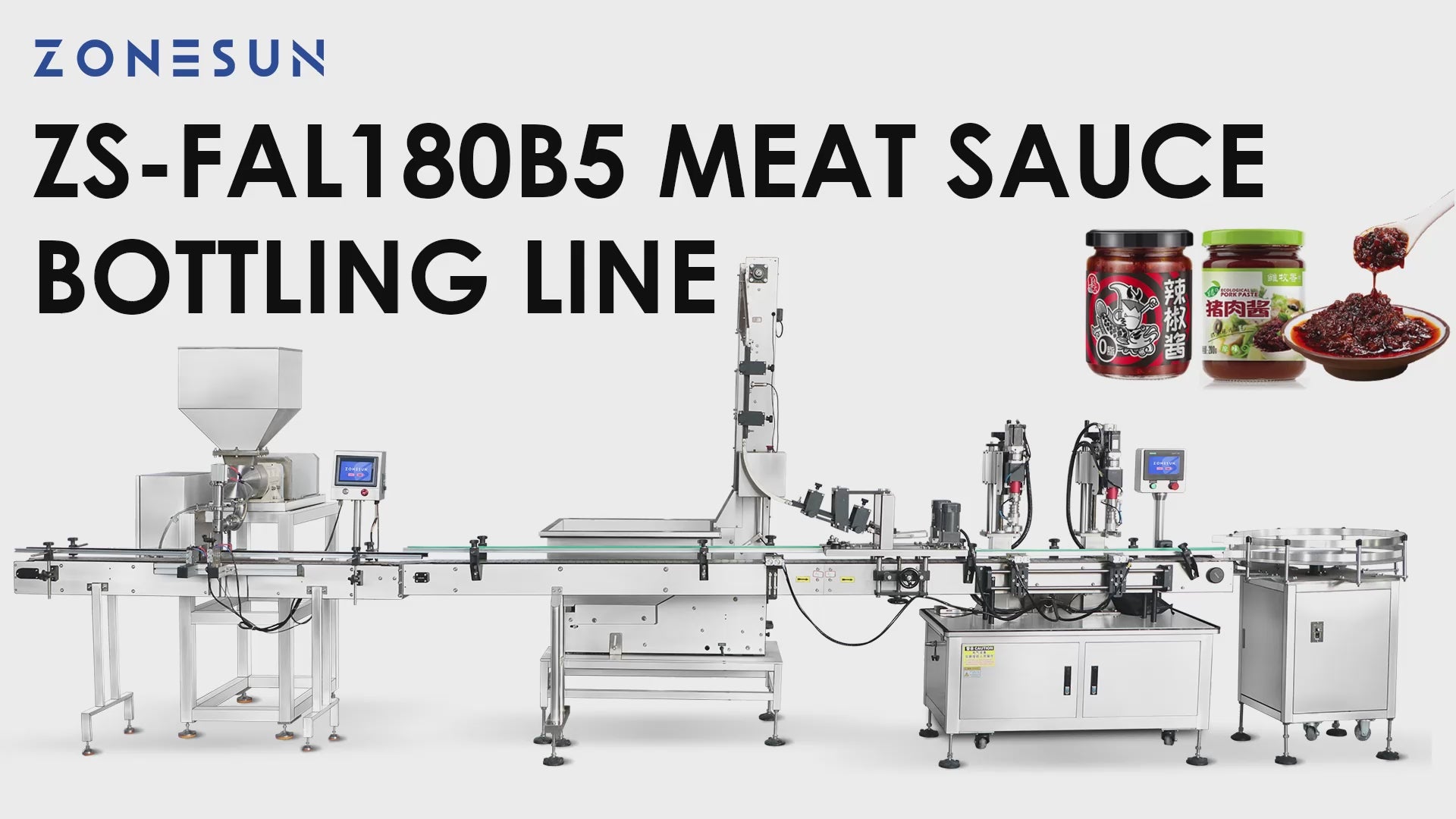

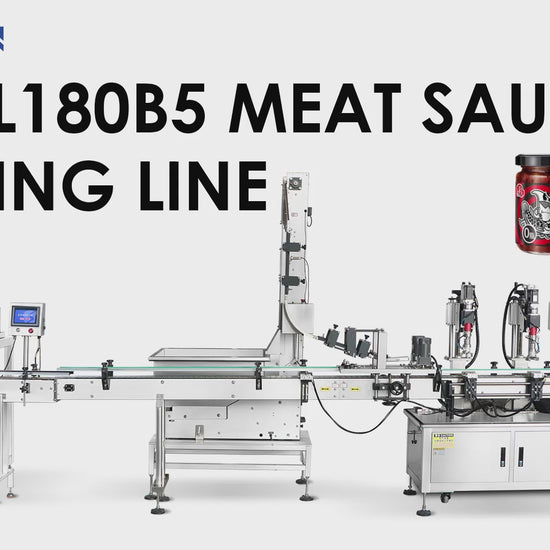

The ZONESUN ZS-FAL180B5 Automatic Meat Sauce Paste Filling and Capping Production Line is a specialized solution for efficiently packaging viscous food products such as meat sauces, chili paste, and other condiments. Designed to streamline the entire bottling process, this production line integrates high-precision filling with secure capping to ensure consistent quality and hygiene. Its robust construction and automated operation make it ideal for food manufacturers seeking to boost productivity while maintaining product integrity. With reliable performance and easy integration into existing workflows, it’s a smart choice for modern sauce packaging.
Whatever your packaging needs are, you can rely on Zonesun.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ZS-GTRP1 |
| Voltage | 110/220 V, 50–60 Hz |
| Filling Range | 20–300 L |
| Recommended Filling Volume | 50–100 L |

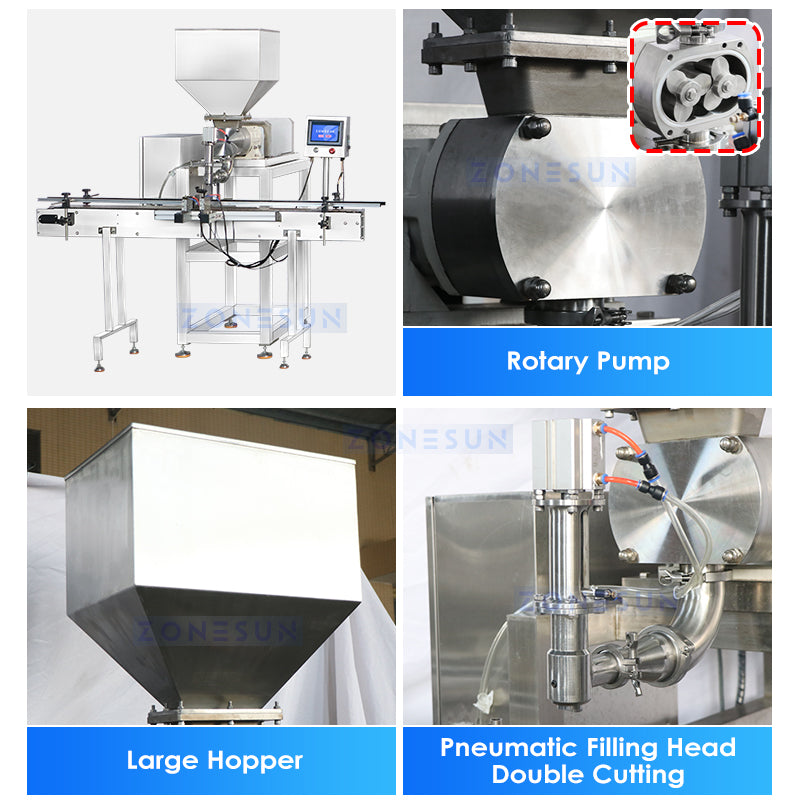

| Filling Pump Type | Rotor pump |
| Filling Nozzle Size | Customizable |
| Suitable Container Size | Customizable |
| Working Speed | Approx. 15–35 bottles/min |

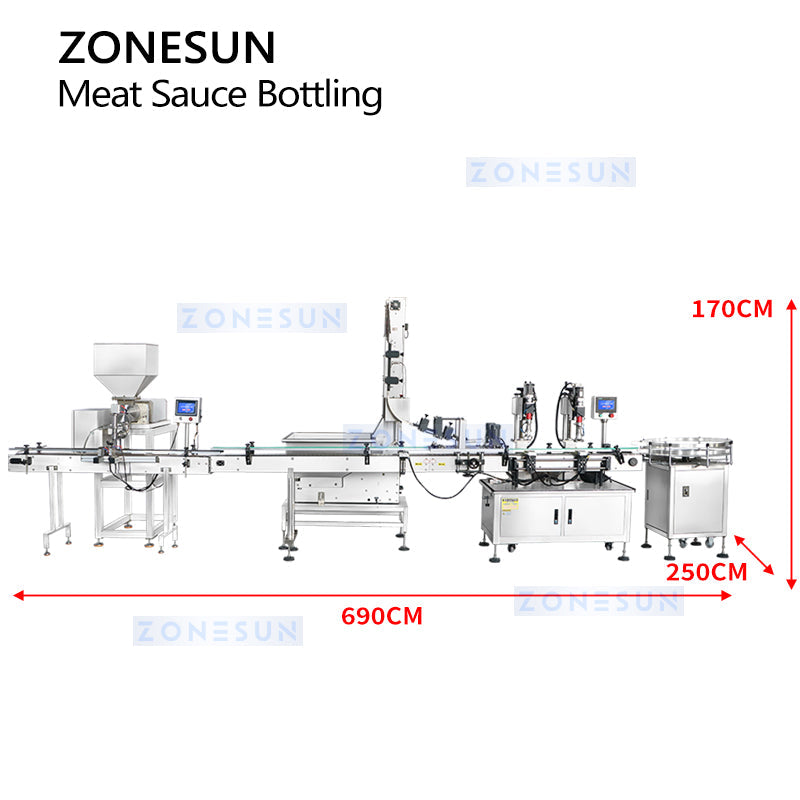

| Machine Dimensions | Approx. 1950 × 1700 × 2000 mm |
Actual filling speed may vary depending on product viscosity, filling volume, and container specifications.

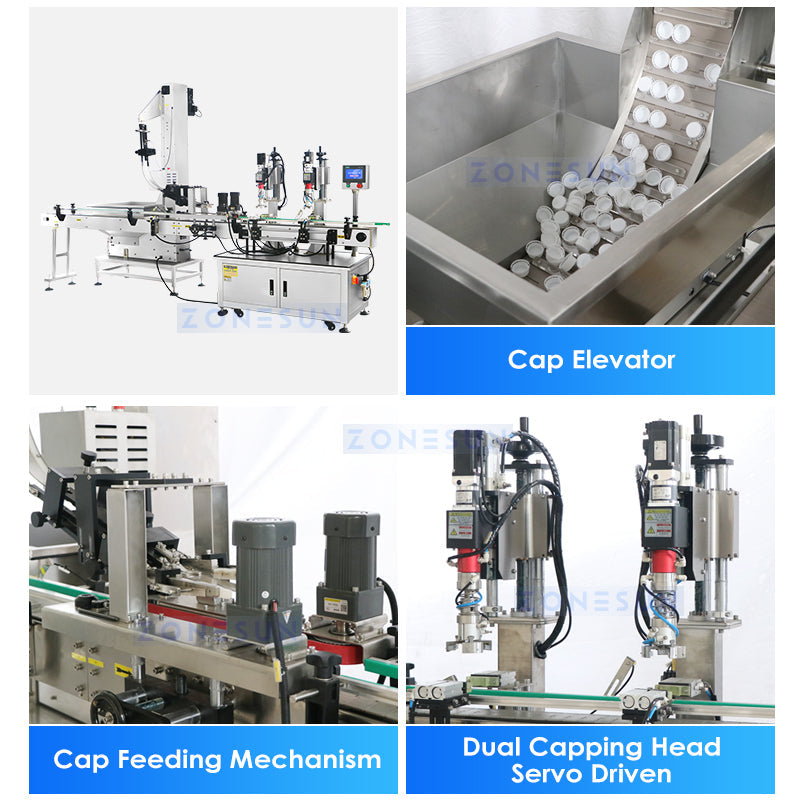

Capping Machine Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ZS-XG440T2 |
| Power Supply | 110/220 V, 50–60 Hz, 2 kW |
| Suitable Cap Diameter | Ø30–80 mm (customizable) |

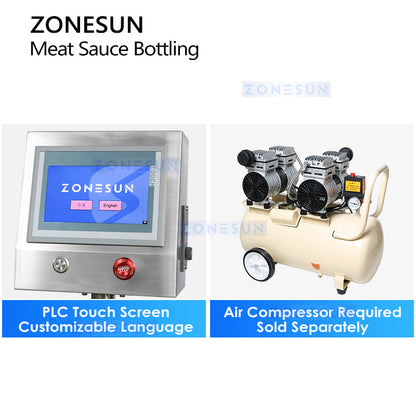

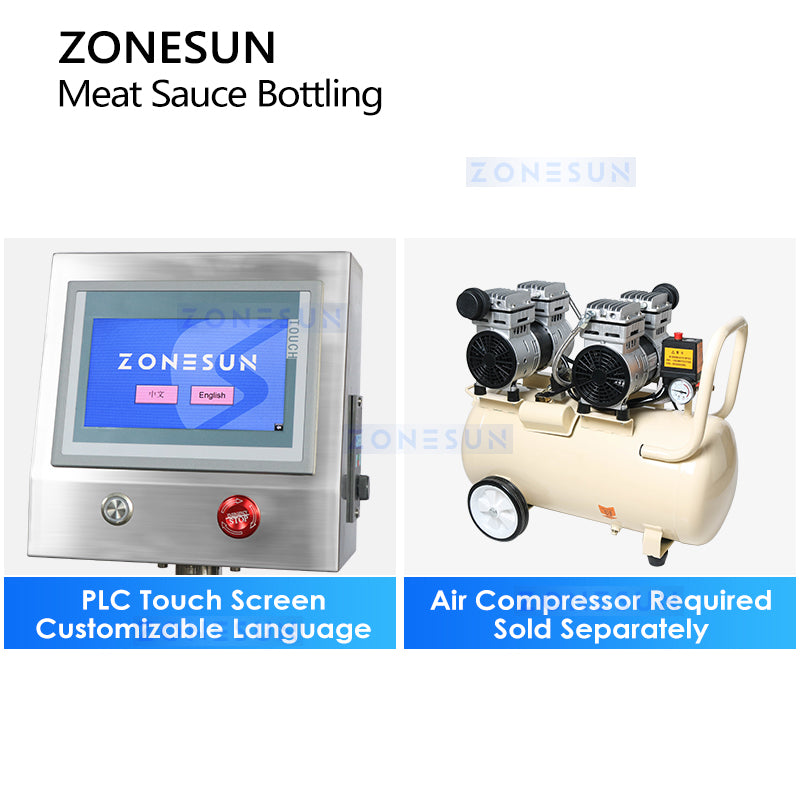

| Air Pressure | 0.7 MPa |
| Working Speed | 30–40 bottles/min (depending on bottle and cap size) |
| Package Dimensions | Capping machine: Approx. 2080 × 780 × 1730 mm Cap feeder: Approx. 2340 × 860 × 1380 mm |
| Package Weight | Capping machine: Approx. 355 kg Cap feeder: Approx. 252 kg |
Actual operating speed may vary according to the bottle, cap, and production conditions.
Application
1. Key Application Industries
- Food Processing & Manufacturing: Industrial sauce factories, condiment processing plants, and commercial food production facilities.
- Central Kitchens & Catering Supply: Large-scale meal prep, catering suppliers, and chain restaurant prep centers.
- Agricultural Deep Processing: Local specialty sauce and preserved food packaging enterprises.
2. Suitable Materials & Products
- Meat & Seafood Sauces: Beef sauce, pork sauce, pasta meat sauce, mushroom meat sauce, seafood paste, and minced meat toppings.
- Chili & Savory Pastes: Chili oil paste, garlic chili sauce, chopped pepper sauce, sambal, and signature hot oils.
- Viscous Condiments: Soybean paste, peanut butter, sesame paste, curry paste, fruit preserves with fruit chunks, and barbecue sauce.
3. Suitable Containers & Packaging Options
- Container Types: Wide-mouth glass jars, plastic (PET/HDPE) bottles, tin cans, and custom-shaped food containers.
- Capping Versatility: Suitable for twist-off metal lug caps, plastic screw caps, and crown closures, providing a tight, leak-proof seal for extended shelf life.
4. Core Operational Advantages
- Particulate-Friendly Handling: The integrated rotor pump gently transfers sauces with solid particulates, ensuring an even ingredient ratio per container without damaging texture.

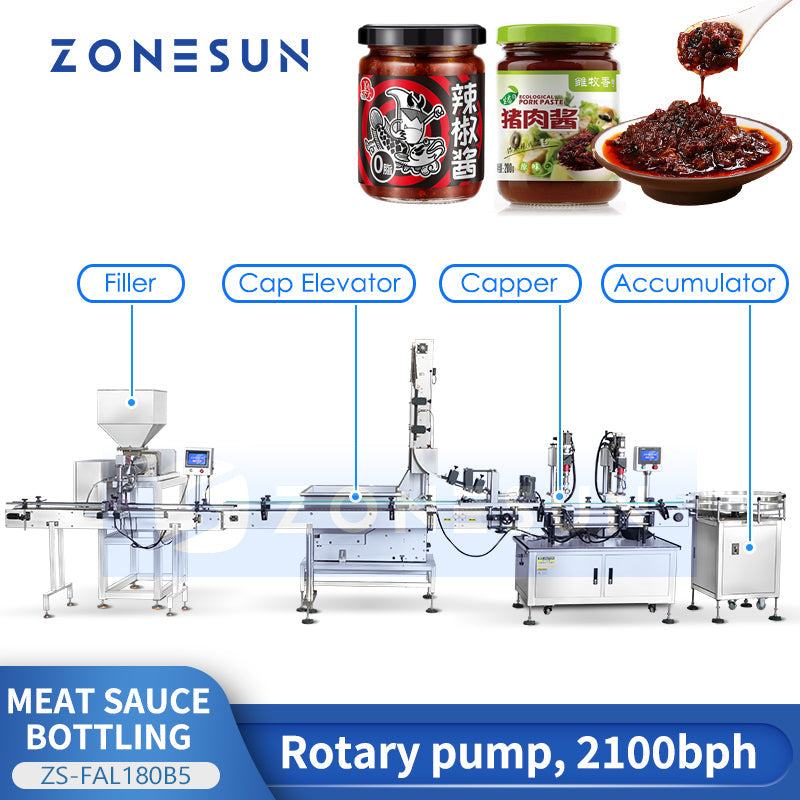

- End-to-End Automation: Streamlines bottle feeding, high-precision filling, automatic cap dropping, screwing/capping, and discharge—reducing labor requirements and minimizing contamination risks.
- Flexible Packaging Range: Supports filling volumes from 20ml up to 300L (recommended 50ml–100L), ideal for both retail-sized jars and commercial bulk containers.
