ZONESUN ZS-FAL180G5 Sauce Filling Capping Labeling Machine
ZONESUN ZS-FAL180G5 Sauce Filling Capping Labeling Machine
Regular price
$28,822.00 USD
Regular price
$0.00 USD
Sale price
$28,822.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

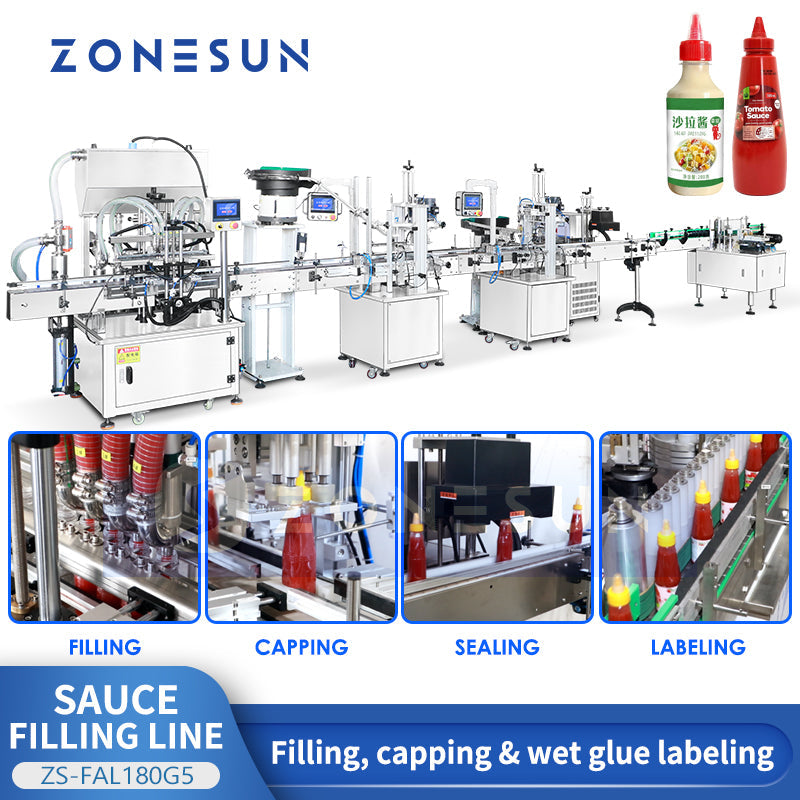

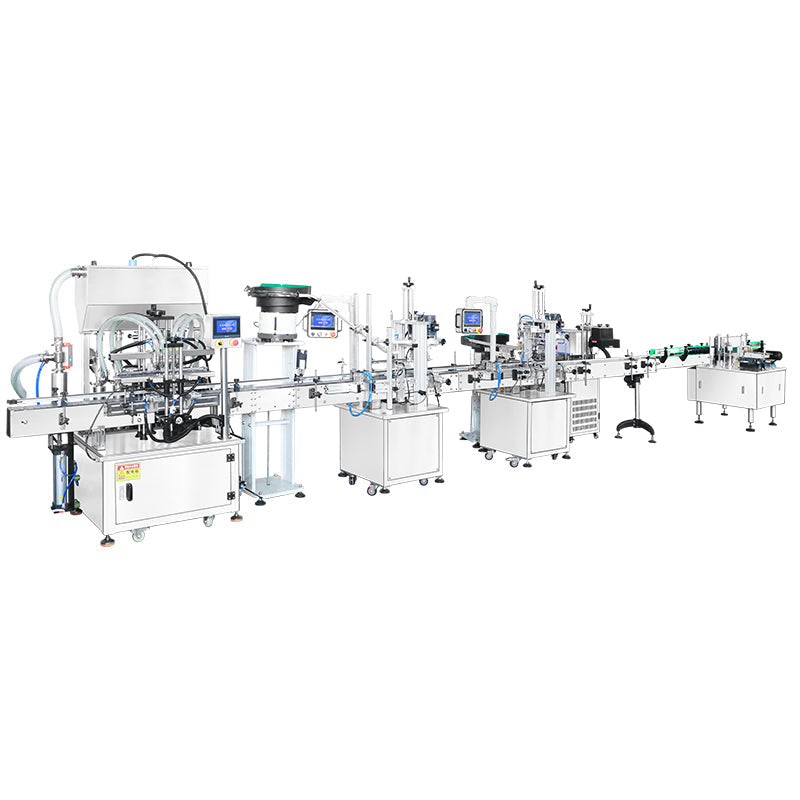

The ZONESUN ZS-FAL180G5 is an automatic sauce filling, capping, and labeling machine tailored for semi-viscous food products. It combines servo-driven precision filling with automated cap placing and sealing, adaptable for leakproof lids and narrow nozzles. The integrated wet glue labeling system ensures professional results. Ideal for ketchup, dressings, and seafood sauce, the machine can be customized with mixing and heating functions for enhanced productivity and versatility.
Servo Filling Machine
| Machine Model | ZS-YT4T-4PX |
|---|---|
| Voltage | 110/220 V, 50–60 Hz, 1 kW |
| Filling Range | 10–180 ml / 30–500 ml / 100–1000 ml |
| Working Speed | About 30–50 bottles/min |
| Filling Pump | Piston pump |
| Air Pressure | 0.6–0.8 MPa |
| Filling Accuracy | ±1% |

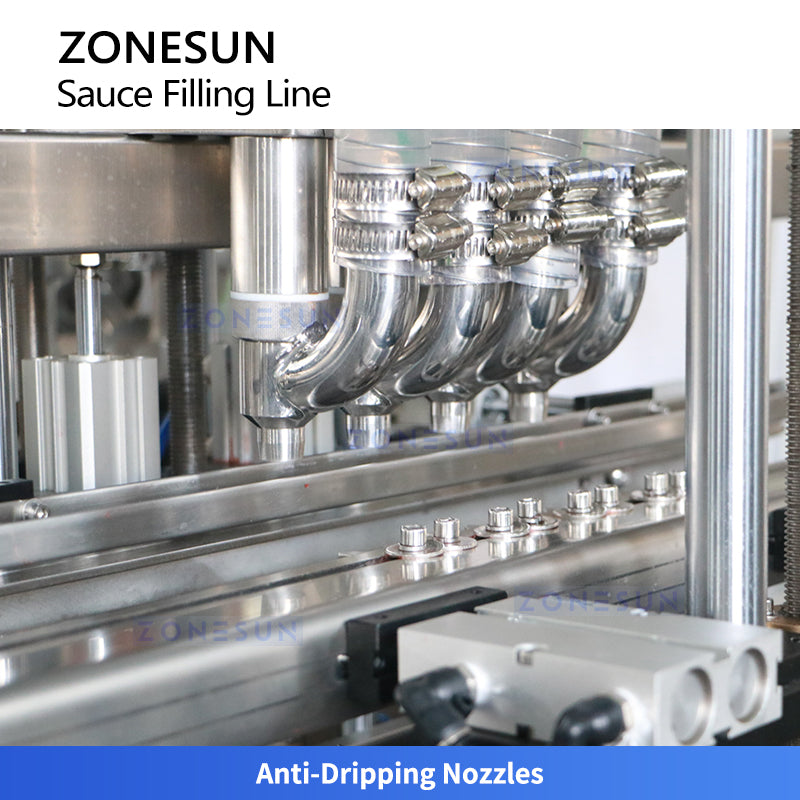

| Filling Nozzles | 4 (can be customized) |
| Machine Size | About 2000 × 800 × 1800 mm |
| Machine Weight | About 200 kg |
| Packaging Size | About 2070 × 960 × 2010 mm (100–1000 ml) |
| Packaging Weight | About 392 kg (100–1000 ml) |
Capping Machine (For Leakproof Caps)
| Machine Model | ZS-XG16V |
|---|---|
| Voltage | AC 220/110 V, 50–60 Hz |
| Bottle Height | 30–300 mm |
| Cap Diameter | 18–70 mm |
| Bottle Diameter | 20–160 mm |
| Working Speed | 10–25 bottles/min (based on cap size) |
| Working Pressure | 0.4–0.6 MPa |
| Machine Size | About 2000 × 1000 × 1750 mm |
| Machine Weight | About 150 kg |
| Package Size | About 2000 × 820 × 1760 mm |
Capping Machine (Narrow Nozzle)
| Machine Model | ZS-XG16E |
|---|---|
| Voltage | AC 220/110 V, 50–60 Hz |
| Bottle Height | 30–300 mm |
| Cap Diameter | 18–70 mm |
| Bottle Diameter | 20–160 mm |
| Working Speed | 10–25 bottles/min (based on cap size) |
| Working Pressure | 0.4–0.6 MPa |
| Machine Size | About 1930 × 740 × 1600 mm |
| Machine Weight | About 150 kg |
| Package Size | About 1970 × 990 × 1740 mm |
| Package Weight | About 334 kg |

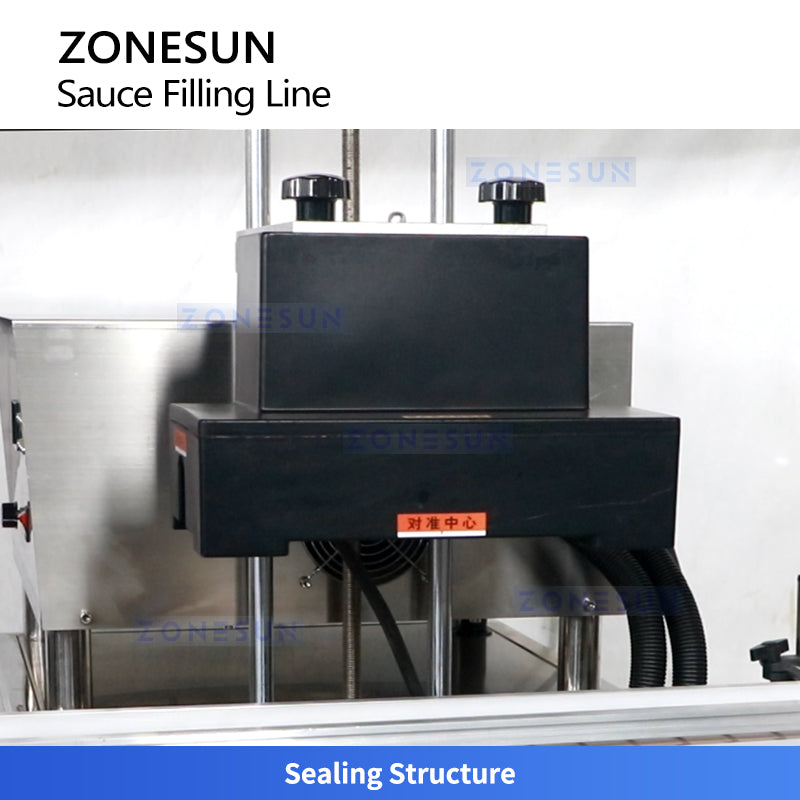

Sealing Machine
| Machine Model | ZS-FK6000 |
|---|---|
| Voltage | 220 V, 50 Hz |
| Power | 3.6 kW |
| Sealing Speed | About 0–80 bottles/min |
| Sealing Diameter | 15–60 mm (can be customized) |
| Sealing Height | 50–335 mm |
| Cooling Method | Water cooling |
| Application | Suitable for standard and narrow-mouth bottles made of plastic or glass. Not suitable for glass caps, metal bottles, or metal caps. |
| Machine Size | About 707 × 950 × 1510 mm (L × W × H) |
| Machine Weight | About 76 kg |
| Package Size | About 660 × 790 × 1430 mm |
| Package Weight | About 106 kg |

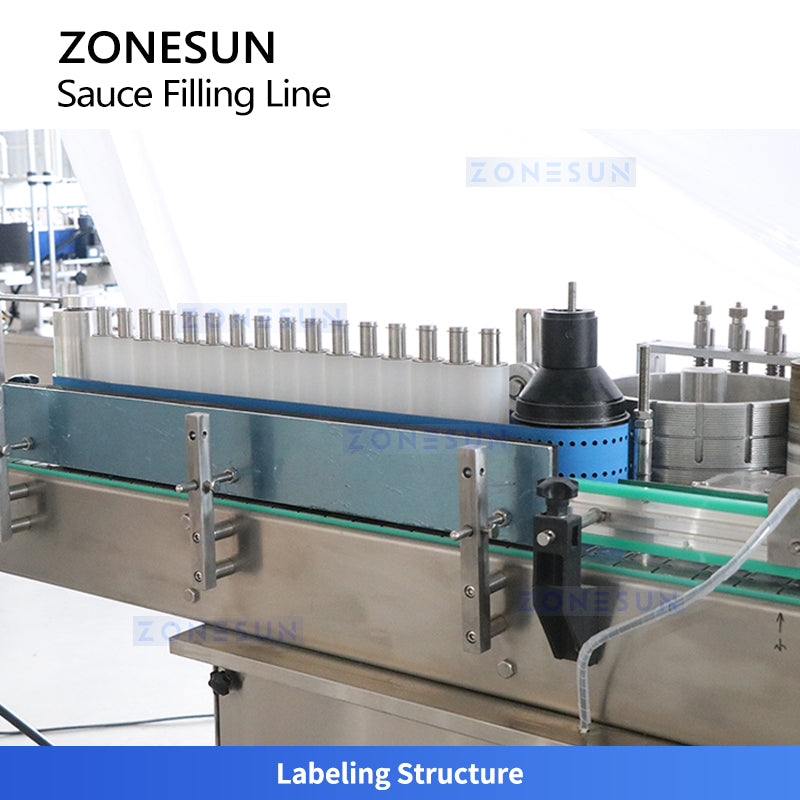

Wet Glue Labeling Machine
| Machine Model | ZS-WGTB01 |
|---|---|
| Power Supply | 220/380 V, 50/60 Hz |
| Installed Power | 2 kW |
| Bottle/Can Diameter | 50–100 mm |
| Label Size | 50–300 mm × 50–140 mm (W × H). Can be customized for larger labels. |
| Production Speed | 1000–4000 bottles/hour |
| Air Consumption | 4–6.5 m³/min |
| Adhesive Used | Resin glue |
| Machine Size | About 3050 × 960 × 1120 mm (L × W × H) |
| Package Size | About 3160 × 1220 × 1500 mm (L × W × H) |
| Package Weight | About 480 kg |
Application
The ZONESUN ZS-FAL180G5 is an automatic sauce filling, capping, and labeling production line specifically tailored for semi-viscous food products. It is ideal for automated packaging of:
- Condiments & Sauces: Ketchup, salad dressings, seafood sauces, hot sauces, pasta sauces, etc.
- Viscous Liquids: Jam, honey, peanut butter, fruit sauces, and various food purées.
Container & Packaging Versatility
- Bottle Compatibility: Suitable for standard and narrow-mouth bottles made of plastic or glass (Bottle Diameter: 20–160 mm, Height: 30–300 mm).

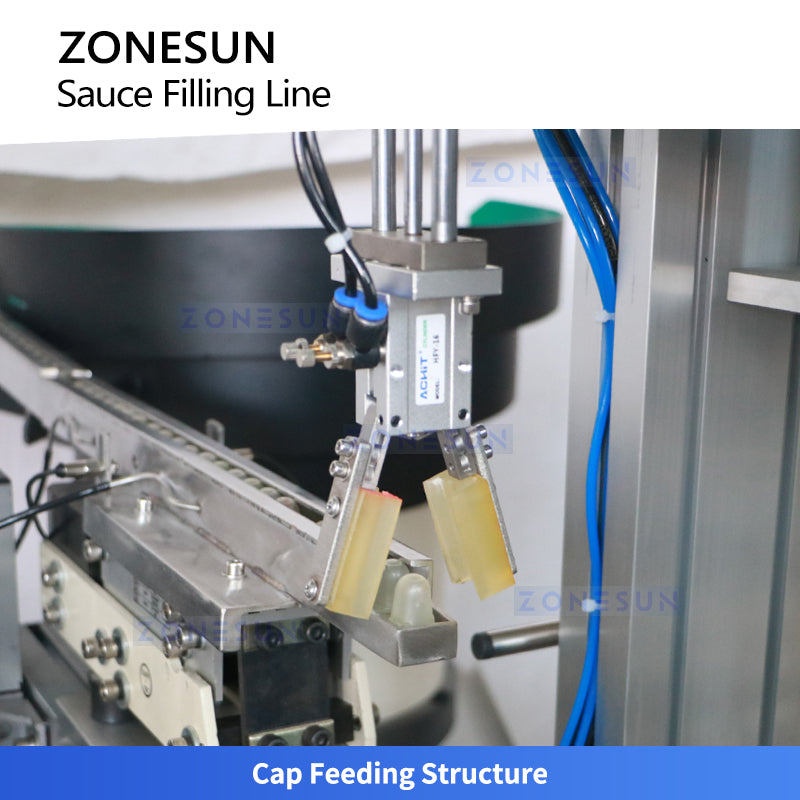

- Cap Compatibility: Equipped with automated cap placing and sealing systems adaptable for both leakproof lids and narrow nozzles, ensuring a tight, leak-free seal.
- Labeling Technology: Integrates a wet glue labeling system to deliver smooth, secure, and highly professional labeling results.
Key Features & Customization

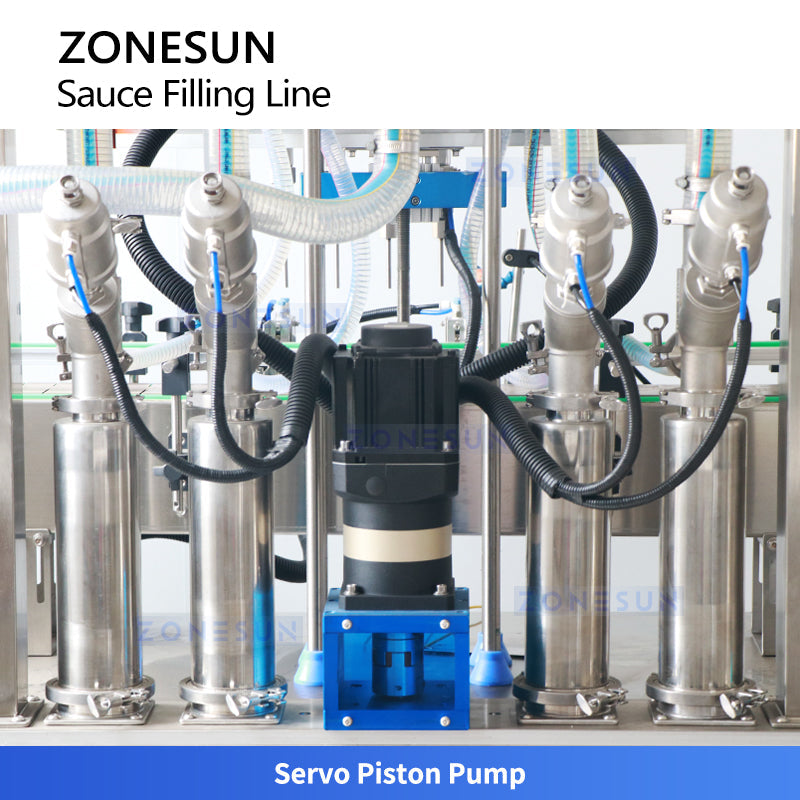

- High-Precision Servo Filling: Driven by servo piston pumps to achieve ±1% filling accuracy, with flexible volume options (10–180 ml, 30–500 ml, or 100–1000 ml).
- Optional Heating & Mixing: Customizable with heating and mixing functions for temperature-sensitive or high-viscosity sauces containing solids or prone to solidifying.
- Sealing & Freshness: Features an integrated water-cooled aluminum foil sealing unit (for plastic and glass bottles) to enhance product protection and shelf life.
