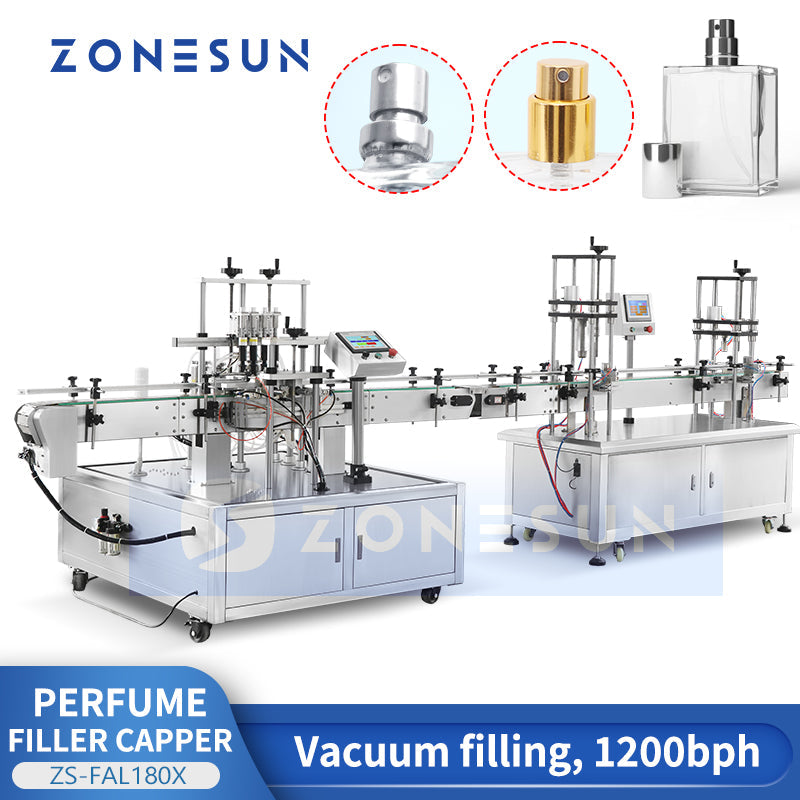

ZONESUN ZS-FAL180X Auto Perfume Bottle Vacuum Filling Capping Machine
ZONESUN ZS-FAL180X Auto Perfume Bottle Vacuum Filling Capping Machine
Couldn't load pickup availability
DESCRIPTION
The ZONESUN ZS-FAL180X Automatic Perfume Bottle Liquid Vacuum Filling Capping Machine is designed for precise, efficient, and mess-free perfume bottling. Combining a vacuum filling system with an integrated capping unit, it ensures accurate liquid filling and secure cap attachment. Ideal for small to medium-sized perfume manufacturers, this machine streamlines production while maintaining product quality and presentation.
PARAMETER
|

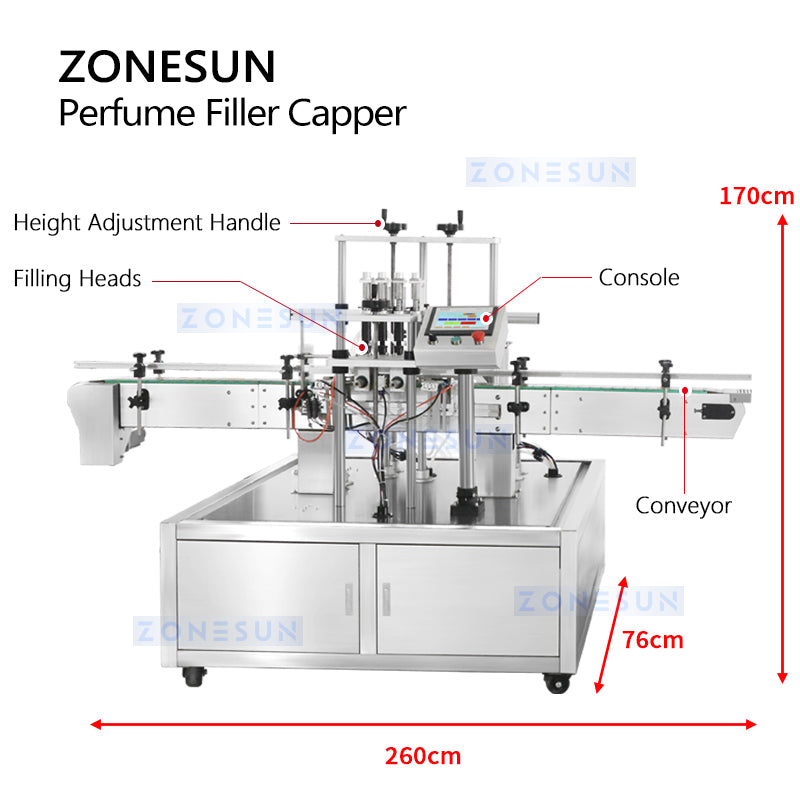

FILLING MACHINE |
|
|
Model |
ZS-YTZL4A |
|
Filling head |
4 Head |
|
Air pressure |
0.5-0.8MPa |
|
Liquid level accuracy |
±1mm |
|
Viscosity range |
≤20Cps (static viscosity) |
|
Working Speed |
20-40 Bottles/Minute |
|
Bottle height |
≤250mm |
|
Bottle Opening Size |
≤φ4.5mm-φ28mm |
|
Adjustable liquid level (from the bottle mouth) |
15-50mm |
|
Air pumping rate |
5.5L/S |
|
Machine size |
About 1500*1150*1530mm |
|
Machine weight |
About 278kg |
|
Package size |
About 1660*1310*1670mm |
|
Package weight |
About 339kg |
|

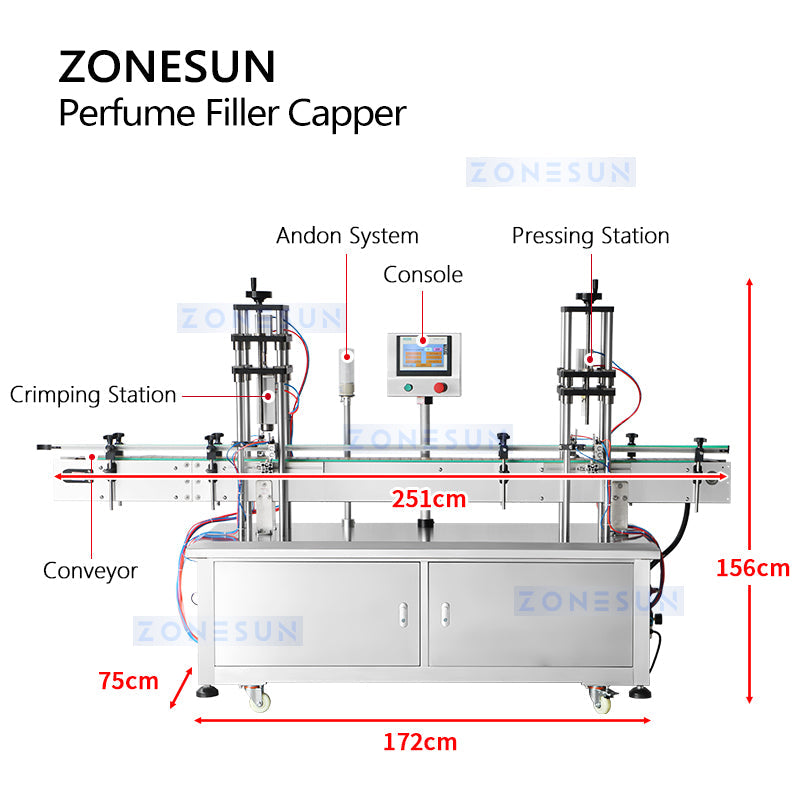

CAPPING MACHINE |
|
|
Machine Model |
ZS-YG11U |
|
Voltage |
220V/110V 50-60Hz |
|
Power |
1.5kW |
|
Capping Speed |
About 20bottles/min (Depending on the bottle and cap size) |
|
Suitable Bottle Height |
50-200mm |
|
Bottle Cap Diameter |
15-22mm |
|
Bottle Mouth Diameter |
14-20mm |
|
Suitable Bottle Diameter |
40-110mm |
|
Conveyor |
113*2400mm |
|
Machine Size |
About 2600*760*1700mm |
|
Weight |
About 300kg |
