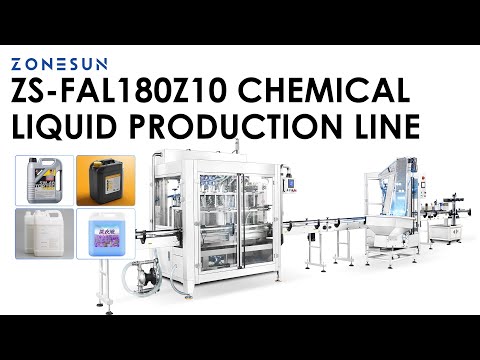

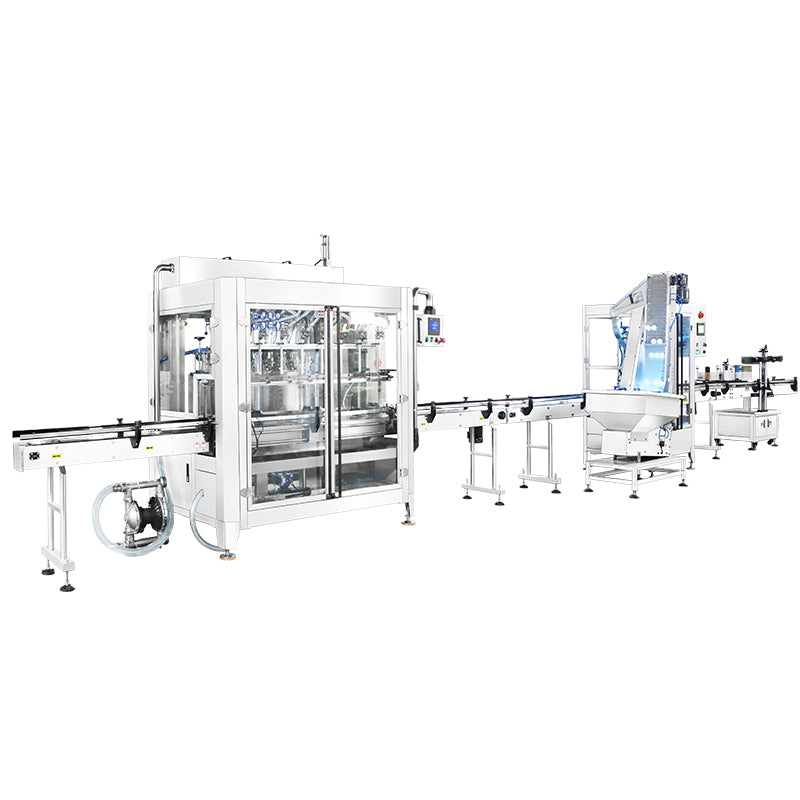

Zonesun ZS‑FAL180Z10 Servo Filler Capper & Labeller for F‑Style Bottle

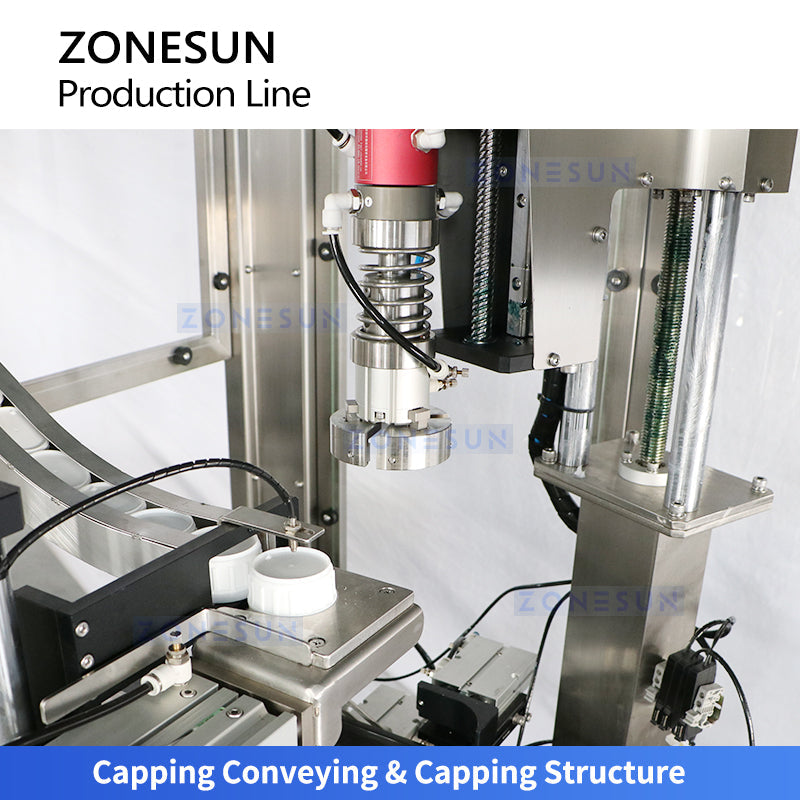

The Zonesun ZS‑FAL180Z10 Servo Filling, Capping, and Labeling Machine is a fully integrated packaging line engineered for F‑style large bottles. Equipped with an 8‑head servo gear pump filler for precision dosing and adjustable height, it ensures consistent and accurate filling. The servo‑driven capping unit works seamlessly with a lift conveyor for smooth, efficient cap delivery, while the single‑side labeling machine applies labels precisely to flat bottle surfaces. Designed for durability, efficiency, and ease of operation, this system boosts productivity and streamlines packaging processes for high‑volume production.

Servo Gear Pump Filling Machine
Machine Model	ZS‑VTGP8D
Machine Voltage	220 / 380 V  3 kW
Filling Range	5 – 10 L
Working Capacity	8 – 16 BPM (based on filling volume)
Filling Pump	Gear Pump
Drive Mode	Servo System

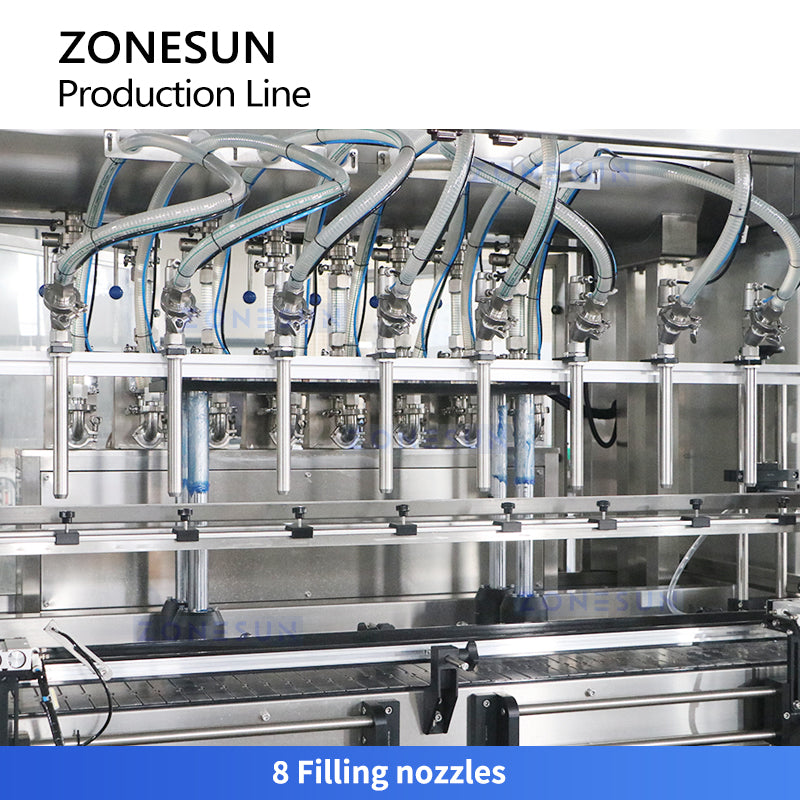

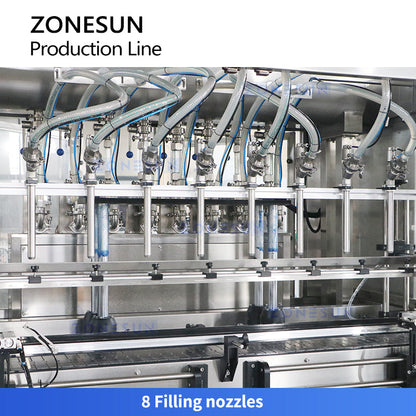

Filling Nozzle Quantity	8
Air Consumption	4 kg × 30 L
Machine Size	About 5800 × 1730 × 2550 mm

Machine Model	ZS‑XG441F
Machine Voltage	110 / 220 V  50‑60 Hz  2 kW
Suitable Cap Size	30 – 120 mm (customizable)
Suitable Bottle Height	Customized
Air Pressure	0.7 MPa
Working Capacity	5 – 15 BPM
Machine Size	About 5000 × 1680 × 2350 mm

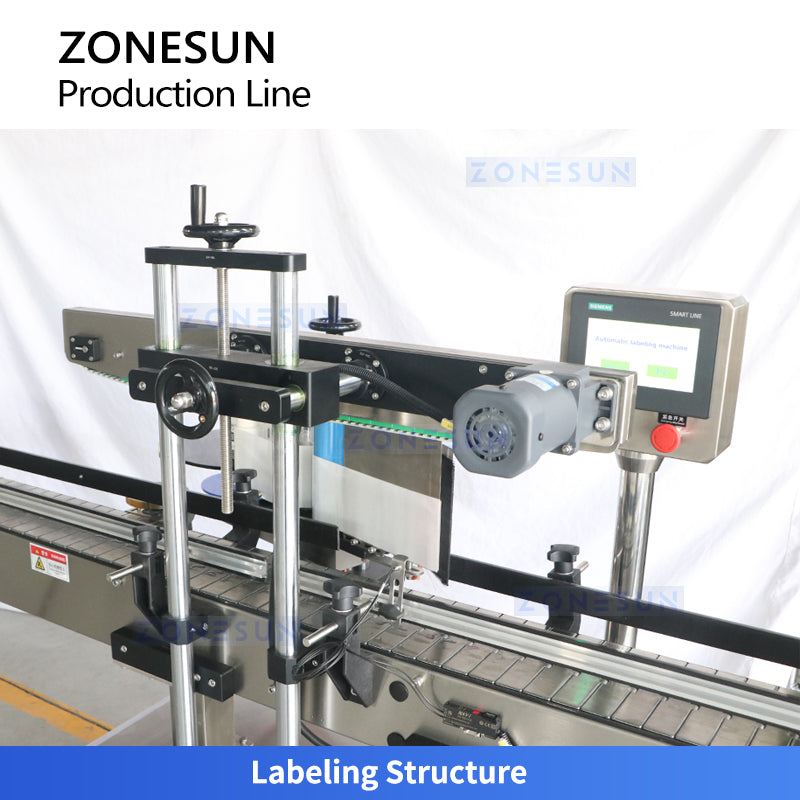

Single Side Labeling Machine
Machine Model	ZS‑TB600R
Machine Voltage	110 / 220 V  50‑60 Hz  1500 W
Labeling Speed	About 40 – 100 bottles/min (depends on bottle and label size)
Suitable Product Size	About 30 – 200 mm (H) × 12 – 100 mm (W)
Label Size	20 – 300 mm (W) × 15 – 100 mm (H)
Labeling Accuracy	± 1 mm
Label Roll Inner Diameter	Φ75 mm
Label Roll Outer Diameter	Φ350 mm
Machine Size	About 3030 × 1050 × 1540 mm
