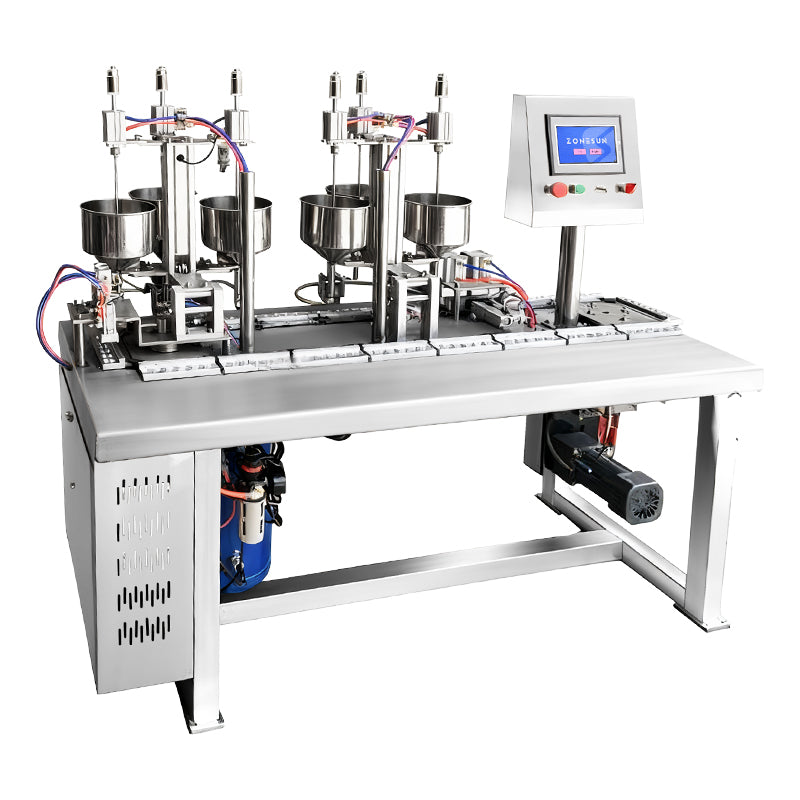

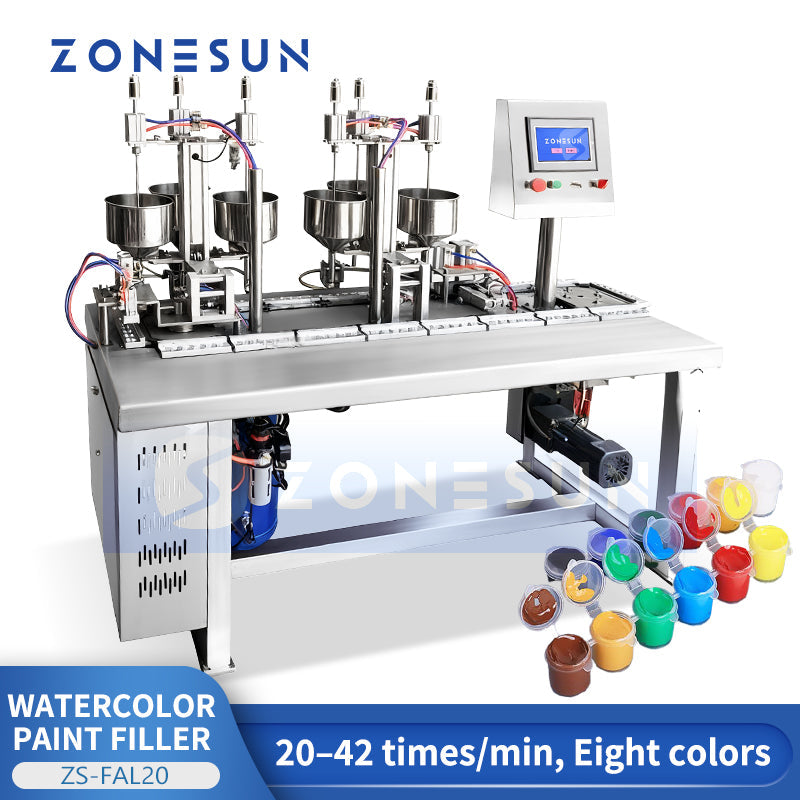

ZONESUN ZS-FAL20 Automatic Watercolor Paint Paste Filling and Capping Machine

Description

The ZONESUN ZS-FAL20 Watercolor Paint Filling Capping Machine is designed for precise, efficient, and clean filling of watercolor paints into multi-cavity plastic boxes. Supporting up to eight colors and operating at 20–42 cycles per minute, it features a modular filling system, paint input station, and integrated pressing unit for sealing. The tray conveyor ensures stable transport through filling and sealing stages, and at the discharge point, its open-bottom design enables upward ejection of filled pots into the collection box. With ±0.05 ml dosing accuracy and a compact footprint, it’s ideal for small-scale production of kids’ paint sets and artistic supplies.



Parameter

• Model Name: ZS-FAL20
• Power Supply: Single-phase 220V
• Power Consumption: 500 W
• Air Source Requirement: 0.1 m³/min, 0.4 MPa
• Filling Volume Range: 1–5 ml
• Filling Accuracy:
  • ±0.05 ml per cup
  • Within ±1 ml for six consecutive cups (depends on material)
• Filling Speed: 20–42 cycles/min (depends on operator proficiency)
• Hopper Capacity: 3 kg
• Color Filling Options: Eight colors available; 1–8 freely selectable
• Machine Dimensions: 1698 × 588 × 1260 mm
• Machine Weight: 150 kg

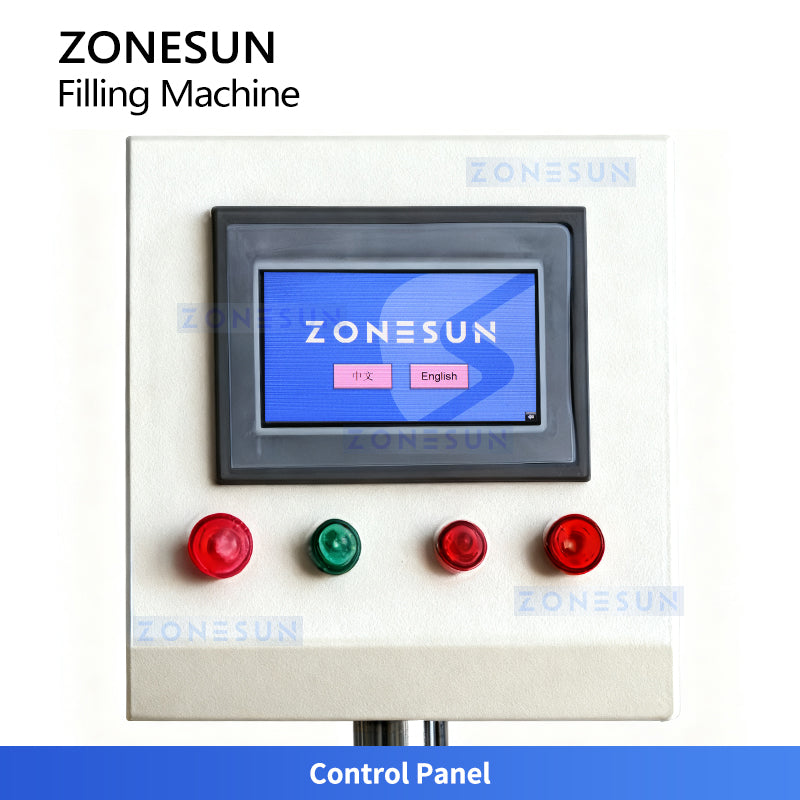

CONTROL PANEL

• Status Monitoring & Parameter Adjustment: Displays system status and allows precise adjustment of filling parameters.
• Operation Controls: Enables system start, stop, and emergency shutdown functions.
• Fault Alerts & Integration: Supports real-time fault alerts and seamlessly integrates with automated modules.

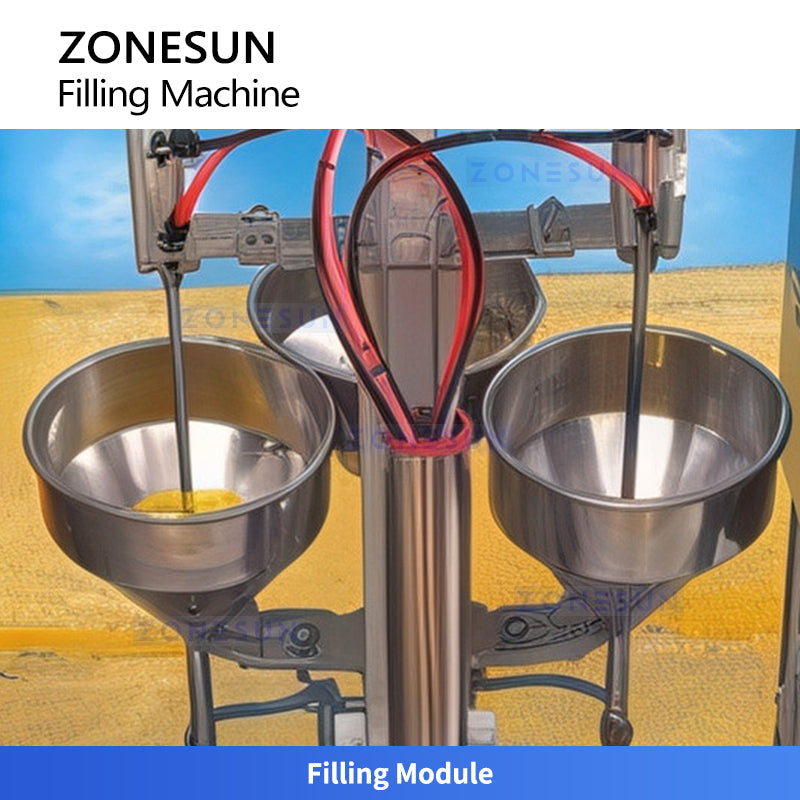

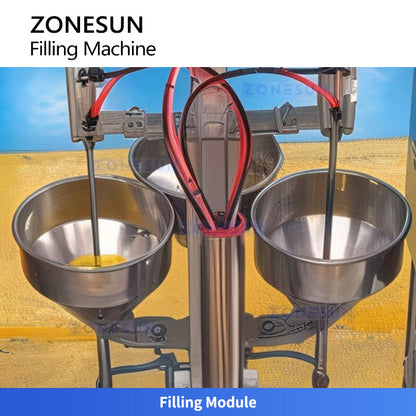

FILLING MODULE

• Function: Dispenses paint from stainless steel hoppers via pneumatic nozzles.
• Performance: Delivers precise dosing and drip-free flow.
• Integration: Seamlessly integrates with automated lines.

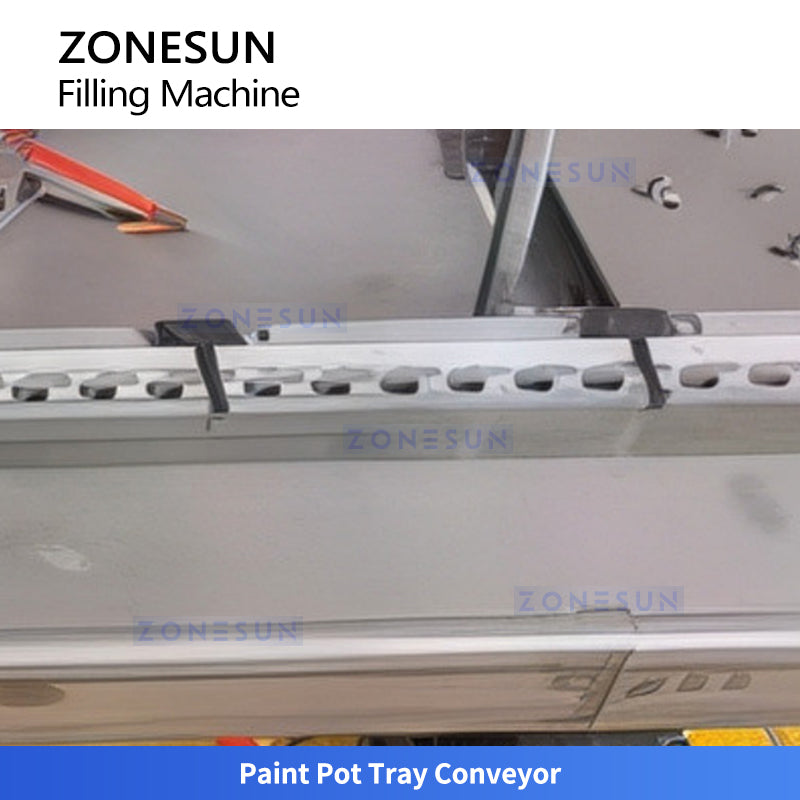

CONVEYOR

• Stable Alignment: Moves trays through filling and sealing stations with precise alignment.
• Upward Ejection Design: At the discharge station, the bottom opening enables upward ejection into the collection box.

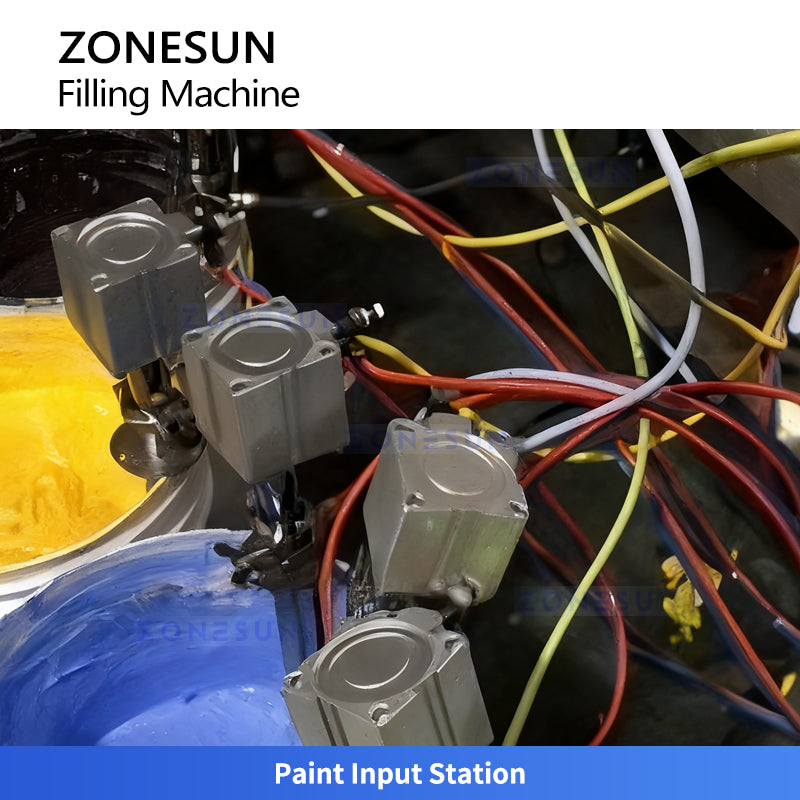

PAINT INPUT STATION

• Function & Performance: Feeds paint from buckets via tubing. Controls flow and color switch, delivering cleanly to filling heads.

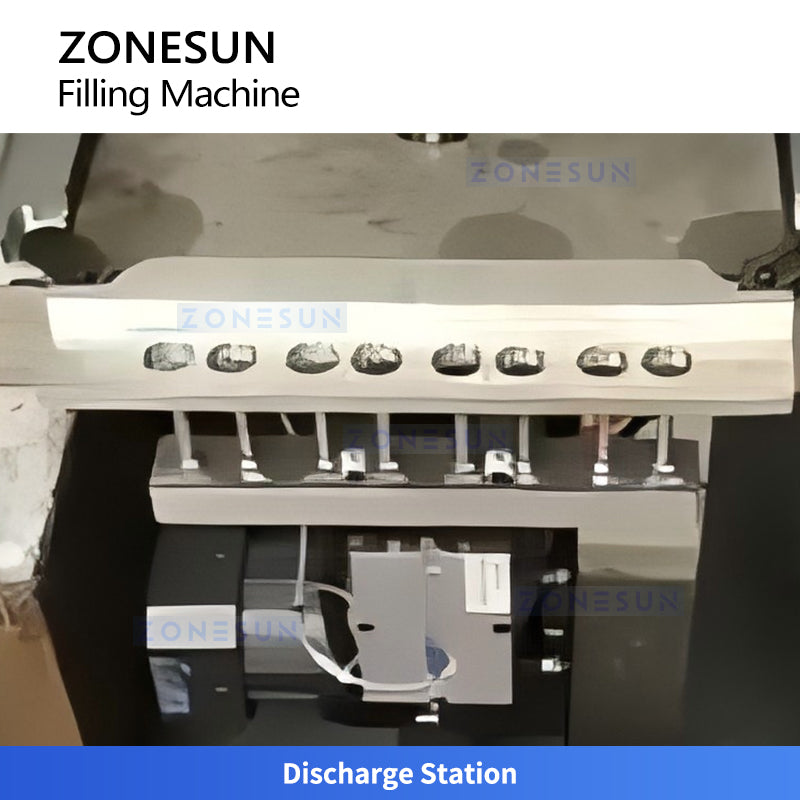

DISCHARGE STATION

• Upward Ejection: Pushes filled paint pots upward from below through the open tray bottom.
• Clean & Efficient Operation: Uses vertical actuators to ensure clean and smooth ejection into the collection box.
