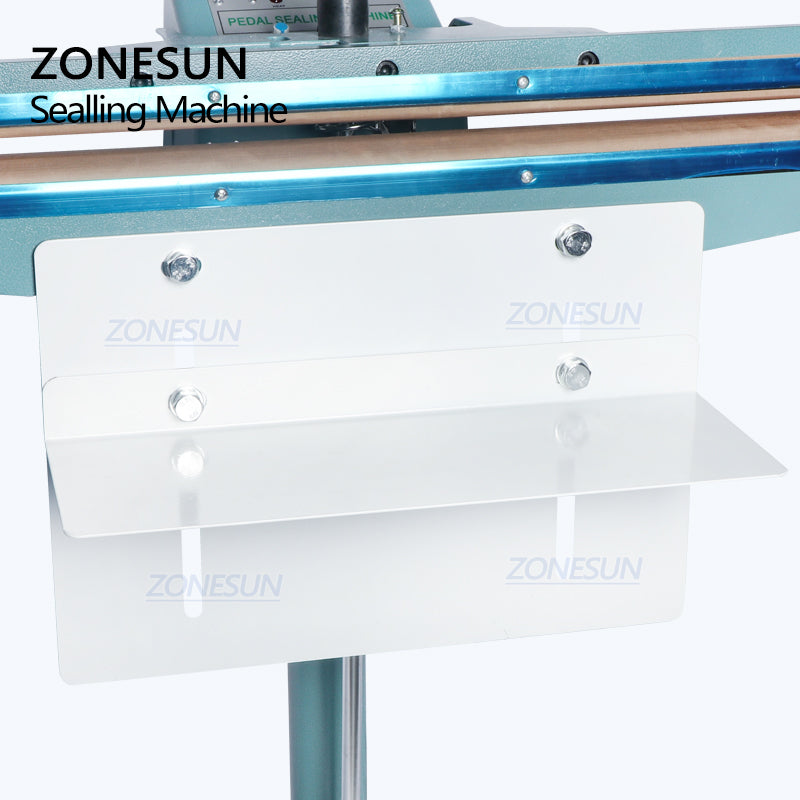

ZONESUN ZS-FK350 Dual Use Heat Sealing Machine
ZONESUN ZS-FK350 Dual Use Heat Sealing Machine
Couldn't load pickup availability
Description

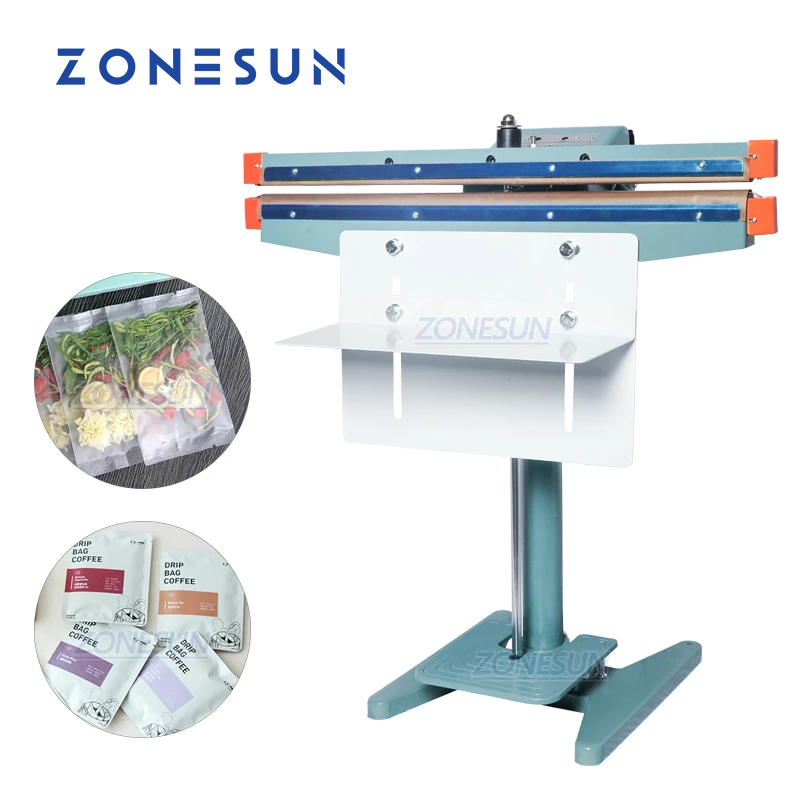

The ZONESUN ZS‑FK350 Dual Use Heat Sealing Machine offers two heating modes for versatile packaging needs. The down‑side heater is ideal for flat bags with a total thickness under 0.2 mm, while the down‑upper heater handles thicker bags or those with folded edges. Both modes are suitable for sealing PE‑containing heat‑seal bags. Designed for consistent sealing quality, it’s widely used in food, retail, and light industrial packaging, combining ease of operation with reliable performance.
Application
This machine is suitable for coating film,metalized film,laminated film on thermo-plastic film and aluminum film,foils or varnish film,wax coating film and so on.
Note
1.The heating wire and heat-insulating cloth are consumable materials and are not covered by the warranty. It is recommended to purchase multiple spares.
2.If you need other sizes, please contact us.
| Model | ZS‑FK350A | ZS‑FK450A | ZS‑FK650A | ZS‑FK800A | ZS‑FK350B | ZS‑FK450B | ZS‑FK650B | ZS‑FK800B |
|---|---|---|---|---|---|---|---|---|
| Voltage | 220 V / 50 Hz<br>110 V / 60 Hz | 220 V / 50 Hz<br>110 V / 60 Hz | 220 V / 50 Hz<br>110 V / 60 Hz | 220 V / 50 Hz<br>110 V / 60 Hz | 220 V / 50 Hz<br>110 V / 60 Hz | 220 V / 50 Hz<br>110 V / 60 Hz | 220 V / 50 Hz<br>110 V / 60 Hz | 220 V / 50 Hz<br>110 V / 60 Hz |
| Power | 800 W | 1000 W | 1200 W | 1400 W | 1000 W | 1200 W | 2000 W | 2600 W |
| Machine Weight | 9.9 kg | 12 kg | 23 kg | 25 kg | 10 kg | 12.5 kg | 35 kg | 40 kg |

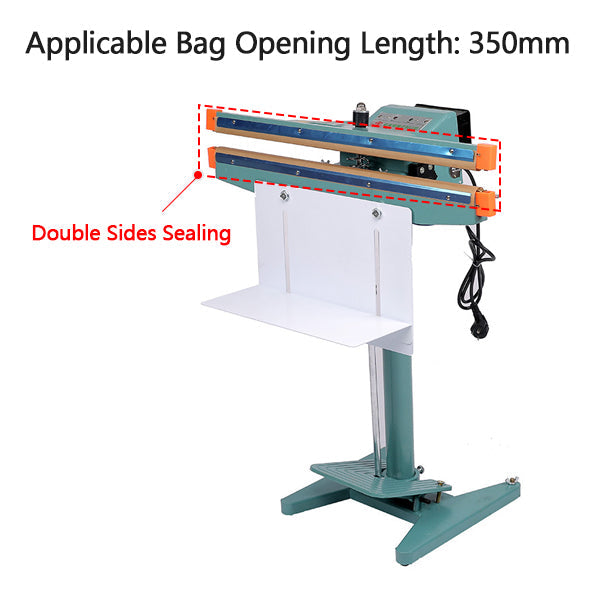

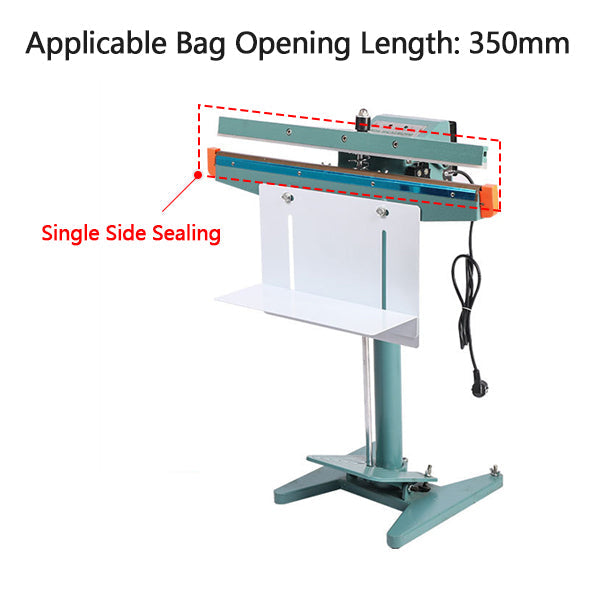

| Heating Wire | Single side sealing | Single side sealing | Single side sealing | Single side sealing | Double side sealing | Double side sealing | Double side sealing | Double side sealing |
| Applicable Bag Opening Length | 350 mm | 450 mm | 650 mm | 800 mm | 350 mm | 450 mm | 650 mm | 800 mm |
| Sealing Width | 8 mm (customizable 2–10 mm) | 8 mm (customizable 2–10 mm) | 8 mm (customizable 2–10 mm) | 8 mm (customizable 2–10 mm) | 8 mm (customizable 2–10 mm) | 8 mm (customizable 2–10 mm) | 8 mm (customizable 2–10 mm) | 8 mm (customizable 2–10 mm) |
| Bag Thickness | < 0.2 mm | < 0.2 mm | < 0.2 mm | < 0.2 mm | < 0.4 mm | < 0.4 mm | < 0.4 mm | < 0.4 mm |
| Sealing Time | 0.2 – 2 s | 0.2 – 2 s | 0.2 – 2 s | 0.2 – 2 s | 0.2 – 2 s | 0.2 – 2 s | 0.2 – 2 s | 0.2 – 2 s |
