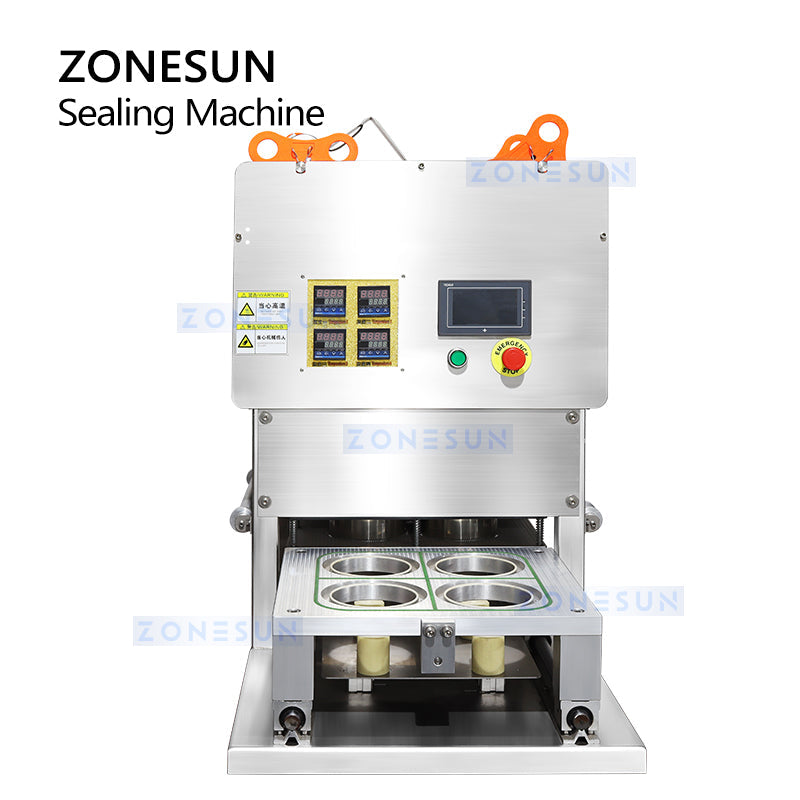

ZONESUN ZS-FK4C Semi Automatic Cup Tray Box Sealing Machine

DESCRIPTION

The ZONESUN ZS-FK4C Semi Automatic Cup Sealing Machine is designed for efficient sealing of cups, trays, and boxes in various shapes and sizes. Equipped with a PLC intelligent control system, it allows precise regulation of sealing time and temperature for consistent results. Customizable molds ensure compatibility with different container types, while its strong and reliable sealing performance makes it ideal for soy milk, milk tea, fast food, and snack packaging applications.

Whatever your packing needs are, you can rely on ZONESUN.

PARAMETER

ZS‑FK3530

• Mold Size: 350 × 300 × 20 mm
• Cup Diameter：Under 95mm
• Mold：4-cavity
• Speed: 300–1000 pcs/h
• Voltage: 220 V / 50 Hz
• Power: 0.5–2 kW
• Temp Range: 0–300 °C
• Air Pressure: 0.5–0.7 MPa
• Air Consumption: 0.4 m³/h
• Size: 840 × 520 × 780 mm
• Weight: 80 kg

ZS‑FK4035

• Mold Size: 400 × 350 × 23 mm
• Mold：4-cavity
• Cup Diameter：Under 115mm
• Speed: 400–1200 pcs/h
• Voltage: 220 V / 50 Hz
• Power: 1–2.5 kW
• Temp Range: 0–300 °C
• Air Pressure: 0.5–0.7 MPa
• Air Consumption: 0.4 m³/h
• Size: 950 × 570 × 790 mm
• Weight: 90 kg

ZS‑FK5040

• Mold Size: 500 × 400 × 25 mm
• Mold：4-cavity
• Cup Diameter：Under 140mm
• Speed: 600–1200 pcs/h
• Voltage: 220 V / 50 Hz
• Power: 1–3 kW
• Temp Range: 0–300 °C
• Air Pressure: 0.5–0.7 MPa
• Air Consumption: 0.4 m³/h
• Size: 1050 × 670 × 840 mm
• Weight: 110 kg
