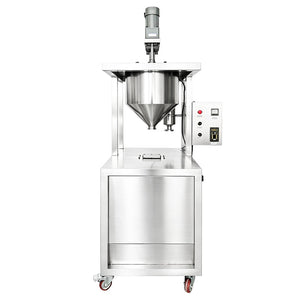

ZONESUN ZS-FM30L Dust-Free Vacuum Powder Filler Pro Filling Machine for Ultra-Fine Powders & Spices (10-30 pcs/min)

Description

The ZONESUN ZS-FM30L Vacuum Powder Filling Machine is a professional-grade packaging solution specifically engineered for ultra-fine, dusty, and non-free-flowing powders. Utilizing advanced negative-pressure vacuum filling technology, it draws powder directly into the container under a sealed vacuum environment. Unlike traditional auger fillers, it completely eliminates issues like powder clouds, material waste, and workshop contamination. Featuring a heavy-duty stainless steel frame, a large conical hopper, and a user-friendly control panel, it delivers a stable speed of 10-30 pcs/min, making it the perfect choice for keeping your powder packaging line clean, efficient, and standardized

Parameter

• Machine Model: ZS-FM30L
• Power: 220V, 50Hz
• Motor (Agitator): 60W
• Barrel Capacity: 30L
• Filling Principle: Vacuum
• Production Capacity: 10–30 pcs/min (Depends on Filling Weight and Powder Properties)
• Machine Dimensions (L×W×H): 750 × 600 × 1850 mm
• Net Weight: 180 kg

Key Features

• Dust-Free Vacuum Filling: The negative-pressure system keeps the container under a micro-vacuum during filling, ensuring zero dust escape and a pristine working environment.
• Master of Ultra-Fine Powders: Specially designed for ultra-fine, lightweight, and dusty powders that are notoriously difficult for conventional mechanical fillers to handle.
• High Precision & Zero Waste: Vacuum suction guarantees consistent powder density and filling height, providing exceptional volumetric accuracy while saving costly materials.
• Easy-to-Clean Modular Design: All material-contact parts are made of food-grade stainless steel and designed for quick disassembly, preventing any batch-to-batch cross-contamination.
• Versatile & Reliable: Runs at 10-30 pcs/min, highly compatible with various rigid wide-mouth containers such as glass jars, plastic bottles, and canisters.

Applications

This machine is widely used in industries requiring strict hygiene and dust control for powder processing:

• Food & Spices: Turmeric powder, garlic/ginger powder, chili powder, pepper, flour, starch, cocoa powder, etc.
• Pharmaceuticals & Health: Herbal powders, spore powders, collagen powder, protein powder, and active pharmaceutical ingredients (APIs).
• Fine Chemicals & Cosmetics: Talcum powder, titanium dioxide, toner, pesticide powders, pigments, and face powders.

PLC Control Panel

Controls the vacuum powder filling machine, allowing digital adjustment of filling and suction time parameters for easy operation and precise control.

Negative Pressure & Dust-Free Filling

Uses vacuum negative pressure to transfer powder materials, reducing dust leakage, minimizing material waste, and maintaining a clean filling environment.

High-Precision Quantitative Control

Uses high-precision sensors and vacuum control to achieve accurate powder dosing, ensuring uniform filling of ultra-fine powders.

Vacuum Filter

Filters dust and impurities to protect the vacuum system. Regular cleaning prevents clogging and maintains suction efficiency.

Versatile Application

Specifically designed for ultra-fine powders with poor fluidity or high dustiness, such as talcum powder, spice powders, and chemical micro-powders.

Why Choose the ZONESUN ZS-FM30L?

✅ Vacuum Negative Pressure Filling — Cleaner Powder Handling: Uses vacuum suction to transfer powder into containers, reducing airborne dust and powder leakage while helping maintain a cleaner filling environment.

✅ 10–30 Pcs/Minute — Efficient Powder Filling: Provides a production capacity of 10–30 pcs/min depending on filling weight and powder properties, making it suitable for small to medium-scale powder production.

✅ High-Precision Quantitative Control — Consistent Filling Results: High-precision sensors and vacuum control work together to provide accurate dosing and more uniform filling of difficult ultra-fine powders.

✅ 30L Hopper + Agitator — Stable Material Supply: The 30L powder hopper provides sufficient material capacity, while the built-in agitator helps maintain consistent powder flow during continuous filling.

✅ Vacuum Filter — Stable Suction Performance: The filtration system captures dust and impurities before they enter the vacuum system, helping prevent clogging and maintain suction efficiency.

✅ PLC Digital Control — Easy Operation Management: Operators can conveniently adjust filling and suction time parameters through the control interface to accommodate different powder properties and filling requirements.

✅ Ultra-Fine Powder Compatibility — Versatile Filling Solution: Specifically designed for powders with poor flowability or high dustiness, making it suitable for cosmetic powders, talcum powder, spice powders, and chemical micro-powders.
