ZONESUN ZS-FS06 Automatic Flour Powder VFFS Packaging Machine with Dust Collector

DESCRIPTION

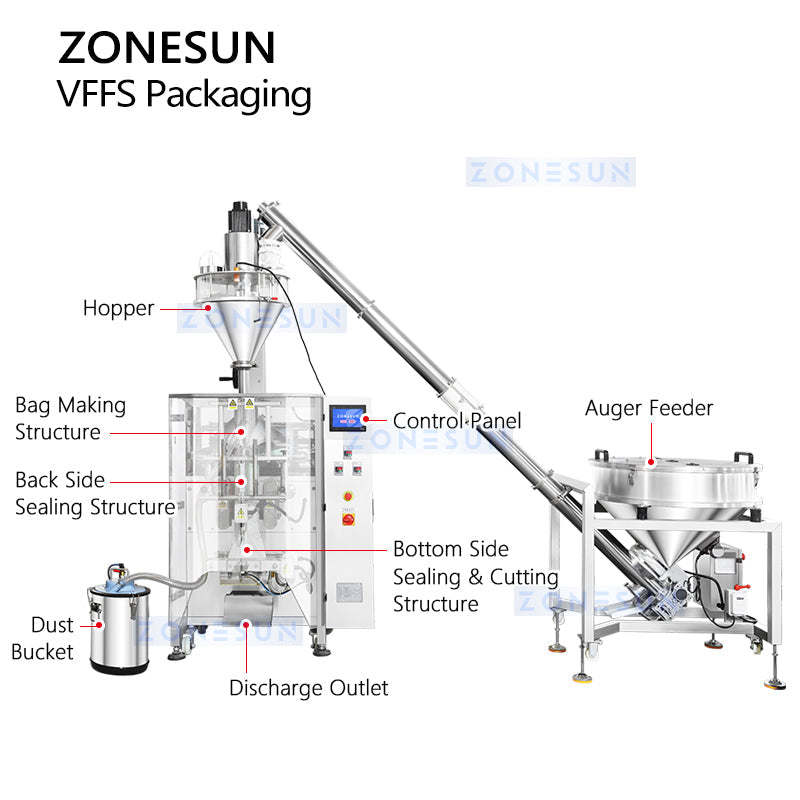

The ZONESUN ZS-FS06 is a fully automatic auger filling and vertical form-fill-seal (VFFS) packaging machine specially designed for powder products. It is particularly suitable for efficiently packaging large-volume powders such as laundry detergent, cleaning powder, and bleaching powder.Equipped with a high-performance auger feeding system and a dust collection bucket, the machine ensures high-precision filling and clean operation, effectively controlling dust dispersion. It is an ideal industrial packaging solution for detergent and cleaning powder applications.



PARAMETER

• Machine Model: ZS-FS06
• Working Voltage: 110/220V 50-60HZ
• Packaging Speed: 5-80 bags/minute
• Roll Film Thickness: 0.05-0.2 mm
• Roll Film Inner Cylinder Diameter: ¢75mm
• Maximum Roll Film Diameter: ¢360mm
• Film Materials: POPP/CPP, POPP/VMCPP, CPP/PE, etc.
• Measuring Method: Electronic Scale/Screw/Measuring Cup/Four-Head Scale/Manual Feeding (optional)
• Air pressure: 0.6-0.8 Mpa
• Max Film Width: 520 mm
• Bag Making Size: W: 60-250 mm L: 80-350 mm
• Filling Range: 150-2000 ml
• Air Consumption: 400 L/min
• Power Supply: 3.5 KW
• Dimensions (L×W×H): 1440×1140×1740 mm
• Machine Weight: 500 kg

CONTROL PANEL

Provides intuitive and easy operation for precise machine control.

AUGER FEEDER

Ensures continuous, timely, and precise powder feeding to maintain maximum packaging efficiency.

SEALING STRUCTURE

Allows temperature adjustment based on film materials, it supports customizable sealing types such as three-side seal and four-side seal.

DUST BUCKET

Removes airborne powder particles generated during filling, sealing, or bag forming to keep the packaging area clean.
