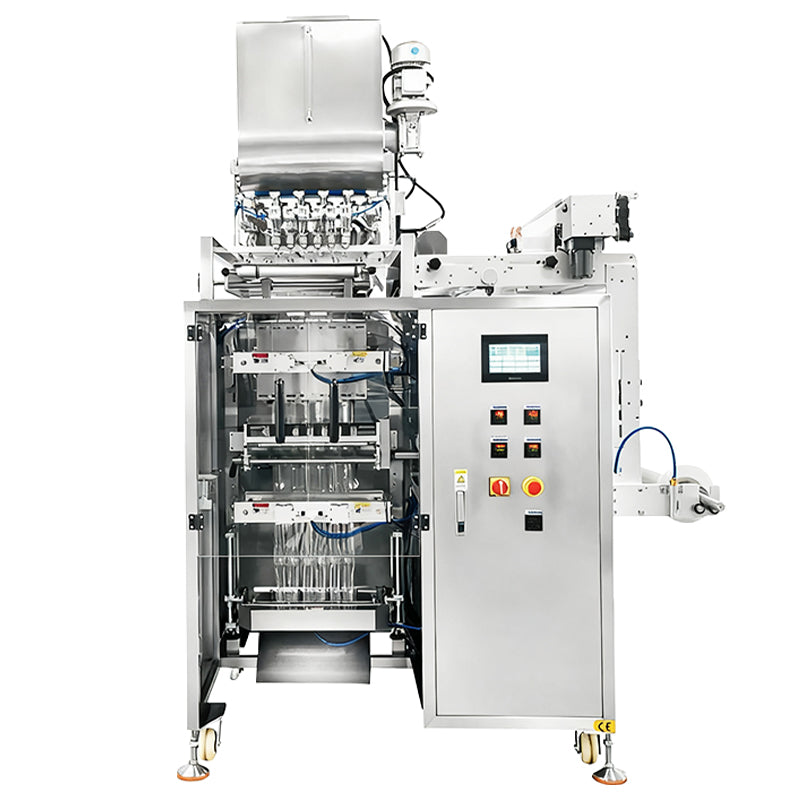

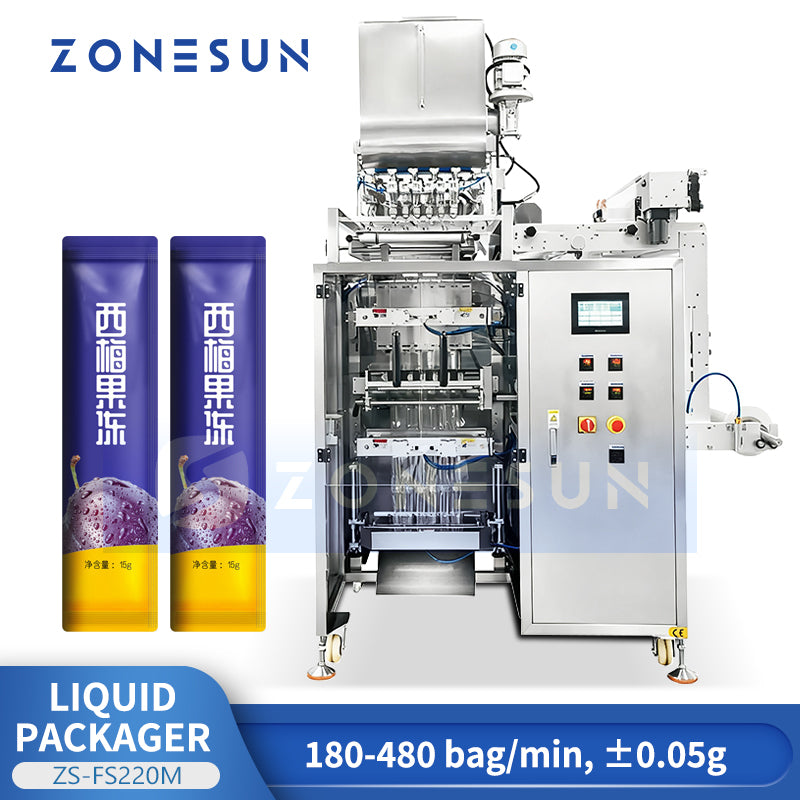

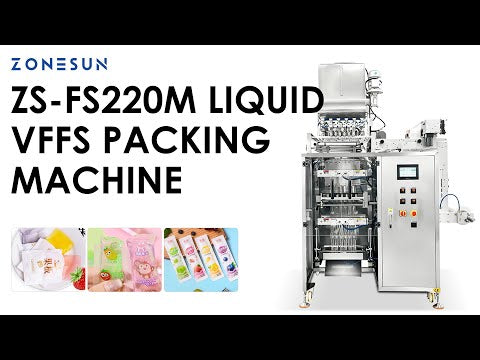

ZONESUN ZS-FS220M Liquid Sachet Filling Sealing Machine Multi-Lane VFFS Packer

Description

The ZONESUN ZS-FS220M is a high-efficiency VFFS machine designed for multi-lane liquid sachet packaging. It integrates film feeding, pouch forming, liquid filling, heat sealing, coding, and cutting into one compact system. Supporting up to 10 lanes and reaching speeds of up to 480 bags per minute, it’s ideal for high-volume production of single-use liquid sachets. The machine accommodates both volumetric cup and weigher-based dosing, ensuring precise filling across a wide range of viscosities. Its modular sealing jaws and cutting options allow for flexible pouch formats, while the integrated ribbon coding system ensures traceability and compliance.



Parameter

• Machine Name: ZS-FS220M
• Lane Number: 3–10 lanes
• Packing Speed: 180–480 bags/min
• Precision: ±0.05 g
• Bag Size: Length 50–180 mm / Width 25–100 mm
• Film Width: Max 600 mm
• Film Thickness: 0.07–0.1 mm
• Measuring Method: Volumetric Cup / Weigher
• Power Supply: AC 220V / 380V / 50Hz / 7.5 kW
• Voltage: 220V
• Automation Level: Fully Automatic
• Material Compatibility: Plastic Film / Composite Film
• Sealing Type: Heat Sealing (Vertical & Horizontal)
• Machine Dimensions: 1550 × 1080 × 2350 mm
• Machine Weight: 600 kg

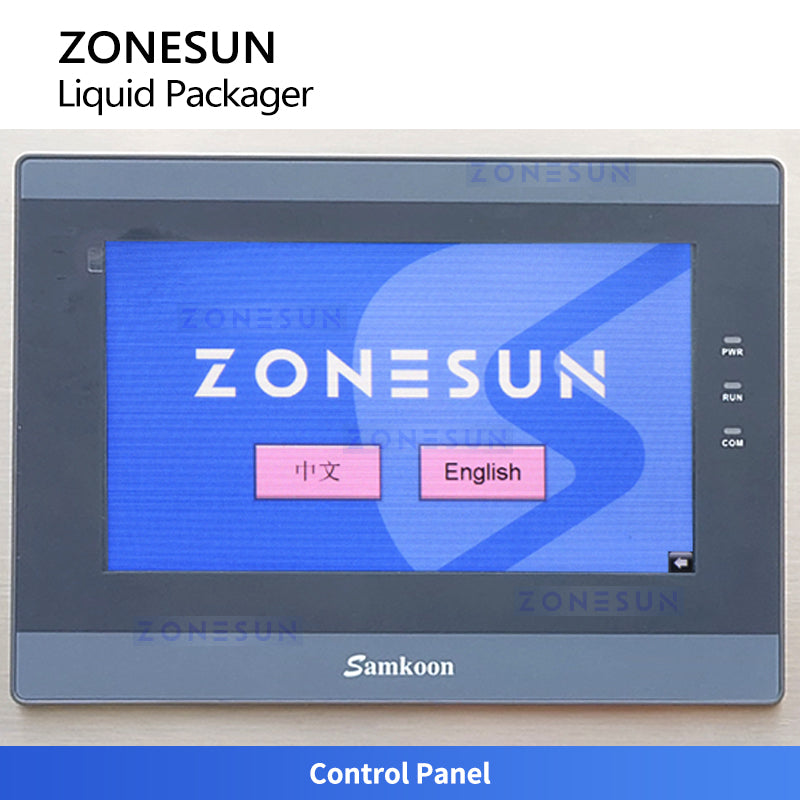

Control Panel

Digital Touch Interface for Control temperature, filling volume, speed, and bag length with ease. Supports multilingual operation for intuitive control.

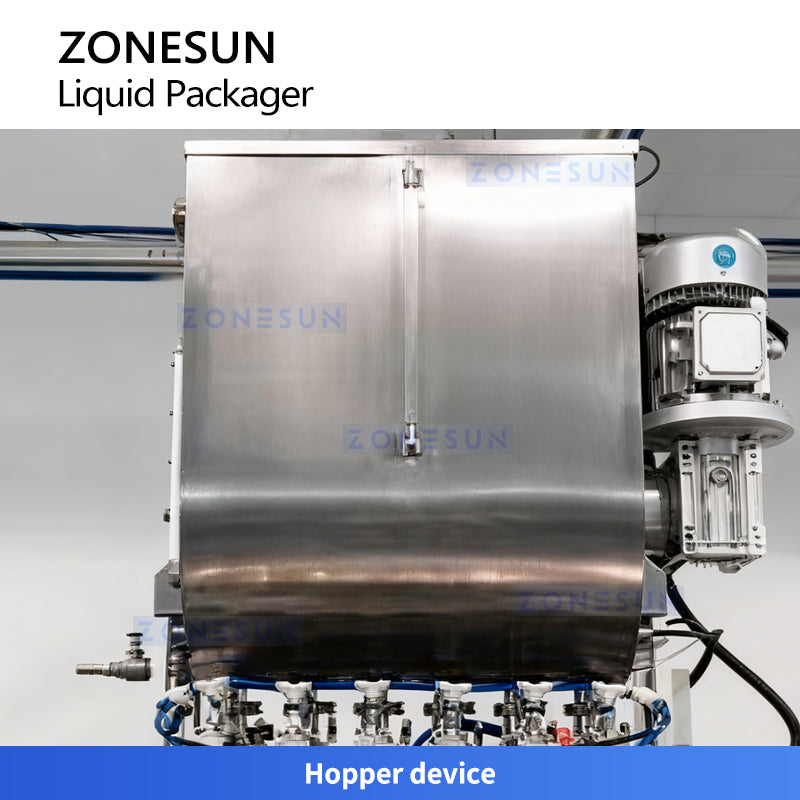

HOPPER DEVICE

Stores liquid materials and feeds them into the filling system using gravity and pumping.

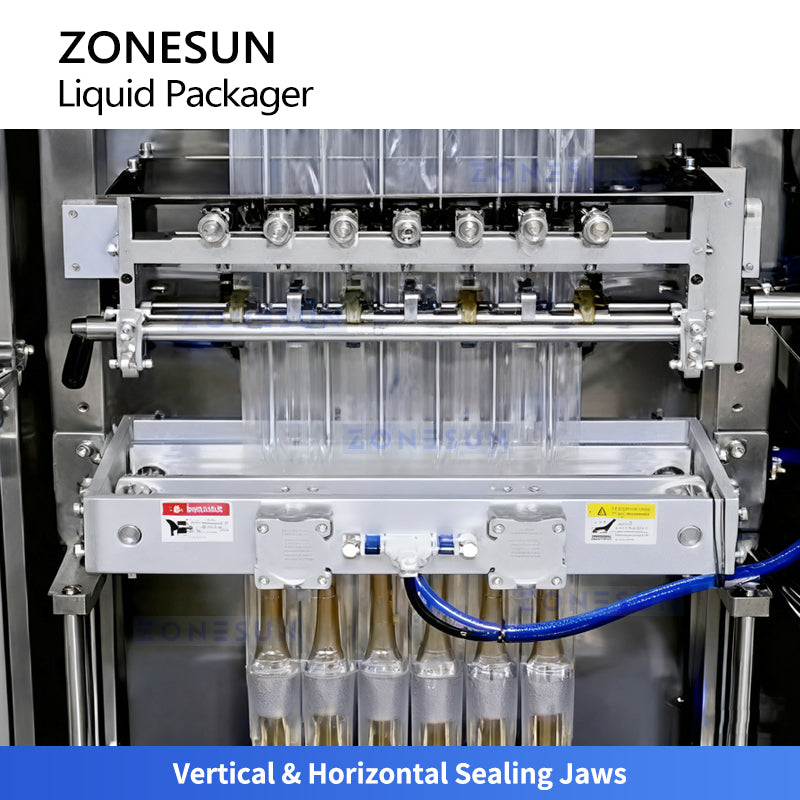

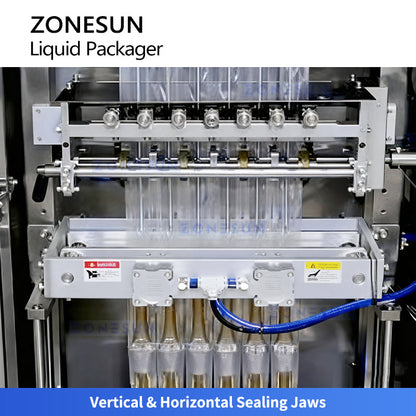

SEALING STRUCTURE

Precision Leak-Proof Sealing:  Seals the pouch's back, top, and bottom openings to form a fully enclosed, leak-proof package.

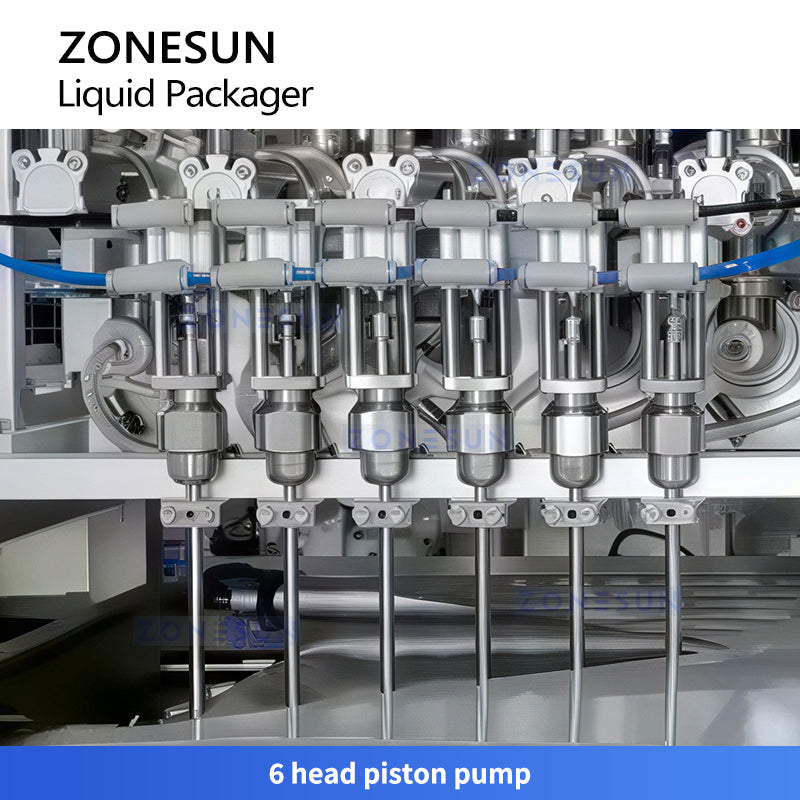

6 HEAD FILLING

Multi-Lane Synchronous Filling:  Enables simultaneous multi-lane filling to significantly increase production output and efficiency.

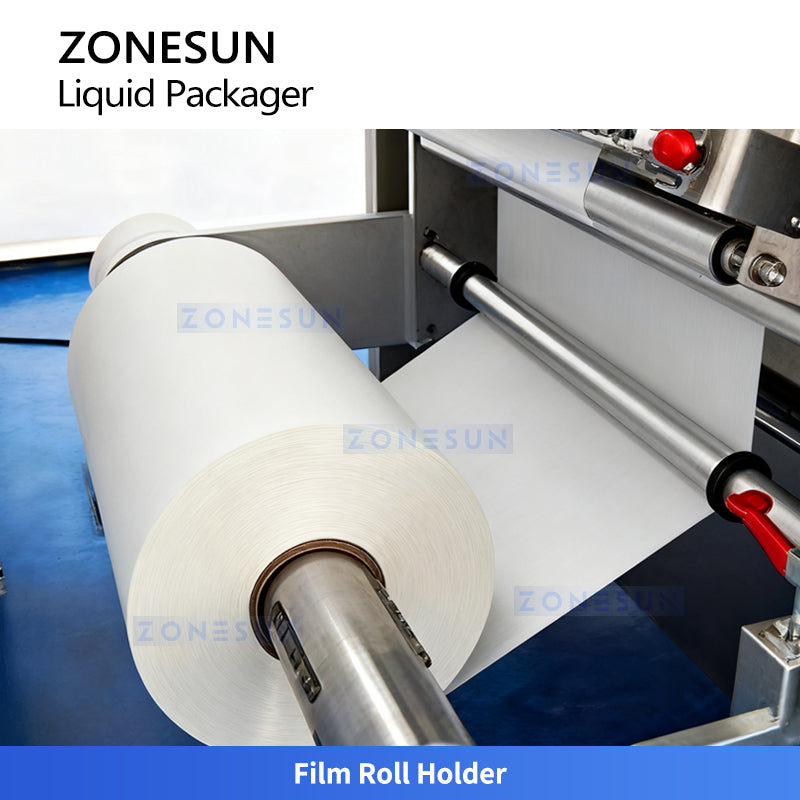

FILM ROLL HOLDER

Automatic Multi-Lane Film Feeding:  Holds packaging film and automatically feeds it to the forming area with support for multi-lane slitting and cutting.

RIBBON CODING

Thermal Ribbon Date & Batch Coding:  Prints production dates, batch numbers, and expiry information clearly onto each pouch using thermal ribbon technology.
