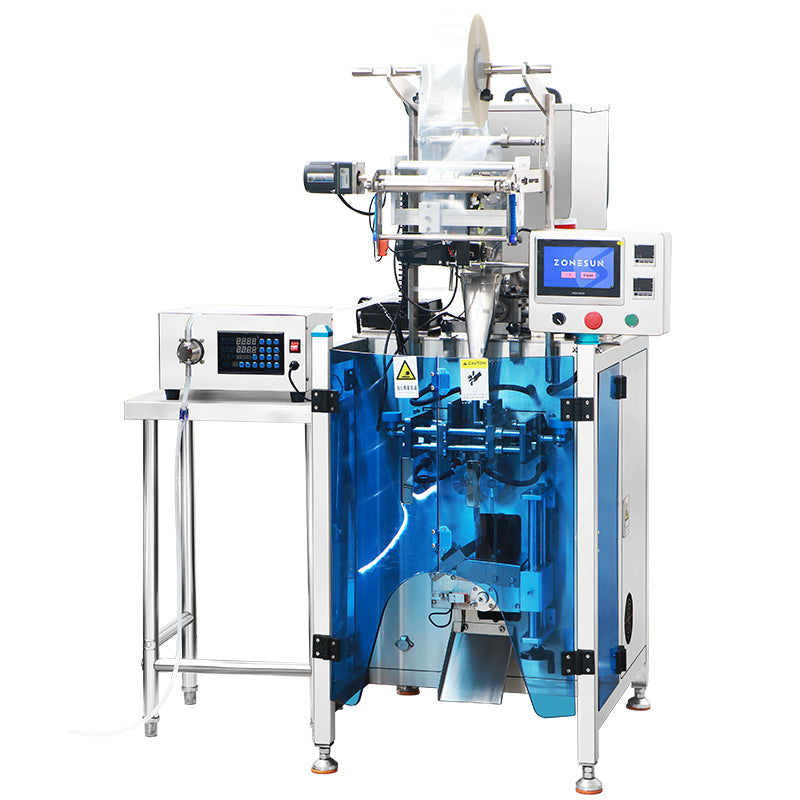

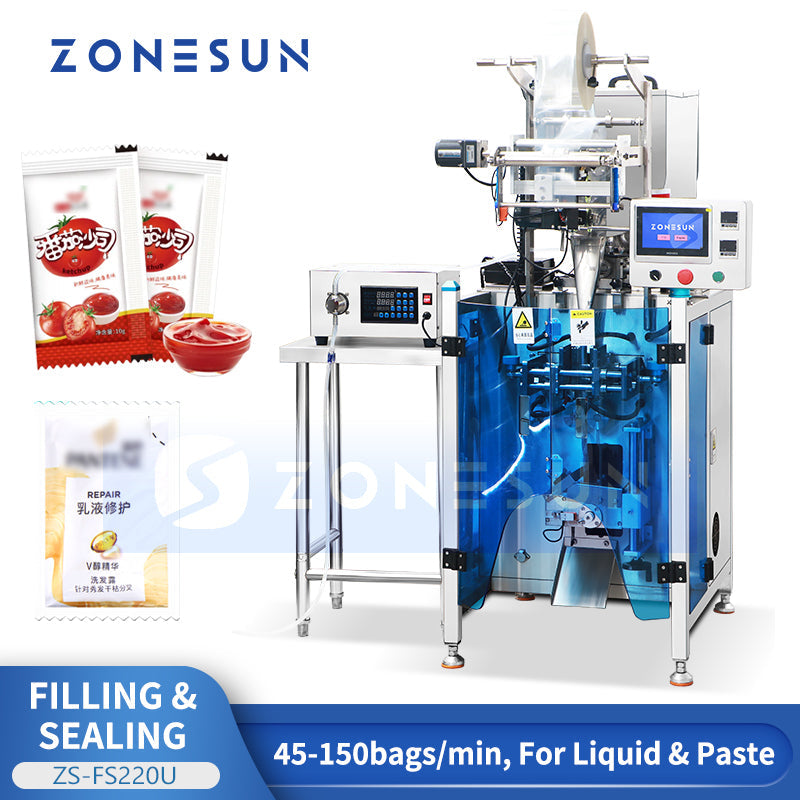

ZONESUN ZS-FS220U Automatic VFFS Sachet Packing Machine for Liquids & Pastes
ZONESUN ZS-FS220U Automatic VFFS Sachet Packing Machine for Liquids & Pastes
Couldn't load pickup availability
Description
The ZONESUN ZS-FS220U is a fully automatic vertical sachet packing machine designed for efficient filling and sealing of liquids and pastes. It integrates dual filling systems to handle a wide range of products such as nutritional supplements, syrups, hair oils, and cosmetic creams. The machine completes bag forming, filling, sealing, and cutting in one streamlined process, with customizable sealing styles including back, three-side, or four-side options. Its advanced control system and precise dosing technology ensure consistent packaging quality, making it ideal for industries seeking reliable, high-speed production with flexible output formats.
Machine Specifications
| Parameter | Specification |
|---|---|
| Machine Model | ZS-FS220U |
| Machine Voltage | 110/220V 50-60HZ 2KW |
| Metering Method | Servo Piston Pump & Magnetic Pump |
| Packaging Form | Back Side Sealing Can be customized |
| Package Film Material | PET/VMPET/PE/PA/AL |
| Max Roll Film Width | 220 mm |
| Dosage Range | 0.1-20 ml Customizable |
| Hopper Size | 50 L |
| Bag Size Length | L 20-145mm * W 20-105mm Customizable |
| Packaging Speed | 45-150 Bags/minute (depending on the actual material) |
| Machine Size | 1493 * 1487 * 1700 mm |
| Machine Weight | About 250 KG |
Applications
1. Nutritional & Pharmaceutical Industry
- Liquids: Oral liquids, liquid nutritional supplements, pharmaceutical syrups, vitamin drops, and herbal extracts.
- Pastes & Gels: Medicinal ointments, herbal extracts, healthcare gels, and topical remedies.
2. Personal Care & Cosmetics Industry
- Liquids: Hair oils, serums, mouthwashes, makeup removers, and perfume sample sachets.
- Pastes & Creams: Shampoos, conditioners, face creams, lotions, body lotions, sunscreens, and liquid hand soaps.
3. Food & Condiment Industry
- Liquids: Drinking water, fruit juices, edible oils, soy sauce, vinegar, and liquid beverage concentrates.
- Pastes & Sauces: Hot pot base fluids, salad dressings, tomato paste, chili sauce, honey, peanut butter, fruit jams, and shacha sauce.

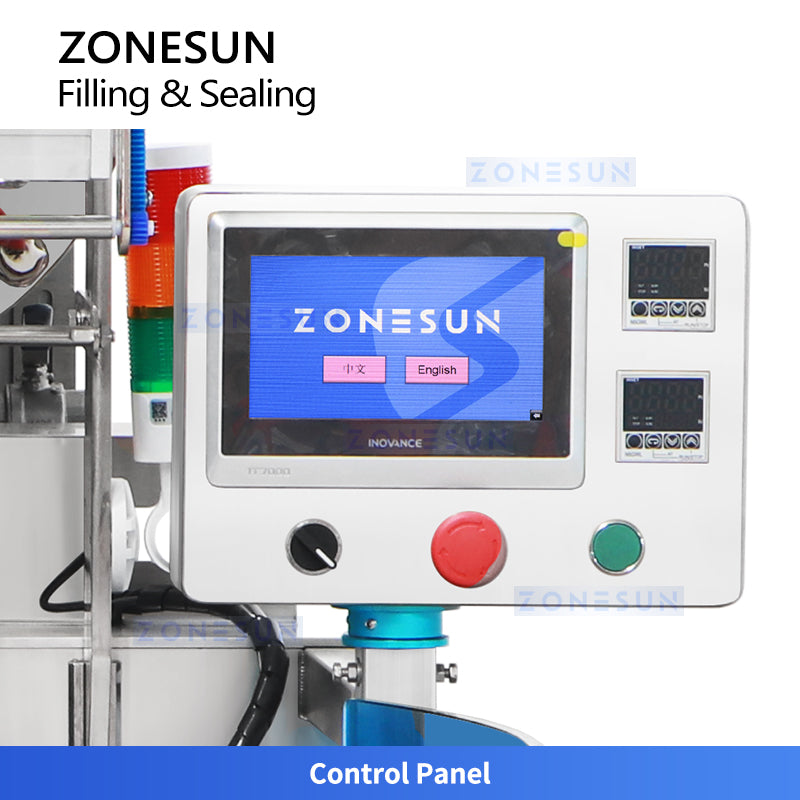

CONTROL PANEL
- Intuitive Touch Interface: Features an easy-to-use touchscreen interface with seamless bilingual support for effortless switching between Chinese and English.
- Fast Parameter Setting: Simplifies complex operations, allowing for rapid data input and real-time adjustments to minimize machine setup time.

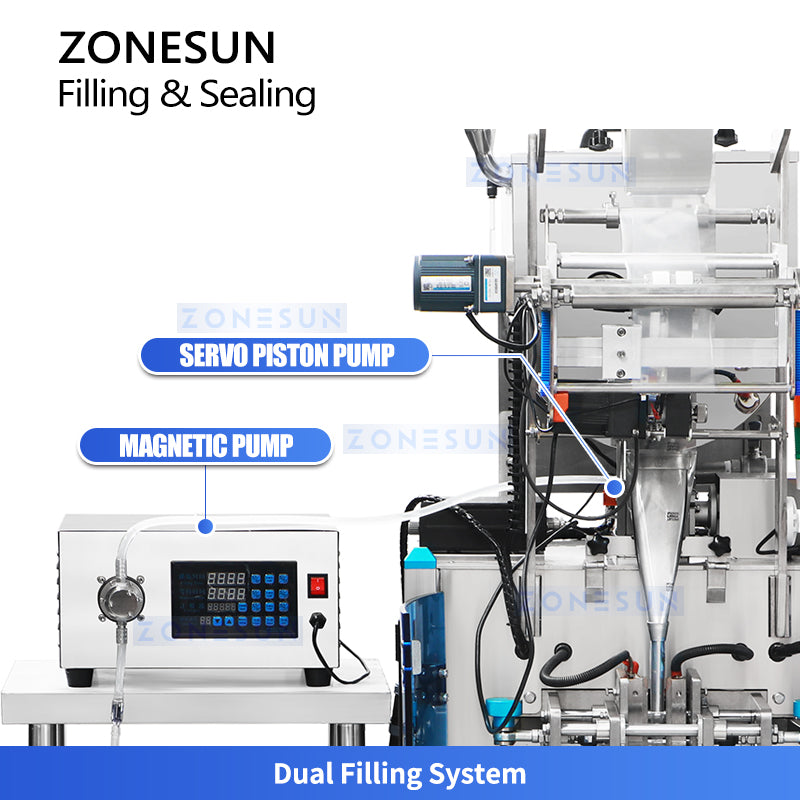

DUAL FILLING SYSTEM
- For Pastes & Liquids: Equipped with both a servo piston pump and a magnetic pump, efficiently handling thick pastes as well as low-viscosity liquids.
- On-Demand Switching: Allows for flexible switching between the two modes based on production needs, providing maximum versatility and reducing equipment costs.

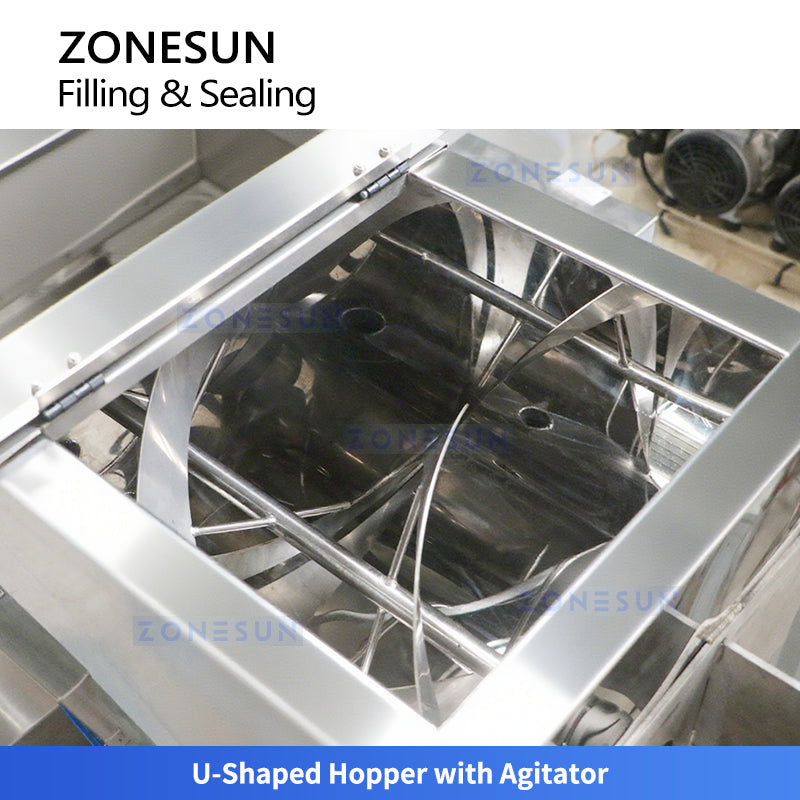

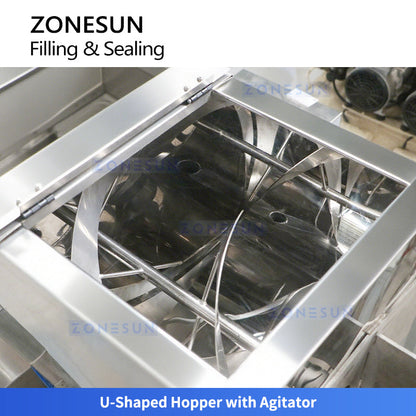

HOPPER WITH AGITATOR
- Consistent Mixing: Ensures thorough and continuous mixing of viscous products, effectively preventing material sedimentation or separation.
- Uniform Filling Quality: Maintains a homogeneous material state to guarantee stable and uniform filling quality for your products.

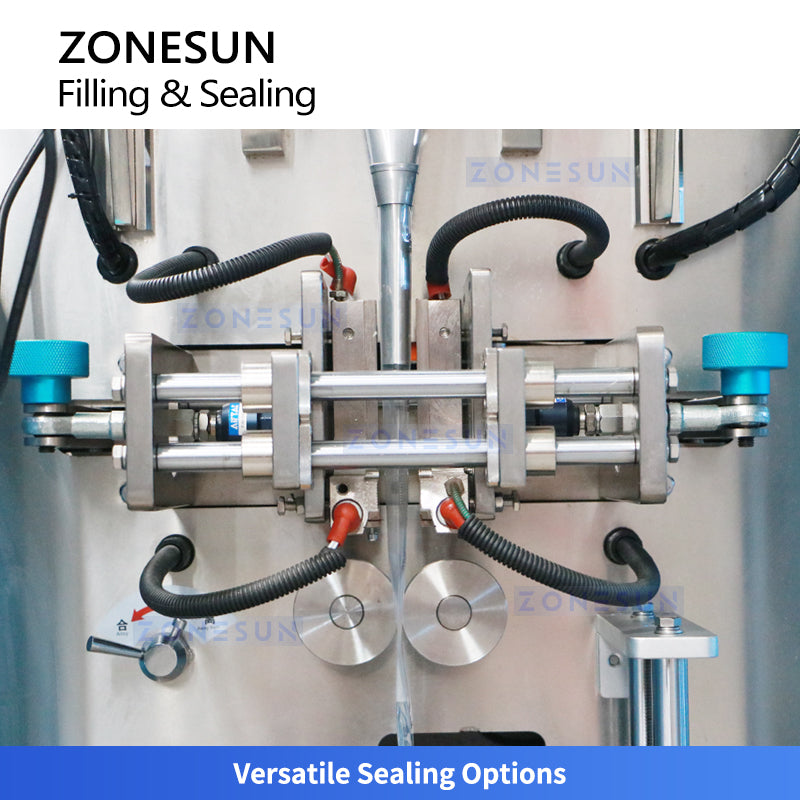

VERSATILE SEALING
- Multiple Sealing Options: Supports back side sealing, three-side sealing, or four-side sealing designs to perfectly present various pouch styles.
- Customizable for Production Needs: The system can be fully customized based on your specific operational requirements and film materials.

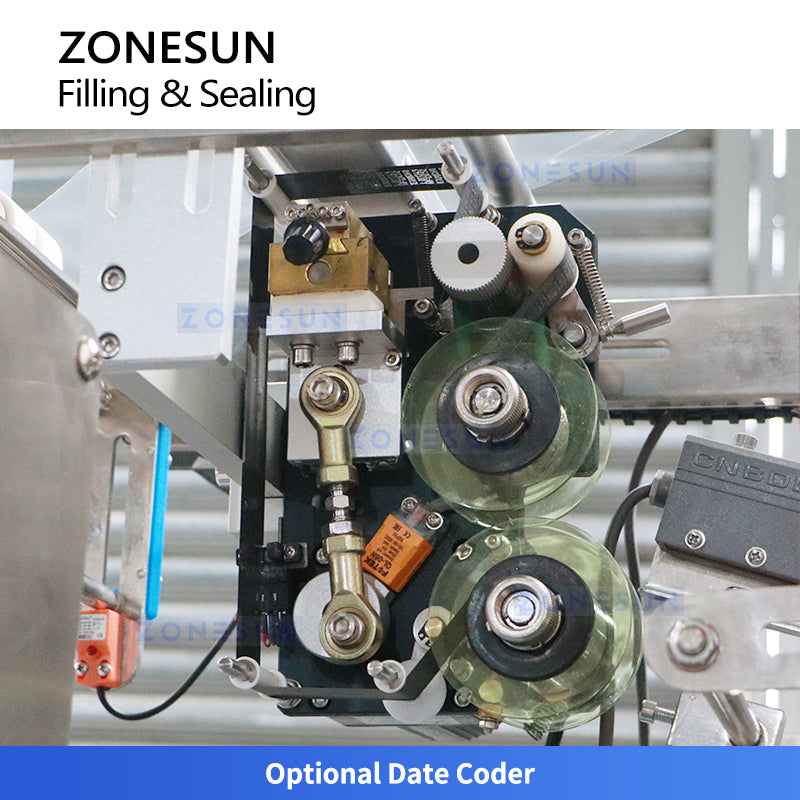

DATE CODER
- Efficient Code Printing: Available for date or batch code printing, perfectly synchronized with the packaging workflow.
- Enhance Product Traceability: Delivers clear, indelible prints to greatly enhance product traceability, meeting strict compliance and quality control standards.
