ZONESUN ZS-GTL12 Automatic Heated Paste Filling Machine for Cosmetics
ZONESUN ZS-GTL12 Automatic Heated Paste Filling Machine for Cosmetics
Regular price
$12,499.00 USD
Regular price
Sale price
$12,499.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

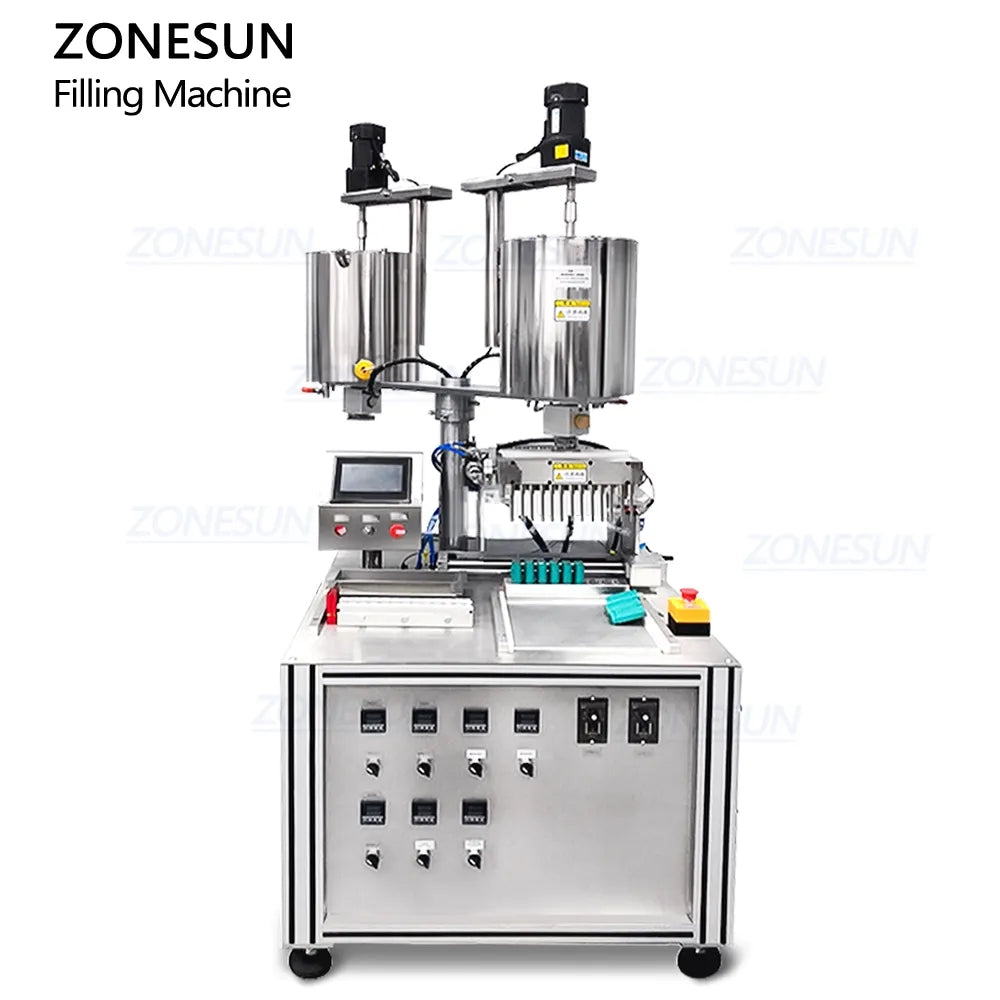

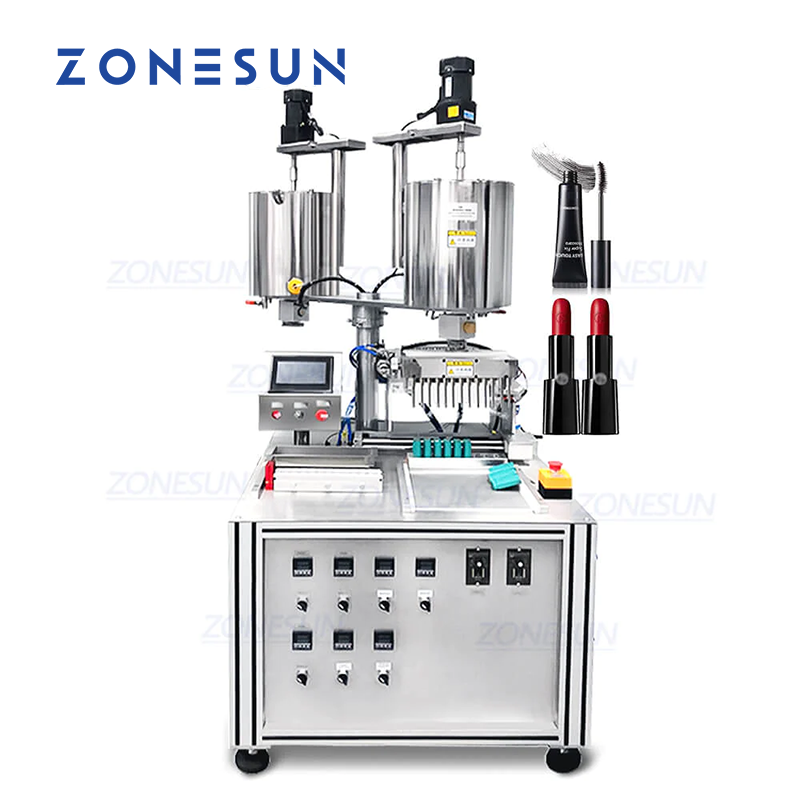

The ZONESUN ZS-GTL12 Automatic Piston Pump Liquid Paste Heating Mixing Filling Machine is specially designed for cosmetic paste products such as lipstick, pen lipstick, eyebrow pencil, lip oil, and lip gloss. Featuring an independent barrel with integrated mixing and temperature control, it ensures uniform heating and blending of diverse raw materials. The piston pump mechanism delivers precise and consistent filling, making it ideal for high-viscosity formulations. This machine is a reliable solution for cosmetic manufacturers seeking efficiency, accuracy, and adaptability in their production lines.
Parameter
| Machine Model | ZS-GTL12 |
|---|---|
| Voltage | 380V 50Hz |
| Total Power | 7.5kW |
| Heating Tube Power | 2kW |
| Working Capacity | ~450 moulds/hour (12-hole mould) |
| Filling Range | 1–11ml |
| Filling Pump Type | Piston Pump |

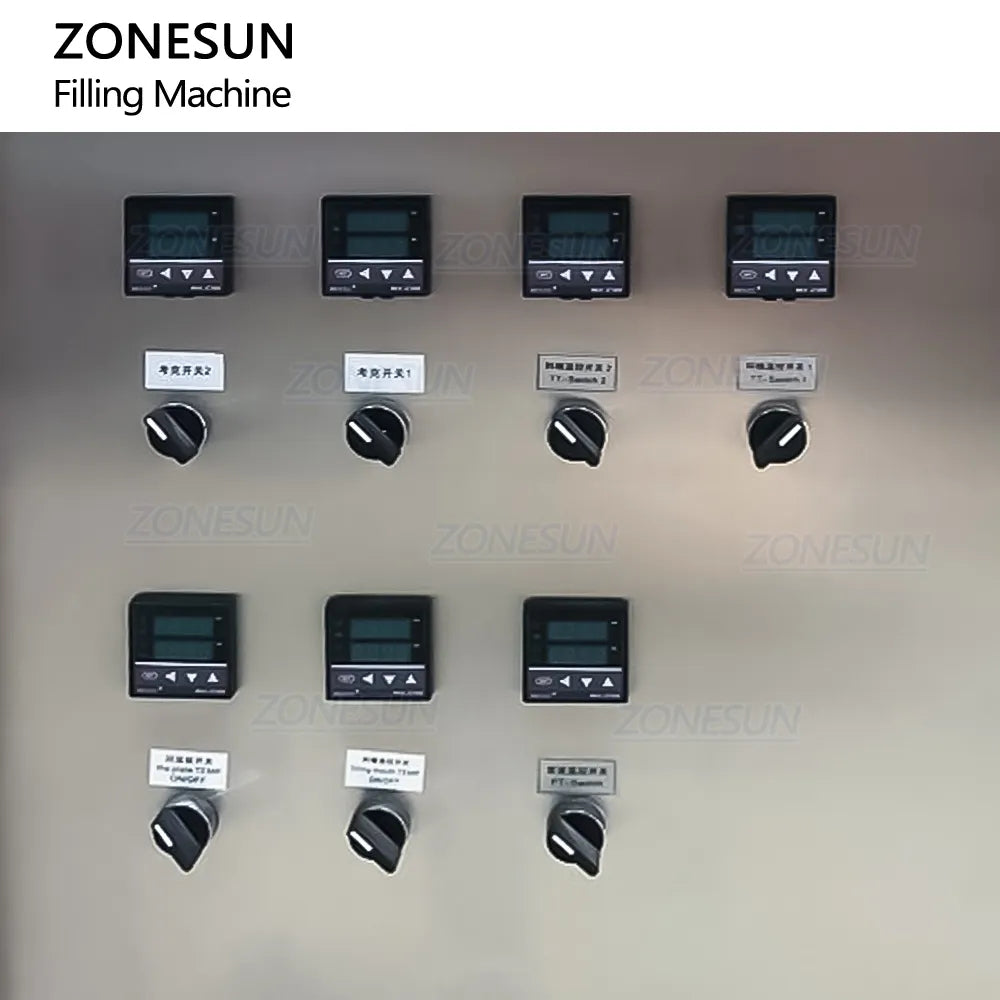

| Temperature Range | 0–140°C |
| Hopper Capacity | 20L |
| Stirring Speed | 0–90 r/min |
| Worktable Height | 720mm |
| Machine Size | ~970 × 1000 × 2000mm |
| Machine Weight | ~320kg |
Applications
- Lip Cosmetics: Standard & slim-tube lipsticks, pen-style lipsticks, lip gloss, lip balms, lip oils, and lip masks.
- Face & Eye Makeup: Concealer sticks, stick foundations, solid blushes, contour sticks, and eyebrow pencils.
- Skincare & Specialty Items: Solid perfumes, essential oil balms, cuticular balms, and heavy moisturizing waxes.

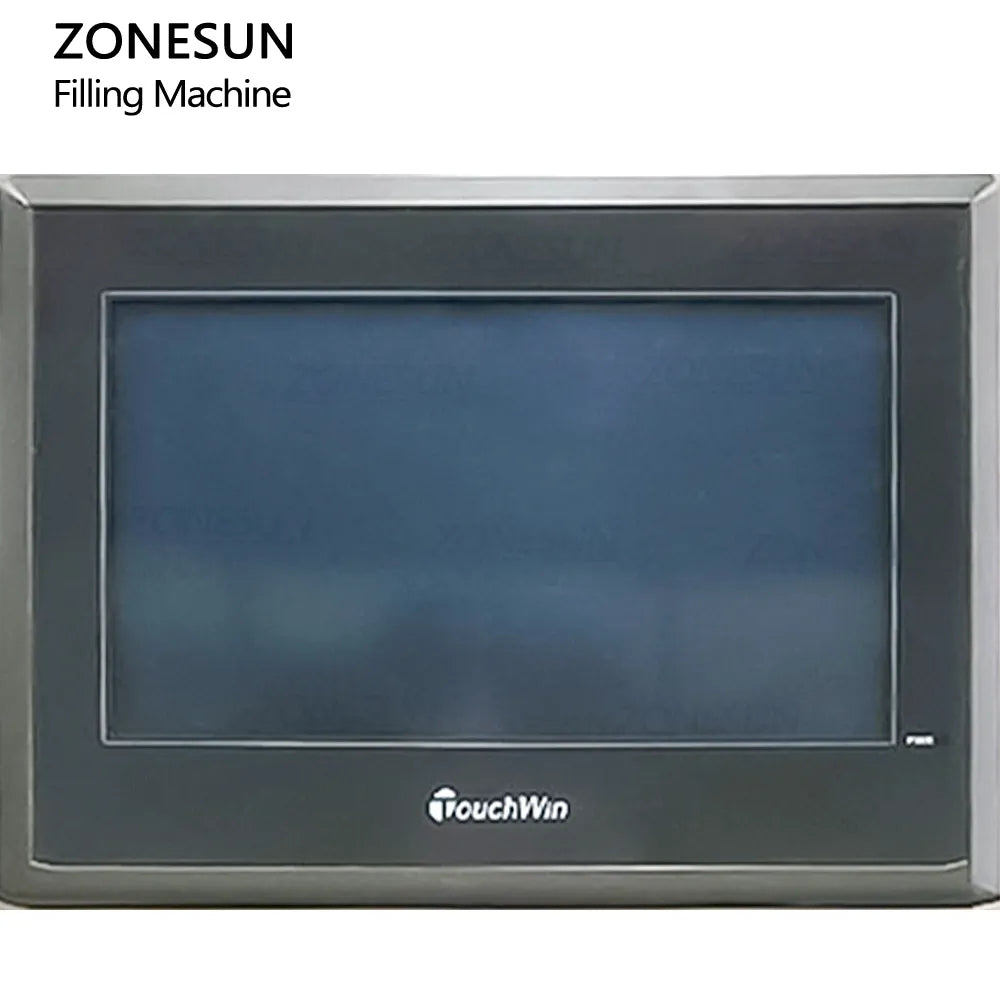

- Customizable PLC Interface: Equipped with an intuitive PLC control panel for effortless parameter tracking and calibration. The system language can be fully customized to meet your global market standard.

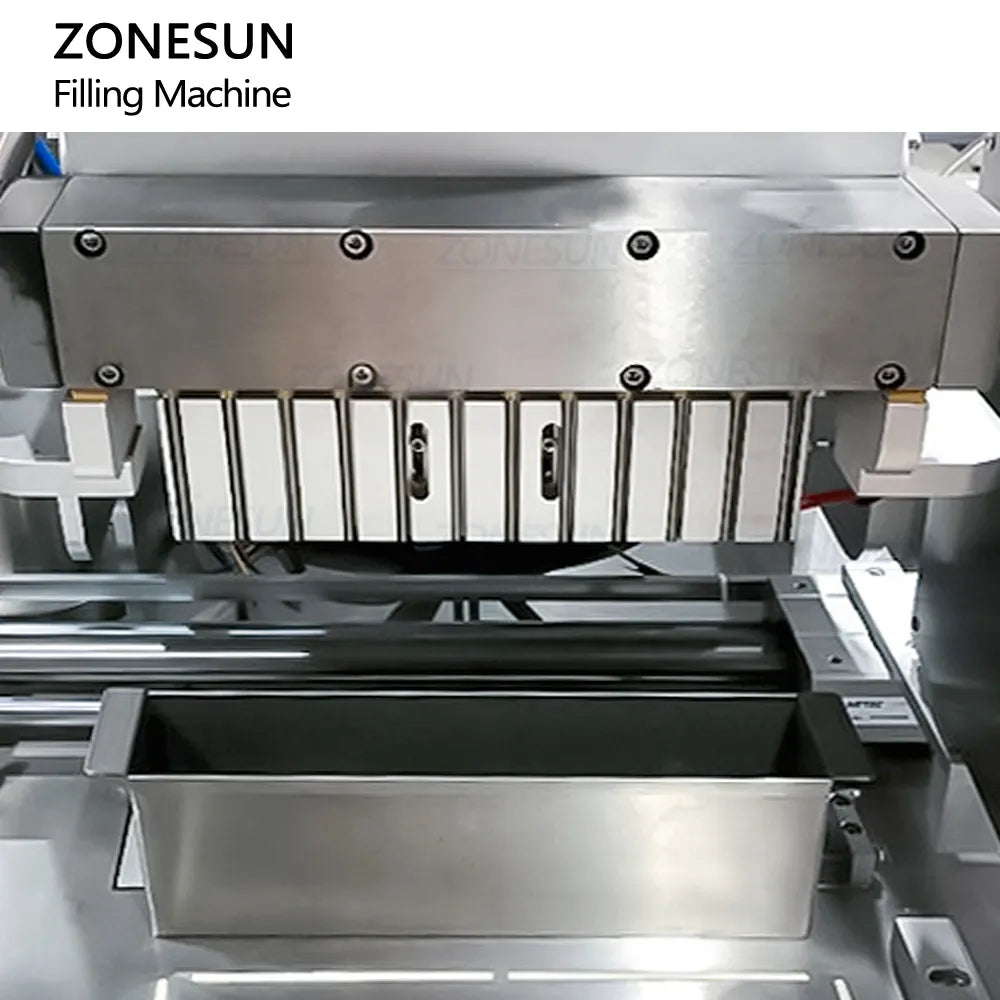

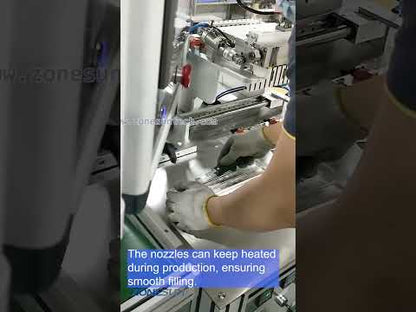

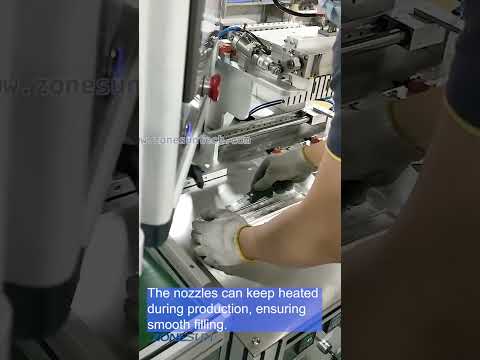

- 12 Continuous Heating Nozzles: Features 12 heavy-duty filling nozzles that keep constantly heated during the operation, perfectly preventing temperature-sensitive materials from solidifying. The nozzle quantity is fully customizable.

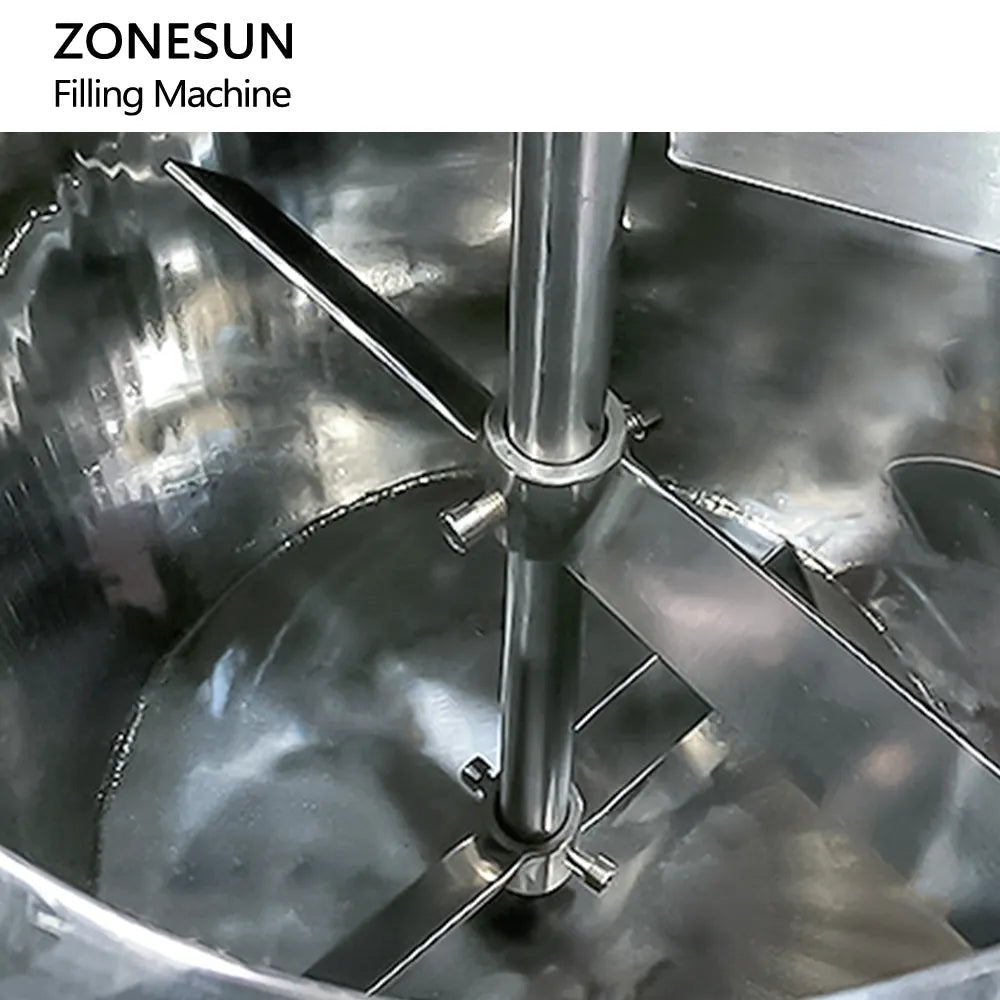

- Dual Hoppers with Sync Stirring & Heating: Designed with double feeding hoppers to dramatically boost manufacturing scaling. Both hoppers feature integrated stirring and heating functions to secure a smooth fluid flow, with fully adjustable heating temperatures and mixing speeds.
