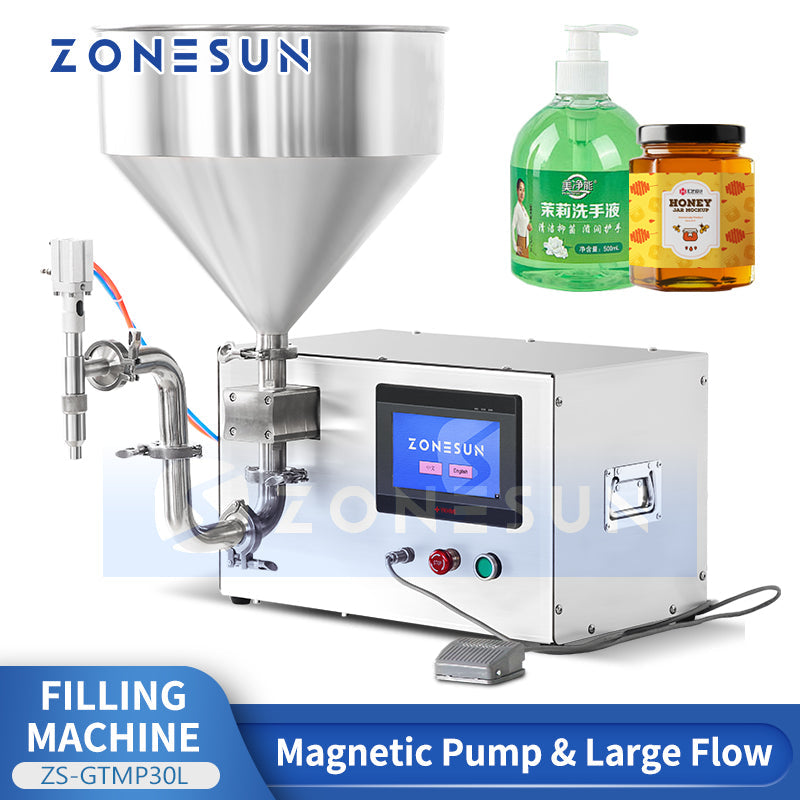

ZONESUN ZS-GTMP30L Semi-automatic Magnetic Pump Liquid Filling Machine

ZONESUN ZS-GTMP30L Semi-automatic Magnetic Pump Liquid Filling Machine

Regular price $1,799.00 USD
Regular price Sale price $1,799.00 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

DESCRIPTION

The ZONESUN ZS-GTMP30L Semi-automatic Magnetic Pump Liquid Filling Machine is engineered for high-efficiency filling of liquids with viscosities ranging from 0.2 to 12000cps. Equipped with a large 30L hopper and a servo motor-driven magnetic pump, it delivers a powerful flow rate of up to 45L/min. This machine supports direct quantitative filling with adjustable calibration, making it ideal for precise and flexible operations. Its robust design and user-friendly interface make it suitable for industries such as food, cosmetics, pharmaceuticals, and chemicals, especially in small to medium-scale production environments.

Whatever your packaging needs are, you can rely on Zonesun.



Parameter

Specification Details
Model ZS-GTMP30L
Voltage 110/220V, 50–60Hz, 800W

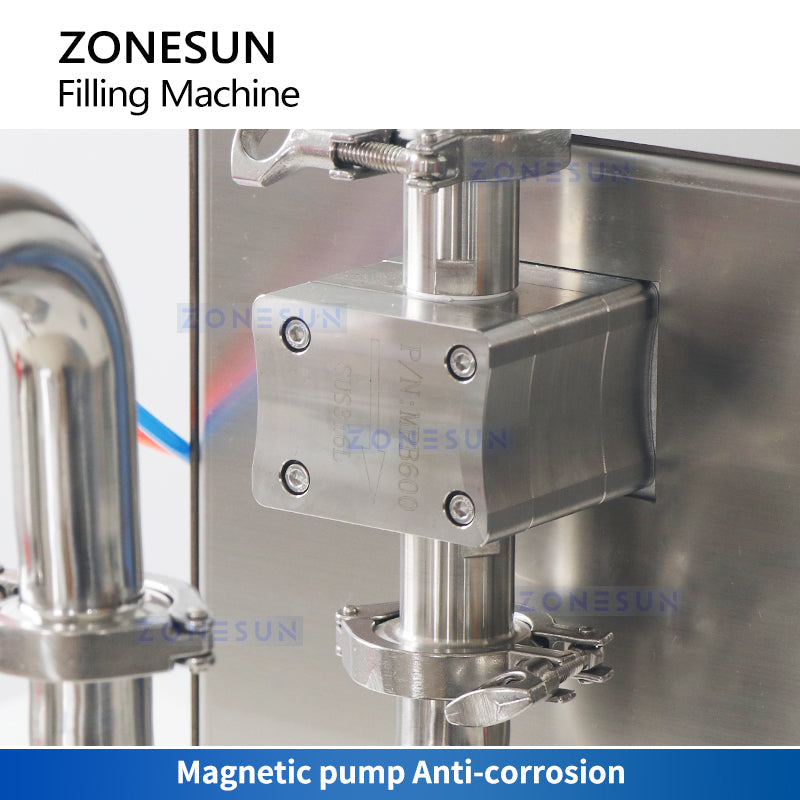

Filling Pump Servo motor driven magnetic pump
Viscosity Range 0.2–12,000 cps
Max Flow Rate 45L/min
Recommended Filling Range 10ml–10L
Filling Accuracy 0.2%–1%
Working Speed 900–1200 bottles/hour (based on 400ml honey)

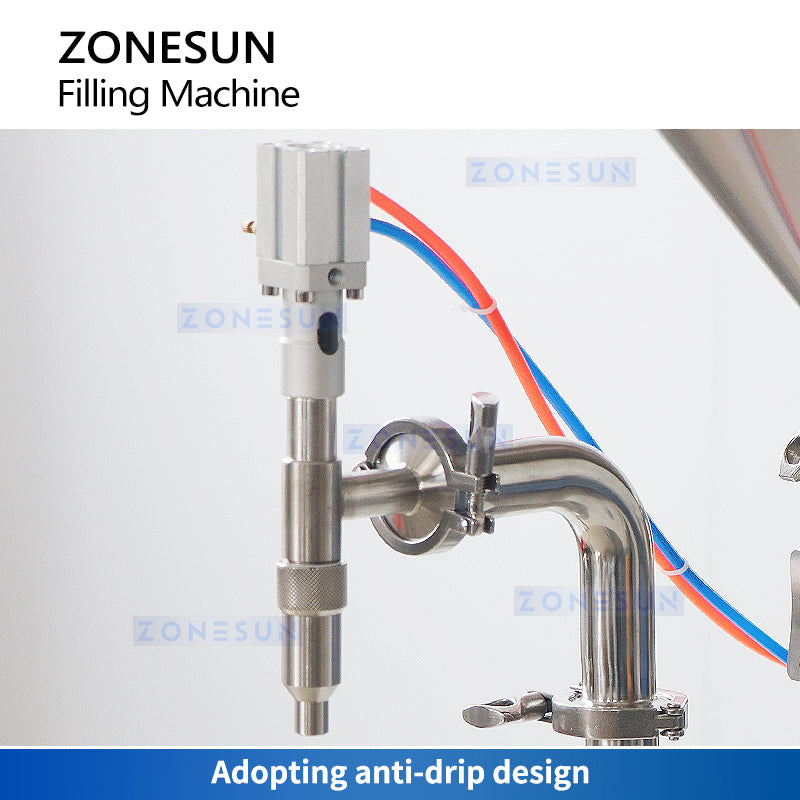

Filling Nozzle Size Anti-dripping nozzle, OD=12mm, ID=10mm

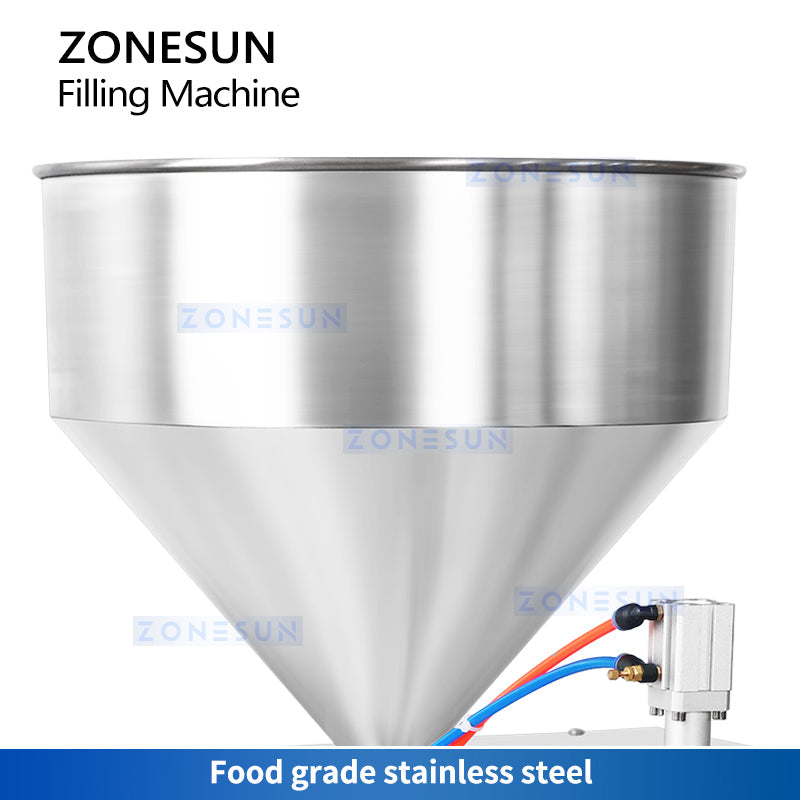

Hopper Capacity 30L
Machine Size About 51 × 60 × 70cm
Machine Weight About 28.5kg
