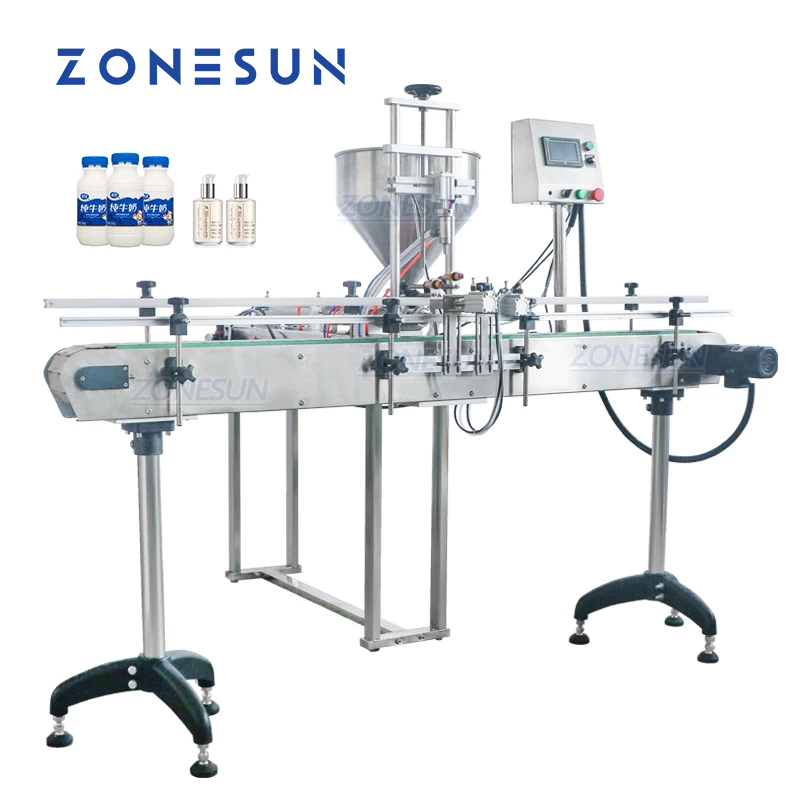

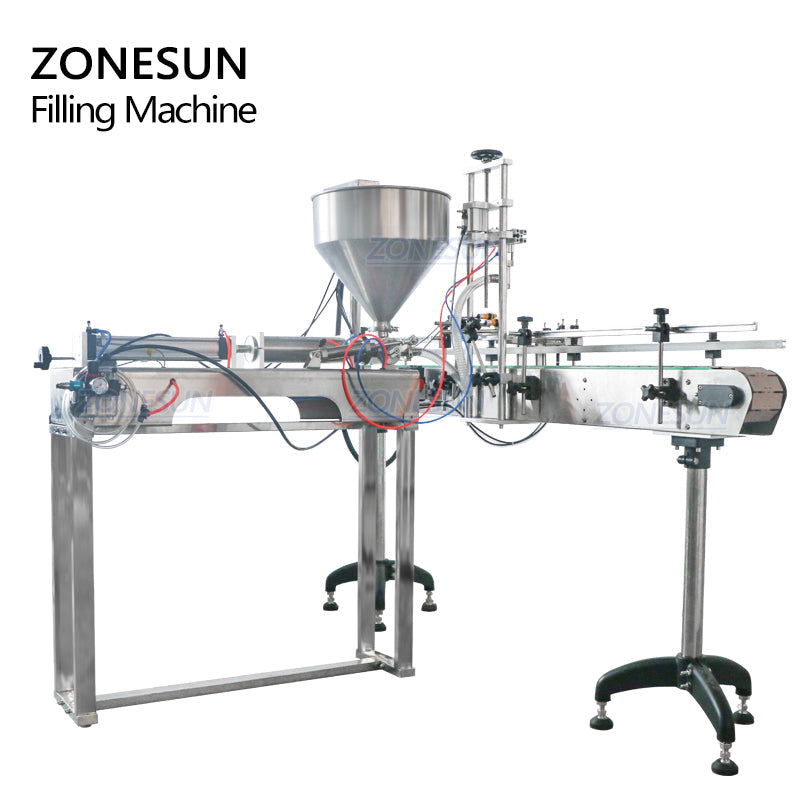

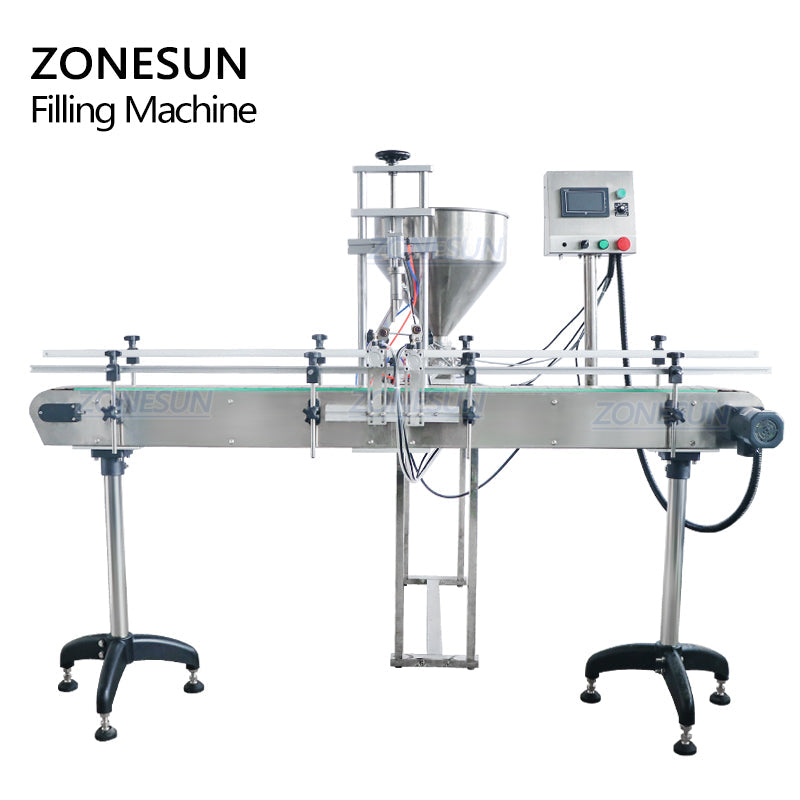

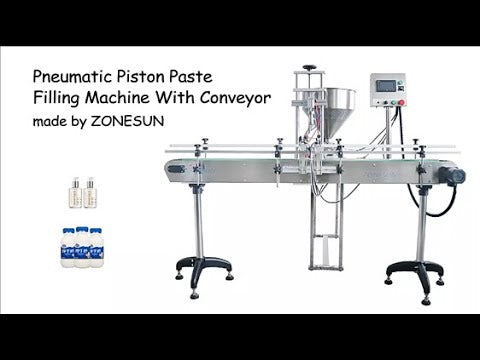

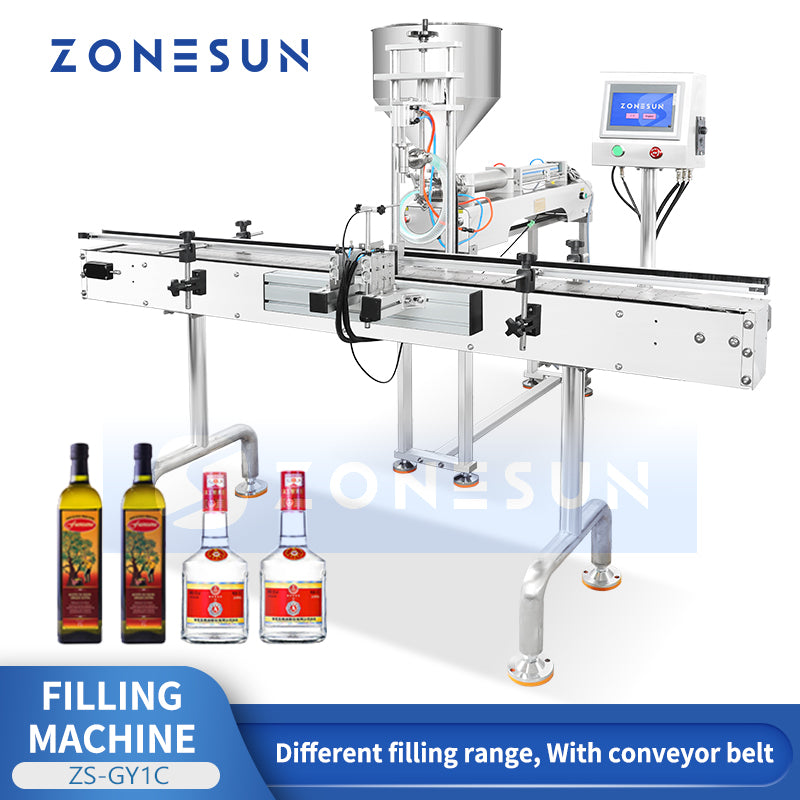

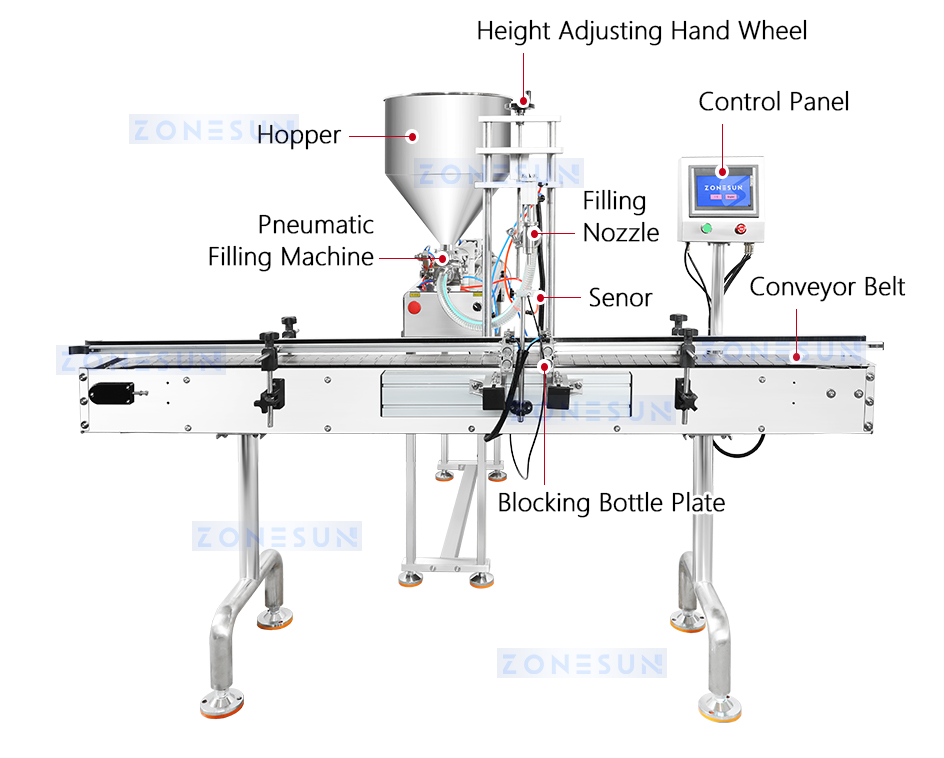

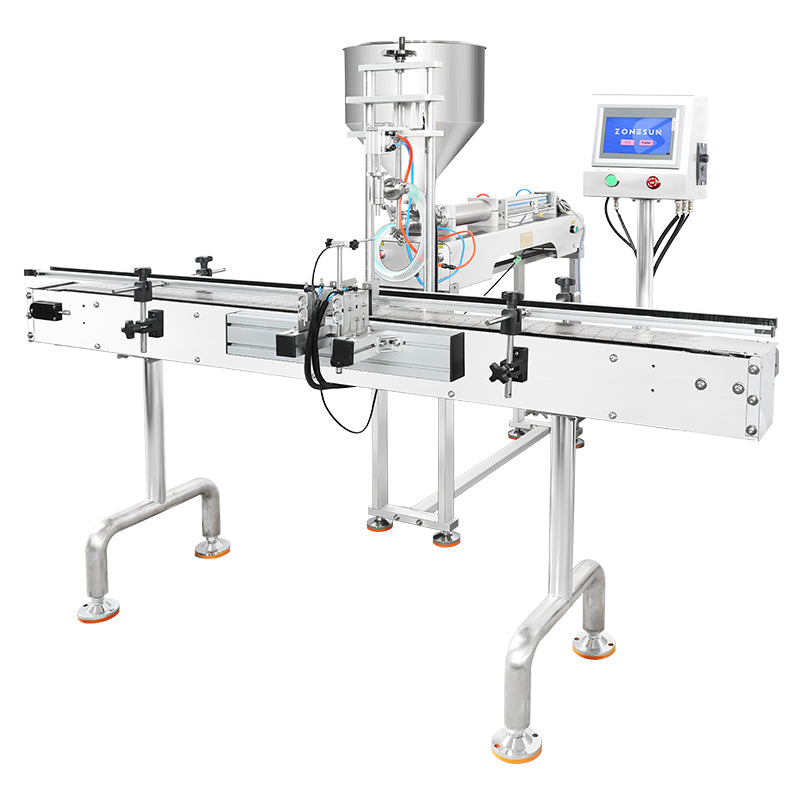

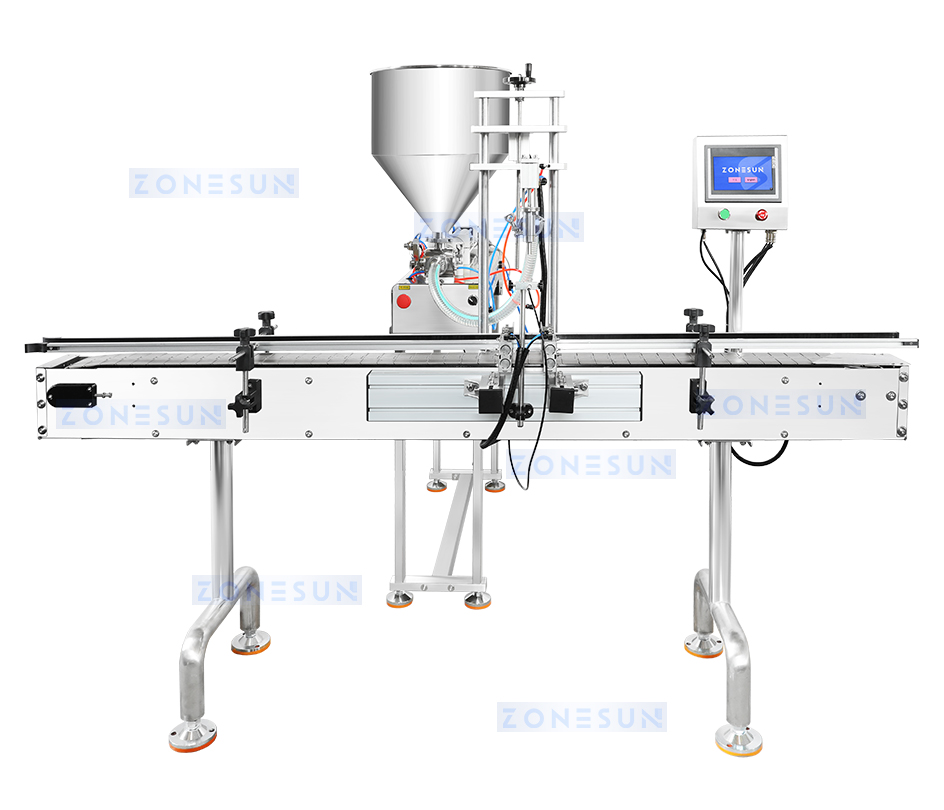

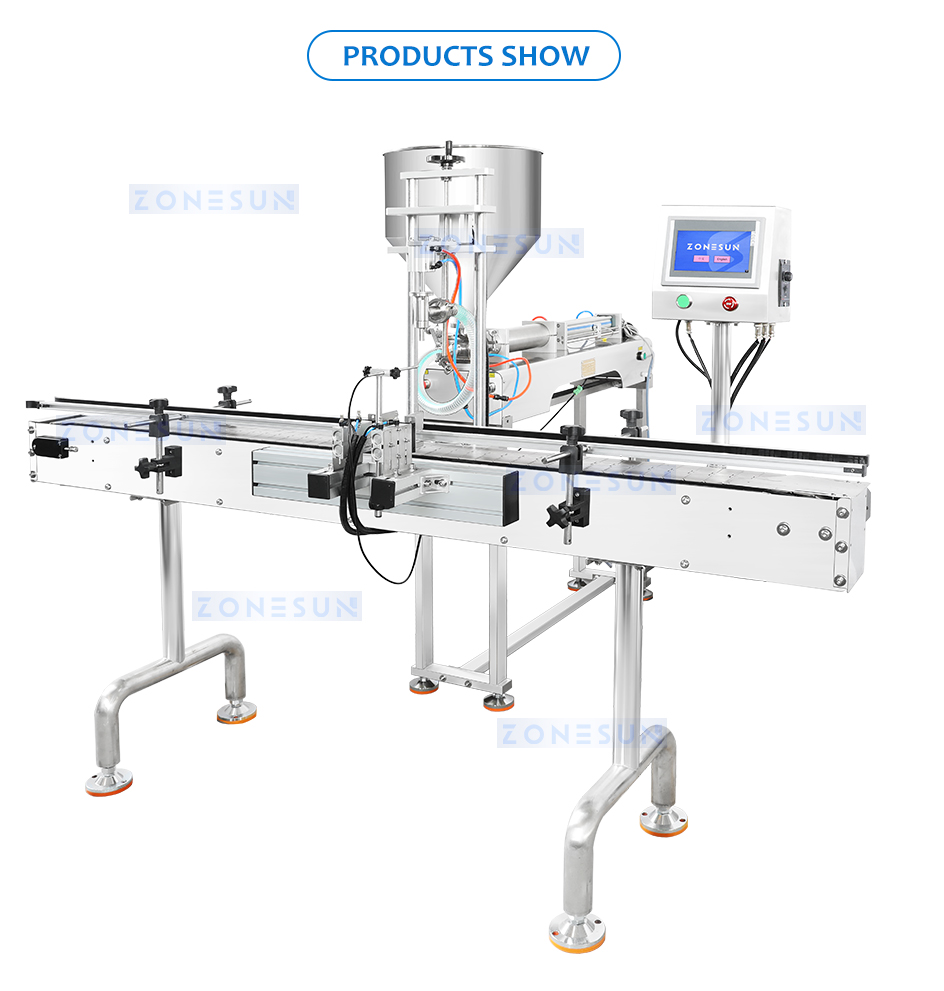

ZONESUN ZS-GY1C Automatic Pneumatic Paste & Liquid Filling Machine with Conveyor Belt for Bottle Jar
ZONESUN ZS-GY1C Automatic Pneumatic Paste & Liquid Filling Machine with Conveyor Belt for Bottle Jar
Regular price
$1,892.00 USD
Regular price
$0.00 USD
Sale price
$1,892.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The ZONESUN ZS-GY1C Pneumatic Automatic Paste Filling Machine with Conveyor is designed for efficient and precise filling of both liquids and viscous products such as cream, honey, chocolate, perfume, and beverages. Powered by pneumatic control, it ensures stable performance and hygienic operation. The integrated conveyor system streamlines the filling process, making it ideal for continuous production. Widely used in food, cosmetics, pharmaceuticals, daily chemicals, and beverage industries, this machine is a reliable solution for small to medium-scale filling operations.

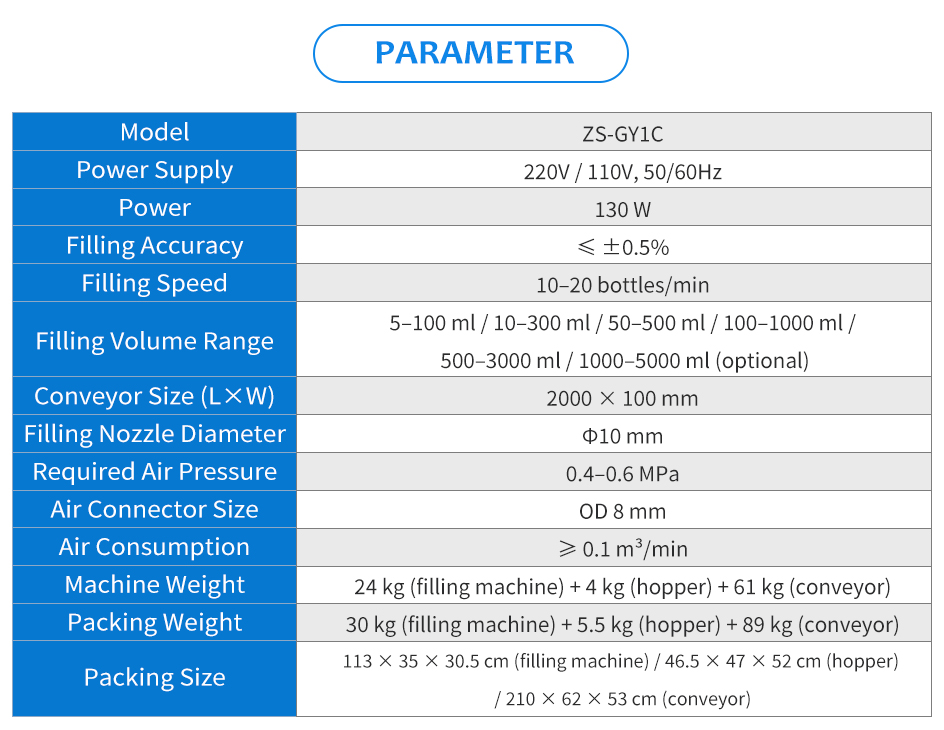

Specifications
| Specification | Details |
|---|---|
| Machine Model | ZS-GY1C |
| Power Supply | 110/220 V, 50/60 Hz |
| Rated Power | 130 W |
| Filling Accuracy | ±0.5% |
| Filling Speed | 10–20 bottles/min |
| Filling Volume |
10–100 mL 10–300 mL 50–500 mL 100–1000 mL 500–3000 mL 1000–5000 mL
Select according to your filling requirements.
|
| Conveyor Size | 2000 × 100 mm (L × W) |
| Filling Nozzle Diameter | Ø10 mm |
| Required Air Pressure | 0.4–0.6 MPa |
| Air Compressor Connector | Ø8 mm |
| Air Consumption | ≥0.1 m³/min |
Notice
This machine can be customized according to customers' needs. And it can work with labeling machines and capping machines. If you need, please contact us. Thank you!
Application
1. Applicable Material Types Powered by pneumatic control and piston technology, it offers high adaptability to various material viscosities:
- Liquids: Free-flowing liquids such as beverages, juices, perfumes, and aqueous solutions.
- Pastes & Viscous Liquids: High-viscosity or semi-fluid materials, including creams, honey, chocolate sauce, and liquid detergents.
2. Target Industries
- Food & Beverage: Ideal for bottling and jarring sauces, honey, syrups, juices, and drinks.
- Cosmetics & Daily Chemicals: Suitable for packaging lotions, face creams, perfumes, shampoos, and body washes.
- Pharmaceuticals & Healthcare: Designed for hygienic, high-precision filling of ointments, oral liquids, and medicine solutions.
- Chemicals & Industrial Products: Well-suited for volumetric filling of compatible liquid and paste chemical products.

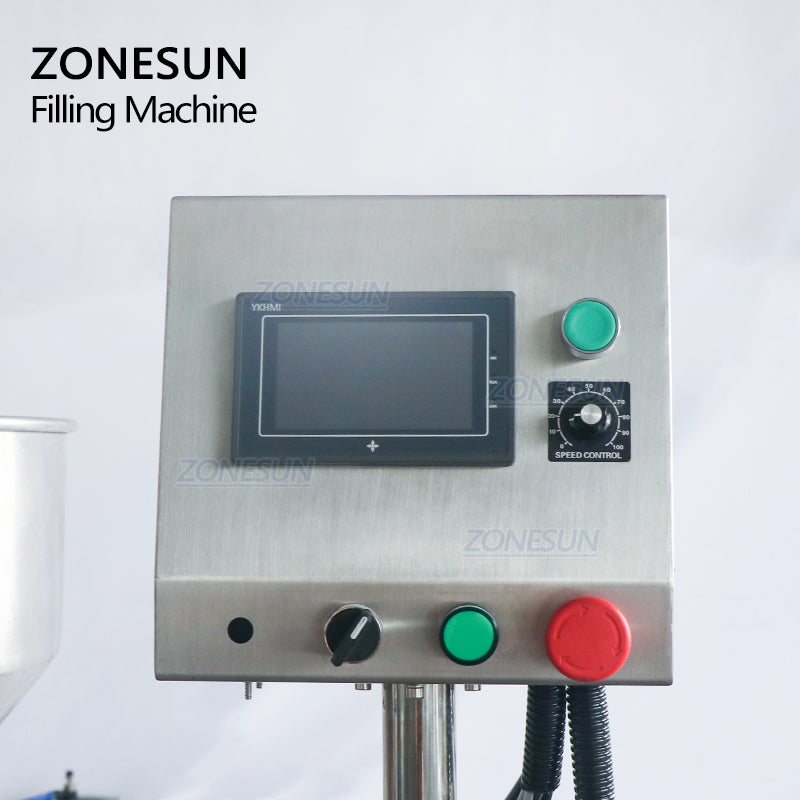

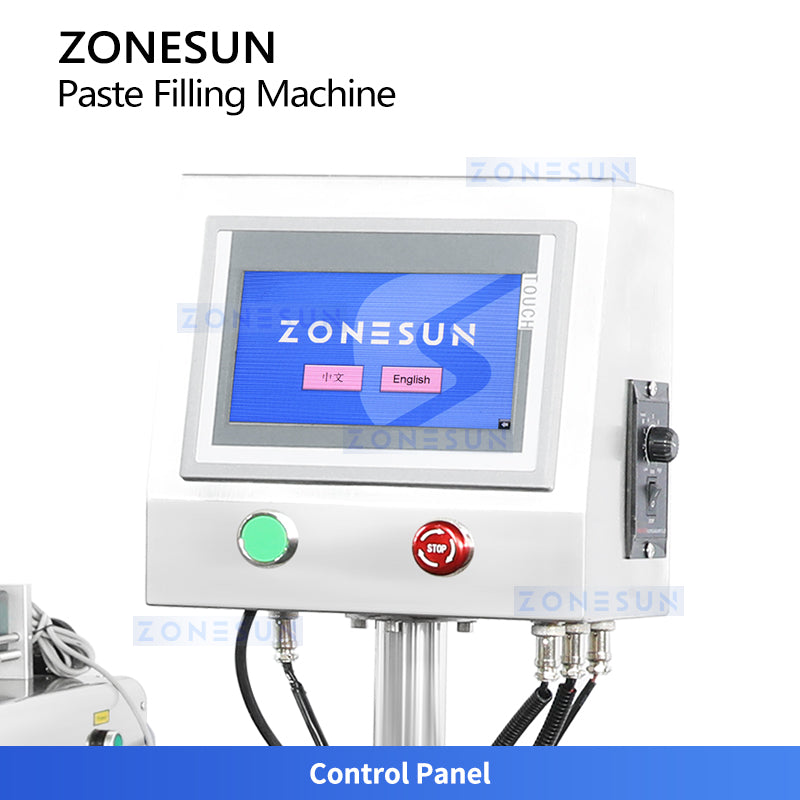

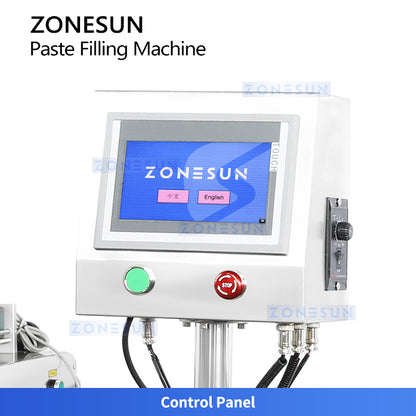

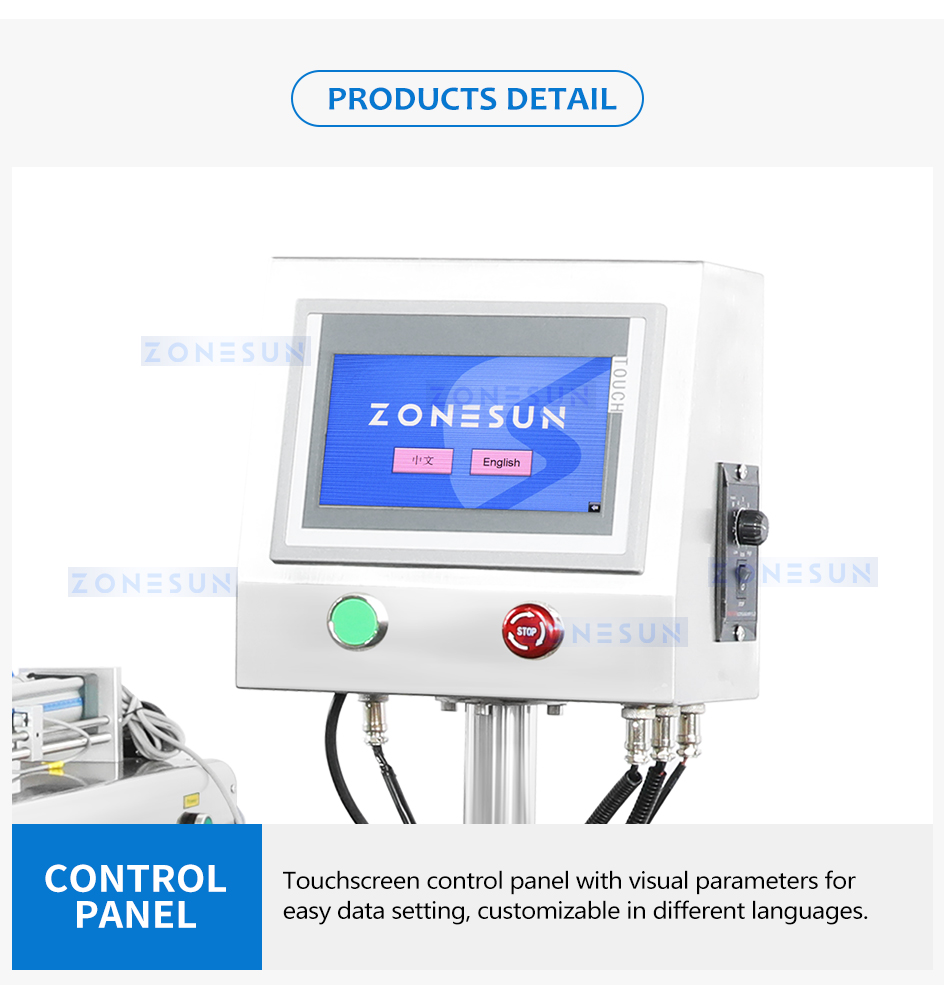

Control Panel
- Visual & Parametric Design: Simply tap the screen to complete data settings in seconds. Say goodbye to blind adjustments.
- Multi-Language Customization: Built-in multi-language switching including Chinese and English. It can also be exclusively customized based on your specific market demands.

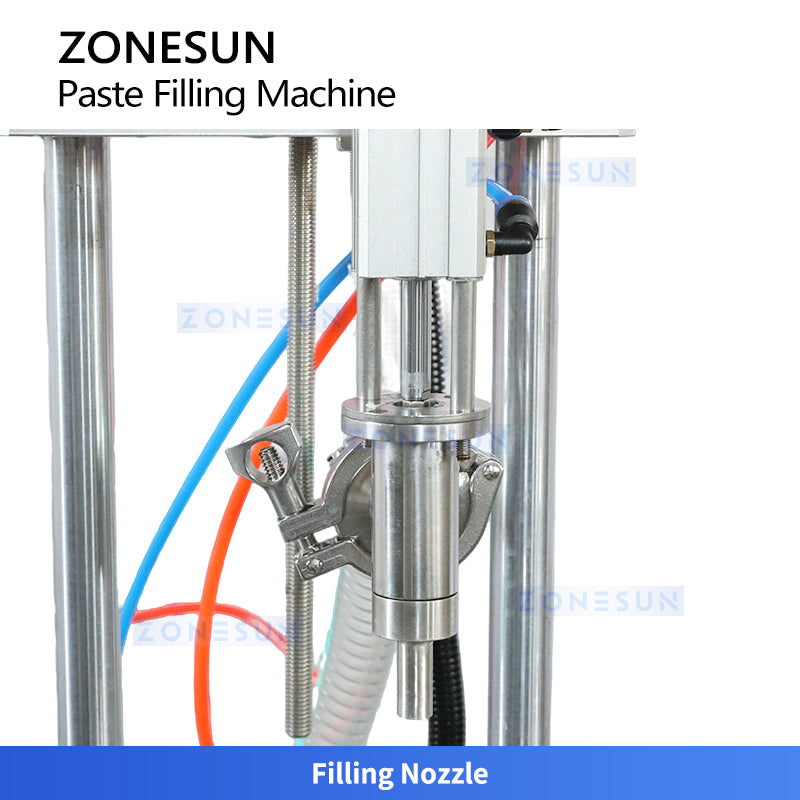

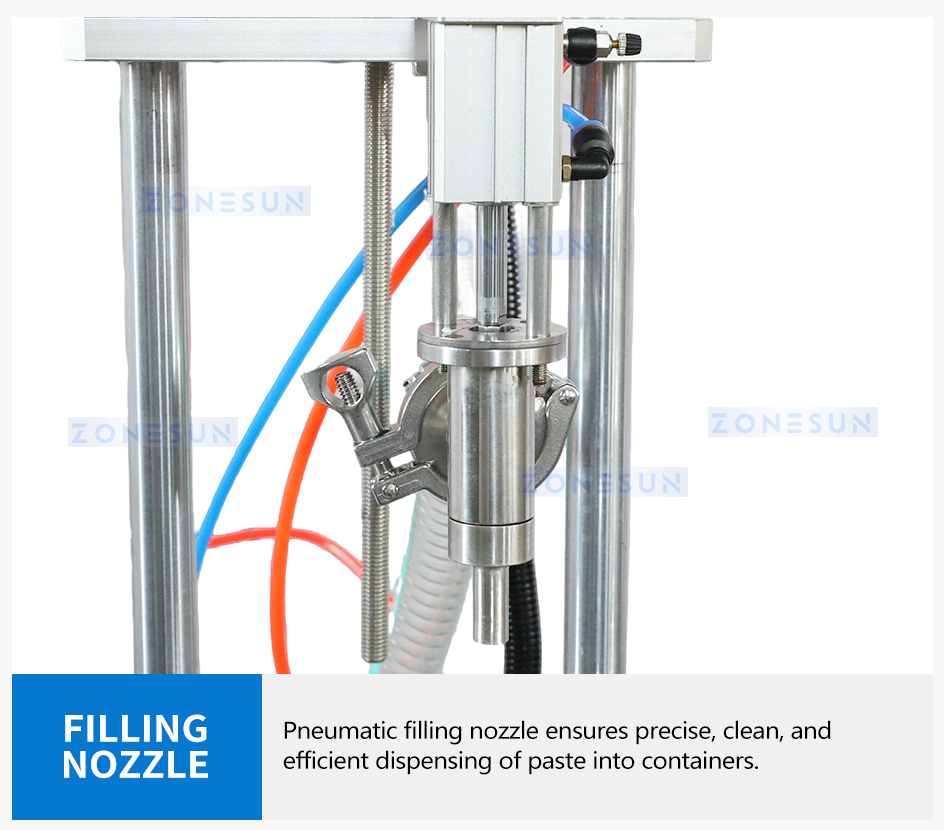

FILLING NOZZLE
- Precise Dispensing, Zero Waste：High-performance pneumatic control ensures every fill is accurate, significantly reducing product waste.
- Clean & Anti-Dripping, No Stringing：Specially designed for high-viscosity pastes, cut off fluid cleanly to completely avoid container contamination.

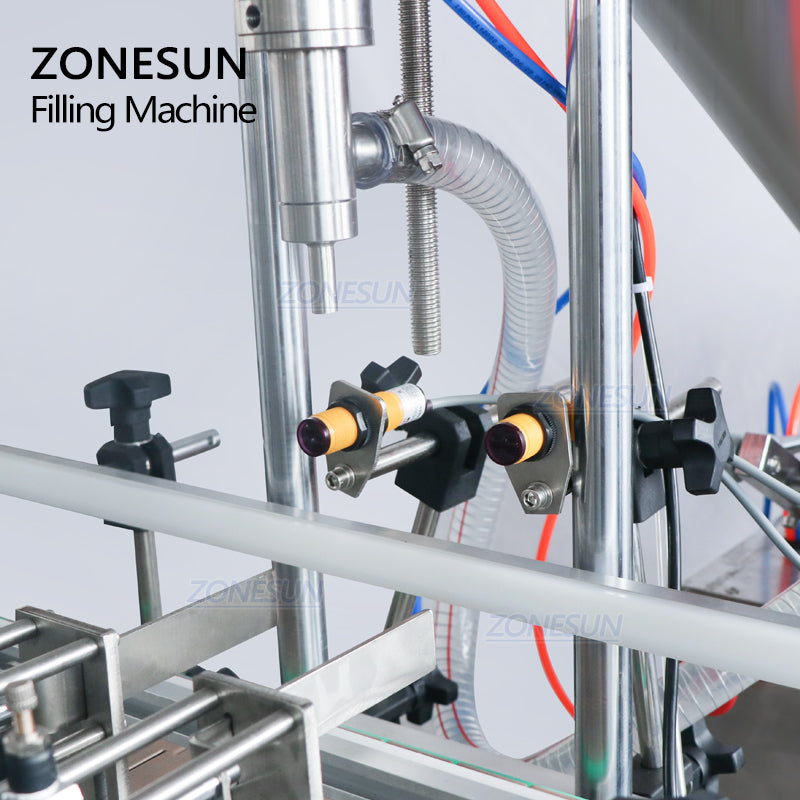

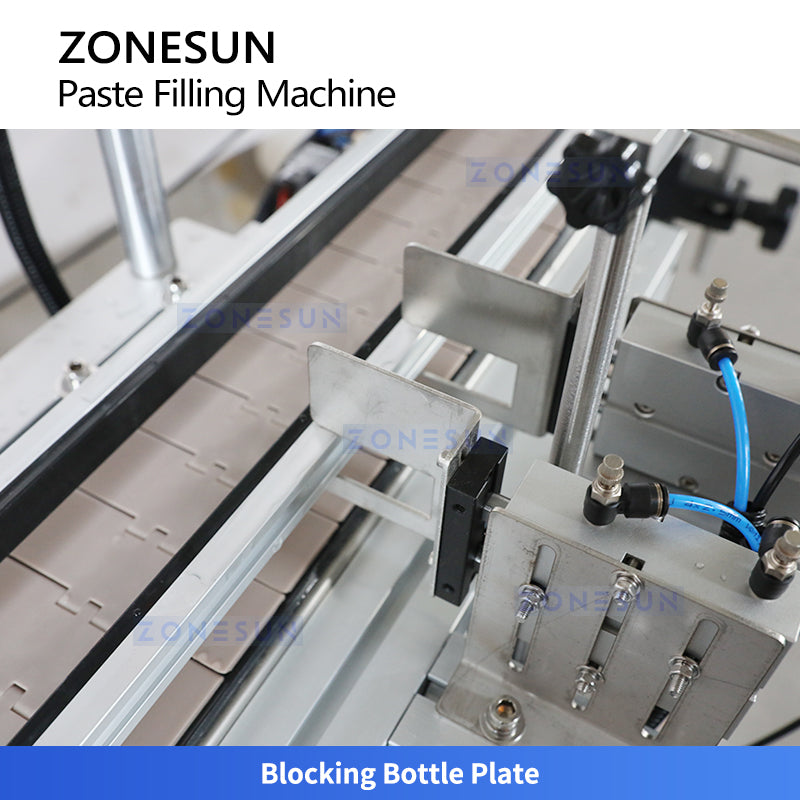

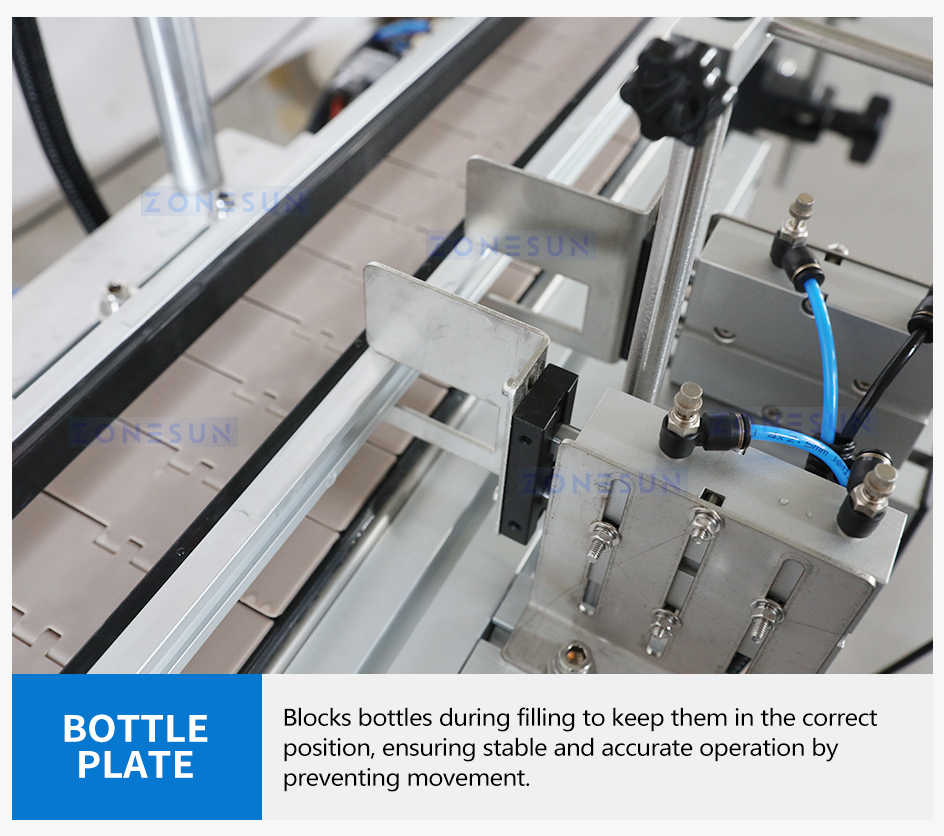

BOTTLE PLATE
- recise Alignment, No Shifting：Secures the container instantly during filling, keeping it perfectly aligned with the nozzle to prevent any spills.
- Stable & Smooth Operation： Pneumatic linkage control coordinates stopping and releasing seamlessly, boosting the overall stability of your automated line.

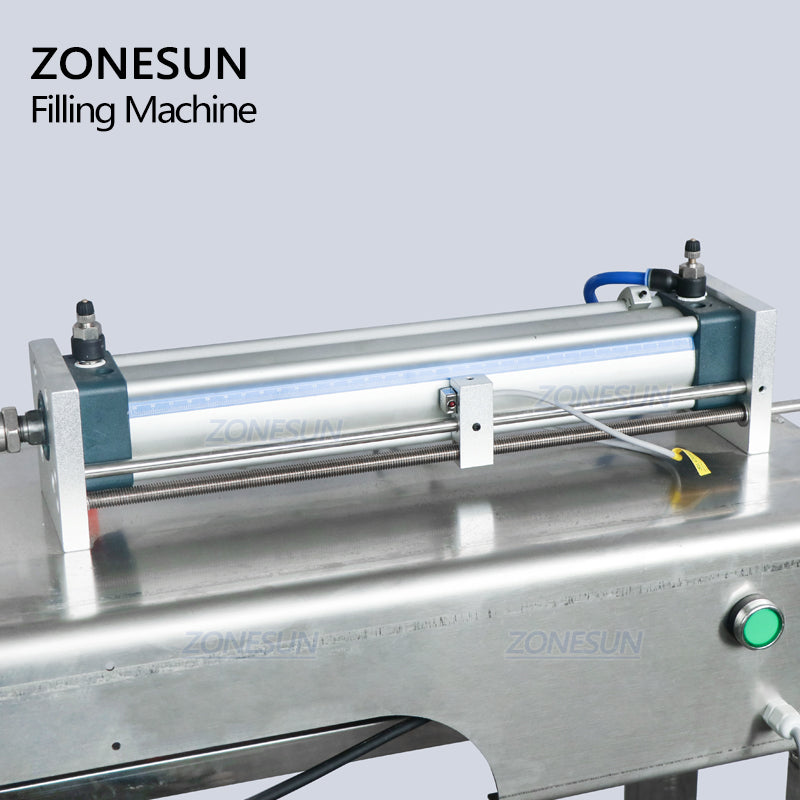

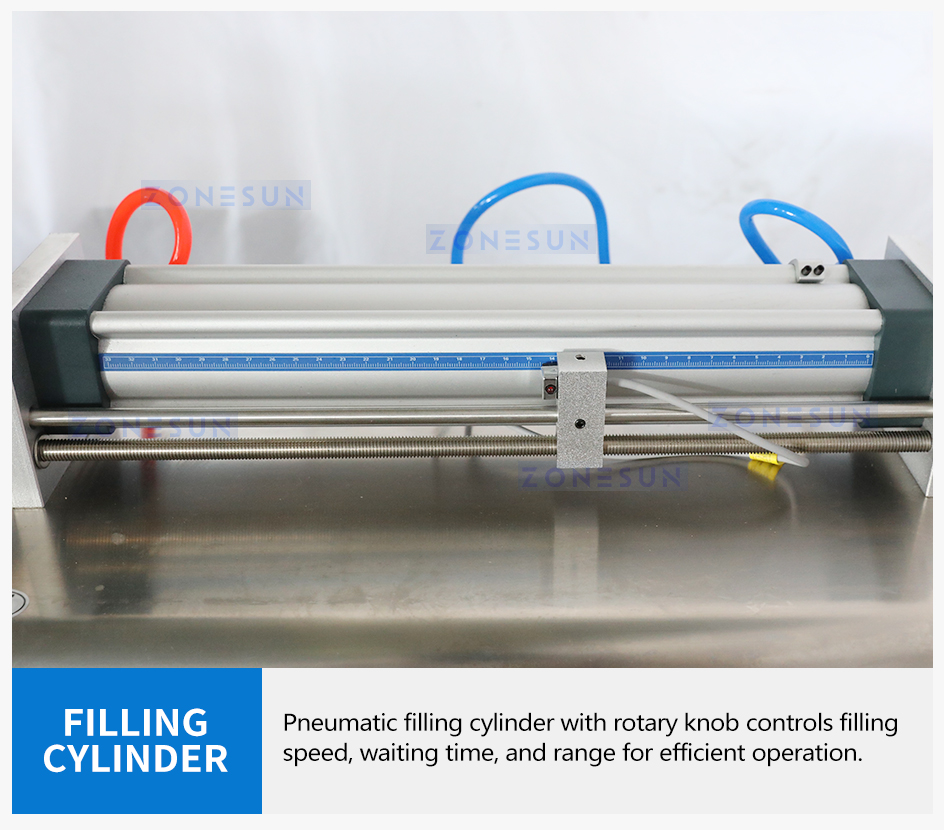

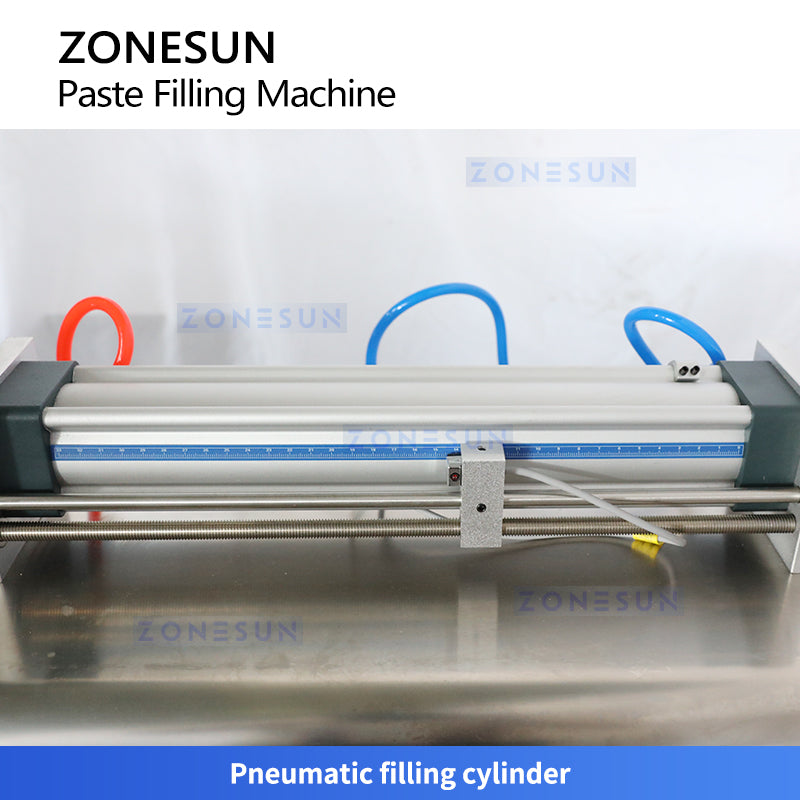

FILLING CYLINDER
-
Multi-Control for Efficient Operation：Features manual knob controls to flexibly adjust filling speed, waiting time, and stroke range, easily adapting to various materials.
- Visual Scale for Precise Tuning：Equipped with a clear, visual blue scale ruler to make every stroke adjustment precise and measurable, eliminating guesswork.

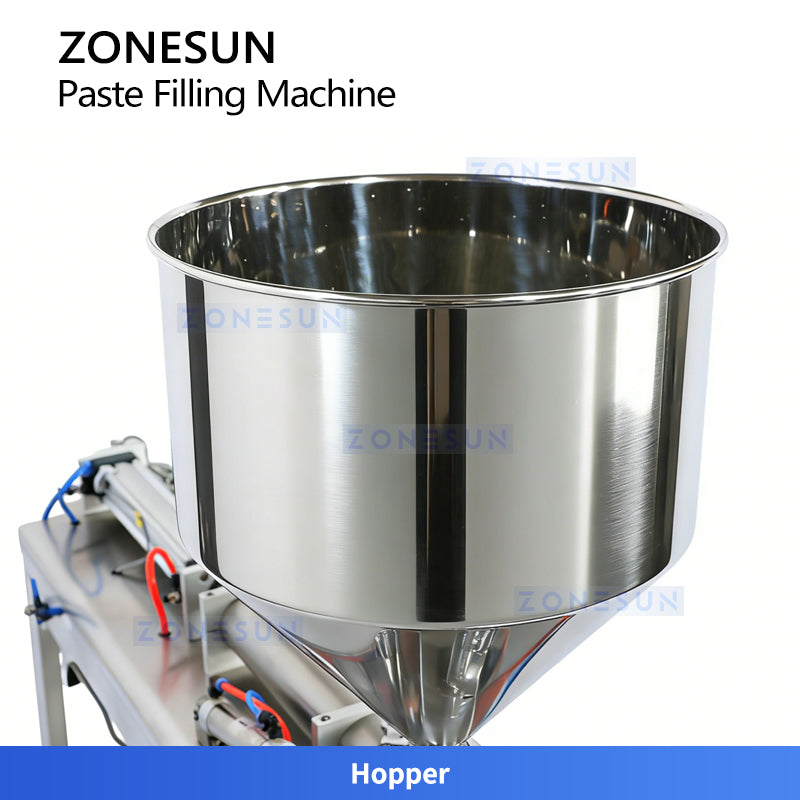

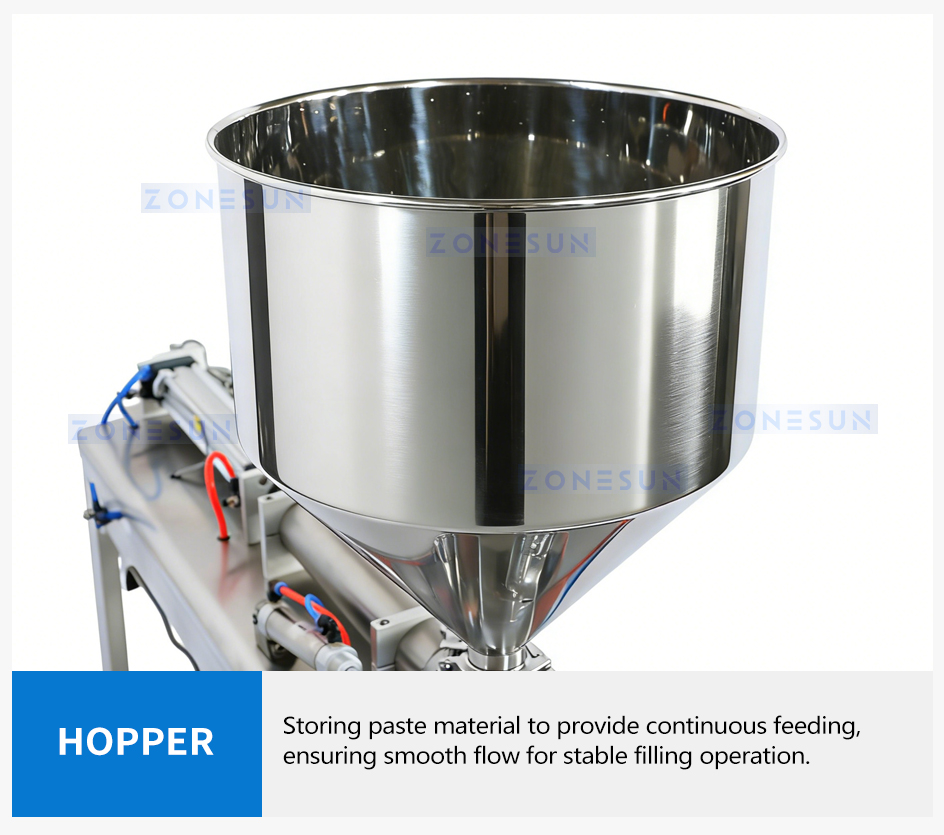

HOPPER
- Continuous Feeding, Uninterrupted Production：Large-capacity storage design provides a non-stop, continuous material supply to the downstream system, significantly boosting packaging efficiency.
- Smooth Flow, No Clogging：The scientific conical bottom design and smooth inner wall are tailored for high-viscosity pastes and fluids, ensuring materials flow smoothly without build-up.

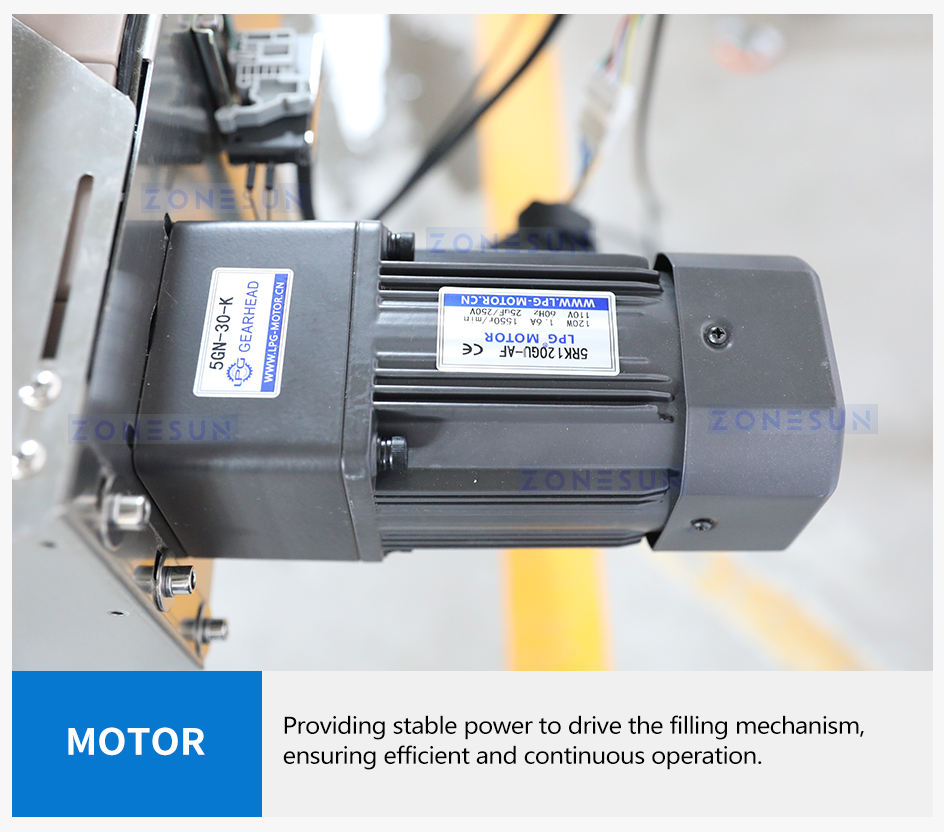

MOTOR
Powerful Drive, Efficient & Continuous Operation: Engineered for long-duration industrial use, providing high torque and stable power output to the filling mechanism, ensuring zero slowdowns.

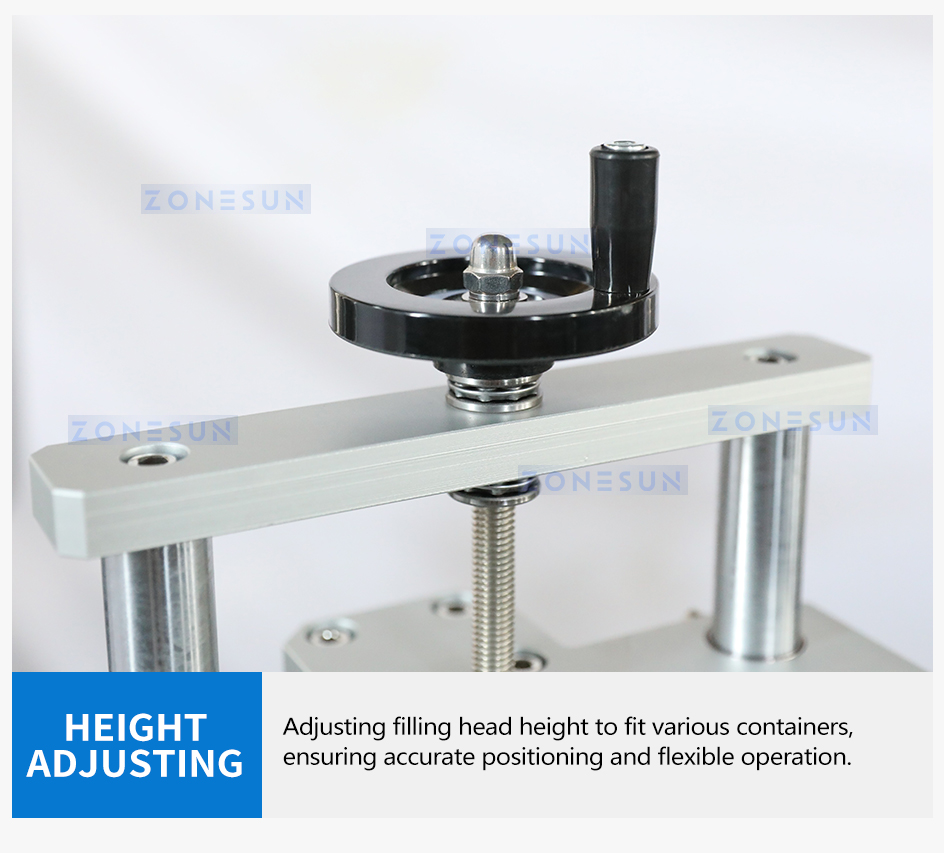

HEIGHT ADJUSTING
-
High Compatibility, Fits Various Containers: Easily adjust the filling head height via the rotary wheel, perfectly matching packaging containers from short jars to tall bottles.
-
Screw Drive for Accurate Positioning: Features a high-precision lead screw design for smooth, wobble-free lifting, ensuring the exact distance between the filling head and containers.
