ZONESUN ZS-LK61 Automatic Disposable Cup and Plate Thermoforming Machine
ZONESUN ZS-LK61 Automatic Disposable Cup and Plate Thermoforming Machine
Couldn't load pickup availability

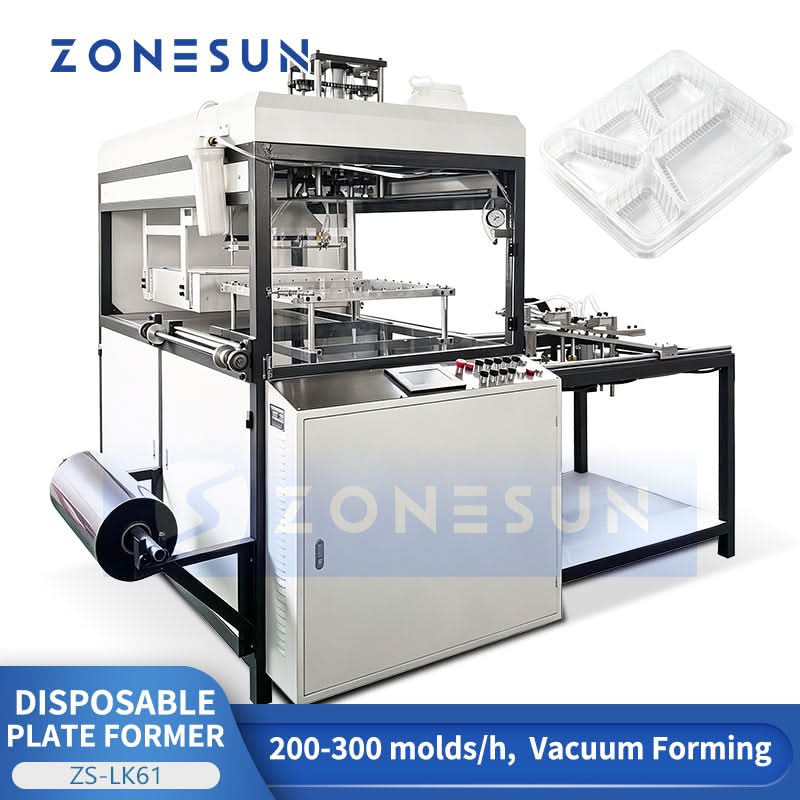

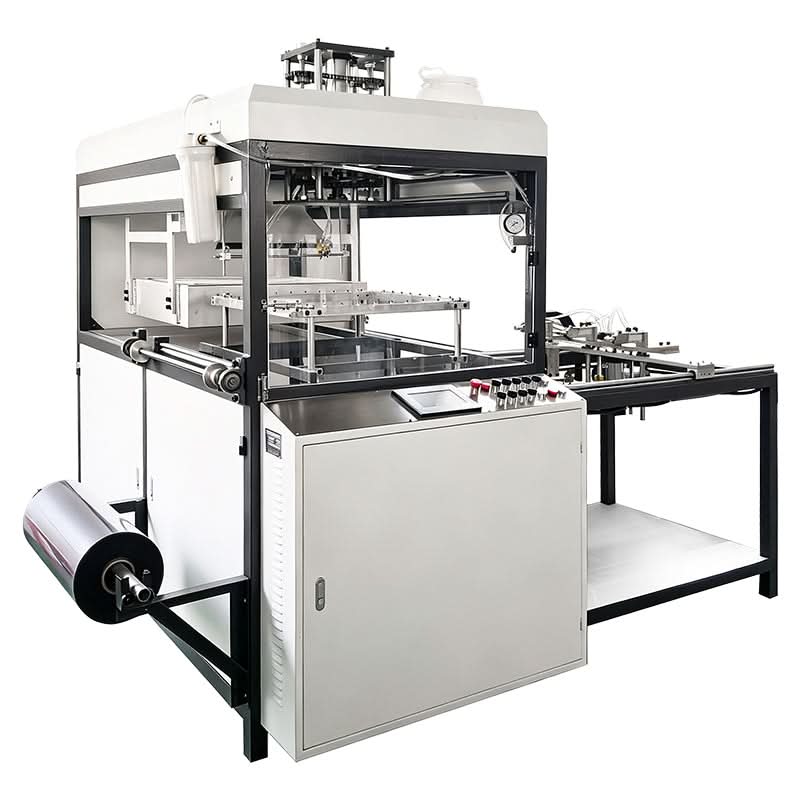

The ZONESUN ZS-LK61 is an automatic thermoforming machine for producing plates, trays, and containers from roll-fed plastic sheets. It integrates feeding, heating, vacuum forming with plug assist, cooling, trimming, and stacking in a fully automated line. Compatible with PVC, PET, PP, PS, PE, ABS, HIPS, and Acrylic, it features PLC touchscreen control for precise adjustment of temperature, vacuum, and cycle time. With a capacity of 200–300 molds/h, it is widely used for food packaging (fruit cups, salad trays, egg boxes, takeaway containers), electronics trays, pharmaceutical blister packs, and other industrial packaging applications.
Key Features
- Forming & Cutting Section – Integrates automatic heating, vacuum forming, demolding, and cutting processes to produce formed trays efficiently with reduced manual operation.
- Vacuum Forming & Plug Assist – Combines powerful vacuum suction with pneumatic plug assist to create deep-drawn products with precise contours and consistent quality.
- Vacuum Pump – Provides stable and powerful vacuum suction with a storage tank for reliable forming performance and easy maintenance.
- Ceramic Infrared Heating System – Equipped with 25 ceramic infrared heaters with individual temperature control for uniform heating and precise forming.
- Dual Water Spray Cooling System – Uses dual water spray cooling to accelerate heat dissipation, improve efficiency, and ensure stable forming of thick materials.
- Automatic Feeding & Unwinding – Automatically unwinds large-capacity plastic rolls with precise feeding control for continuous and stable material supply.
Technical Specifications
| Model | ZS-LK61 |
|---|---|
| Power Supply | AC 380V |
| Maximum Power | 17 kW |
| Vacuum Forming Capacity | 20 m³/h |
| Maximum Forming Size | 560 × 610 mm |
| Maximum Forming Height | 200 mm |
| Production Speed | 200–300 molds/h |
| Material Thickness | 0.2–1.5 mm |
| Compatible Materials | PVC, PET, PP, PS, PE, ABS, HIPS, Acrylic |
| Machine Dimensions | 2620 × 2020 × 2050 mm (L × W × H) |
| Net Weight | 700 kg |
APPLICATION
Compatible with PVC, PET, PP, PS, PE, ABS, HIPS, and Acrylic sheets, it satisfies diverse industrial and commercial packaging requirements:
- Food & Catering Packaging: Ideal for producing disposable plastic cups, plates, food trays, takeaway packaging containers, salad containers, jelly/fruit cups, and egg boxes/trays.
- Medical & Pharmaceutical Packaging: Suitable for thermoforming medical device packaging trays, pharmaceutical blister packs, and hygienic protective component packaging.
- Electronics & Hardware Packaging: Precision thermoforming for anti-static electronic component trays, tool inserts, and durable hardware blister clamshell packaging.
- Consumer & Industrial Goods: Perfect for daily consumer product trays, retail blister covers, hardware displays, and customized industrial protective packaging inserts.
Component Details

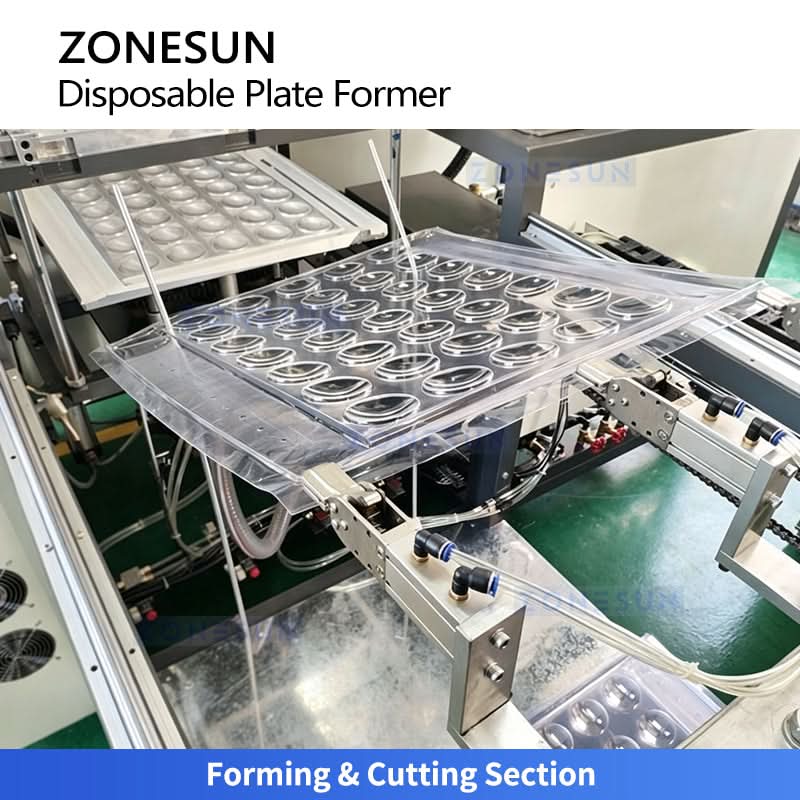

Forming & Cutting Section
Integrates automatic heating, vacuum forming, demolding, and cutting processes to produce formed trays efficiently with reduced manual operation.

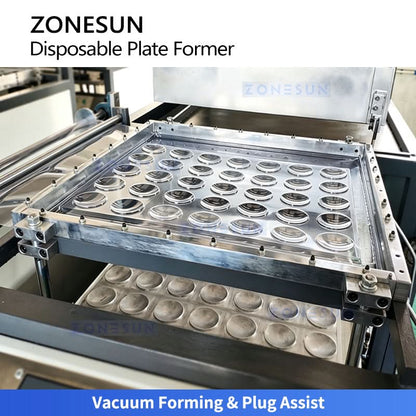

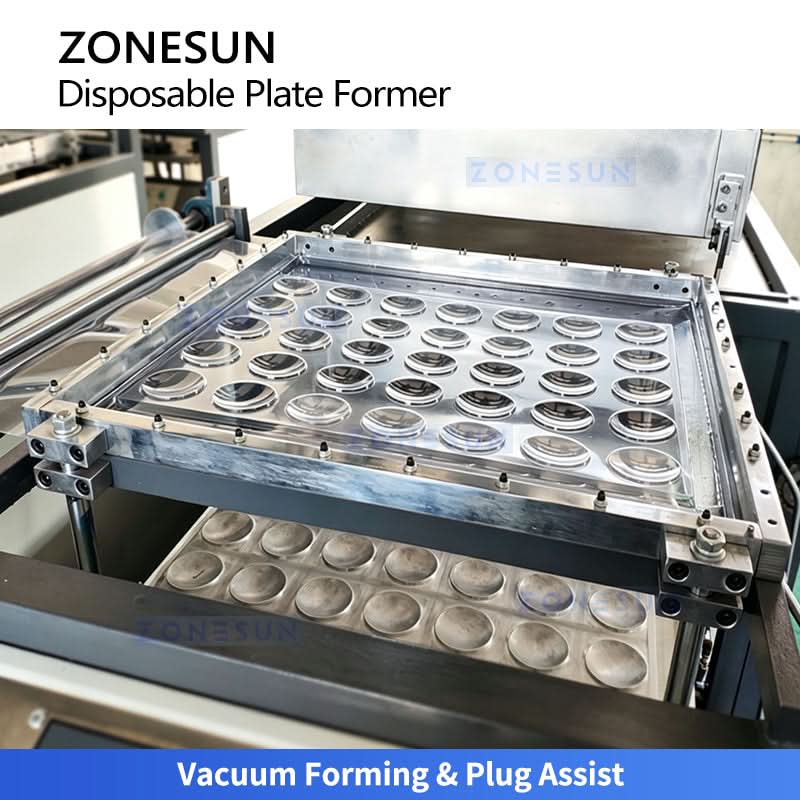

Vacuum Forming & Plug Assist
Combines powerful vacuum suction with pneumatic plug assist to create deep-drawn products with precise contours and consistent wall thickness.

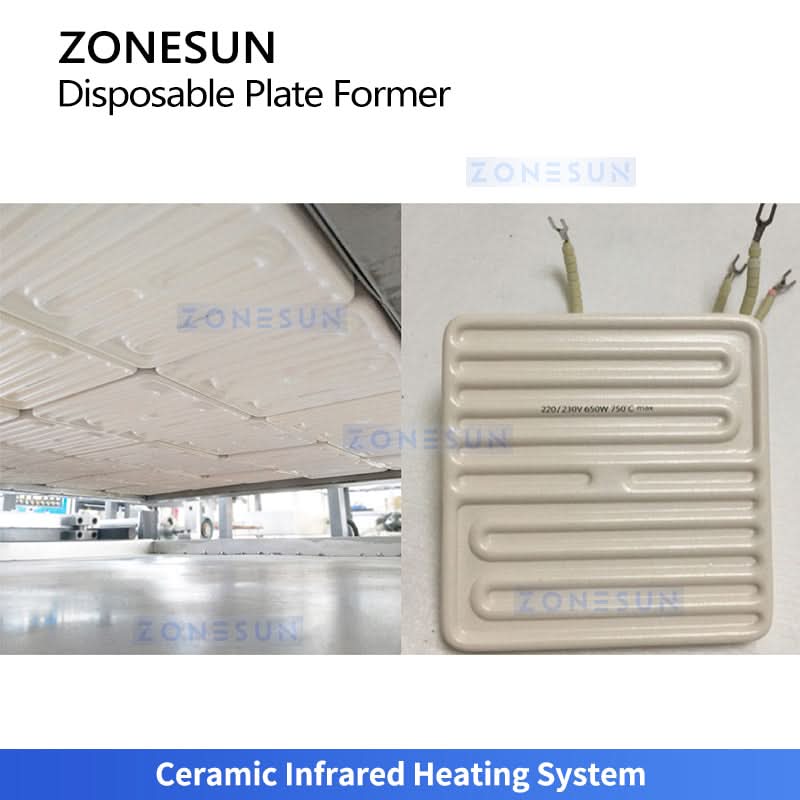

Ceramic Infrared Heating System
25 ceramic infrared heaters with individual temperature control ensure uniform heating across the full sheet width for precise and consistent forming results.

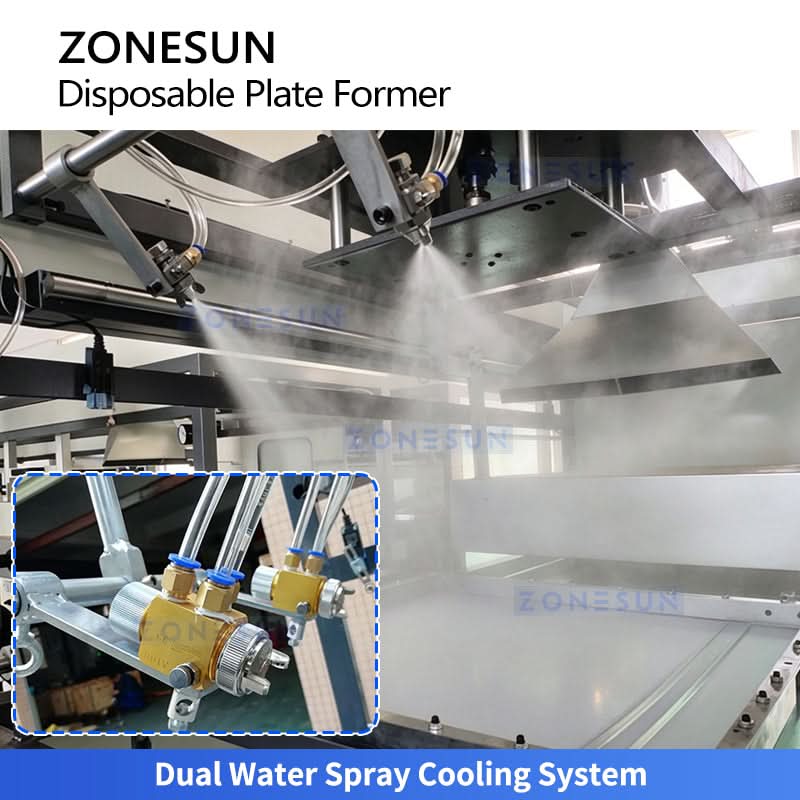

Dual Water Spray Cooling System
Dual water spray cooling accelerates heat dissipation after forming, improving cycle efficiency and ensuring dimensional stability for thick materials.

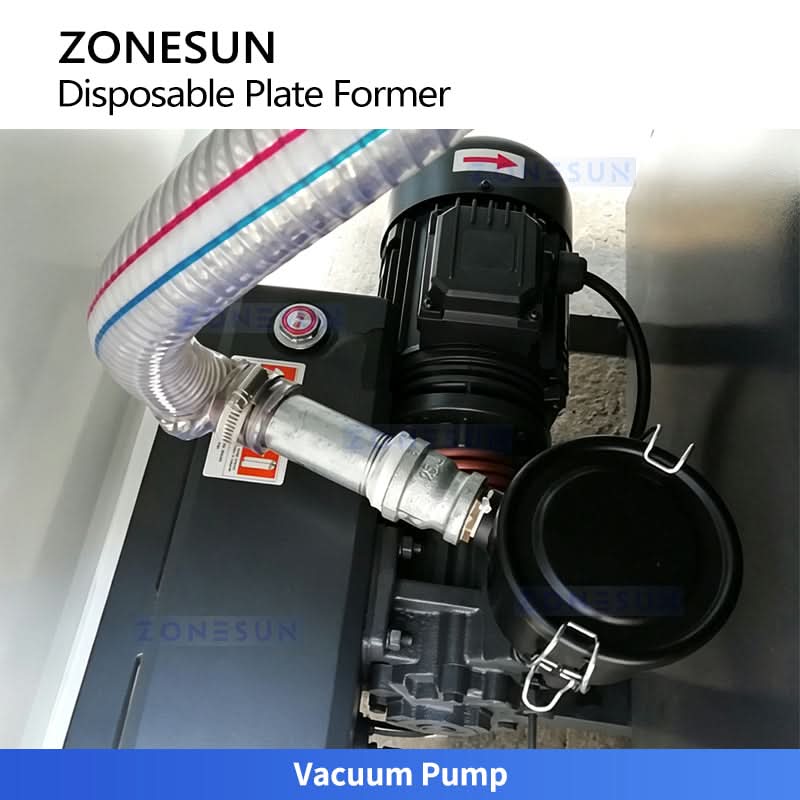

Vacuum Pump & Storage Tank
Provides stable and powerful vacuum suction with a dedicated storage tank for reliable forming performance and simplified maintenance access.
Automatic Feeding & Unwinding System
Automatically unwinds large-capacity plastic rolls with precise feeding control for continuous and stable material supply to the forming section.
PLC Touchscreen Control
Intuitive PLC touchscreen enables precise adjustment of temperature, vacuum level, cycle time, and production speed with real-time monitoring and fault diagnostics.
