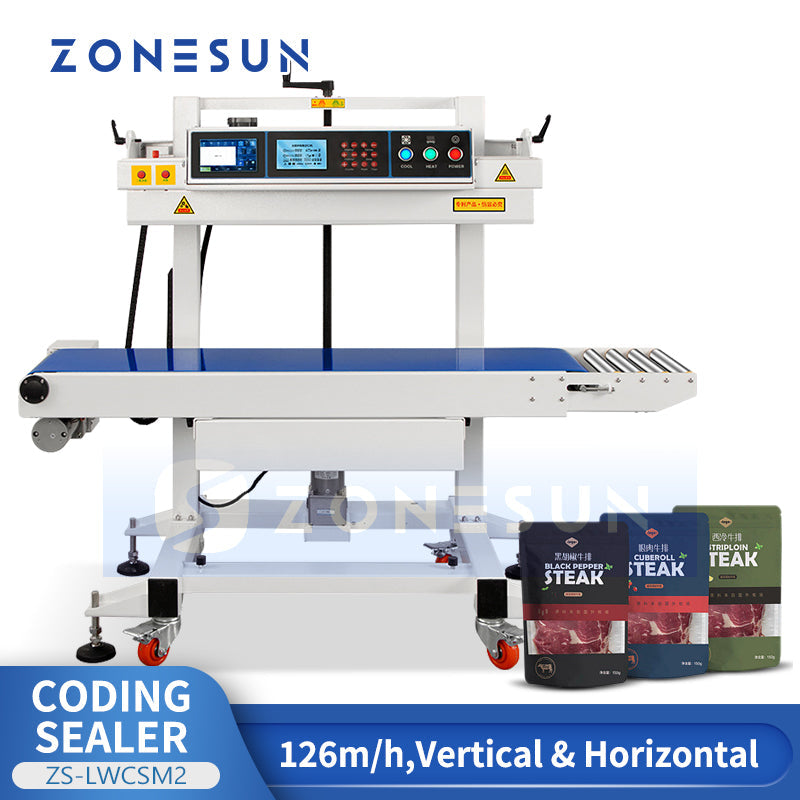

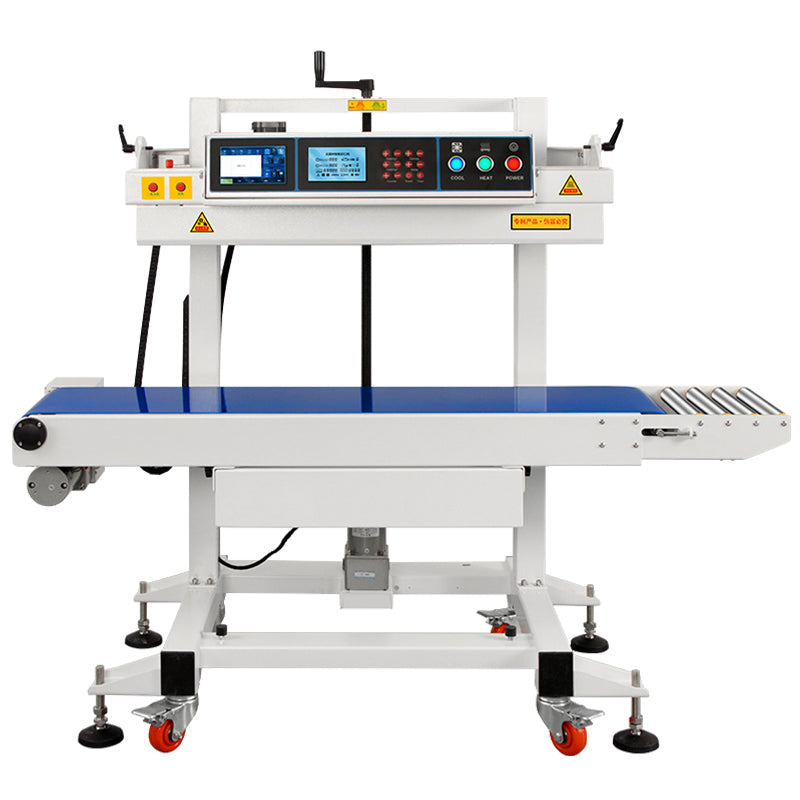

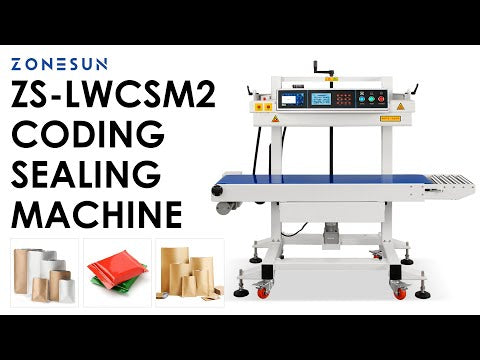

Zonesun ZS‑LWCSM2 Vertical & Horizontal Continuous Band Sealer
Zonesun ZS‑LWCSM2 Vertical & Horizontal Continuous Band Sealer
Regular price
$3,199.00 USD
Regular price
$0.00 USD
Sale price
$3,199.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

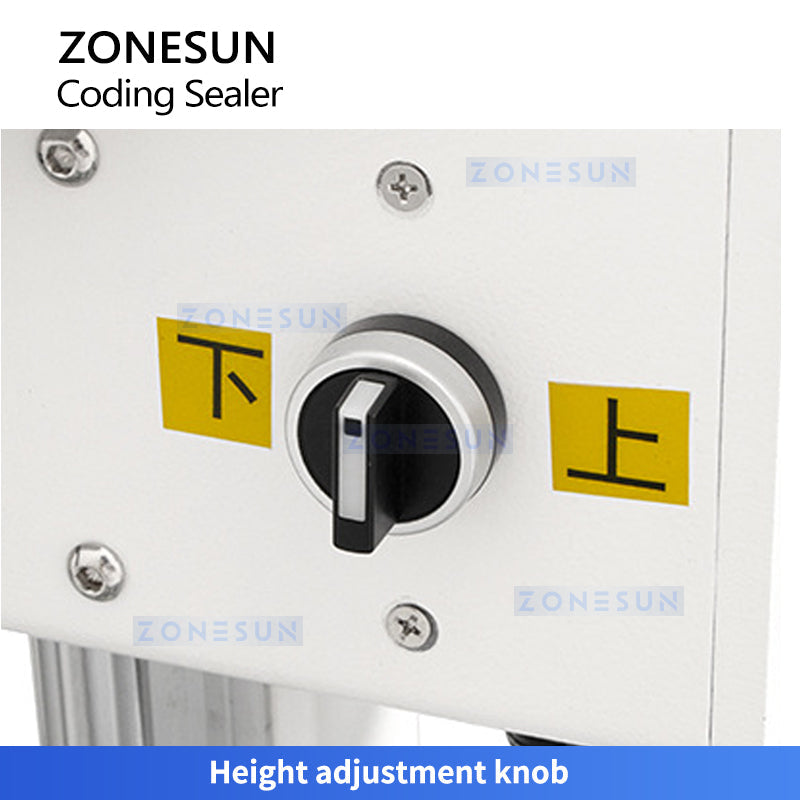

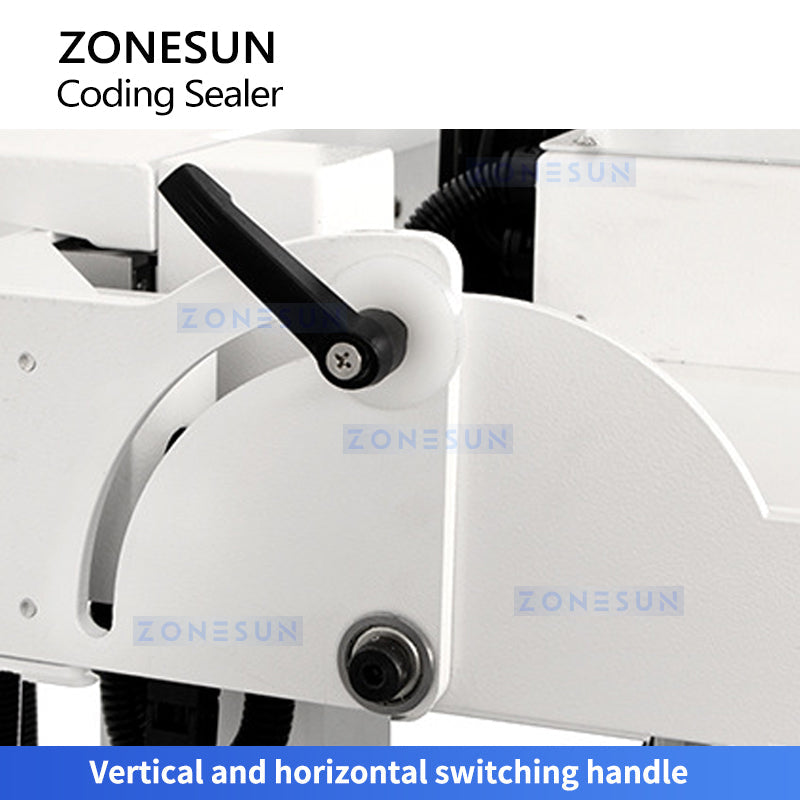

The Zonesun ZS‑LWCSM2 is a versatile continuous band sealer designed for both vertical and horizontal operation. Perfect for sealing and coding a wide variety of bags, it delivers crisp inkjet printing and consistent heat sealing for professional results. Its adjustable seal height ensures flexibility for different products, making it ideal for food, pharmaceuticals, and general packaging applications.
| Model | ZS‑LWCSM2 |
|---|---|
| Power supply | 220 V / 50‑60 Hz |
| Power | 1700 W |
| Conveyor table motor | 24 V / 120 W / 18 K |

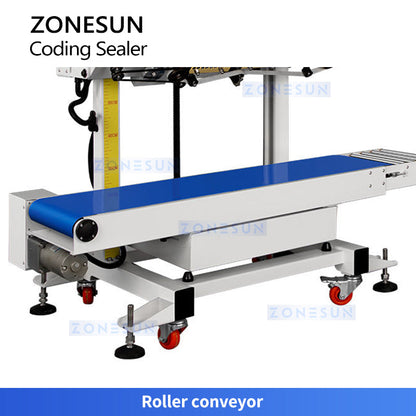

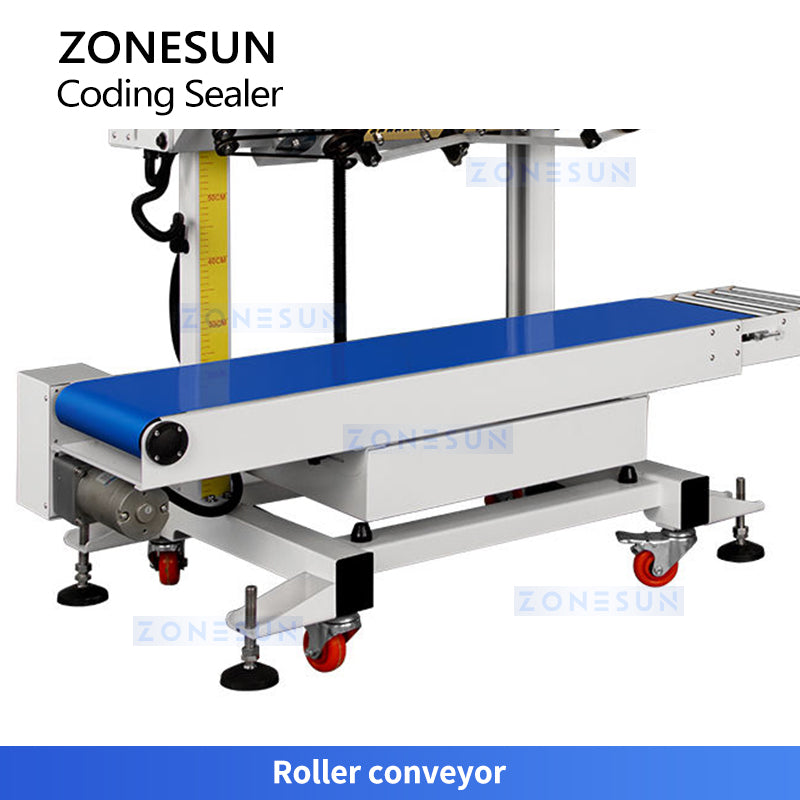

| Conveyor table height from ground | 350 – 900 mm (adjustable) |
| Sealing speed | 0 – 21 m/min |
| Sealing width | 15 mm |

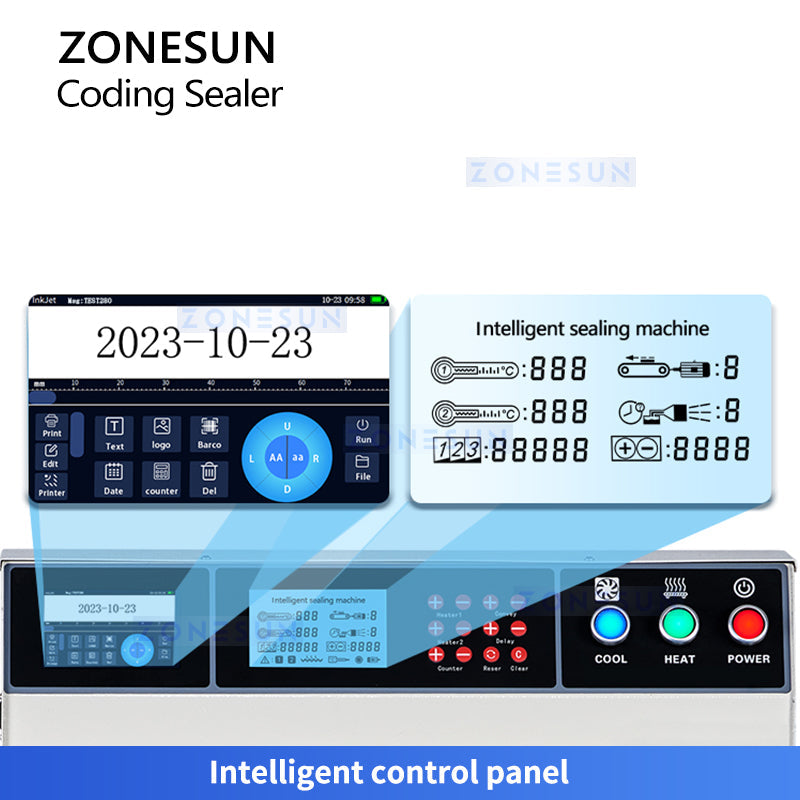

| Temperature control range | 0 – 280 °C |
| Maximum size of packaging bag | 600 × 400 × 15 C |

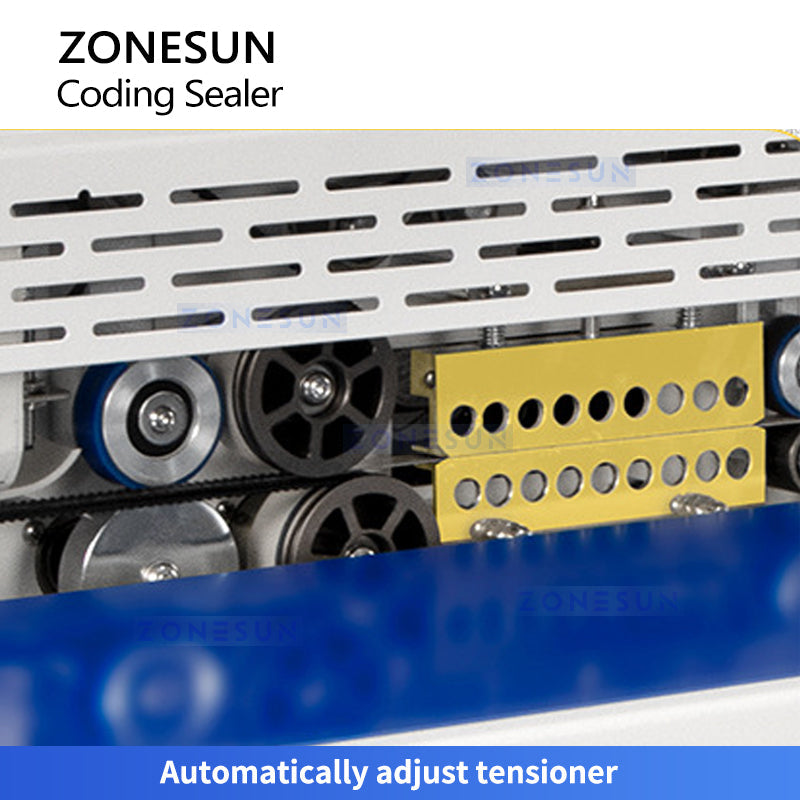

| Sealing belt specifications | 1450 × 18 × 0.22 mm |
| Conveyor belt specifications | 2440 × 250 × 2 mm |
| Main chassis motor | 60BYG2100‑50A |
| Toothed belt | M5 × 560 / 670 mm |
| Heating tube specifications | 350 W / 150 × 12 mm × 4 |
| Conveying load‑bearing capacity | 15 kg |
| Machine size | 1390 × 600 × 1200 mm |
| Total weight | 90 kg |
