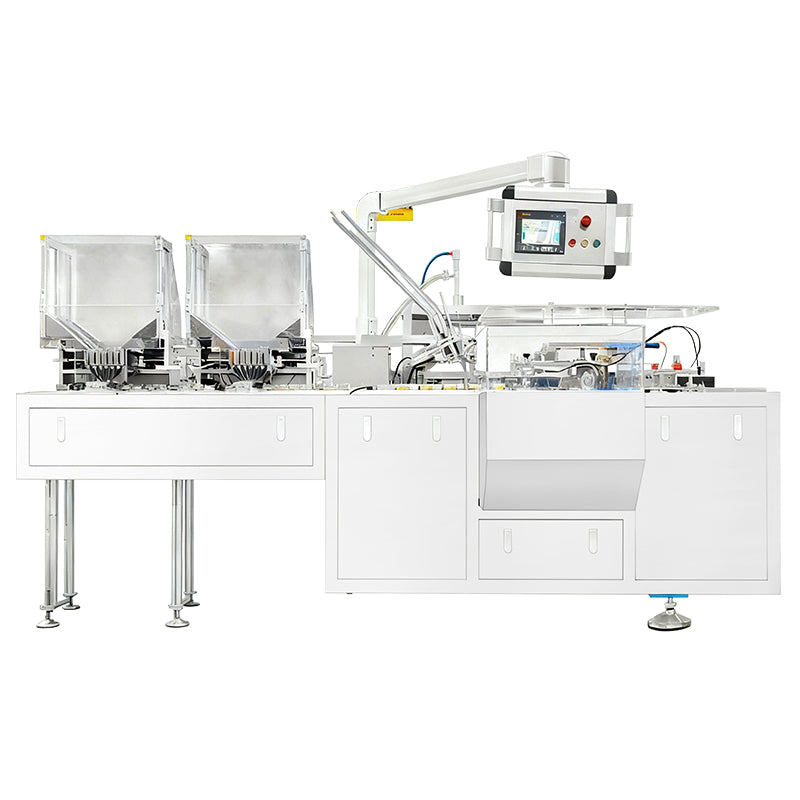

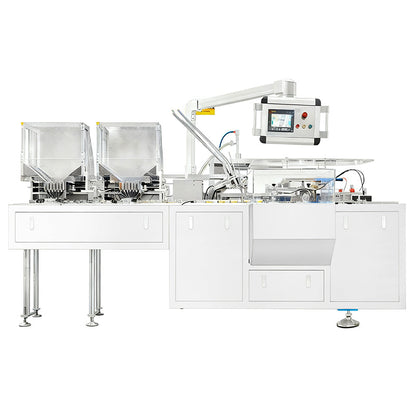

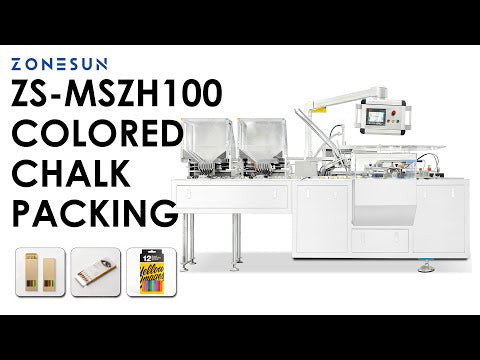

ZONESUN ZS-MSZH100 Automatic Cartoning Machine for Color Chalk and Pencils

Description

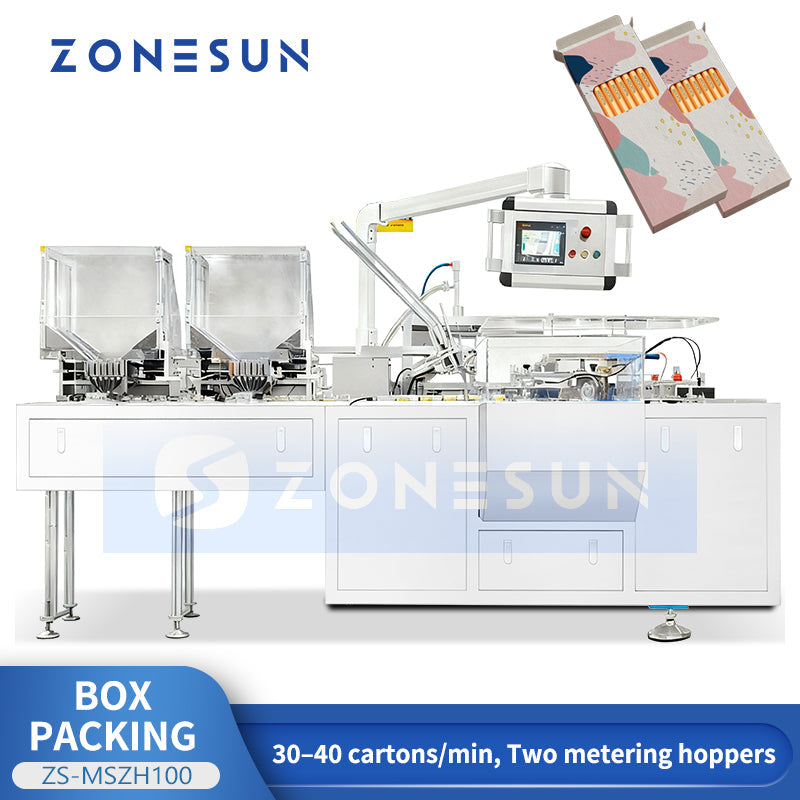

The ZONESUN ZS-MSZH100 is a fully automatic box packing machine designed for efficient and precise packaging of colored school chalk or pencils. Operating at 30–40 cartons per minute, it integrates automatic feeding, dual-hopper metering, box placing, flattening, pushing, folding, and sealing into one streamlined process. Equipped with a PLC color touch screen, it enables intuitive parameter adjustment and multi-set storage for enhanced efficiency. Ideal for stationery and educational product packaging, it ensures consistent output with minimal manual intervention.



Parameter

• Model: ZS-MSZH100
• Carton Size: (W) 18–160 mm × (L) 80–160 mm × (H) 15–50 mm
• Capacity: 30–40 cartons/min
• Power: 220V 50Hz, single-phase electricity
• Weight: 1200 kg
• Air Consumption: 300 m³/h
• Machine Dimension (L×W×H): 3910 × 1107 × 1530 mm

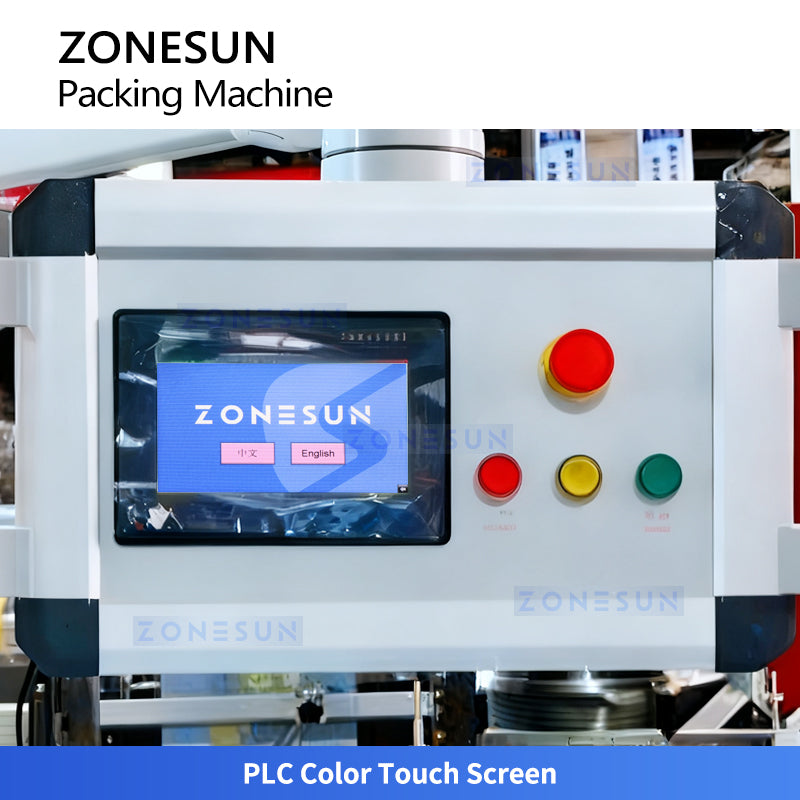

CONTROL PANEL

Adjust packaging parameters easily through the intuitive touch screen interface. Features multi-set parameter storage to streamline your workflow and significantly improve operational efficiency.

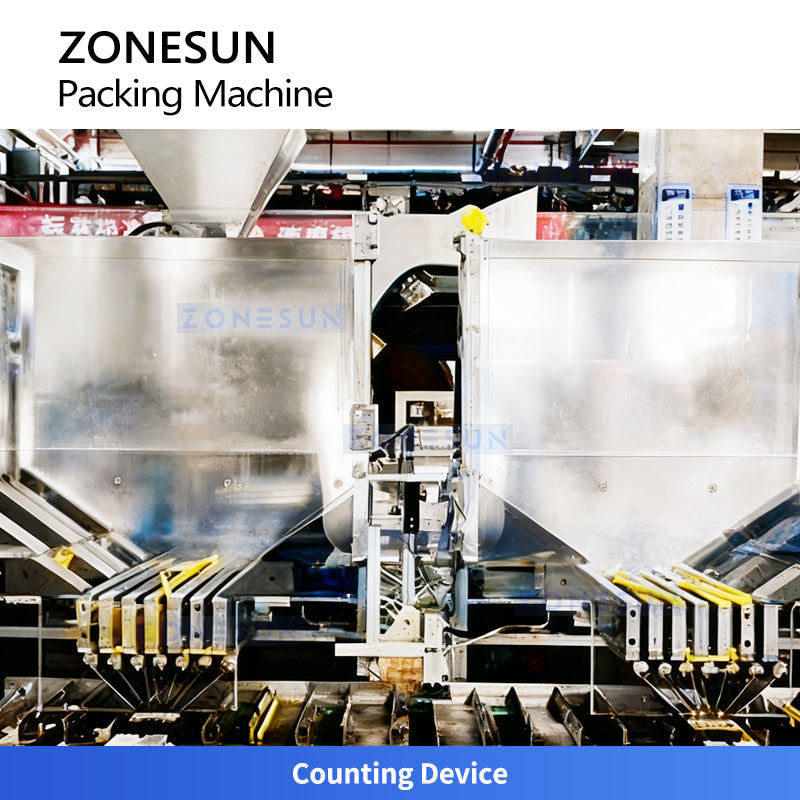

COUNTING DEVICE

• Precision Counting: Accurately counts and controls packaging quantity for high packaging consistency.
• Efficient Output: Ensures high production efficiency with minimal manual errors.

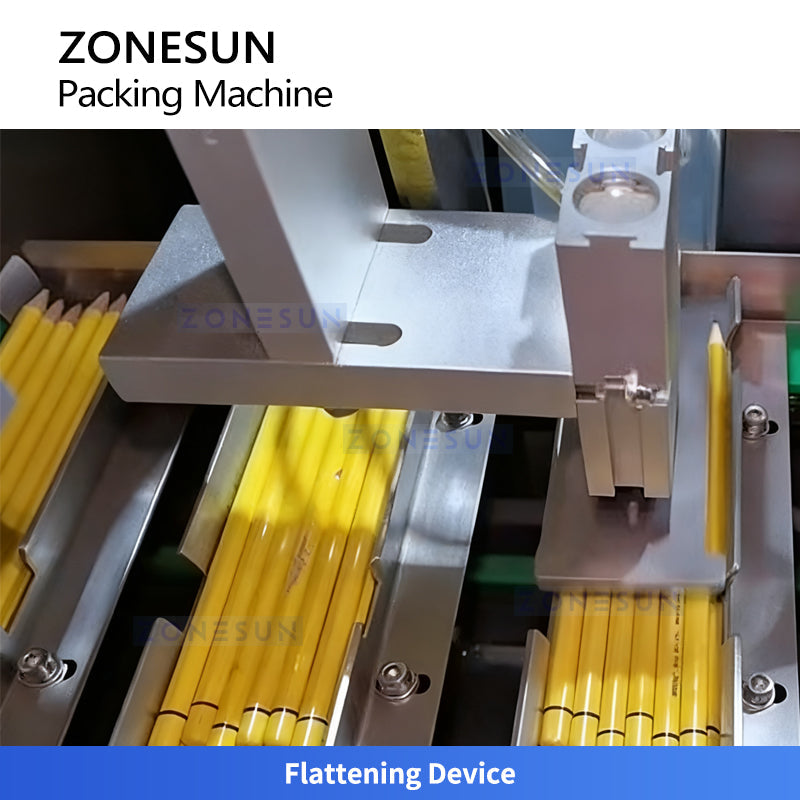

FLATTENING DEVICE

• Flawless Finish: Ensures optimal flatness and snug fit of packaging materials for superior box appearance.
• Consistent Quality: Delivers neat, uniform packaging output to enhance overall product presentation.

BOX PLACING DEVICE

• Seamless Feeding: Efficiently delivers empty boxes to the opening station to keep production flowing smoothly.
• Precise Positioning: Ensures accurate placement for reliable downstream packaging operations.

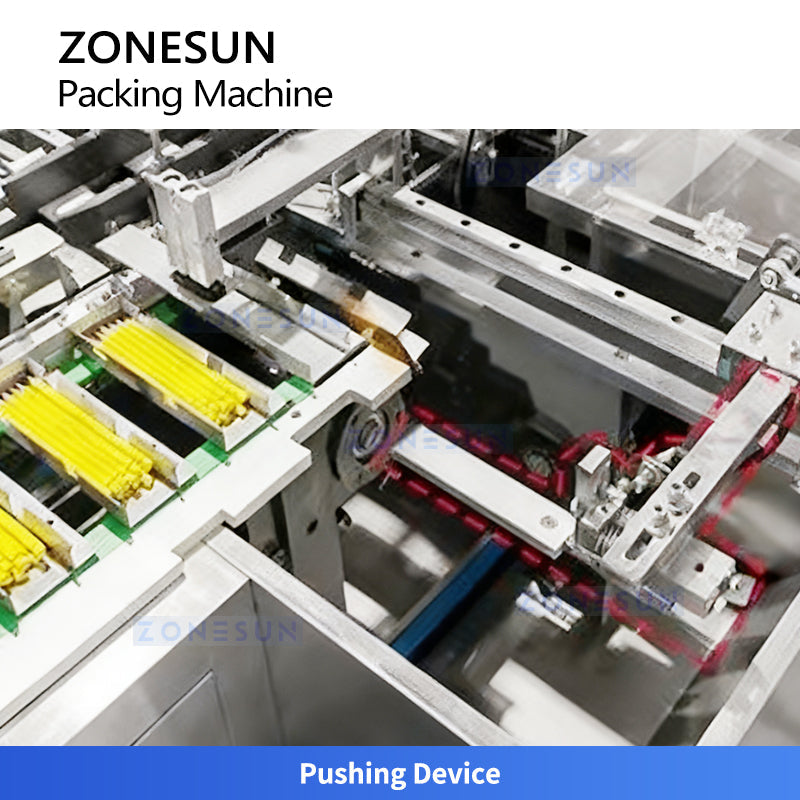

PUSHING DEVICE

• Precise Pushing: Accurately transfers pencils to designated stations to maintain smooth, continuous packaging.
• Process Accuracy: Ensures high operational precision and seamless workflow throughout the packing process.

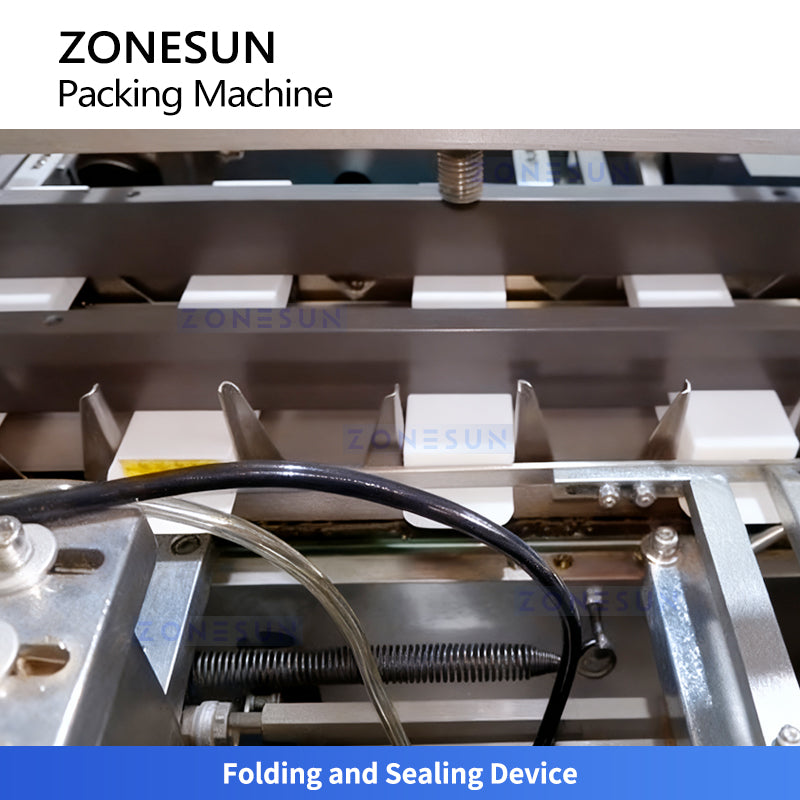

FOLDING & SEALING

• Secure Sealing: Reliably seals pencil packaging via precise thermal/mechanical methods to protect product integrity.
• Transit Ready: Ensures optimal box durability and tamper resistance throughout transport, storage, and retail display.
