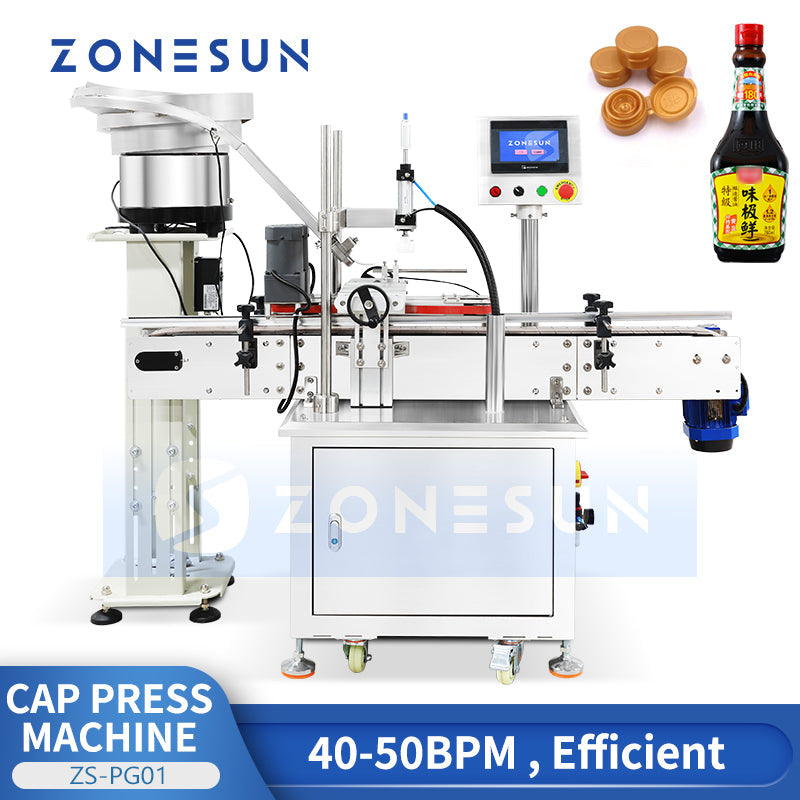

ZONESUN ZS-PG01 Automatic Bottle Cap Pressing Machine for Beverage Bottles
ZONESUN ZS-PG01 Automatic Bottle Cap Pressing Machine for Beverage Bottles
Regular price
$5,500.00 USD
Regular price
$6,500.00 USD
Sale price
$5,500.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

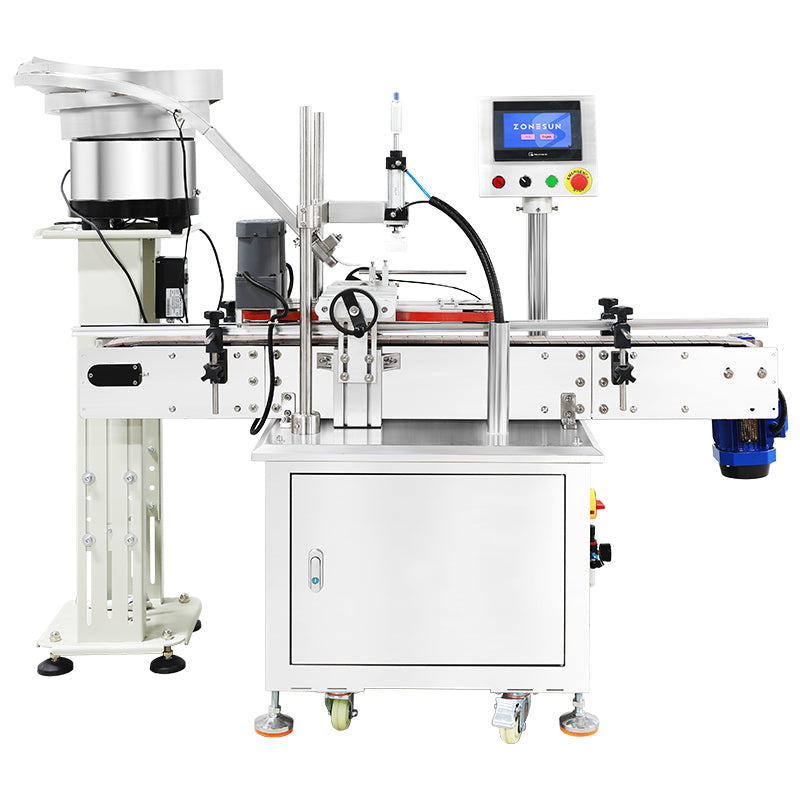

The ZONESUN ZS-PG01 Automatic Press Capping Machine is designed to streamline bottle capping in high-volume production environments. Featuring a vibrating cap feeder, it automatically places and presses caps onto bottles with precision and consistency. Its user-friendly interface ensures easy operation, making it ideal for mineral water, juice, and other beverage packaging lines. With stable performance and efficient output, this machine is a reliable solution for modern bottling operations.
| Item | Specification |
|---|---|
| Model | ZS-PG01 |
| Working Voltage | AC 220V / 110V, 50–60Hz |
| Bottle Length | 40–110 mm |
| Bottle Width | 40–110 mm |
| Bottle Height | 40–250 mm |
| Cap Diameter | Customized |
| Working Speed | 40–50 bottles/min (depends on bottle & cap) |
| Working Pressure | 0.5–0.8 MPa |
| Conveyor Size | 100 mm (W) × 1950 mm (L) |
Application
- Beverage Industry: Ideal for packaging mineral water, fruit juices, teas, energy drinks, and other liquid products requiring precise press-on caps.
- Daily Chemical & Cosmetics: Suitable for sealing various plastic and glass bottles used in lotions, shampoos, and liquid soaps.
- Food & Condiments: Perfect for automated production lines handling sauces, edible oils, and condiments packaged in bottles.

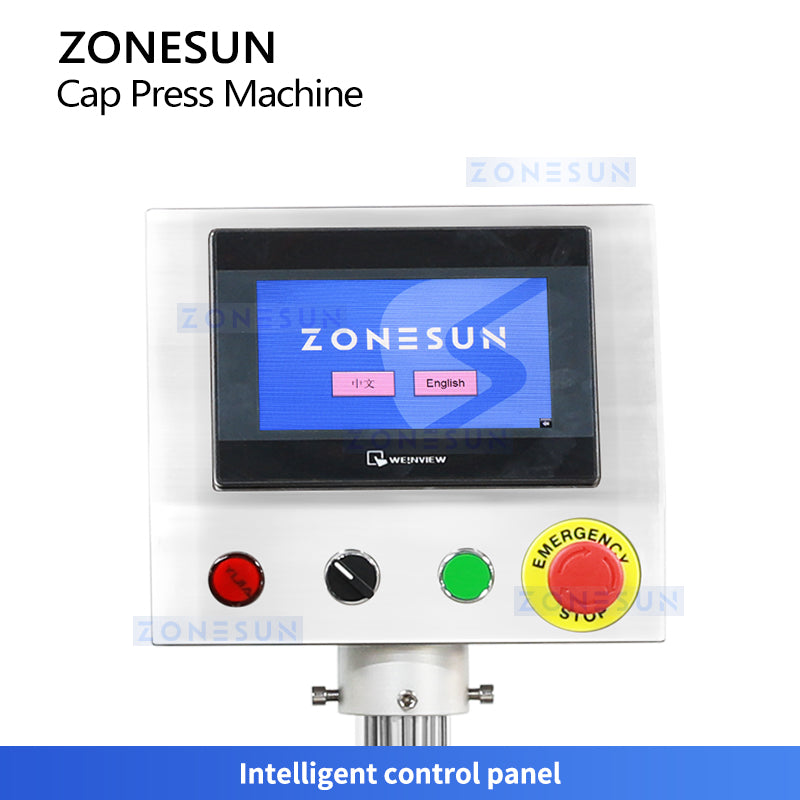

CONTROL PANEL
- Intelligent Core: Equipped with a premium WEINVIEW HMI touchscreen and an advanced PLC control system, delivering ultra-stable performance and rapid response.
- User-Friendly Interface: Supports bilingual switching (Chinese/English). Parameter setting and modification are highly convenient, making the operation incredibly intuitive and simple for anyone.

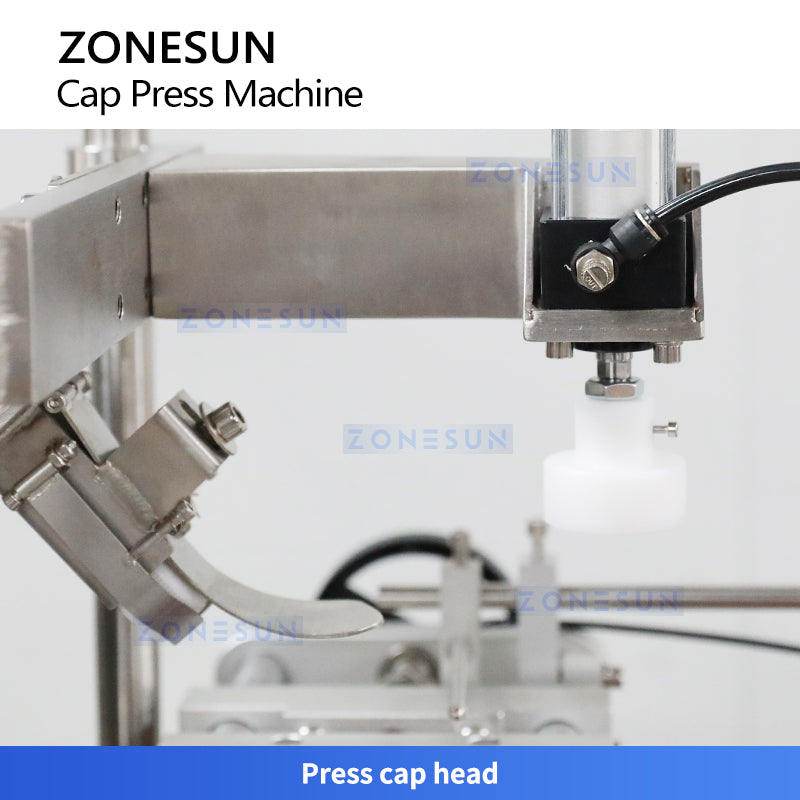

PRESS CAP HEAD
- Consistent Downward Pressure: Driven by a reliable pneumatic system, it applies steady and powerful downward pressure to ensure every bottle cap is firmly pressed into place.
- Perfect Seal Guarantee: Designed for a tight fit without leakage, preventing any product spoilage or mess during transit.

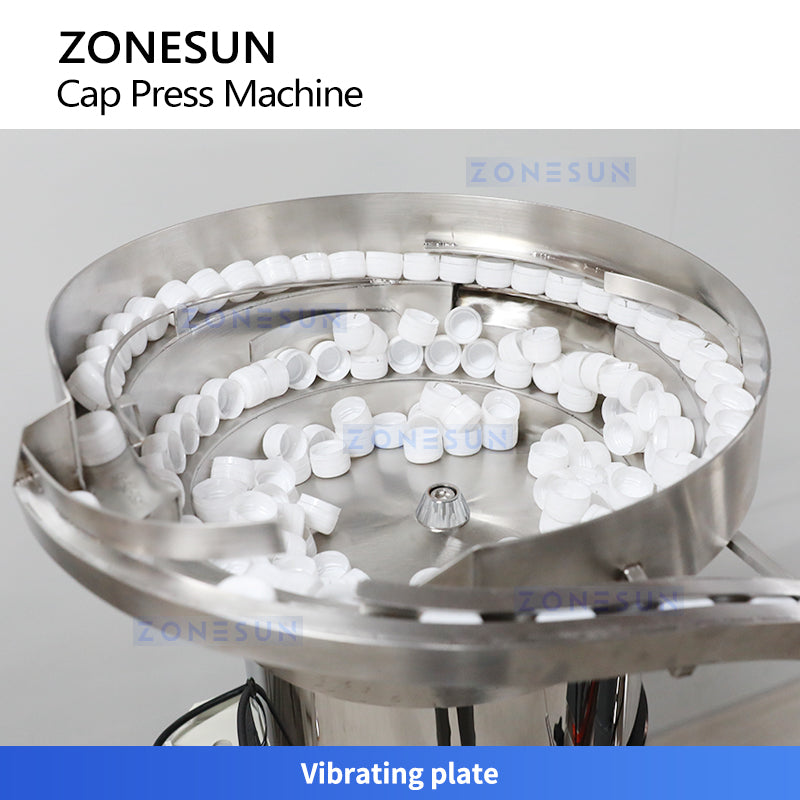

Vibratory Cap Feeder

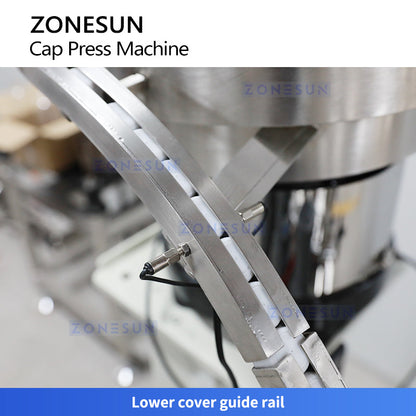

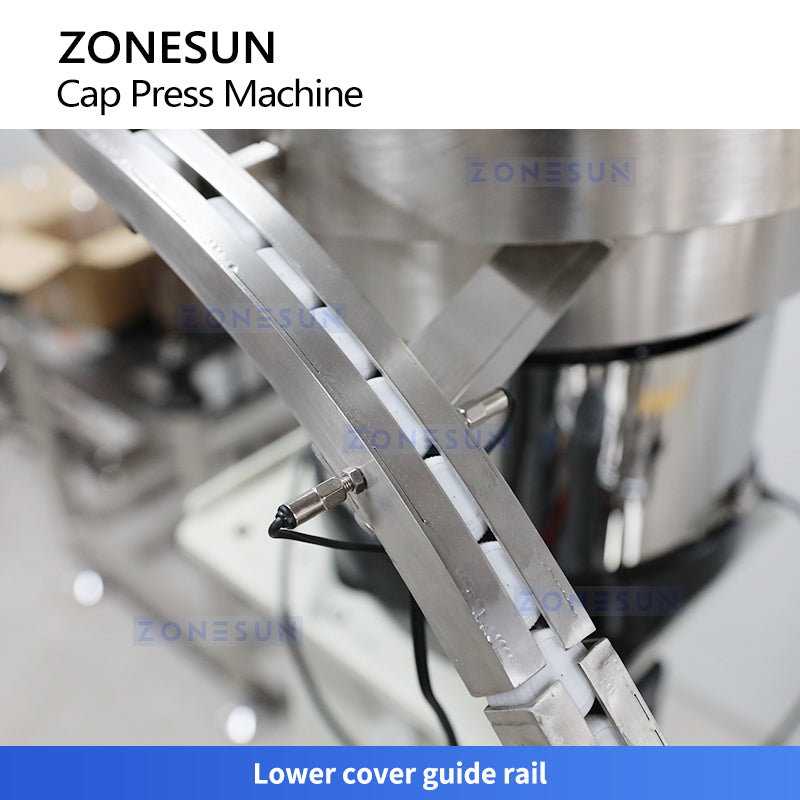

- Automatic Cap Sorting: Utilizes precise vibratory motion to automatically orient, align, and feed scattered caps neatly into the discharge track.
- Gentle Handling: Engineered to prevent jamming and scratching, protecting the aesthetic quality of your caps while maintaining high-speed operation.

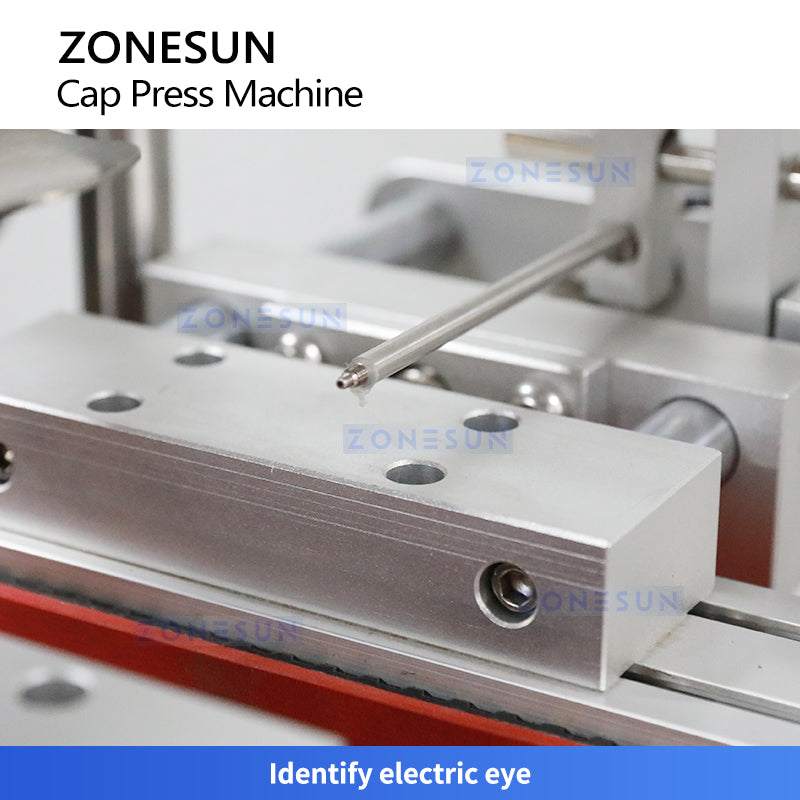

ELECTRIC EYE
- Smart Detection: Equipped with a highly sensitive photoelectric sensor (ELECTRIC EYE) that captures the arrival of each bottle in real-time.
- Smart Interlock: The system executes capping only after a bottle is successfully detected, effectively reducing unnecessary waste and preventing equipment dry-running.
