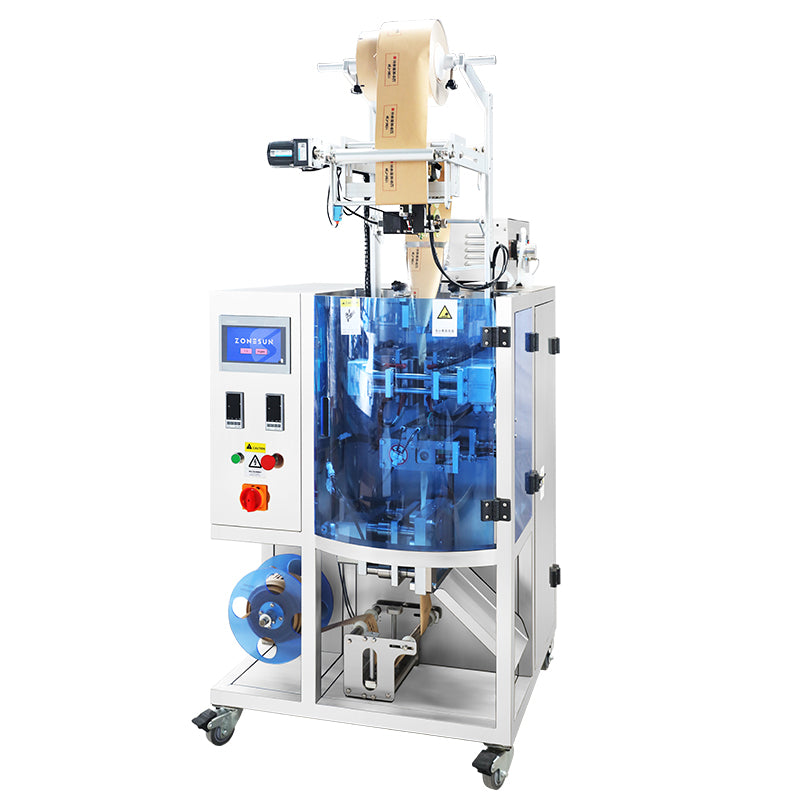

ZONESUN ZS-PL240YX Shaped Pouch VFFS Liquid Filling and Sealing Machine
ZONESUN ZS-PL240YX Shaped Pouch VFFS Liquid Filling and Sealing Machine
Couldn't load pickup availability
Description
The ZONESUN ZS-PL240YX shaped pouch filling and sealing machine integrates automatic measuring, filling, forming, sealing, punching, and cutting for liquid sachets. It offers high filling accuracy, fast output, and easy operation. Sealing and cutting molds are fully customizable to match specific pouch designs. Widely us ed in food, cosmetics, and pharmaceutical industries, the machine supports optional coding, mixing, and heating functions to meet diverse production needs. Note: An external air compressor is required and must be purchased separately. Please contact customer service for customization details.
Parameter
- Model: ZS-PL240YX
- Voltage: 110/220V, 50–60Hz
- Power: 2 kW
- Metering Method: Piston pump, Magnetic pump
- Packaging Form: Round corner & back side sealing (customizable)
- Dosage Range: 1–30 ml (customizable)
- Bag Size: Length 40–60 mm; Width 20–110 mm
- Packaging Speed: 20–55 bags/min (depending on actual material)
- Machine Size (L×W×H): 780 × 750 × 1800 mm
- Machine Weight: About 300 kg

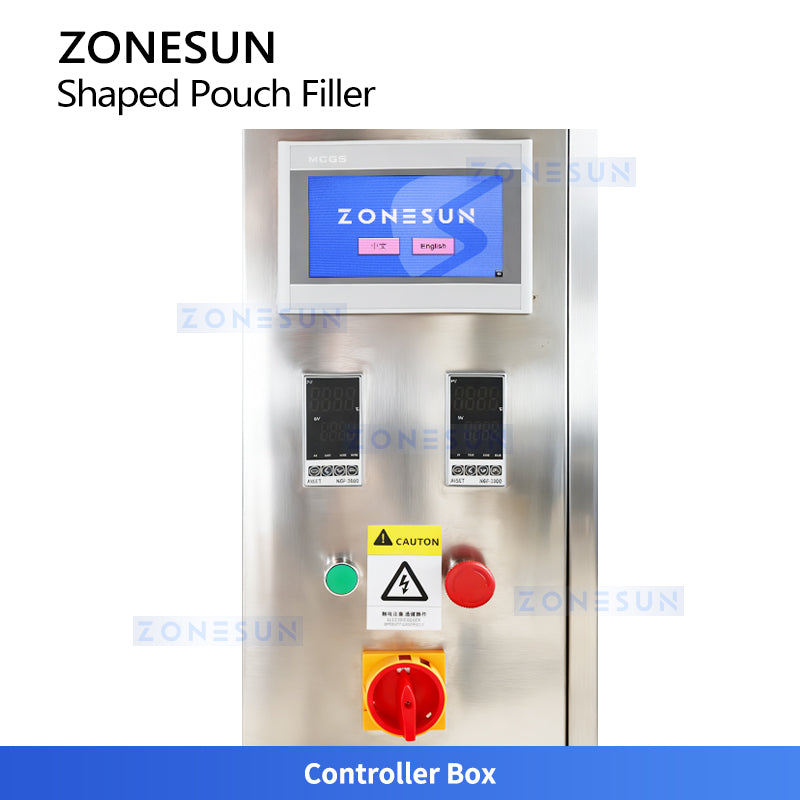

Controller Box
Central Control Unit Integrating HMI, sensors, and switches to manage feeding, sealing, cutting, and safety functions.

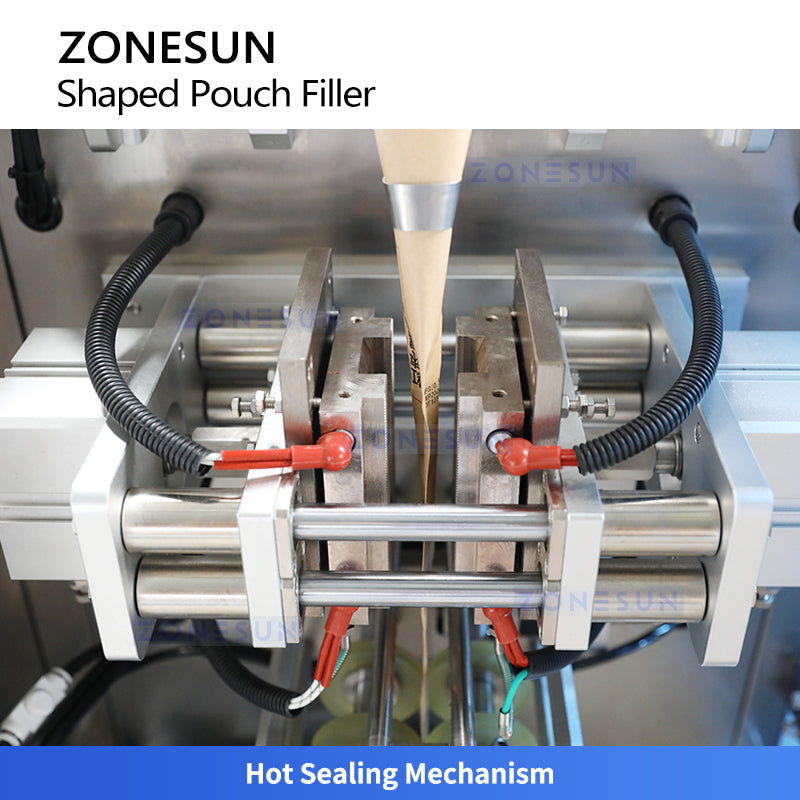

HOT SEALING
- Sealing Mechanism: Heats and presses packaging film to form a tight, reliable sealed edge.
- Precision Control: Accurately manages temperature, pressure, and dwell time to deliver consistent, leak-proof seals every time.

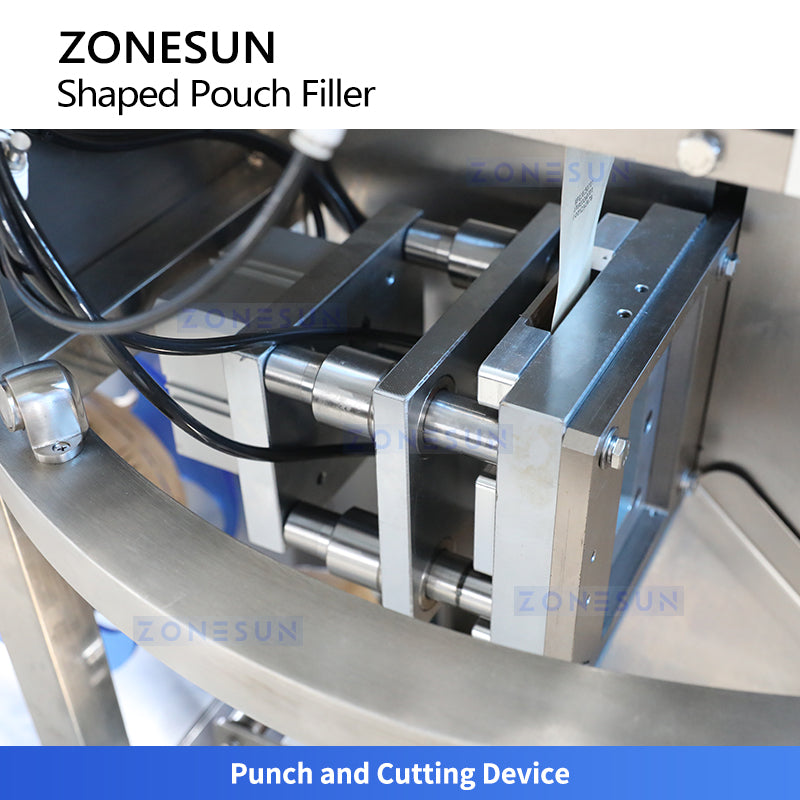

PUNCH & CUTTING
- Precision Separation: Shears and separates bags by punching and cutting packaging film cleanly.
- High-Quality Finish: Delivers clean edges and accurate dimensions, ensuring smooth and reliable separation for downstream handling.

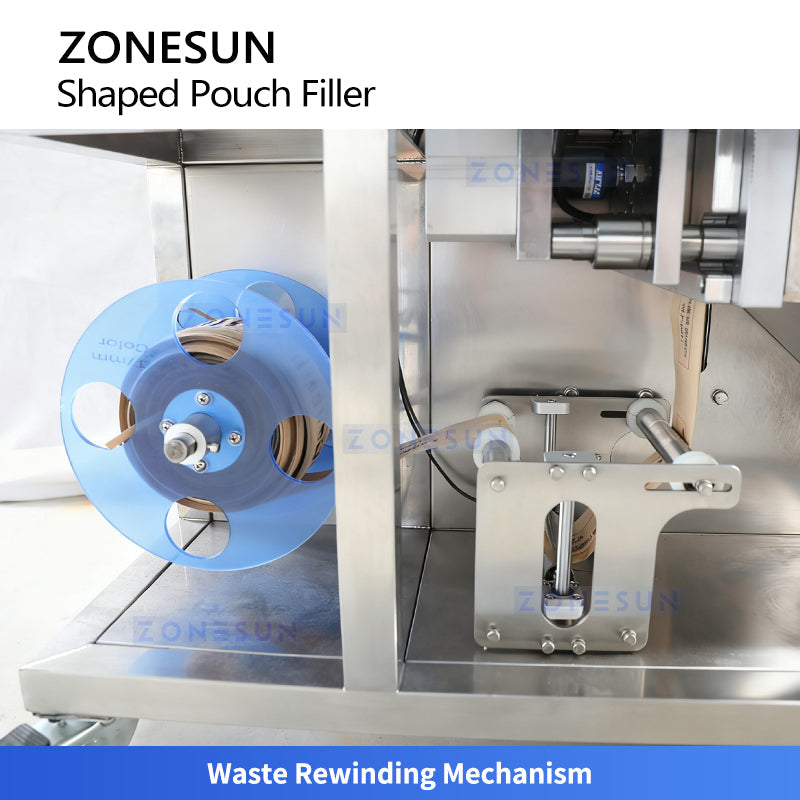

WASTE REWINDING
- Automatic Film Collection: Collects and rewinds excess film margin after pouch cutting.
- Clean & Efficient: Keeps the workspace organized, minimizes material residue, and supports hygienic continuous operation.

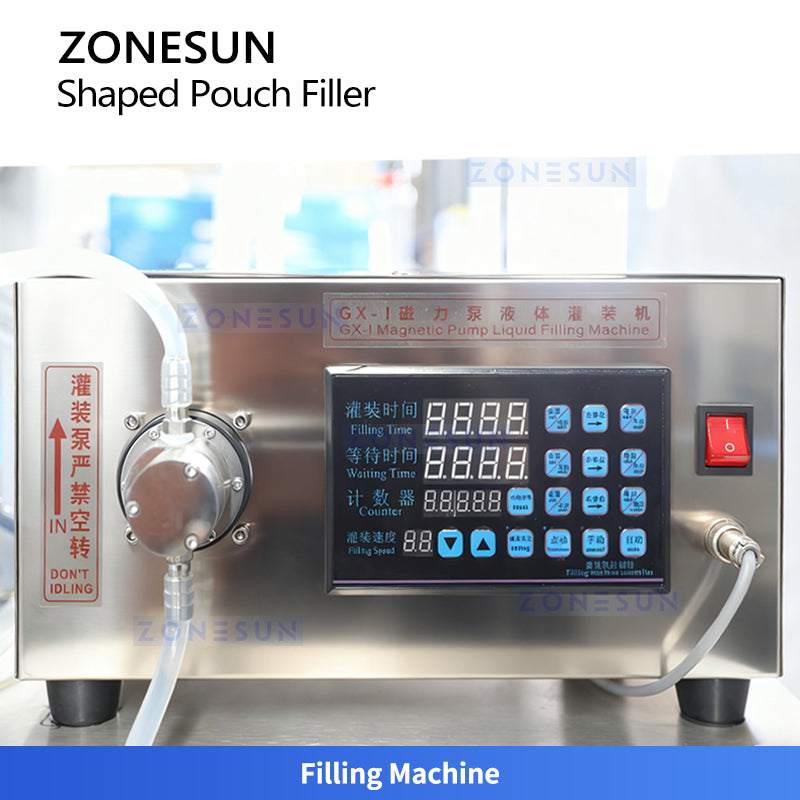

FILLING MACHINE
- Precision Dosing: Dispenses accurate volumes of liquid into pouches via a high-precision magnetic pump.
- Full Control: Features adjustable flow rates, customizable filling time, and advanced anti-drip mechanisms for clean and efficient operation.
FILM ROLL HOLDER
- Stable Film Supply: Securely holds and smoothly releases the packaging film roll.
- Precision Feeding: Features consistent tension control and precise film alignment, ensuring smooth downstream pouch forming and sealing.
CODER (OPTIONAL)
- Batch & Date Printing: Prints batch numbers, manufacturing/expiration dates, or custom logos onto packaging film.
- Customizable Marking: Enhances product traceability and brand identification during the packaging process.
