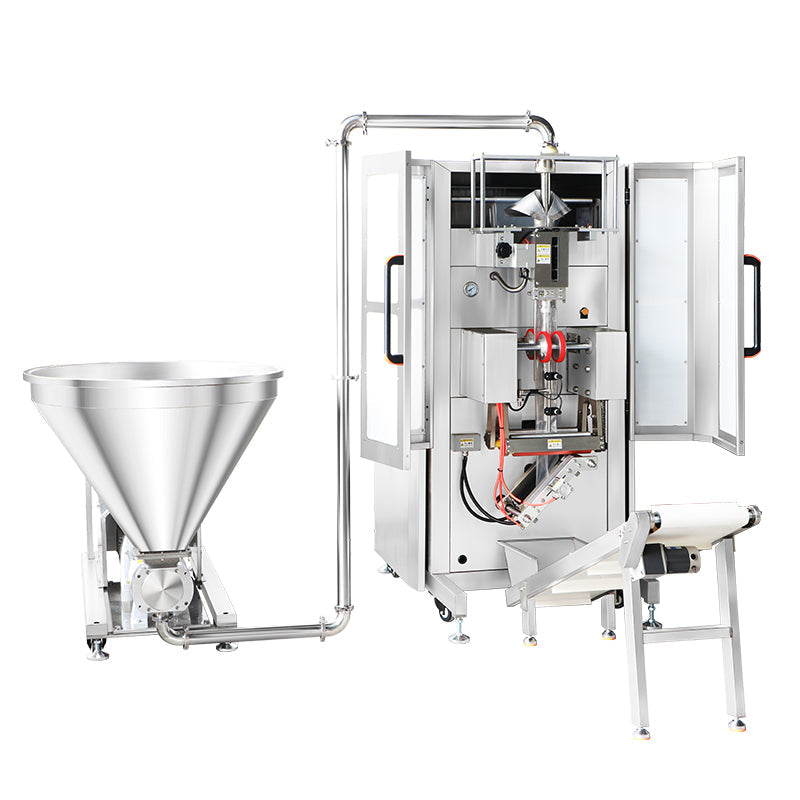

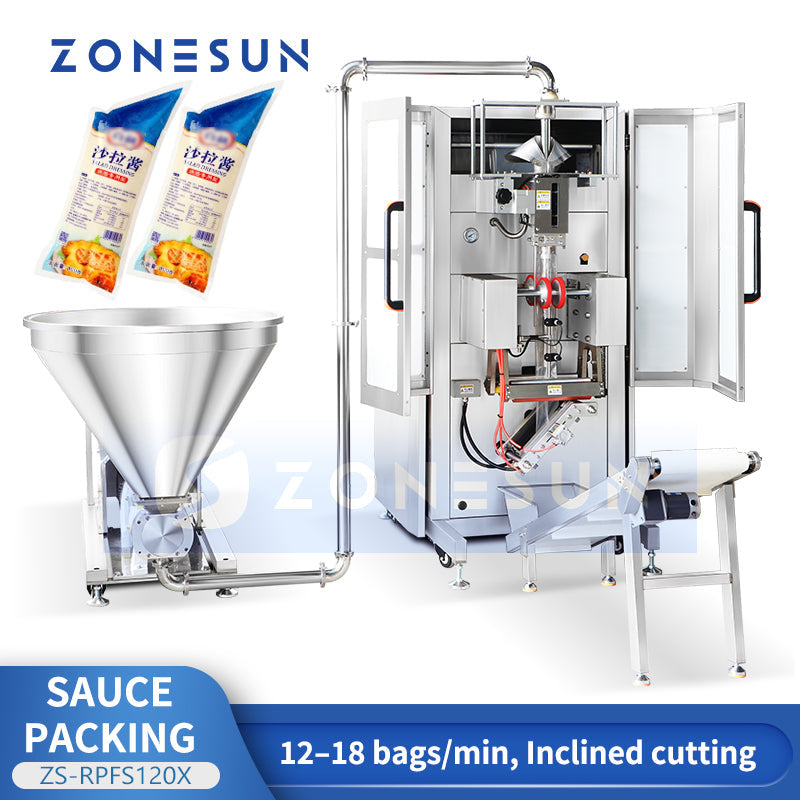

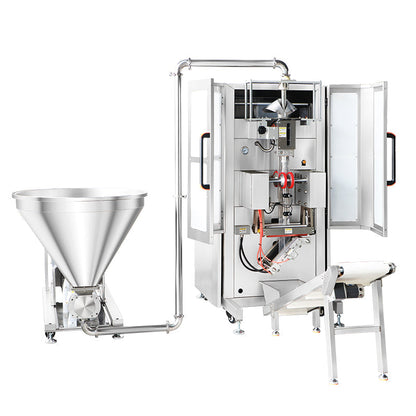

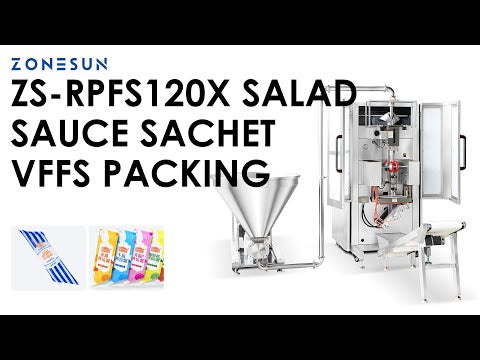

ZONESUN ZS-RPFS120X Automatic VFFS Packing Machine for Honey and Cream Sachet Filling & Sealing

Description

The ZONESUN ZS-RPFS120X is an automatic packing machine specially designed for semi-fluid and viscous products with good flow ability. Equipped with a rotor lobe pump feeding system, it ensures efficient and accurate filling, stable bag forming, and reliable sealing. Operating at 12–18 bags per minute, it is ideal for packaging a wide range of products such as honey, salad dressings, cake creams, and fruit jams. Compact in design yet highly efficient, this machine helps reduce labor, improve hygiene, and deliver consistent packaging quality for food production lines.



Parameter

• Machine Model: ZS-RPFS120X
• Voltage: Three-phase four-wire 380V, 60Hz, 8 kW
• Filling Range: 500–1000 g (customizable)
• Feeding Pump: Rotor lobe pump
• Sealing Type: Inclined cutting (customizable)
• Packaging Speed: 12–18 bags/min
• Bag Size (L×W): 200–450 mm (length, sensor controlled) × 120–250 mm (width)
• Bag Material: Heat sealable bags
• Hopper Size (L×W×H): About 900 × 900 × 650 mm
• Air Pressure Requirement: ≥0.7 MPa, 0.6 m³/min
• Machine Size (L×W×H): About 2390 × 2660 × 2000 mm
• Machine Weight: About 400 kg

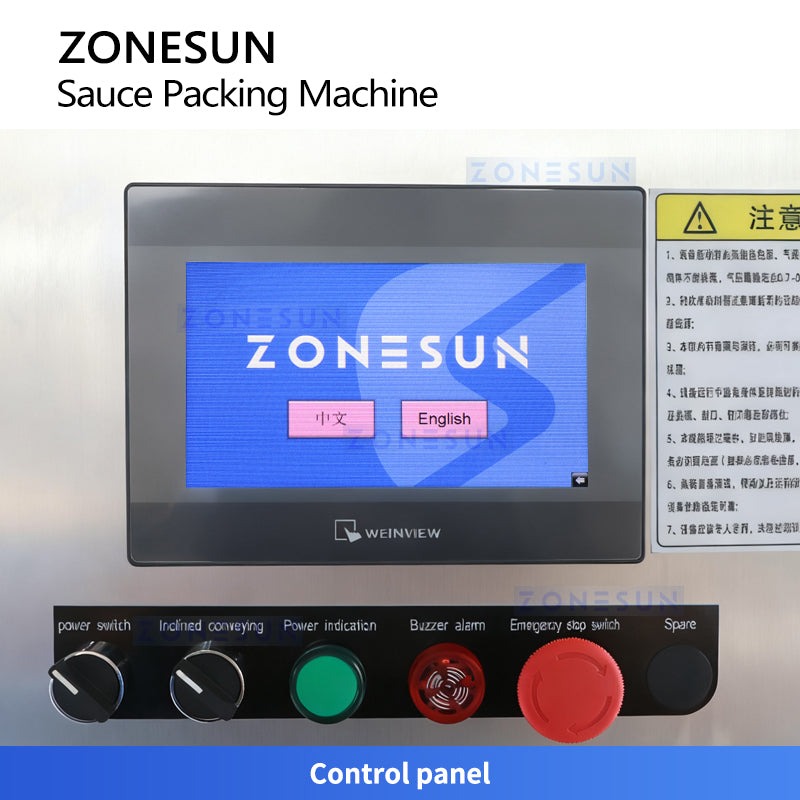

Control Panel

User-friendly touchscreen interface for easy operation and quick parameter adjustments. Customizable operation language.

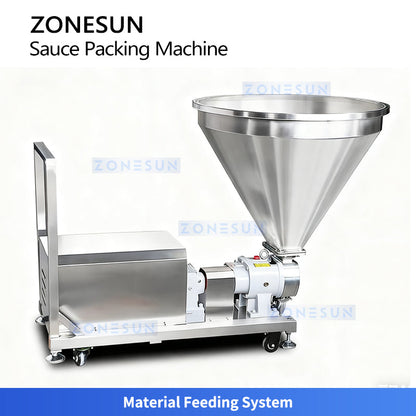

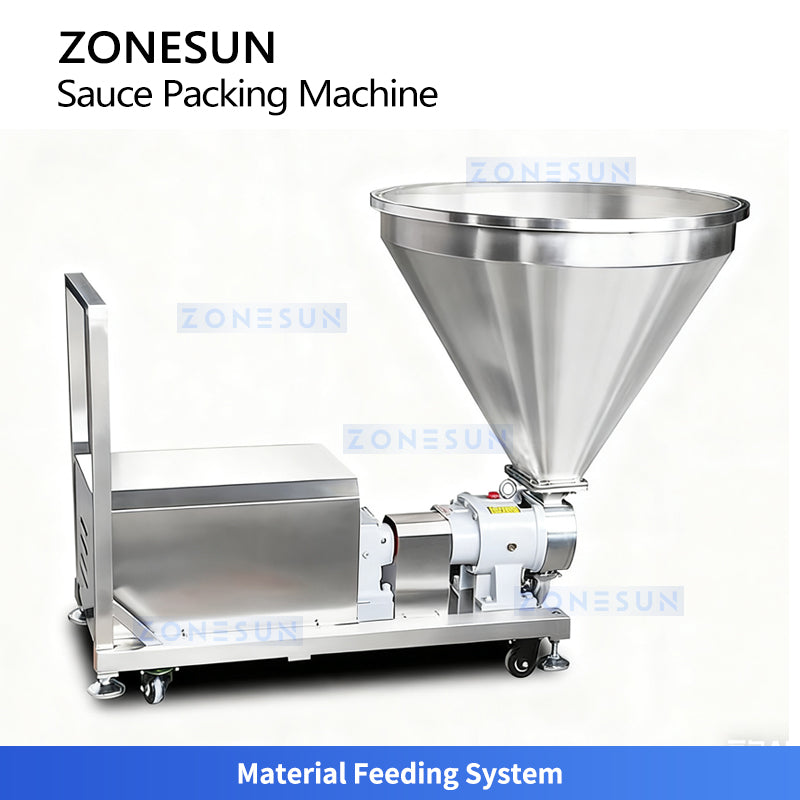

MATERIAL FEEDING

Equipped with a 90L large-capacity hopper and a high-precision rotor lobe pump to ensure continuous, timely, and stable material supply.

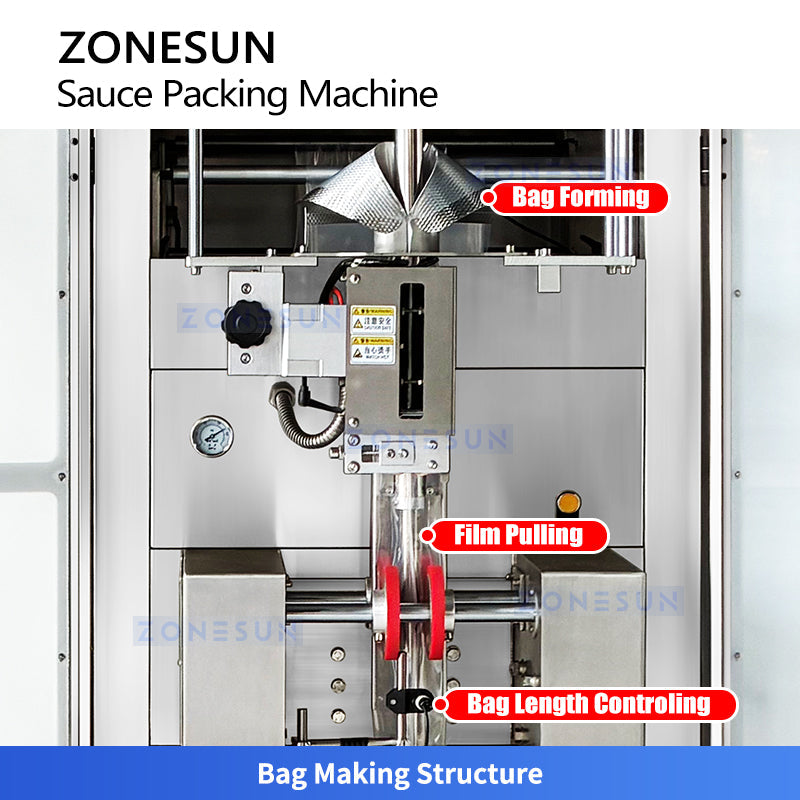

BAG MAKING

Driven by gravity and controlled by a high-precision photo-eye sensor, this system ensures smooth film pulling and accurate bag length control—specially optimized for large-capacity packaging.

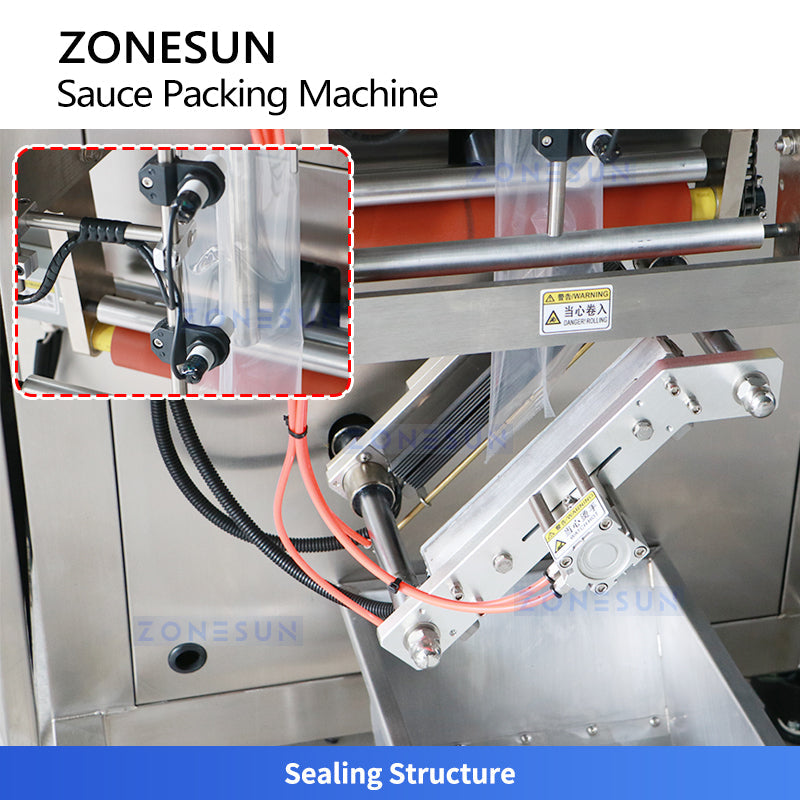

SEALING STRUCTURE

Features customizable inclined sealing with options for back-seal, 3-side seal, or 4-side seal. Compatible with various heat-sealable packaging films for maximum versatility and secure closure.

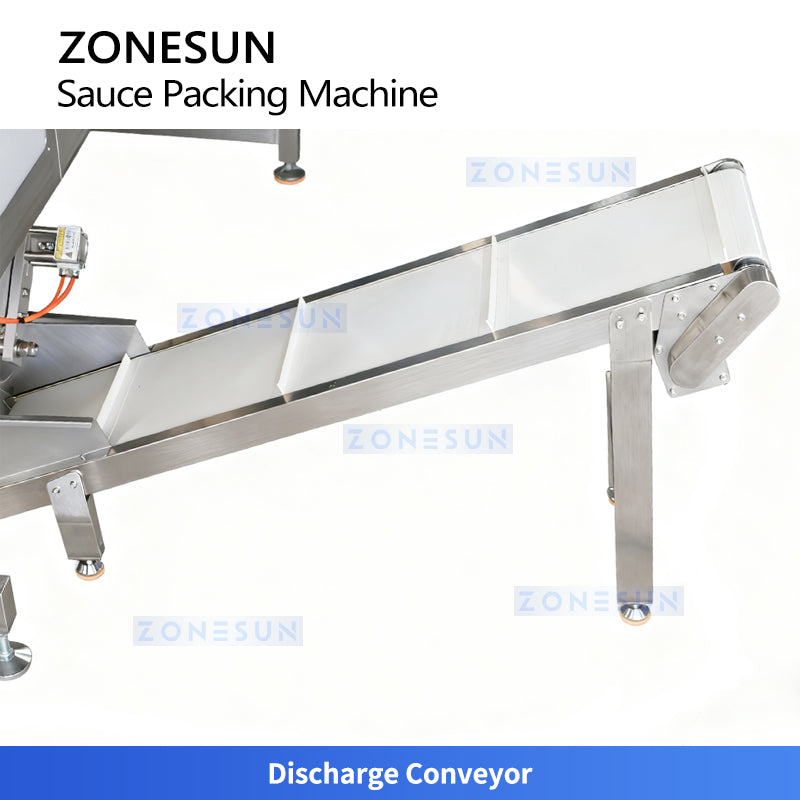

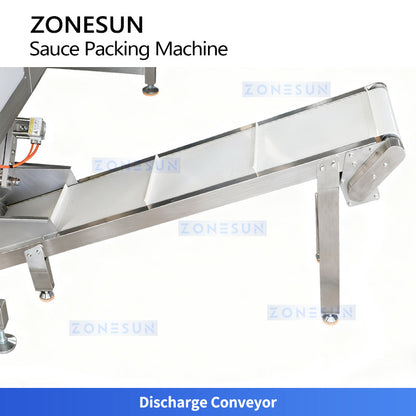

DISCHARGE CONVEYOR

Designed with an inclined structure, this conveyor ensures smooth transport of finished products and effectively prevents blockages or pile-ups during discharge, ensuring uninterrupted operation.

ELECTRONICS

Integrated with a high-reliability control board that ensures stable performance, smooth circuit operation, and long-term durability for continuous industrial use.
