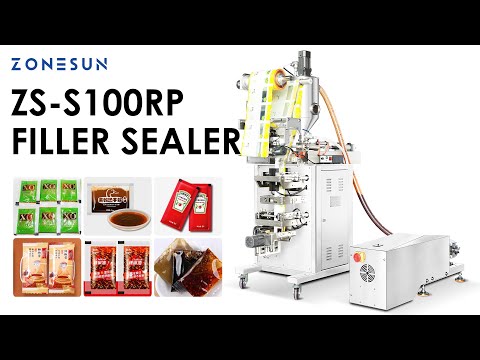

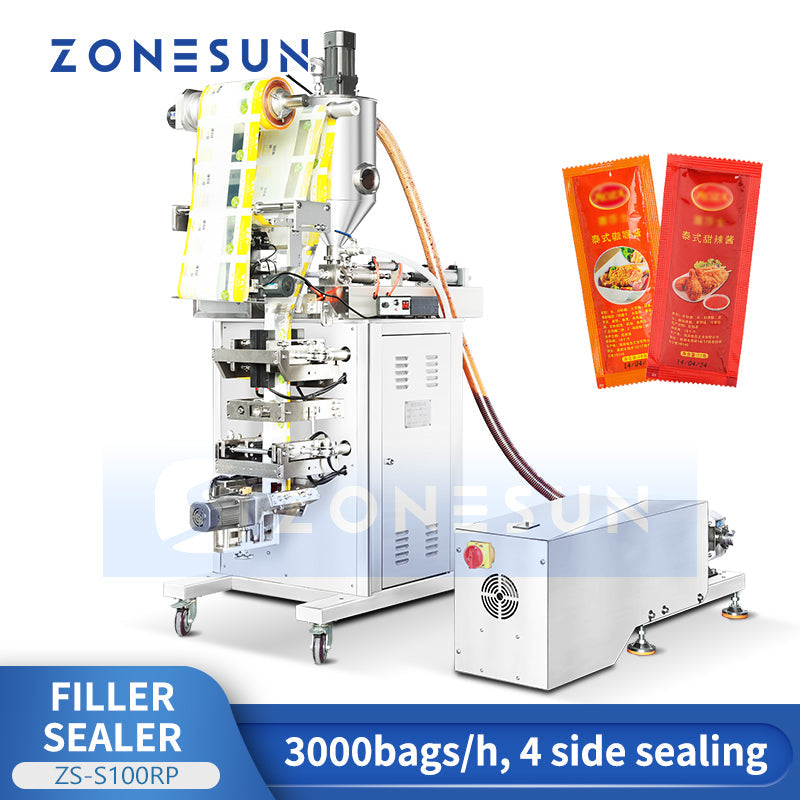

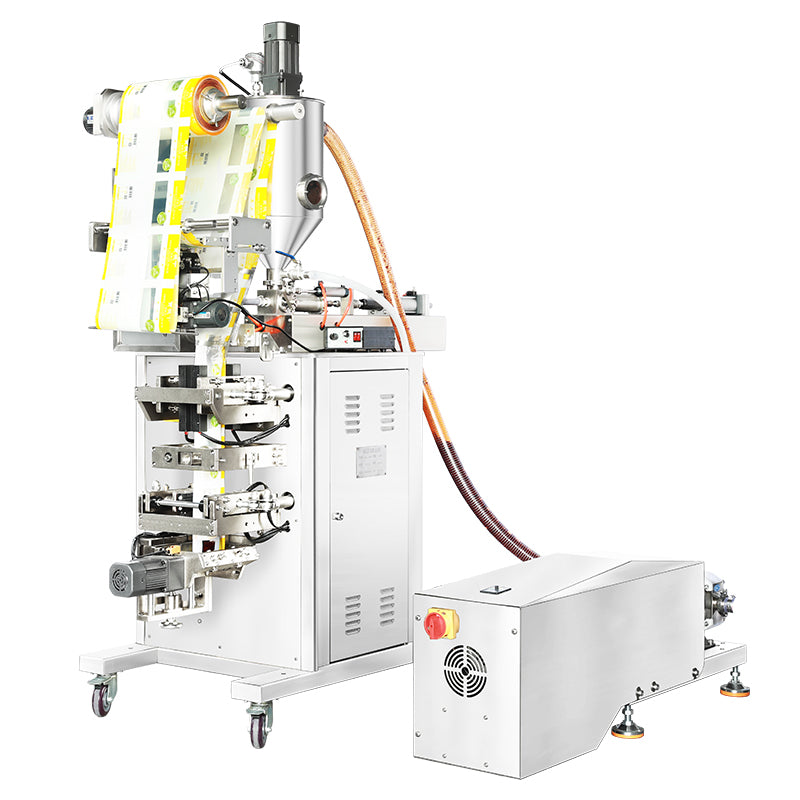

Zonesun ZS‑S100RP Automatic VFFS Bagger with Feeding Pump for Sauces
Zonesun ZS‑S100RP Automatic VFFS Bagger with Feeding Pump for Sauces
Regular price
$5,398.00 USD
Regular price
$0.00 USD
Sale price
$5,398.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Zonesun ZS‑S100RP VFFS Bagger with Feeding Pump is a fully automatic packaging solution designed for a wide range of pastes and liquids, including ketchup, soy sauce, and edible oils. It integrates bag making, filling, and sealing into one streamlined process, ensuring consistent quality and high efficiency. The four‑side sealing design maximizes packaging output while reducing labor costs, making it ideal for food production facilities aiming to boost productivity and maintain strict hygiene standards. Built with robust materials and precision engineering, it delivers reliable performance for demanding production environments.
| Model | ZS‑S100RP | ZS‑S200RP | ZS‑S300RP |
|---|---|---|---|
| Power Supply | 220 V / AC 50 Hz 1.6 kW | 220 V / AC 50 Hz 1.6 kW | 220 V / AC 50 Hz 1.8 kW |
| Air Source | 0.8 MPa, 150 L/min | 0.8 MPa, 180 L/min | 0.8 MPa, 250 L/min |
| Bag Length | 50 – 150 mm | 50 – 150 mm | 50 – 300 mm |
| Bag Width | 25 – 120 mm | 25 – 120 mm | 70 – 190 mm |
| Film Width | 50 – 260 mm | 50 – 260 mm | 140 – 400 mm |
| Bag Capacity | 5 – 100 ml | 50 – 300 ml | 100 – 1000 ml |
| Packaging Speed | 30 – 50 bags/min | 25 – 40 bags/min | 20 – 30 bags/min |
| Sealing Form | Three‑side sealing, four‑side sealing, back sealing | Three‑side sealing, four‑side sealing, back sealing | Three‑side sealing, four‑side sealing, back sealing |
| Machine Size | 760 × 1380 × 1700 mm | 760 × 1380 × 1700 mm | 900 × 1800 × 2040 mm |
| Machine Weight | 300 kg | 300 kg | 500 kg |

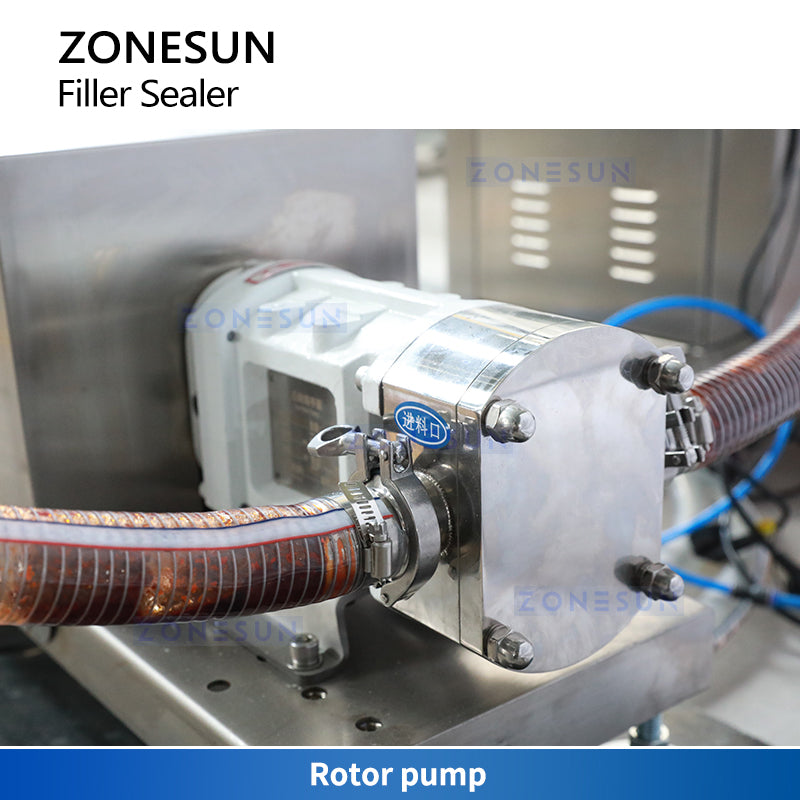

| Model | LX3A‑18 |
|---|---|
| Flow Rate | 0.5 – 2 m³/h |
| Maximum Head | 30 m / 0.3 MPa |
| Power | 2.2 kW |
| Speed | 100 – 374 rpm |
| Diameter | 38 mm |
| Viscosity | ≤ 20,000 cP |
| Material (Pump, Rotor, Screw) | 304 stainless steel |
