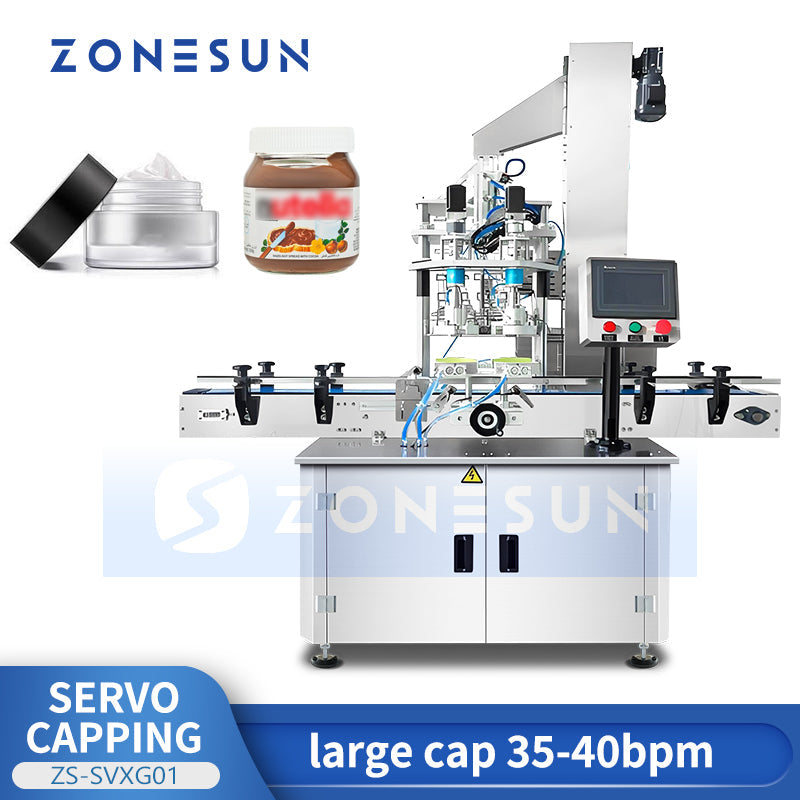

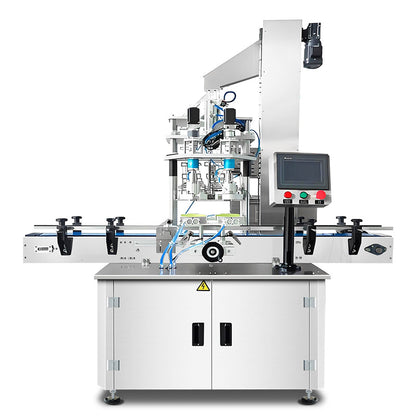

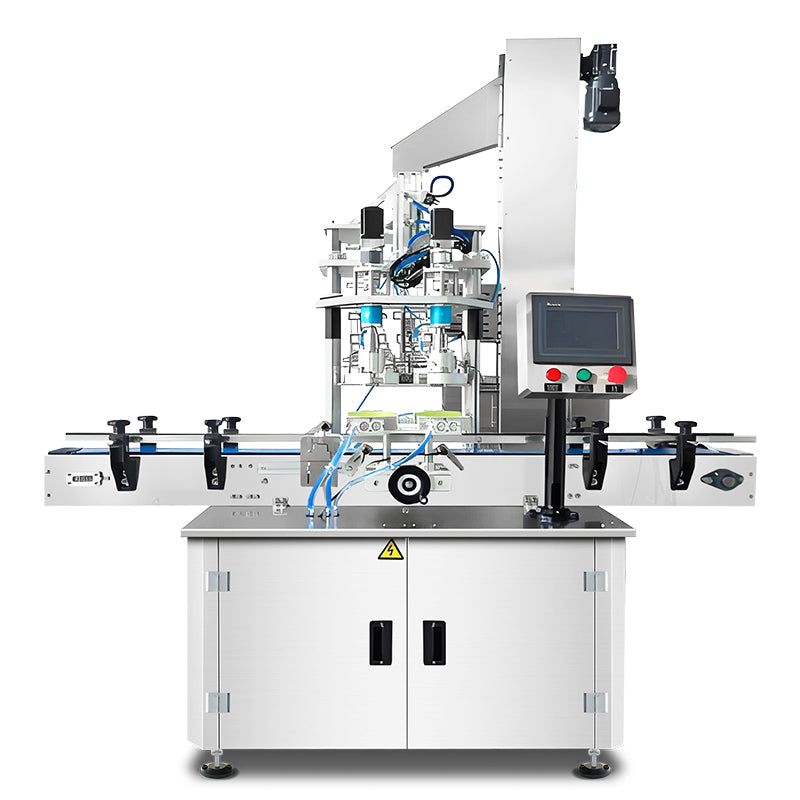

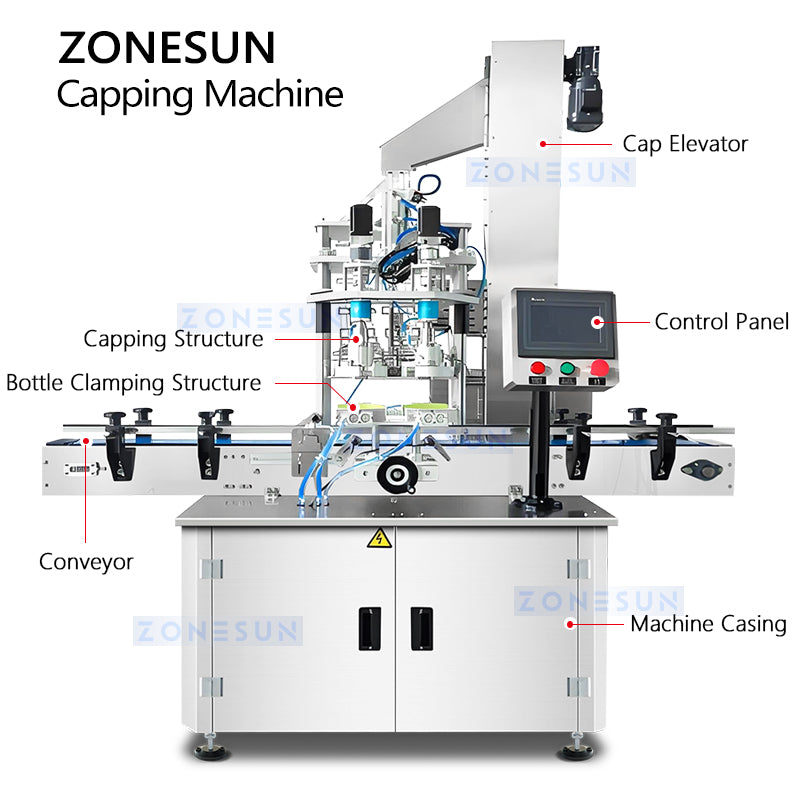

ZONESUN ZS-SVXG01 Automatic Double-Head Servo Screw Capping Machine for Sauce Jars & Bottles
ZONESUN ZS-SVXG01 Automatic Double-Head Servo Screw Capping Machine for Sauce Jars & Bottles
Couldn't load pickup availability
Description
The ZONESUN ZS-SVXG01 Automatic Double Heads Servo Screw Capping Machine is designed for high-speed, precise capping of sauce jars and other containers. Ideal for industries such as food, seasoning, cosmetics, and daily chemicals, it integrates cap feeding, bottle clamping, conveying, and screw capping into one streamlined process. Its servo-driven system ensures accurate torque control, while the pneumatic cap-transfer mechanism delivers stable and consistent performance. Compatible with various bottle shapes, sizes, and cap types, this machine offers outstanding versatility and efficiency.
| Item | Specification |
|---|---|
| Model | ZS-SVXG01 |
| Voltage | 110/220V, 50–60Hz, 1.5 kW |
| Suitable Bottle Size | Diameter: 20–150 mm; Height: 20–220 mm |
| Working Capacity | 2100–2300 bottles/hour |
| Conveyor Size | 2000 × 114 mm (L × W); Height: 850 mm |
| Machine Casing Material | SUS304 stainless steel |
| Air Consumption | 0.4–0.6 MPa |
| Machine Size | Approx. 3000 × 900 × 1550 mm |
| Machine Weight | Approx. 260 kg |
Applications
1. Food & Condiment Industry:
- Applications: Sealing glass and plastic jars containing chili sauce, peanut butter, honey, salad dressings, jams, salsa, and pickled vegetables.
- Advantages: Delivers consistent, leak-proof torque control to preserve product freshness and prevent oil or liquid seepage during transport.
2. Cosmetics & Personal Care:
- Applications: Tightening caps on lotion bottles, face cream jars, shampoo containers, body wash bottles, and essential oil droppers.
- Advantages: Ensures a clean, professional aesthetic finish on high-end retail packaging without scratching or damaging bottle surfaces or delicate cosmetic caps.
3. Daily Chemical & Household Products:
- Applications: Capping detergent containers, liquid soap dispensers, surface cleaner bottles, and polish jars.
- Advantages: Handles high-volume continuous production efficiently, reducing manual labor fatigue and maintaining uniform sealing standards.
4. Pharmaceutical & Healthcare:
- Applications: Securely sealing supplement bottles, health tonic jars, and syrup containers.
- Advantages: Provides reliable, repeatable sealing performance that adheres to strict packaging uniformity requirements.
ATTENTION
Please note that this product must be used with an AIR COMPRESSOR which is sold separately.
It is confirmed that the buyer has read this requirement once an order is placed.

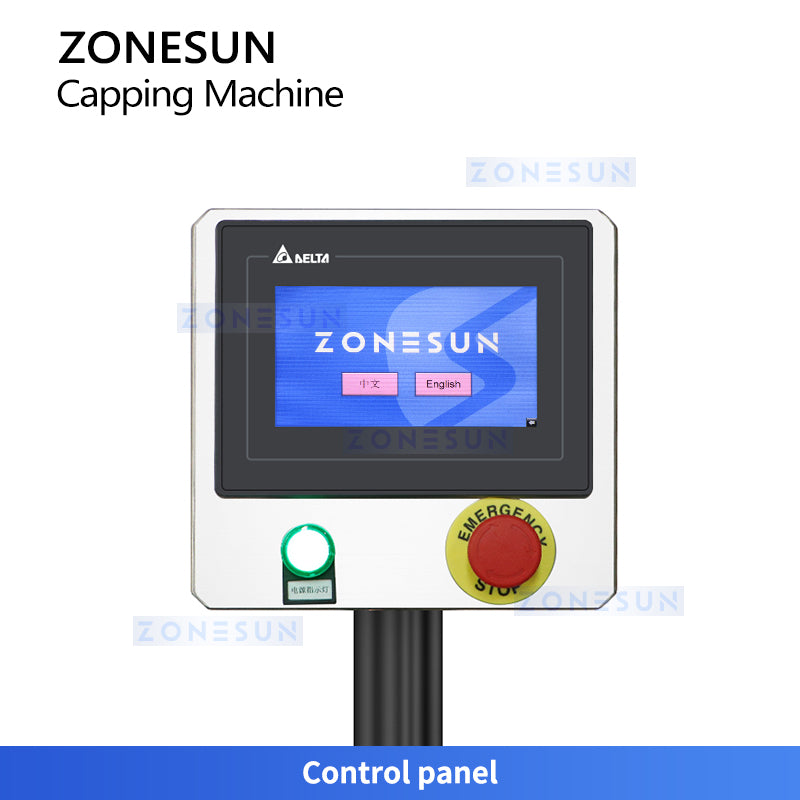

CONTROL PANEL
The HMI supports recipe storage and recall, allowing operators to switch between different bottle and cap specifications without repeated parameter adjustments.

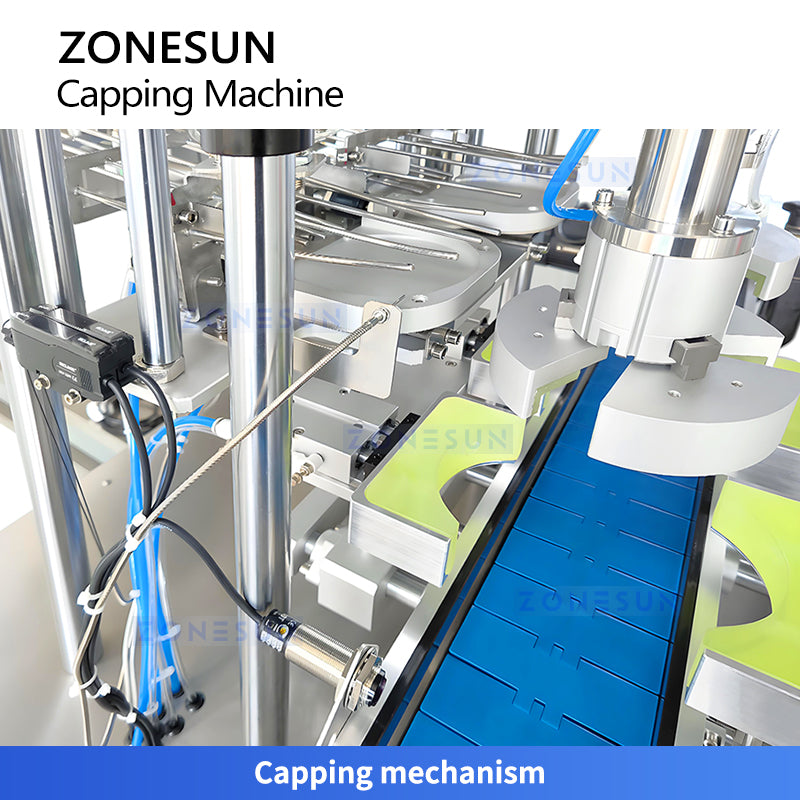

SERVO CAPPING
Two servo-driven capping stations provide precise torque control and stable sealing performance at speeds of up to 2,100–2,300 bottles per hour.

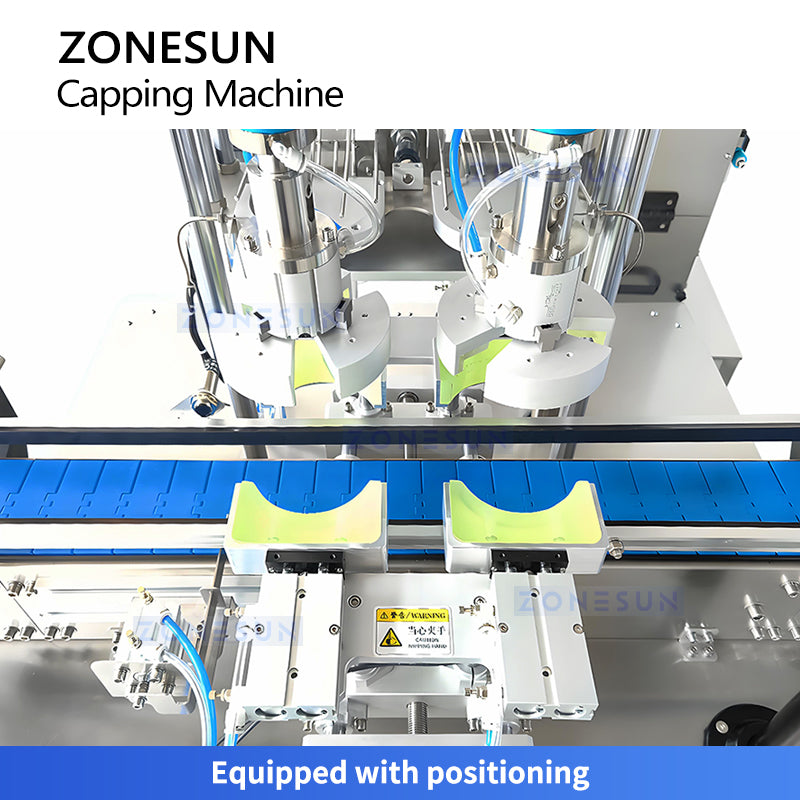

CAP GRIPPER
The cap placement mechanism uses pneumatic grippers for smooth and reliable handling while reducing changeover time during multi-SKU production.

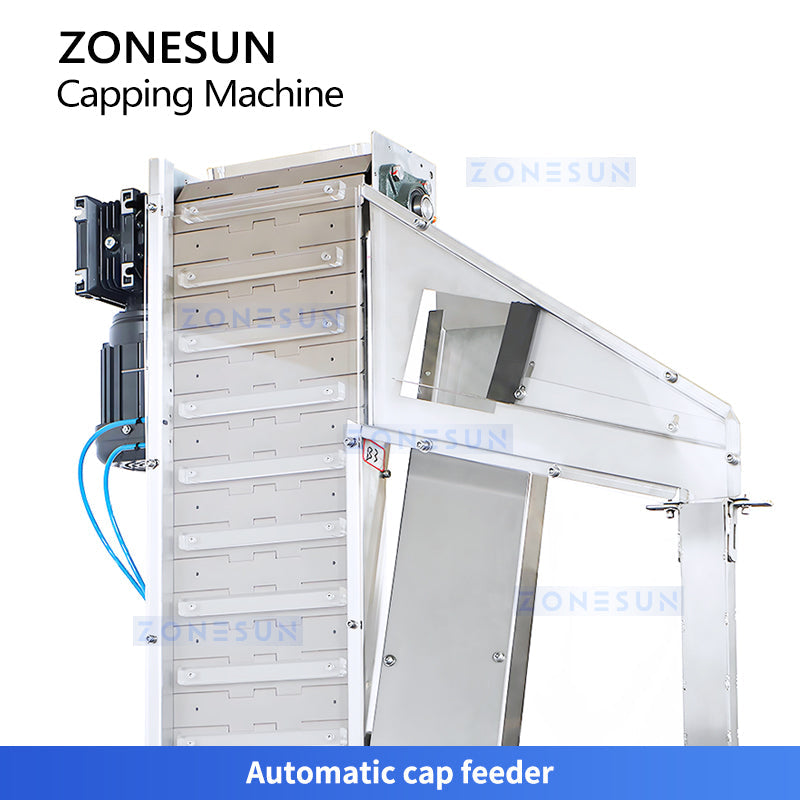

CAP ELEVATOR
Continuously supplies caps to the machine, ensuring stable operation and minimizing manual intervention during production.
CAPS HANDLING
Selected change parts can be replaced to accommodate different cap sizes, providing greater production flexibility.
ELECTRICAL CONTROL
Adopts organized electrical layouts and supports future upgrades according to specific production requirements.
