ZONESUN ZS‑SWP2 Automatic Bottle Single Color Screen Printing Machine Labeling Equipment
ZONESUN ZS‑SWP2 Automatic Bottle Single Color Screen Printing Machine Labeling Equipment
Couldn't load pickup availability
Description

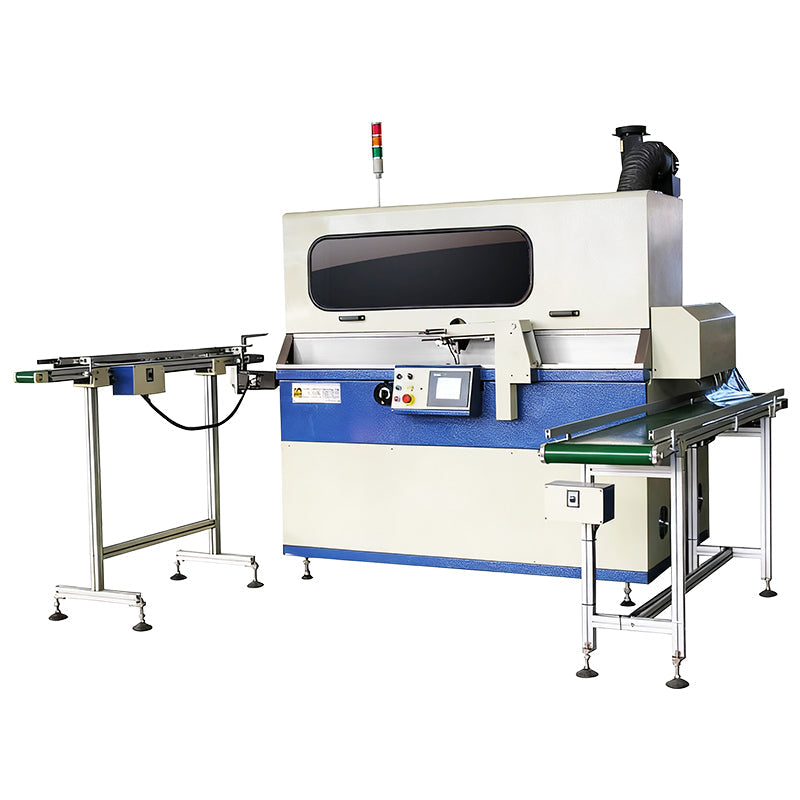

The ZONESUN ZS-SWP2 is a fully automatic single-color screen printing Machine designed for round and oblate bottles. It integrates automatic feeding, flame surface treatment, UV screen printing, and UV curing into one intelligent system, enabling high-speed one-pass printing with consistent quality. Ideal for cosmetics, food, pharmaceuticals, and daily chemical packaging, it offers a complete solution for factories facing labor shortages and productivity challenges. With stable performance and precise alignment, it ensures reliable output across a wide range of rigid containers.
Parameter
- Model: ZS-SWP2
- Printing Color: Single Color
- Automation Level: Fully Automatic
- Min Bottle Diameter: Ø25 mm
- Max Bottle Diameter: Ø90 mm
- Max Print Length: 260 mm
- Air Supply: 6 bar
- Air Consumption: 400 L/min
- Applicable Bottle Shape: Round / Oblate Bottle

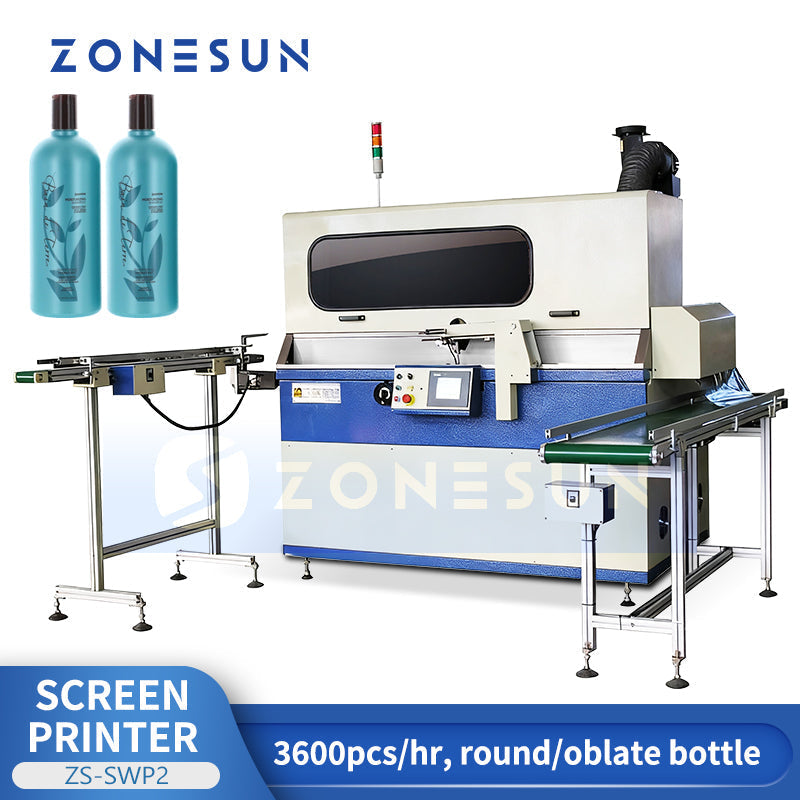

- Working Speed: 3600 pcs/hour
- Power Supply: 380V
- Machine Dimensions: 1900 × 1500 × 3000 mm
- Machine Weight: 1000 kg
- Applicable Industries: Cosmetics / Food / Daily Chemical / Pharma Packaging

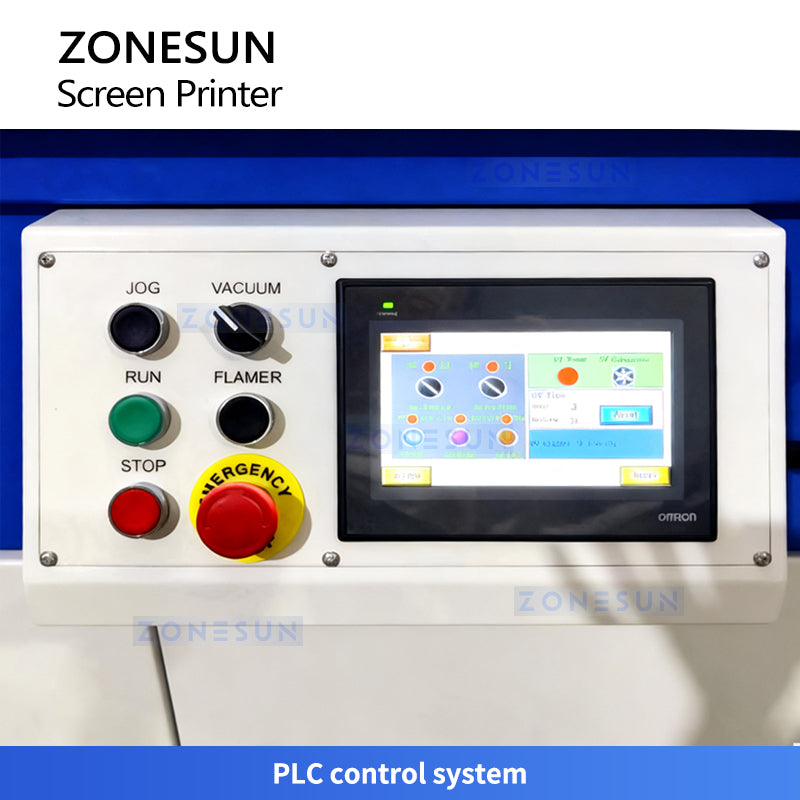

PLC Control System
Precision control over core parameters including printing speed, pressure, and screen position for optimal stability.

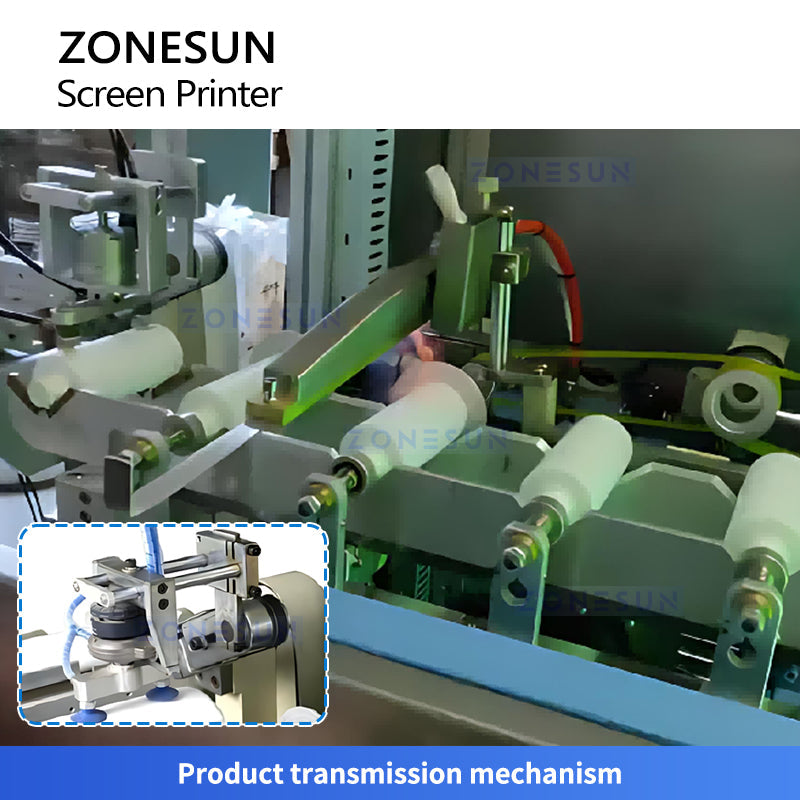

Product Transmission
Each servo axis synchronizes via the control system to ensure smooth transitions through bottle feeding, positioning, printing, and discharge.

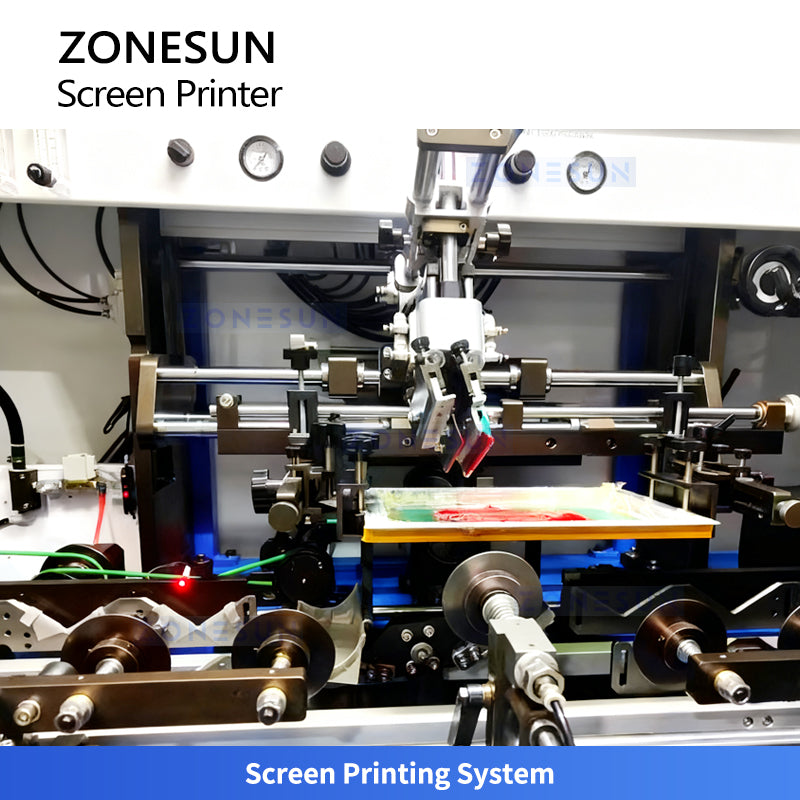

SCREEN PRINTING
Performs screen printing of logos, text, or patterns onto round or oblate bottles.

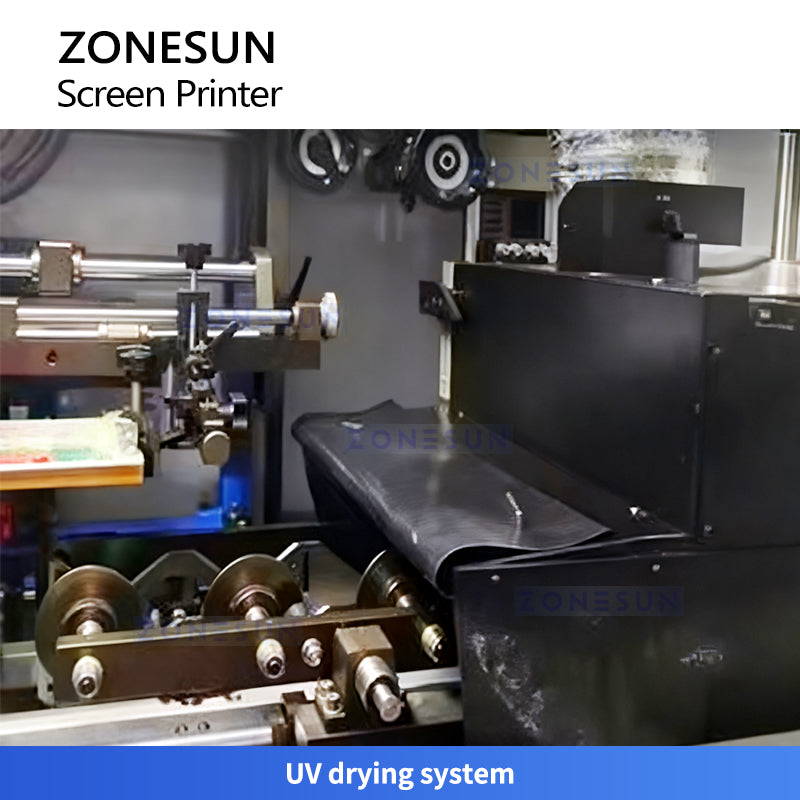

UV DRYING & CURING
Instantly cures and dries printed inks using high-efficiency UV light, ensuring long-lasting, smudge-proof, and vibrant results on round or oblate bottles.

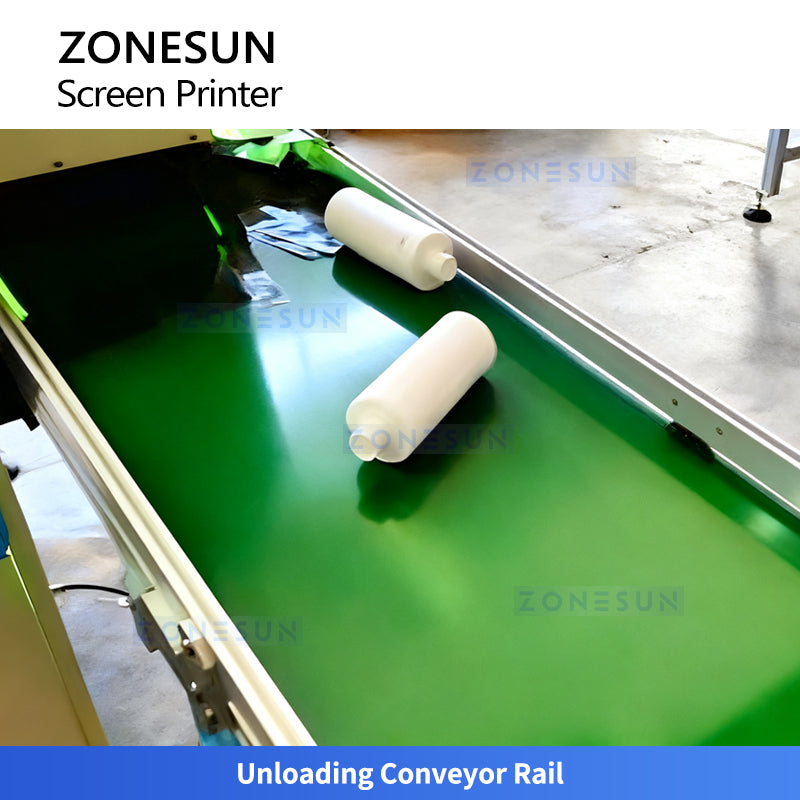

CONVEYOR
Delivers smooth and stable transfer of printed bottles to downstream packaging processes, effectively preventing collisions, tip-overs, or misalignments.
