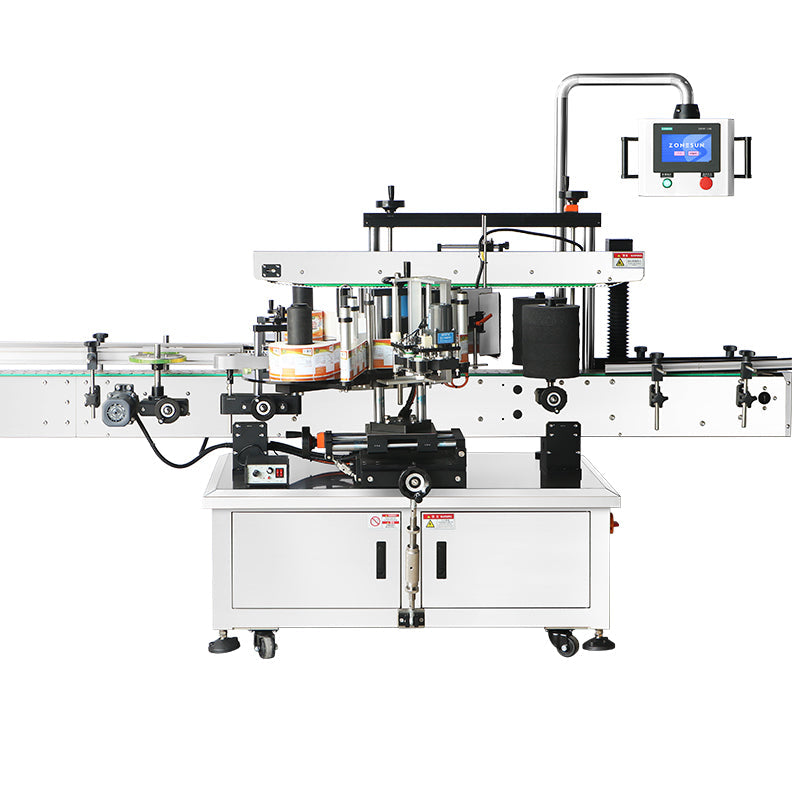

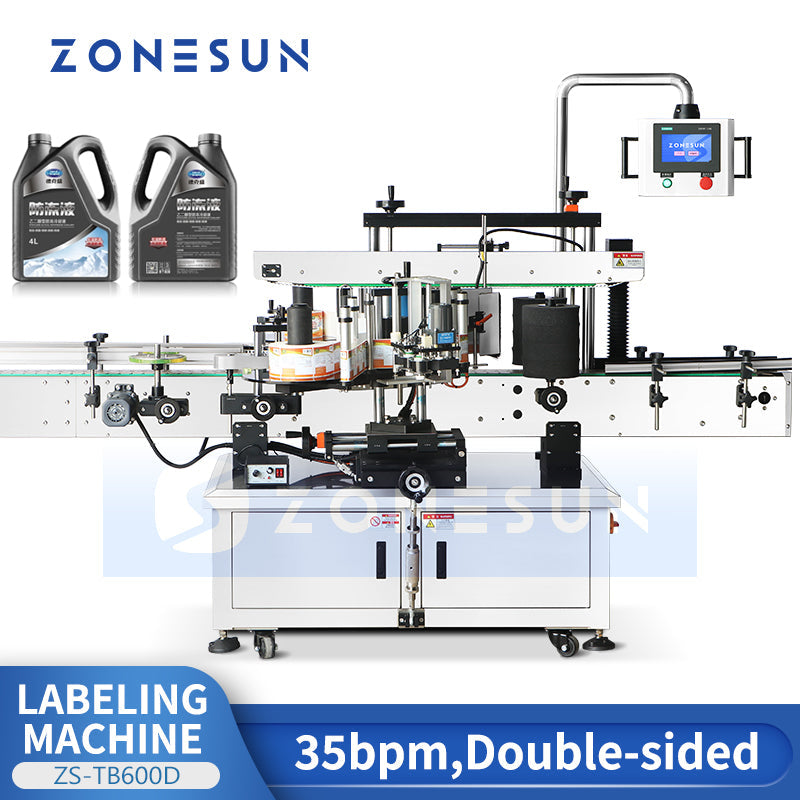

Zonesun ZS‑TB600D Double‑Sided Labeling Machine for F‑Style Bottles
Zonesun ZS‑TB600D Double‑Sided Labeling Machine for F‑Style Bottles
Regular price
$13,499.00 USD
Regular price
$0.00 USD
Sale price
$13,499.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Zonesun ZS‑TB600D F‑Style Bottles Double‑Sided Labeling Machine is a versatile solution for precise and efficient labeling of flat bottles. Its adaptable design allows quick switching between single‑sided and double‑sided labeling by adjusting the labeling structure, expanding application flexibility. Built with high‑quality materials for durability, it can be seamlessly integrated with automatic filling and capping machines to form a complete packaging line. Easy to operate and designed for stability, this machine delivers consistent performance, making it an excellent choice for enhancing productivity and meeting diverse packaging needs.
Technical Specifications
| Model | ZS-TB600D |
|---|---|
| Power Specification | AC 220 V ±2% · 50/60 Hz · 3000 W · Single phase |
| Labeling Speed | ≤35 bottles/min |
| Labeling Accuracy | Vertical: ±1.0 mm Horizontal: ±1.0 mm |

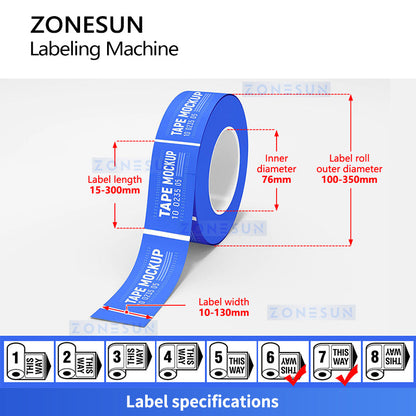

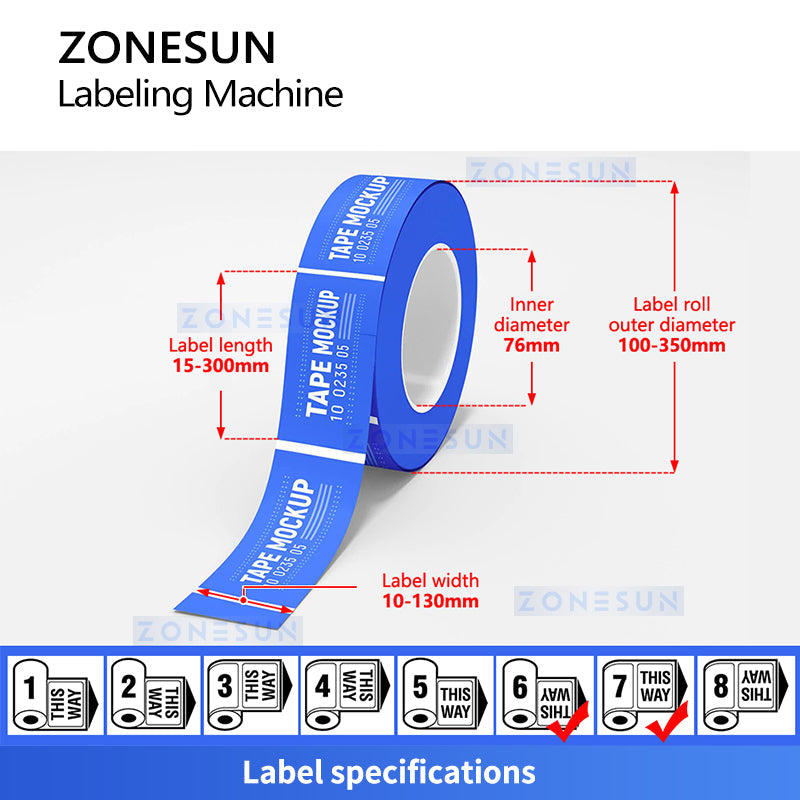

| Label Roll Inner Diameter | Ø76 mm (customizable upon request) |
| Label Roll Outer Diameter | Ø100–350 mm (customizable upon request) |
| Label Width | 10–130 mm (customizable upon request) |
| Label Length | 15–300 mm (customizable upon request) |
| Applicable Product Size | 20–300 mm (L) × 20–120 mm (W) × 60–320 mm (H) |
Applications
- Household & Personal Care: Flat bottles for dish soap, laundry detergent, disinfectants, shampoos, and conditioners.
- Automotive & Chemical: F-style motor oil jugs, lubricant containers, antifreeze bottles, and various flat chemical solvent drums.
- Pharmaceuticals & Healthcare: Large-capacity flat medicine bottles and health supplement containers.
- Food & Beverage: Edible oil jugs, soy sauce, vinegar, and other flat condiments packaging.
Key Application Benefits
- Flexible Single/Double-Sided Labeling: Capable of simultaneous double-sided (front and back) labeling, and easily convertible to single-sided labeling by adjusting the structure to meet diverse packaging needs.
- Precision Handling for Custom Bottles: Engineered with optimized conveyor and guiding components specifically for complex bottle geometries (such as F-style jugs with handles and flat bottles), ensuring smooth, bubble-free, and precise alignment.
- Automated Line Integration: Seamlessly connects with upstream automatic filling machines and downstream capping or sealing machines to form a fully automated packaging line.

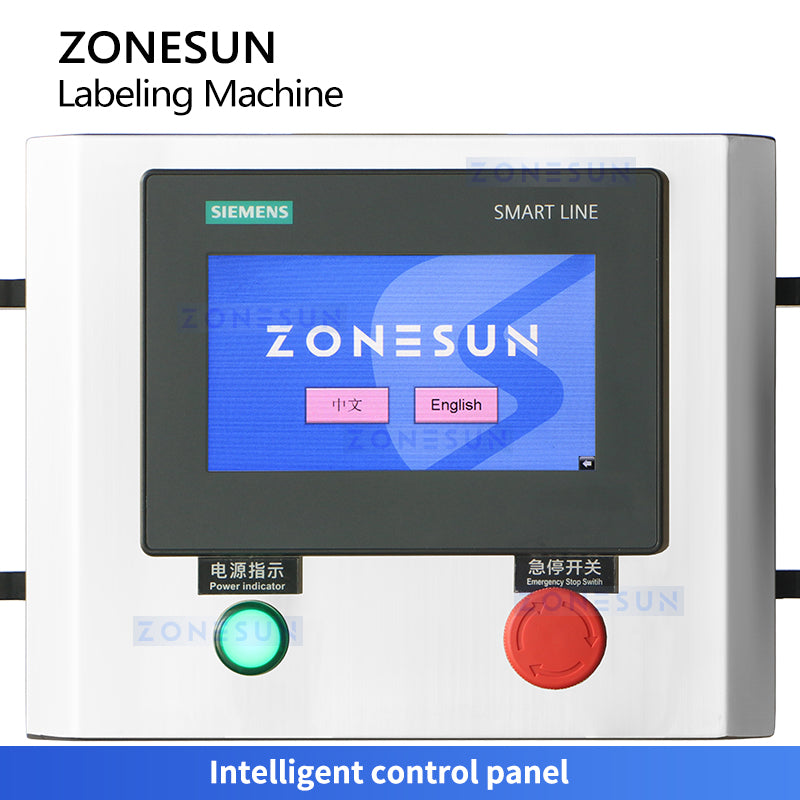

CONTROL PANEL
- Effortless Parameter Tuning: Intuitive touch screen HMI simplifies overall operation, making parameter setup and adjustments fast and clear.
- Dual-Language UI & Safety First: Built-in Chinese/English (customizable language) toggle with a physical emergency stop button, ensuring secure global operation.

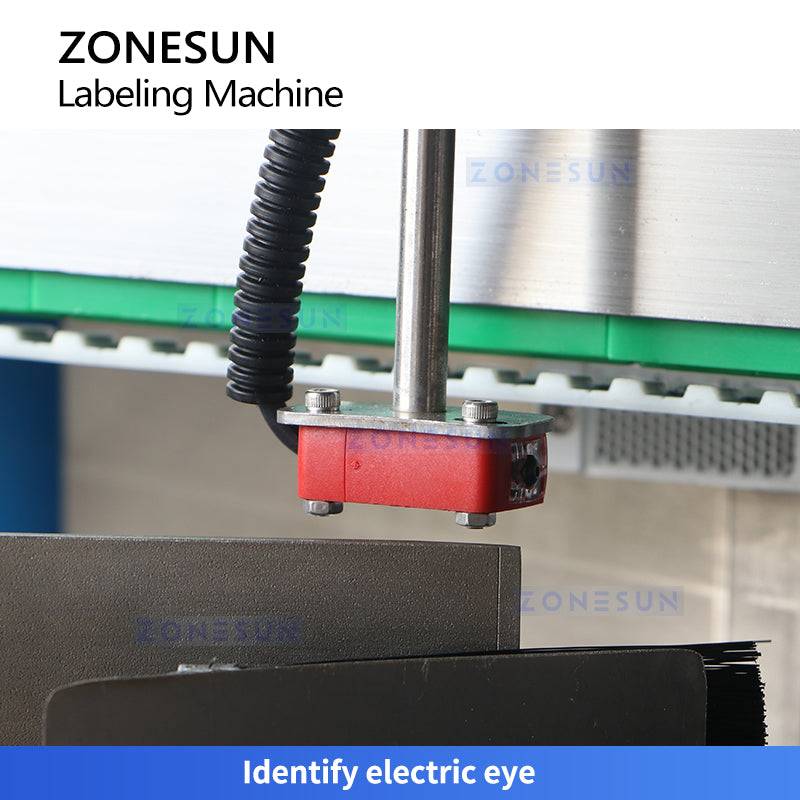

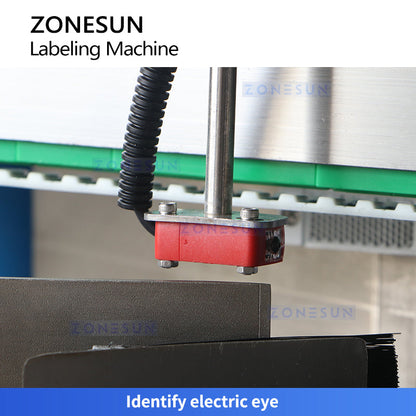

ELECTRIC EYE
- Ultra-Sensitive Detection: Driven by premium industrial-grade electric eye sensors to capture passing objects instantly and reliably.
- Zero-Error Precision: Pinpoints container positions in real-time to guarantee seamless, high-accuracy sticker placement without delays or skipping.

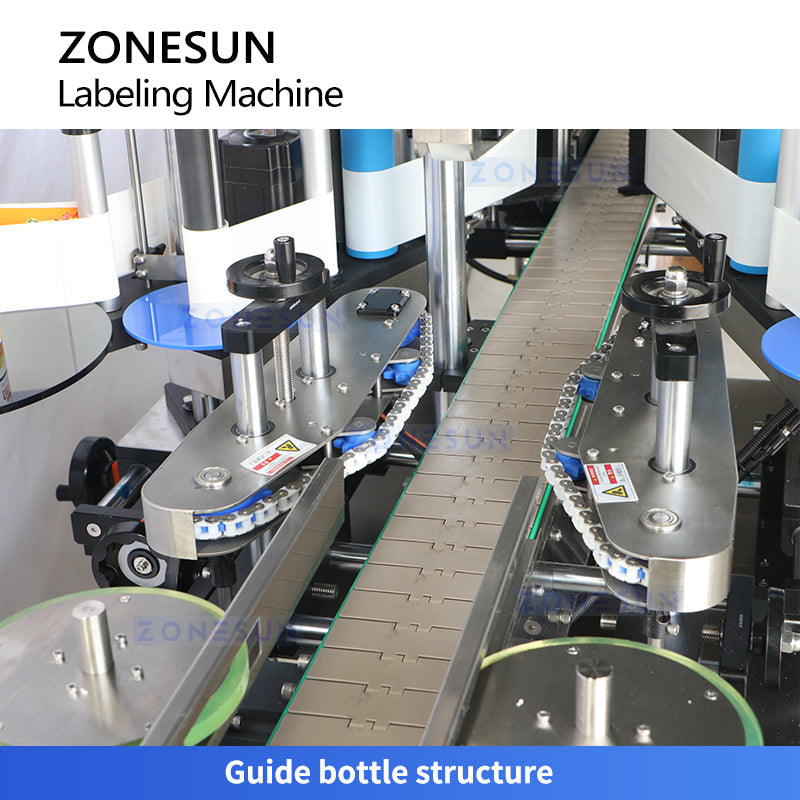

GUIDE BOTTLE
- Customizable Rail Spacing: The guiding width can be adjusted freely based on bottle diameters, perfectly matching various container sizes.
- Stable & Seamless Conveying: Stabilizes bottle movement during high-speed operation, preventing any tilting or shaking to ensure top-tier labeling quality.

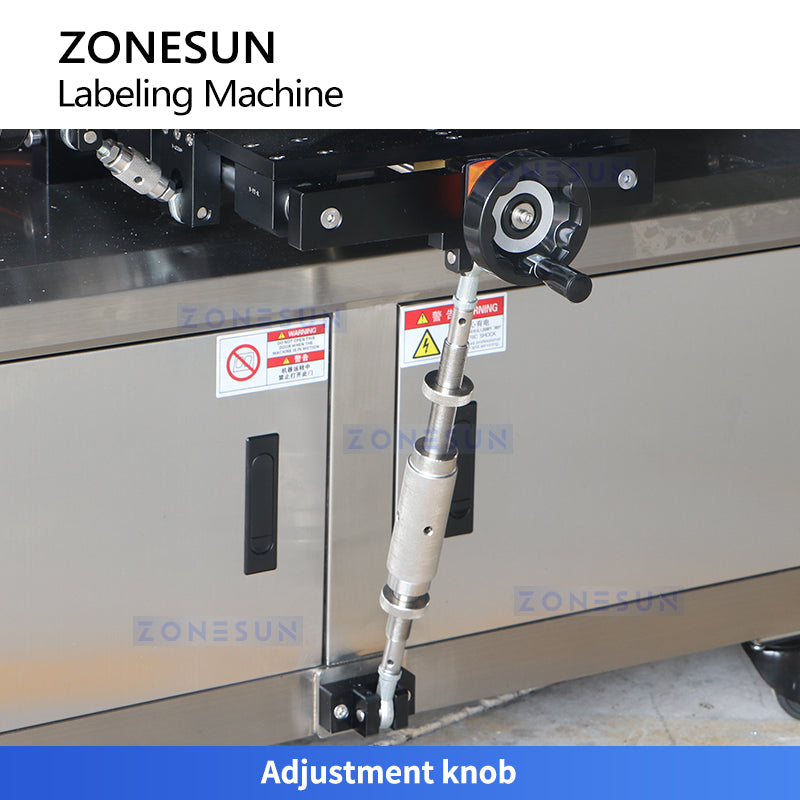

- Precision Component Tuning: High-efficiency rotary mechanism allows fine positioning of the labeling wheel, separation blade, and winding rod.
- Flawless Product Finish: Eliminates alignment deviations to secure precise sticker application and high-quality packaging standards.
