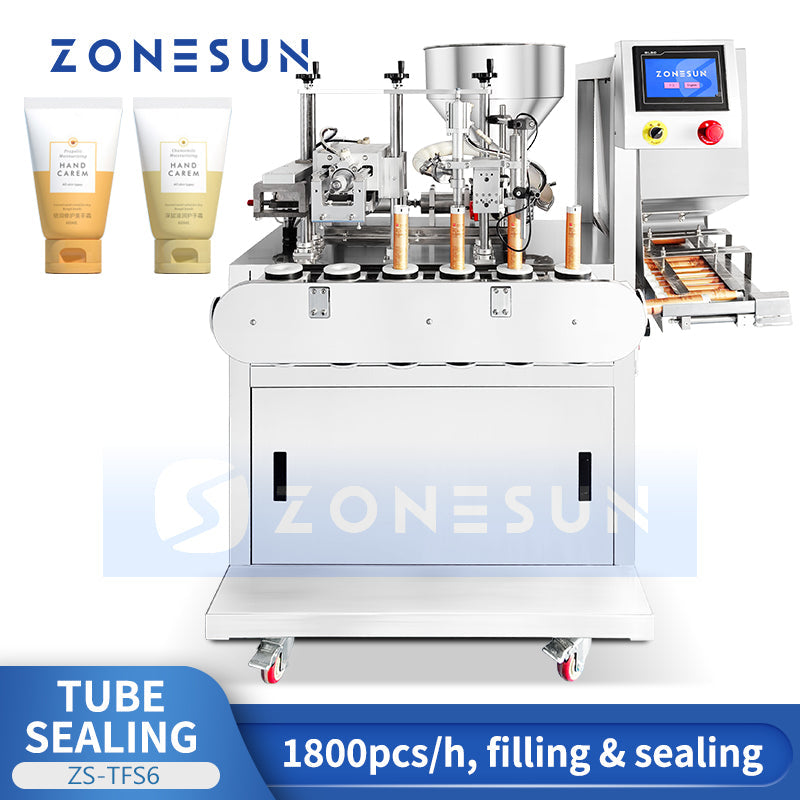

Zonesun ZS-TFS6 Ultrasonic Cosmetic Tube Filling & Sealing Machine
Zonesun ZS-TFS6 Ultrasonic Cosmetic Tube Filling & Sealing Machine
Regular price
$10,199.00 USD
Regular price
$0.00 USD
Sale price
$10,199.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

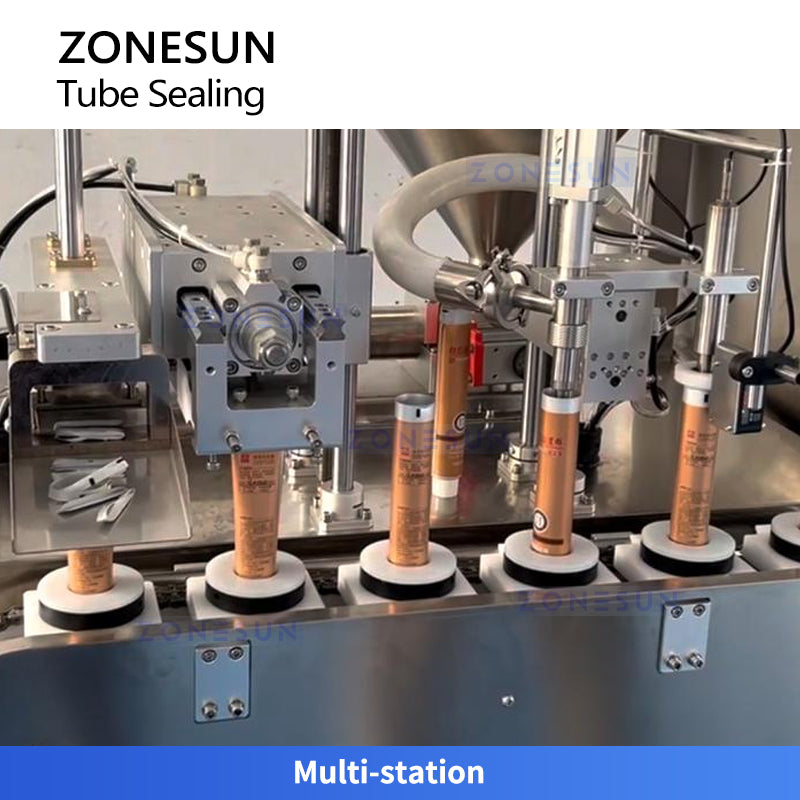

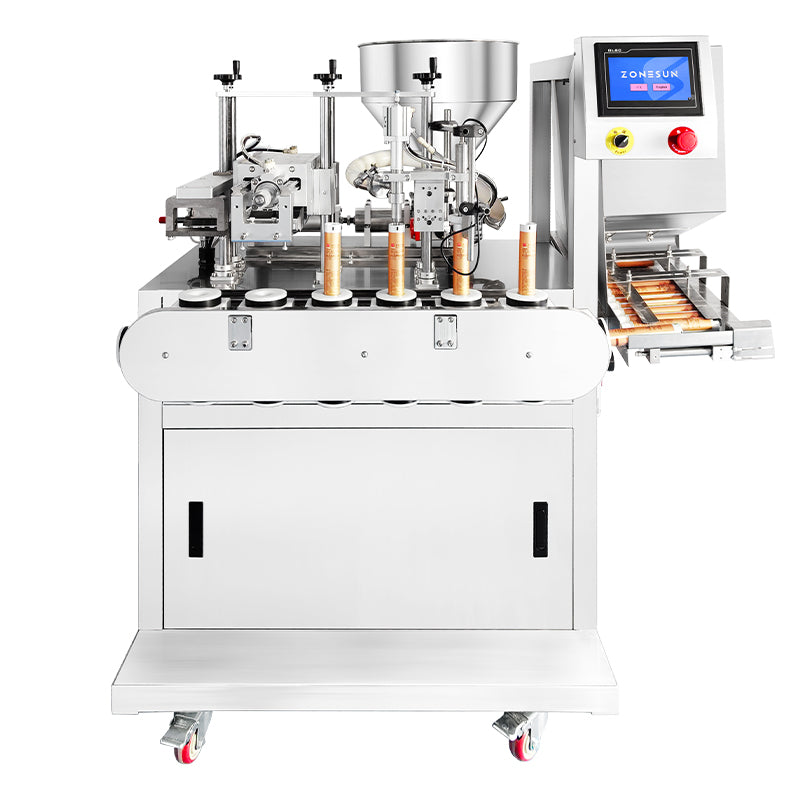

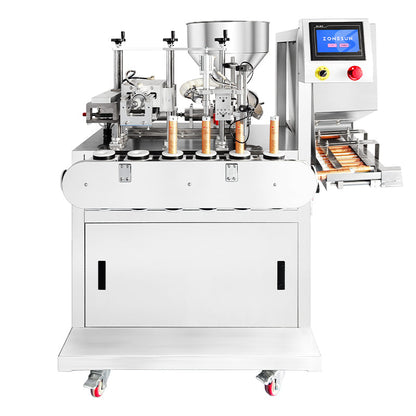

The Zonesun ZS‑TFS6 Linear Ultrasonic Tube Filling and Sealing Machine is designed for precision packaging across cosmetics, adhesives, shoe polish, and food industries. Equipped with six synchronized workstations and advanced ultrasonic sealing, it delivers consistent, high‑quality filling, sealing, coding, and trimming. Its automated workflow boosts efficiency while maintaining smooth, reliable operation for premium product presentation.
| ZS-TFS6 Technical Specification | |
|---|---|
| Model | ZS-TFS6 |
| Hose material | Composite tube, plastic tube |
| Hose diameter | Φ16 mm – Φ50 mm |
| Hose length | 50 mm – 250 mm (customizable) |
| Filling capacity | 20 ml – 300 ml/piece (adjustable) |
| Filling accuracy | ±1% |
| Benchmarking method | Servo benchmarking |
| Filling method | Pneumatic piston filling |
| Sealing method | Ultrasonic welding |
| Production capacity | 20 – 30 pieces/minute |
| Compressed air | 0.5 – 0.8 MPa |
| Power | 4.5 kW (220V 50 Hz) |
| Ultrasonic power | 2.6 kW |
| Dimensions | L×W×H: 120 × 80 × 150 cm |
| Main unit weight | About 220 kg |
Applications
1. Target Industries & Specific Products
- Facial Cleansers & Skincare: Perfectly handles high-viscosity foaming facial cleansers, mud masks, and exfoliating gels that require clean, high-pressure filling.
- Creams & Lotions: Ideal for moisturizing hand creams, body lotions, sunscreen, and intensive skin repair creams.
- Cosmetics & Beauty: Suitable for liquid foundations, BB creams, primers, and hair conditioning creams.
- Specialty Ointments: Highly compatible with thick formulas such as lanolin ointments , soothing medicated balms, and herbal barrier creams.
2. Supported Tube Materials & Styles
Thanks to advanced ultrasonic sealing technology, this machine delivers neat, airtight seals without damaging the printing or aesthetics of the tube:
- Plastic Tubes (: Perfect for standard squeezable skincare and cosmetic tubes.
- Laminated / Composite Tubes : Ensures excellent welding strength for multi-layer barrier tubes, preventing product oxidation.
- Various Cap Accommodations: Works seamlessly with standard screw caps, flip-top caps, and octagonal caps as shown in the product samples

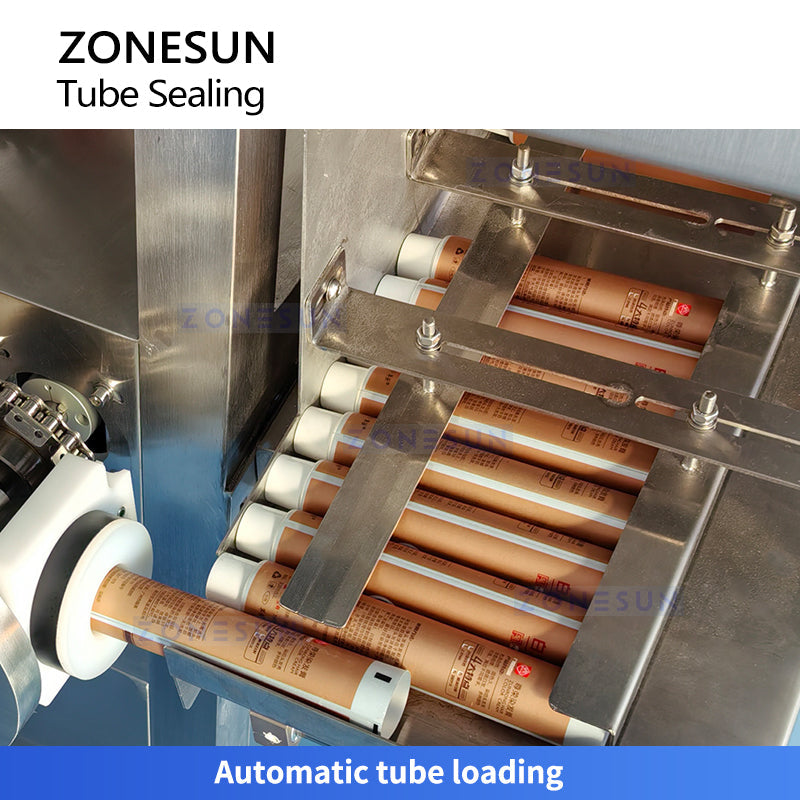

TUBE LOADING
- Fully Automated Loading: Smoothly and automatically transfers tubes from the tube rack into the working station, ensuring a highly rapid, continuous, and stable feeding process.
- Simplified Operation: The intelligent mechanized setup simplifies handling requirements, significantly reducing manual intervention and minimizing operational errors.

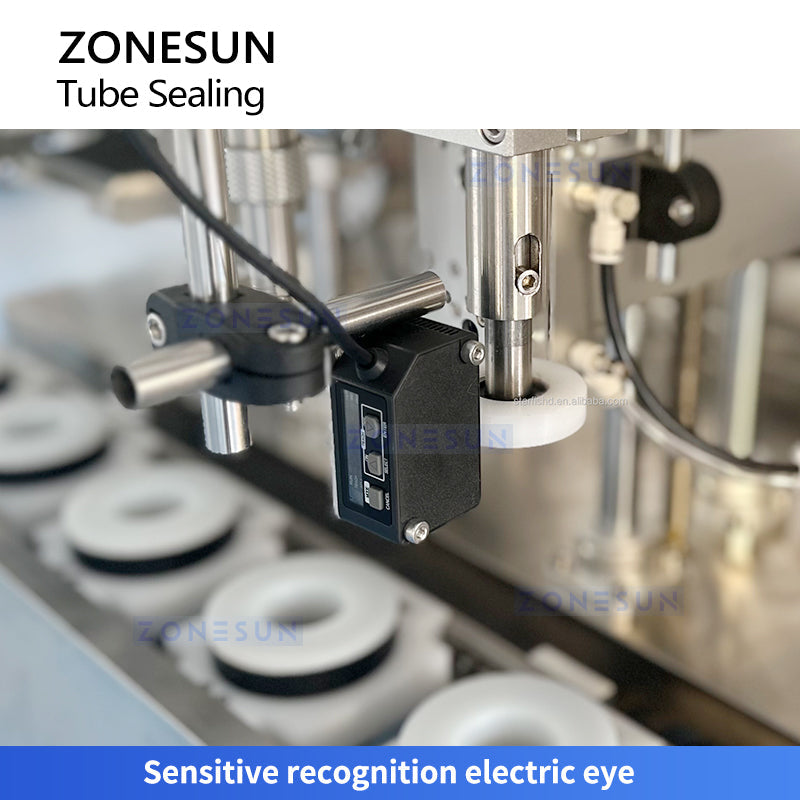

ELECTRIC EYE
- Intelligent Tube Detection: Equipped with a highly sensitive electric eye sensor that instantly detects the presence of the tube, effectively preventing empty filling or misalignment.
- Servo-Driven Automatic Alignment: Features an advanced servo-driven mechanism that automatically aligns the tube according to the registration mark, ensuring perfectly oriented seals every time.

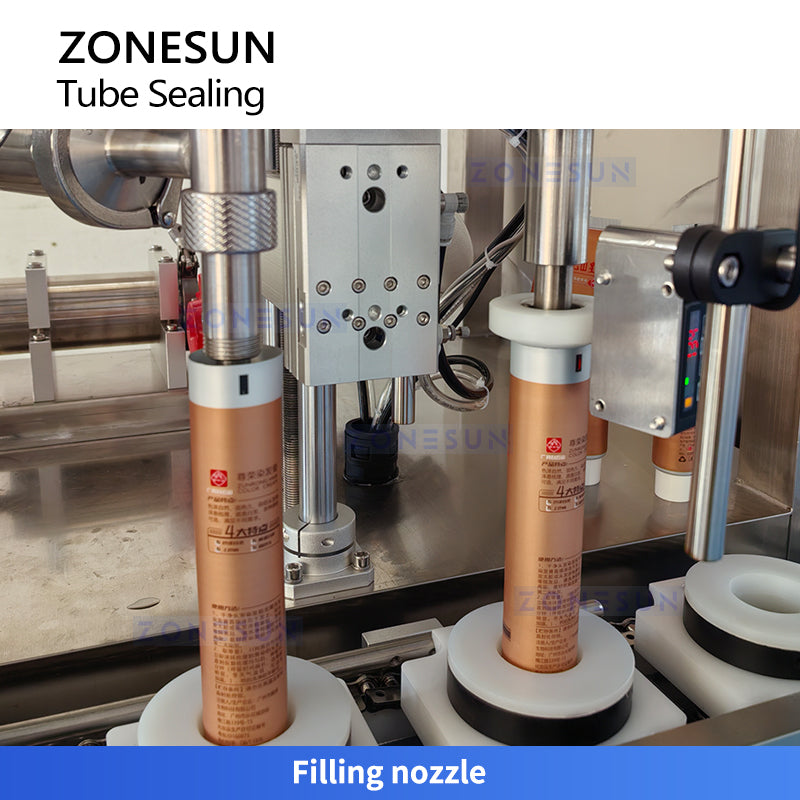

FILLING NOZZLE
- Innovative Insert-Type Anti-Drip Design: The filling nozzle features an advanced insertable structure that moves deep inside the tube during dispensing, completely preventing surface dripping and neck contamination.
- ±1% Industrial-Grade Accuracy: Driven by a robust cylinder and a pneumatic piston for precise volumetric dosing, ensuring filling volume variance is strictly kept within an ultra-tight ±1%.

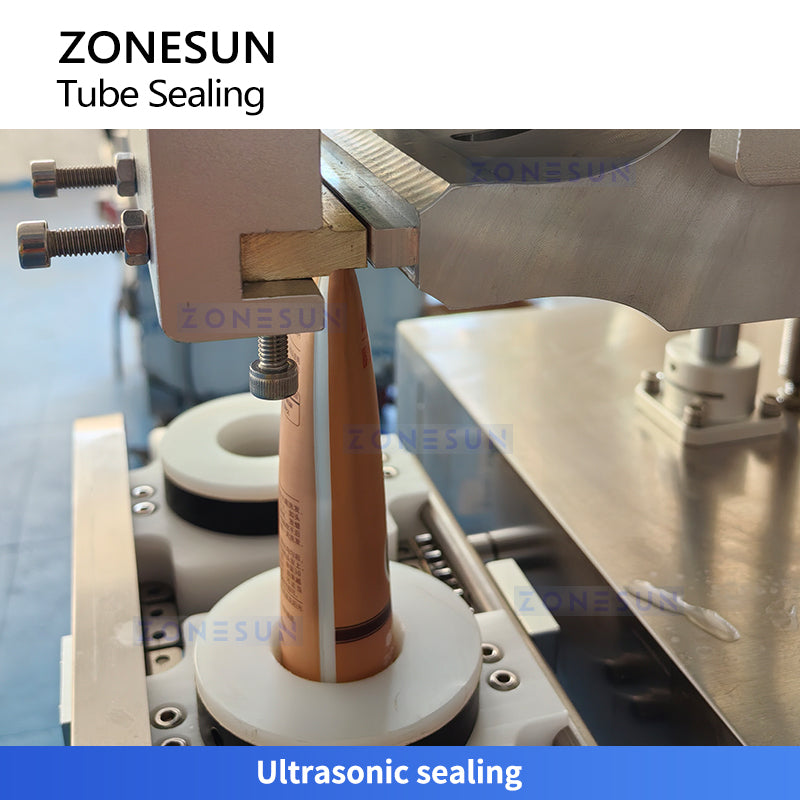

SEALING STRUCTURE
- Advanced Ultrasonic Technology: Utilizes high-frequency ultrasonic vibrations to generate localized friction heat for sealing, achieving a molecular-level bond that is exceptionally strong.
- Premium Aesthetic Finish: Delivers a clean, neat, and highly beautiful crimp seal with no burn marks or plastic overflow, instantly elevating the overall market presentation of your product.
