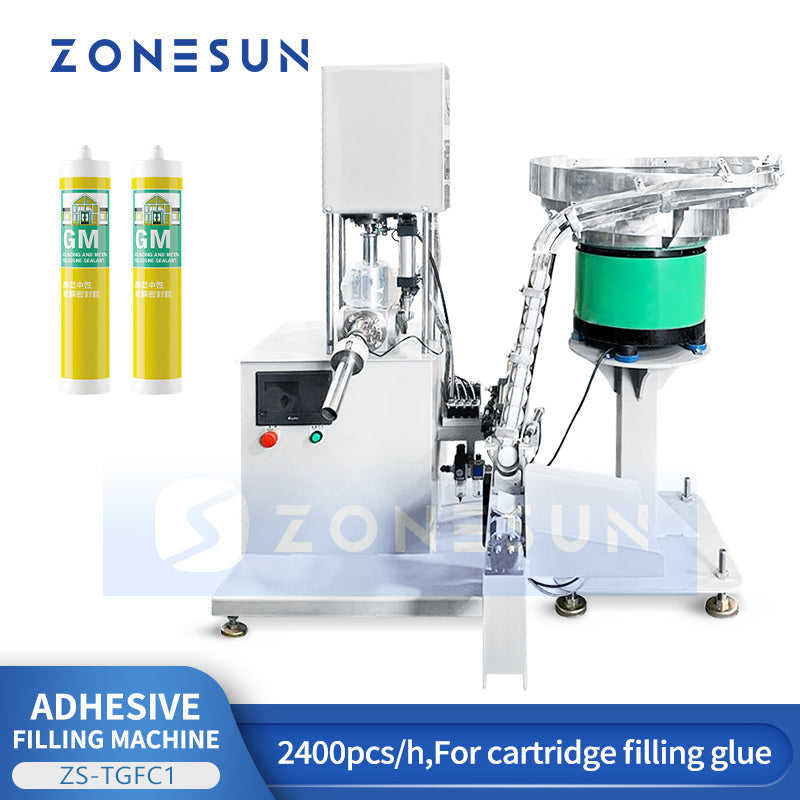

ZONESUN ZS-TGFC1 Automatic Silicone Sealant Cartridge Filling and Sealing Machine Caulking Tube Filler

Description

The ZONESUN ZS-TGFC1 is an automatic cartridge filling and sealing machine designed for silicone sealants and other viscous materials. It integrates precise filling with an in-line capping mechanism to simplify operation, reduce handling, and raise throughput. An intelligent control system delivers accurate, consistent metering that minimizes waste and maintains product quality. Built for versatility, it handles low- to high-viscosity media such as glass adhesive, lubricating grease, thermal paste, ointments, and woodworking glue—serving construction, automotive, electronics, industrial, pharmaceutical, and food sectors.

Applications

• Construction and Building Materials: Ideal for packaging silicone sealants, glass adhesives, polyurethane (PU) foam sealants, and various construction caulking compounds.
• Automotive Manufacturing and Repair: Perfect for dispensing windshield adhesives, body sealants, gasket makers, and high-performance lubricating greases.
• Electronics and Thermal Management: Efficiently handles thermal paste, heat-sink compound, electronic potting silicone, and specialized industrial adhesives.
• Hardware and Chemical Production: Suitable for filling nail-free glues, wood glues, multi-purpose epoxy resins, industrial ointments, and thick gels into standard cartridges.

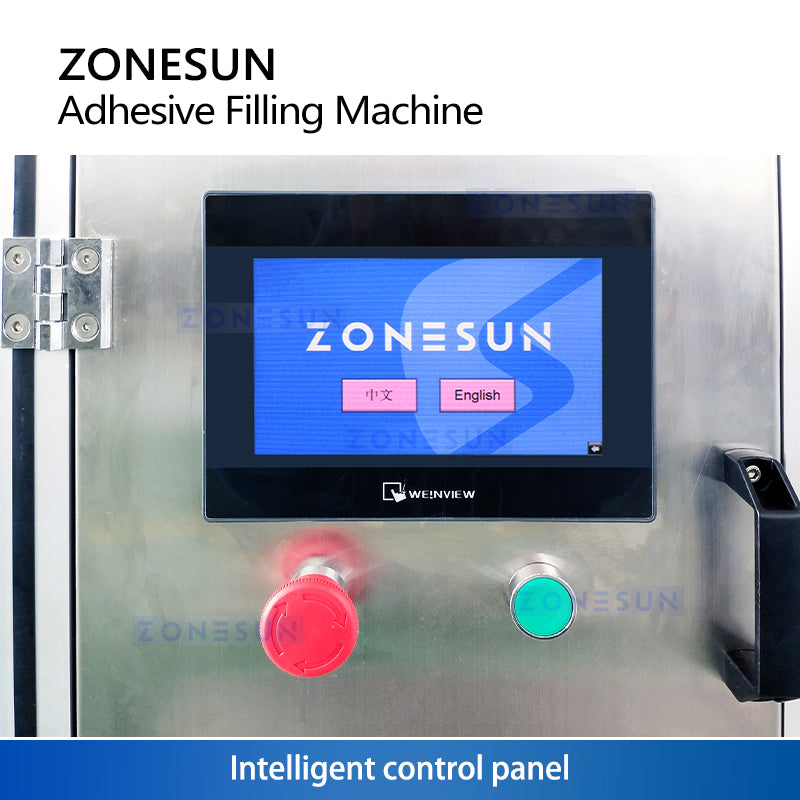

INTELLIGENT CONTROL PANEL

• Advanced PLC & Touch Control: Combines an industrial PLC with a high-definition touch screen interface, ensuring that production parameters can be easily set and modified with maximum precision.
• Bilingual UI Layout: Features responsive, built-in Chinese and English operating interfaces with clear navigation, requiring zero training for operators to master daily adjustments.

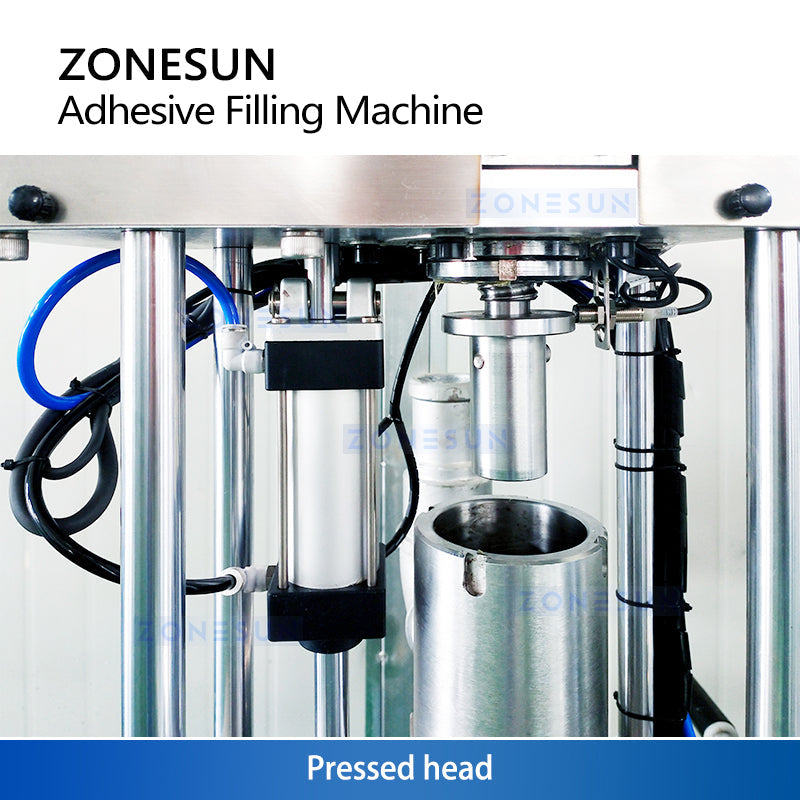

PRESSED HEAD

• Powerful Cylinder Compression: The industrial-grade cylinder automatically compresses the sealant/high-viscosity paste from the filling head cleanly into the plastic container.
• Seamless Process & Anti-Leakage: Provides a highly disciplined downward stroke, ensuring a seamless filling process and drastically reducing any material leakage during daily operation.

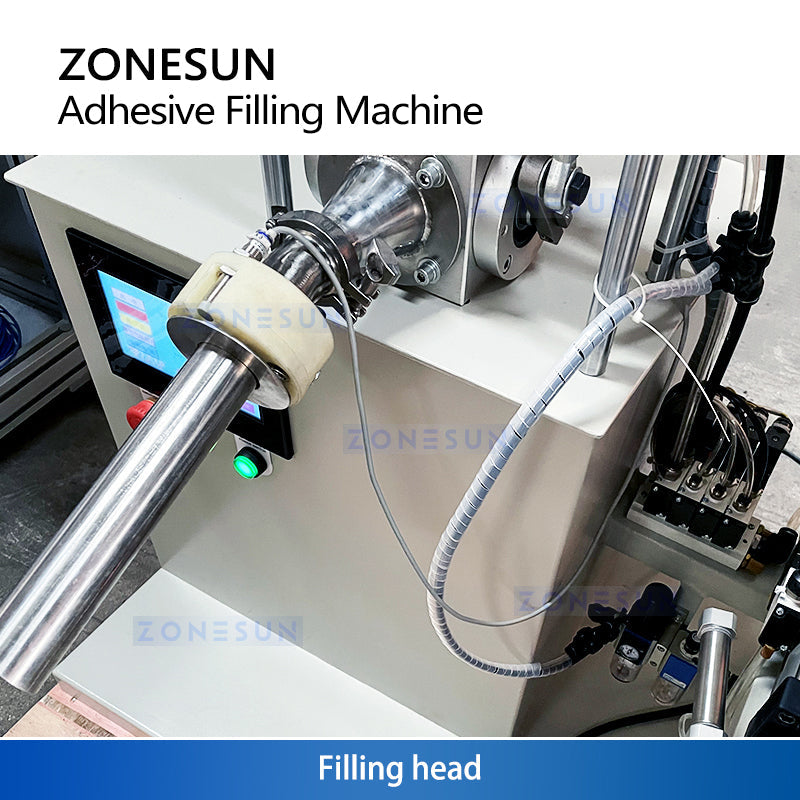

FILLING HEAD

• Powerful Hydraulic Discharge: Features an advanced hydraulic discharge method that ensures efficient and stable discharge of heavy, high-viscosity materials.
• Fast & Reliable Process: Delivers a fast, consistent, and highly reliable filling experience even when handling stubborn, low-fluidity pastes.
• Effortless & Fast Cleaning: Seamlessly engineered with internal product pathways that are exceptionally easy to flush and clean, reducing downtime during batch changeovers.

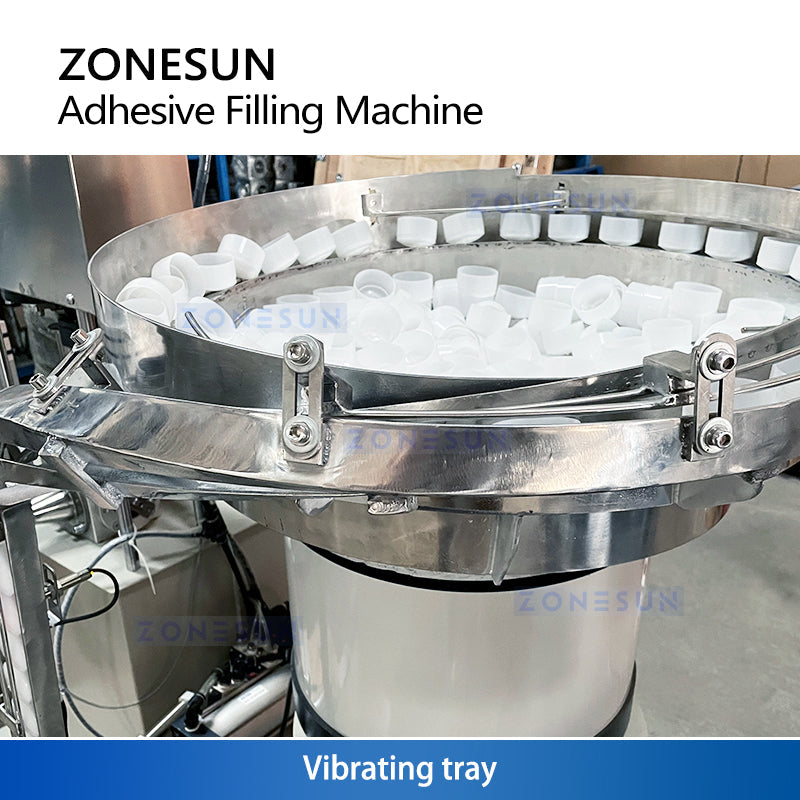

VIBRATING TRAY

• Automated Lid Sorting: The vibrating tray automatically arranges and aligns bulk lids into a unified direction, preparing them perfectly for subsequent capping.
• Prevents Sorting Mix-Ups: Advanced orbital screening effectively prevents any orientation mix-ups or foreign components from disrupting the workflow.
• Guarantees No Missed Caps: Synchronizes seamlessly with line speeds, ensuring no container is left without a lid to eliminate product rejections.

COLLECTING PLATE

• Efficient Finished Gathering: Positioned at the very end of the line to collect finished products effectively, keeping them aligned and preventing tipping.
• Streamlined Packaging Process: Automatically buffers and stacks completed containers, significantly simplifying the manual packing and sorting process.
• Convenient Bulk Transfer: Features a smooth, extended tray structure designed to greatly facilitate effortless transfer and logistics docking.
