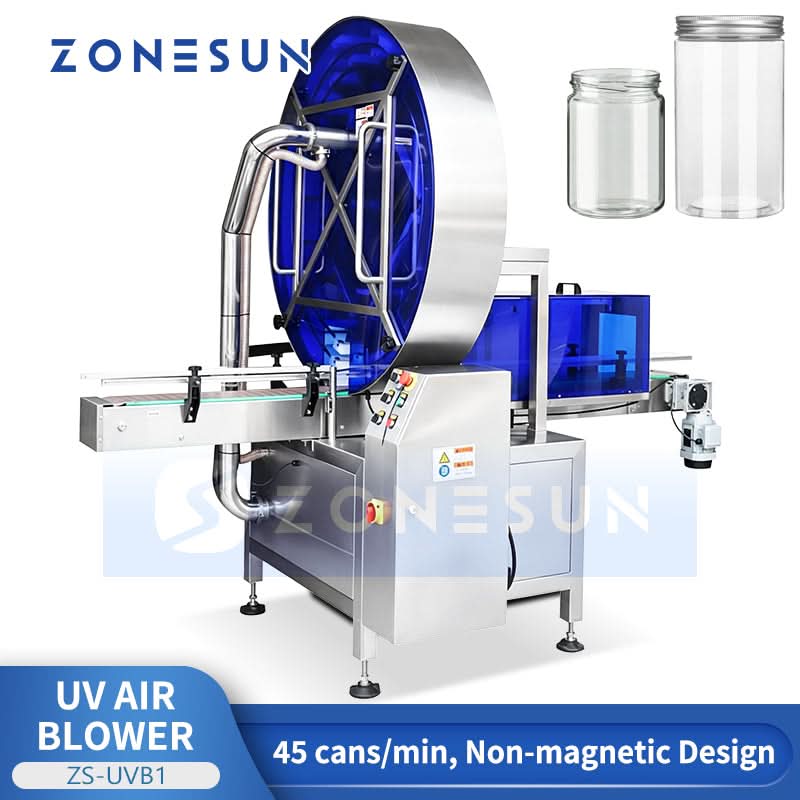

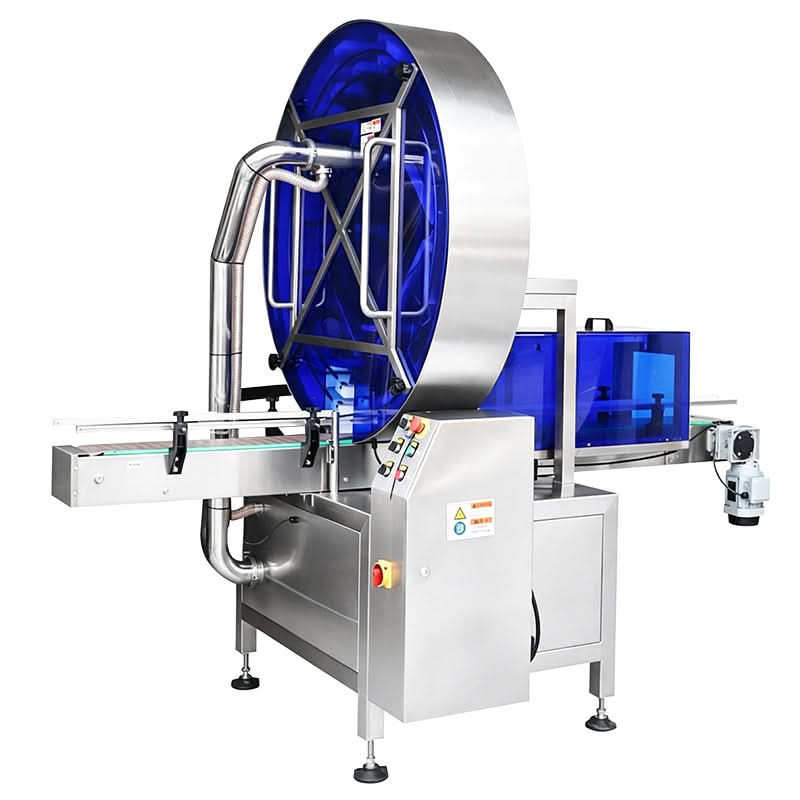

ZONESUN ZS-UVB1 Automatic Bottle & Can UV Sterilization Air Rinsing Machine



The ZONESUN ZS-UVB1 is an automatic UV sterilization and air blowing machine designed for cleaning and sterilizing bottles and jars before filling. With a non-magnetic design, rotary handling system, sterile air blowing, and UV sterilization chamber, it effectively removes dust, particles, and microorganisms. Operating at 10–45 cans/min, it is ideal for milk powder, food, pharmaceutical, and other hygienic packaging lines requiring clean and sterile containers.

Key Features

• Sterile Air Blowing System – Uses clean compressed air to remove dust and particles inside bottles, ensuring a hygienic interior and improving filling cleanliness.
• UV Sterilization Chamber – Seven 25W UV lamps sterilize the inside of bottles, effectively reducing microbial contamination and ensuring hygienic packaging conditions.
• Rotary Bottle Handling System – Smoothly inverts and transports bottles for uniform air blowing and UV sterilization, with customized grooves for different container sizes.
• 304 Stainless Steel Construction – Durable and hygienic stainless steel body for easy maintenance and clean production environments meeting GMP standards.
• Electric Box & Control System – Integrated electrical control manages UV sterilization, air blowing, and bottle handling for smooth automated production.



Technical Specifications



Application

1.Food & Beverage Industry

•  Dairy & Infant Nutrition: Essential for pre-sterilizing milk powder cans, whey protein jars, and infant formula containers before filling.
•  Beverages & Juices: Rinses and sterilizes glass bottles and PET containers for juices, kombucha, and cold-brew coffee to extend shelf life
•  Condiments & Sauces: Cleans glass spice jars, condiment bottles, and honey jars from storage dust prior to automated filling.

2.Pharmaceutical & Nutraceutical Packaging

•  Health Supplements: Sterilizes plastic pill bottles, capsule jars, and vitamin containers to meet stringent GMP hygiene standards.
•  Liquid Medicines: Removes micro-particles and inactivates bacteria inside oral liquid bottles and syrup containers before filling.

3.Cosmetics & Personal Care

•  Skincare & Bodycare: Ensures pristine cleanliness for lotion pumps, cream jars, and body wash bottles to prevent formula contamination.
• Fragrance & Oils: Cleans delicate glass dropper bottles and essential oil containers with high-pressure sterile air.

Suitable Container Types & Specs:

•  Compatible Materials: Glass, PET, HDPE, Tinplate, Aluminum, and Acrylic containers.
•  Container Dimensions: Diameter Φ75–150 mm | Height 80–200 mm (Customizable upon request).
•  Production Line Compatibility: Seamlessly integrates with automatic liquid/powder filling machines, capping machines, and labeling equipment.

Component Details

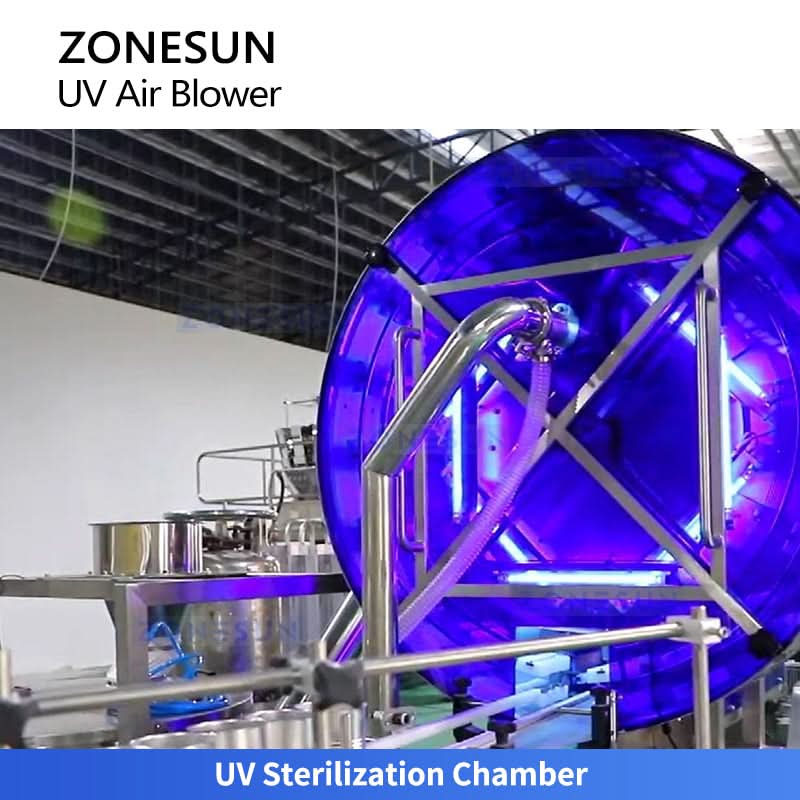

UV Sterilization Chamber

Seven 25W UV lamps provide thorough sterilization inside bottles and cans, effectively reducing microbial contamination and ensuring hygienic packaging conditions before filling.

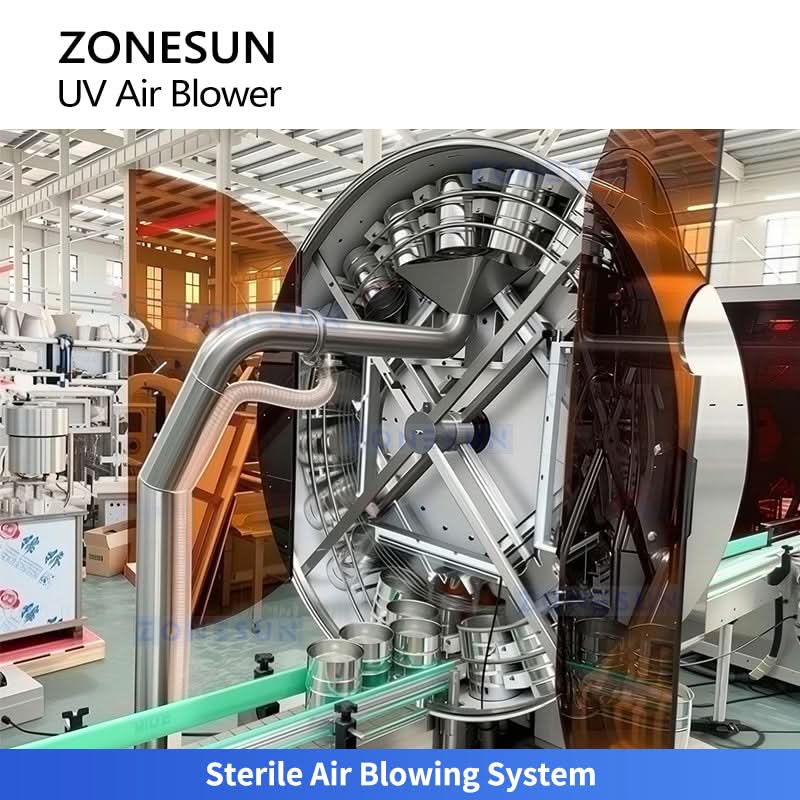

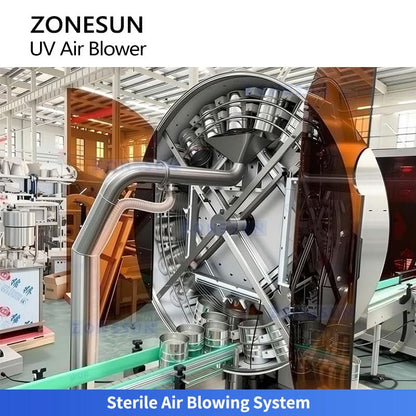

Sterile Air Blowing System

Clean compressed air (0.4–0.8 MPa) is directed inside inverted bottles to remove dust, particles, and debris, ensuring a clean interior before UV sterilization and filling.

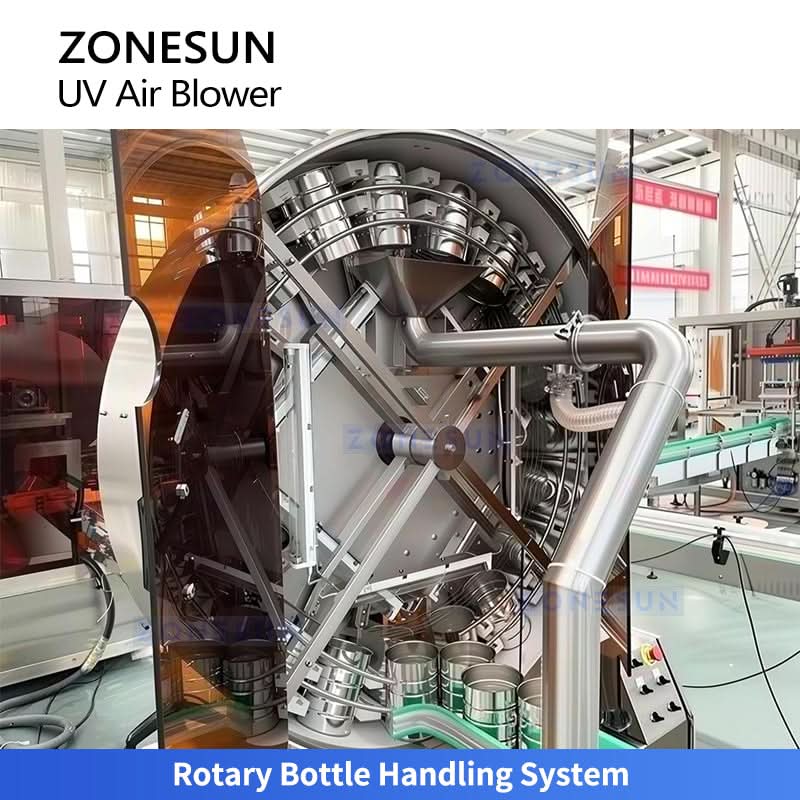

Rotary Bottle Handling System

Smoothly inverts and transports bottles through the air blowing and UV sterilization zones, with customized grooves accommodating containers from Φ75–150 mm diameter.

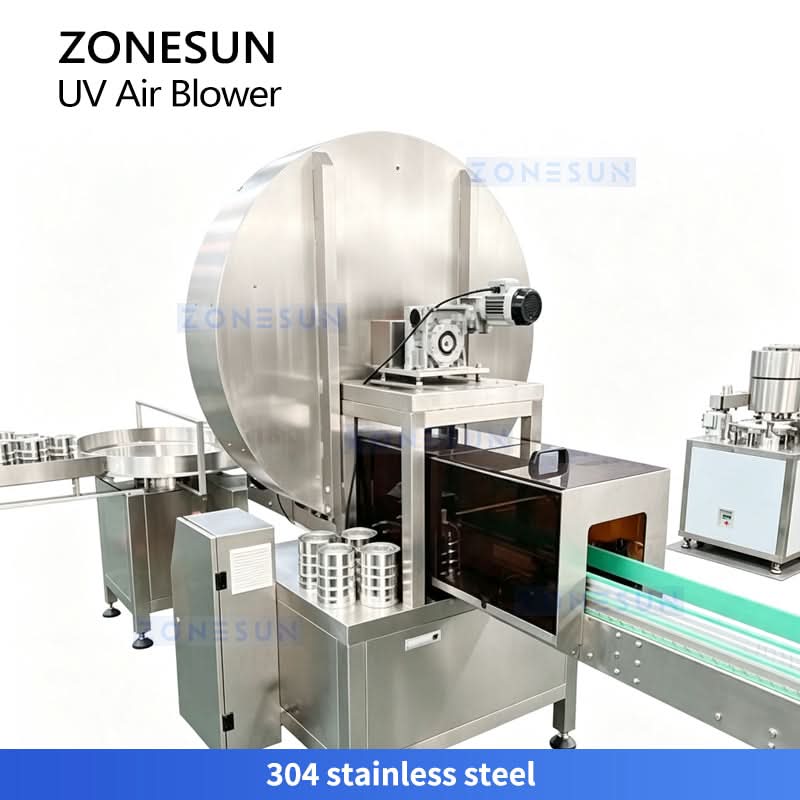

SUS304 Stainless Steel Construction

Durable SUS304 stainless steel body with plexiglass panels meets GMP hygiene standards, enabling easy cleaning and maintenance in food and pharmaceutical environments.

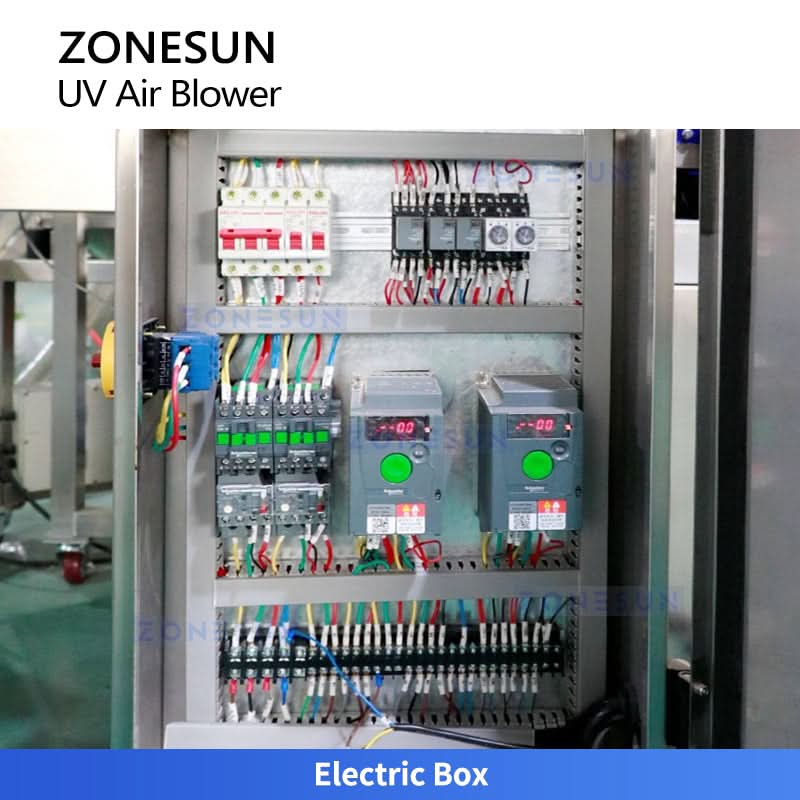

Electric Box & Control System

Integrated electrical control panel manages UV lamp operation, air blowing timing, and rotary bottle handling speed for smooth, fully automated production.

Compact Three-Dimensional Design

Space-efficient three-dimensional layout minimizes floor space while integrating all sterilization, air blowing, and bottle handling functions in a single compact machine.
