ZONESUN ZS-VPM20 Horizontal Vacuum Shrink Packaging Machine For Disposable Bath Towels / Tissue
ZONESUN ZS-VPM20 Horizontal Vacuum Shrink Packaging Machine For Disposable Bath Towels / Tissue
Couldn't load pickup availability
Description

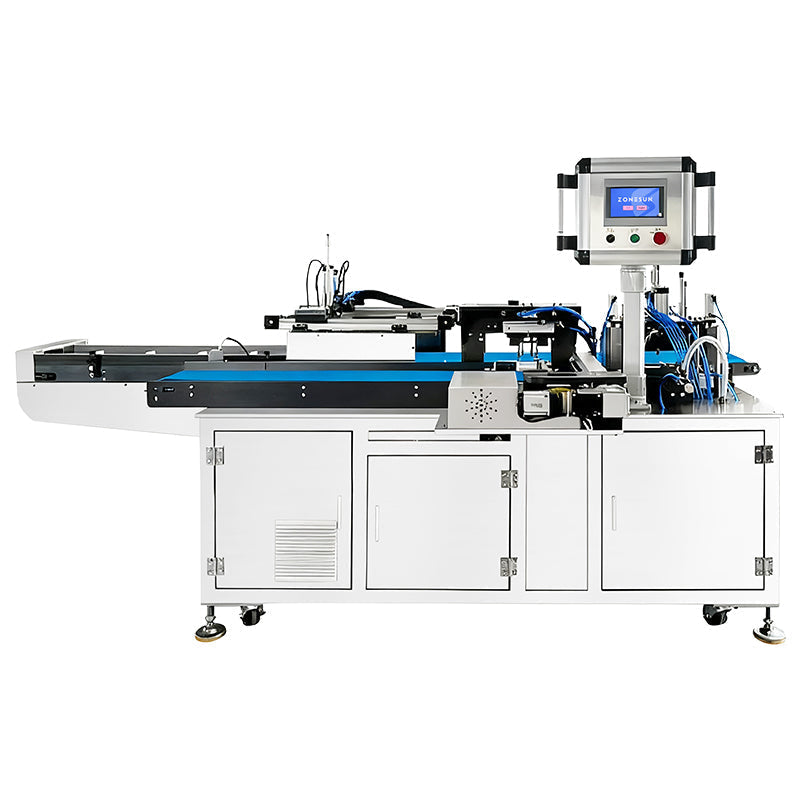

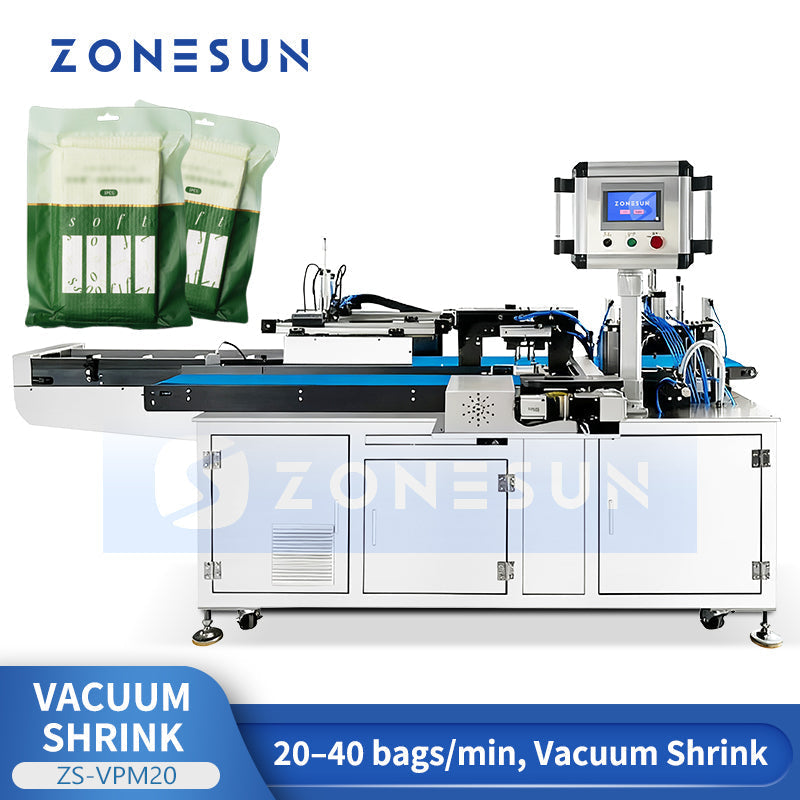

The ZONESUN ZS-VPM20 is a fully automatic vacuum shrink packaging machine designed for preformed bags and pouches. It integrates vacuum suction cup bag opening, material pushing, heat sealing, and shrink wrapping into a streamlined process that ensures tight and uniform seals. Operating at 20–40 bags per minute, the machine supports various pouch formats and packaging materials. Its compact design, touch-screen control, and modular structure make it ideal for high-speed, multi-format packaging lines in food, chemical, and daily product industries.
Parameter
- Machine Name: ZS-VPM20
- Packaging Type: Bags / Pouches
- Packing Speed: 20–40 bags/min
- Seal Width: 80–200 mm
- Seal Length: 150–350 mm
- Voltage: 220V / 380V / 50Hz / 60Hz
- Driven Type: Electric
- Automation Grade: Automatic
- Packaging Material: Plastic
- Machine Dimensions: 1450 × 650 × 980 mm
- Package Size: 1200 × 1500 × 1800 mm
- Machine Weight: 350 kg

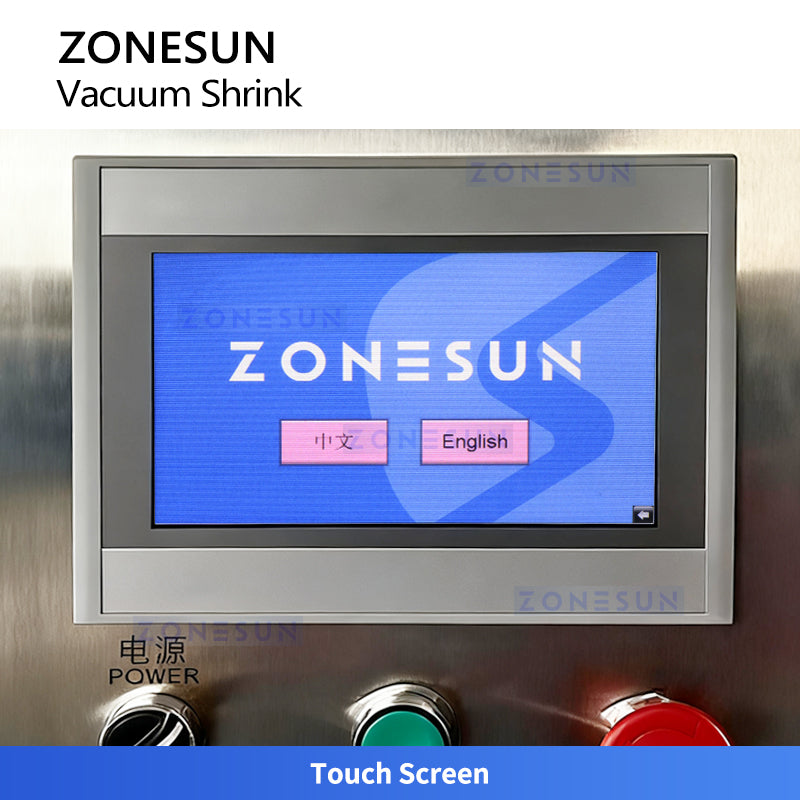

Touchscreen Control
The machine parameters are set using a touchscreen, which supports multiple languages and is easy to operate.

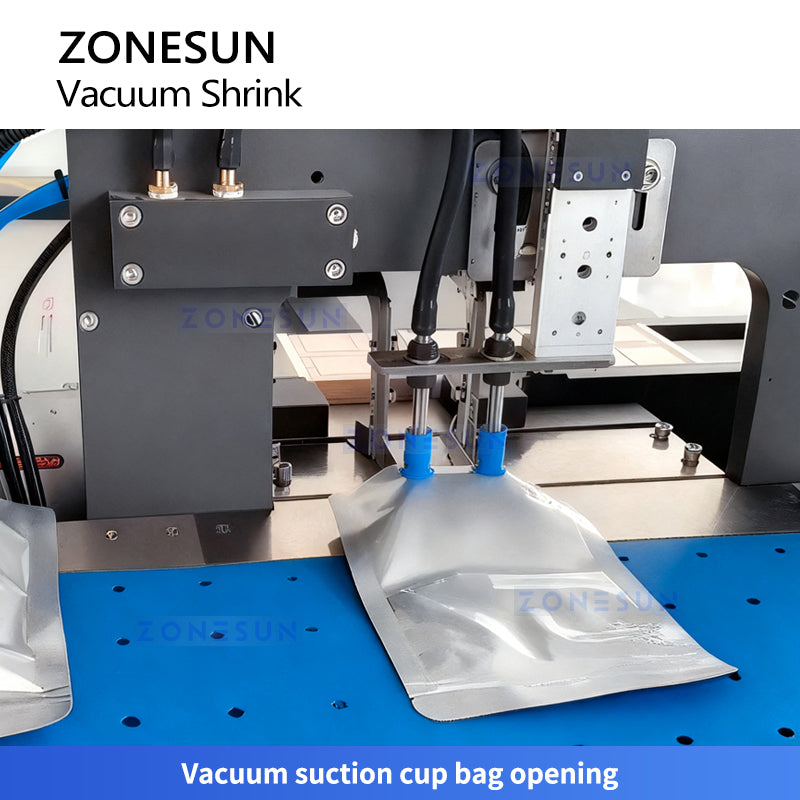

Vacuum Shrink
Utilizes high-performance vacuum suction cups to efficiently adsorb and open pouch mouths for seamless packaging.

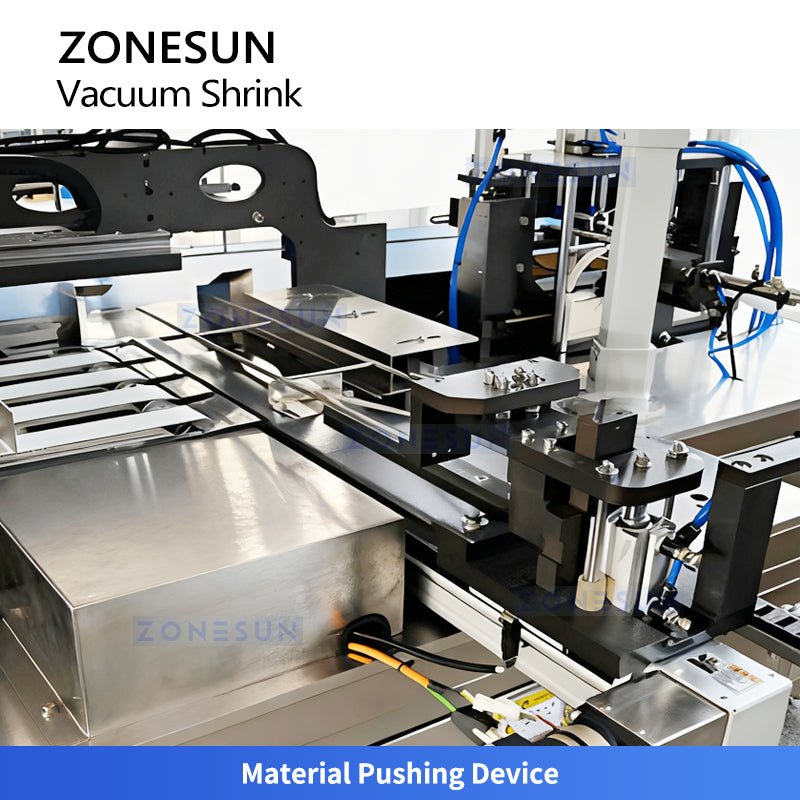

Material Pushing
Automatically pushes materials into the bag through the opened pouch mouth created by the suction cups.

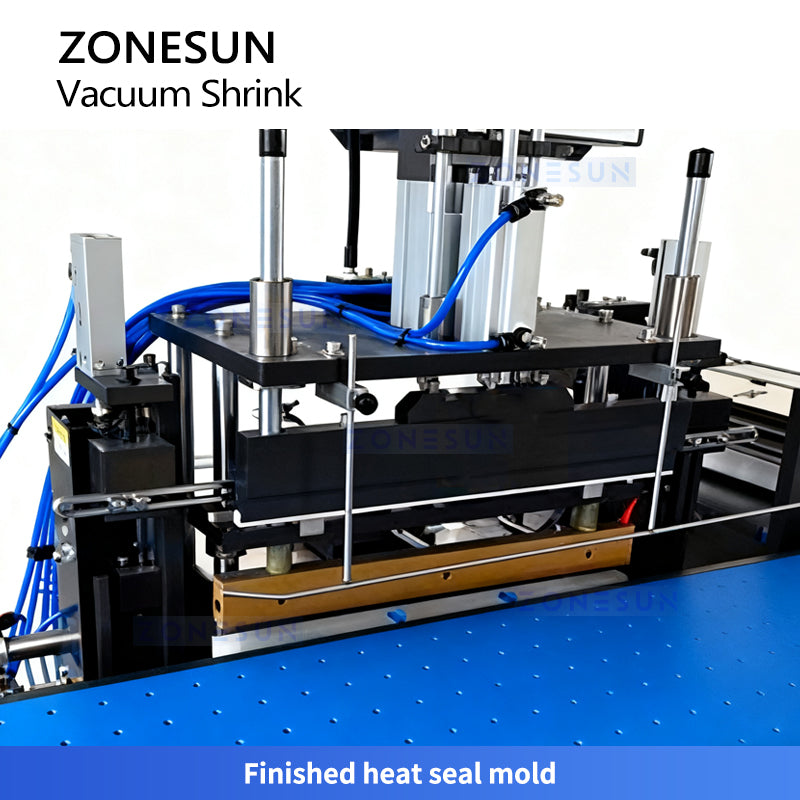

Heat Seal Mold
Intelligent heat sealing and shrinking ensures tight, secure, and uniform seals for high-quality packaging.

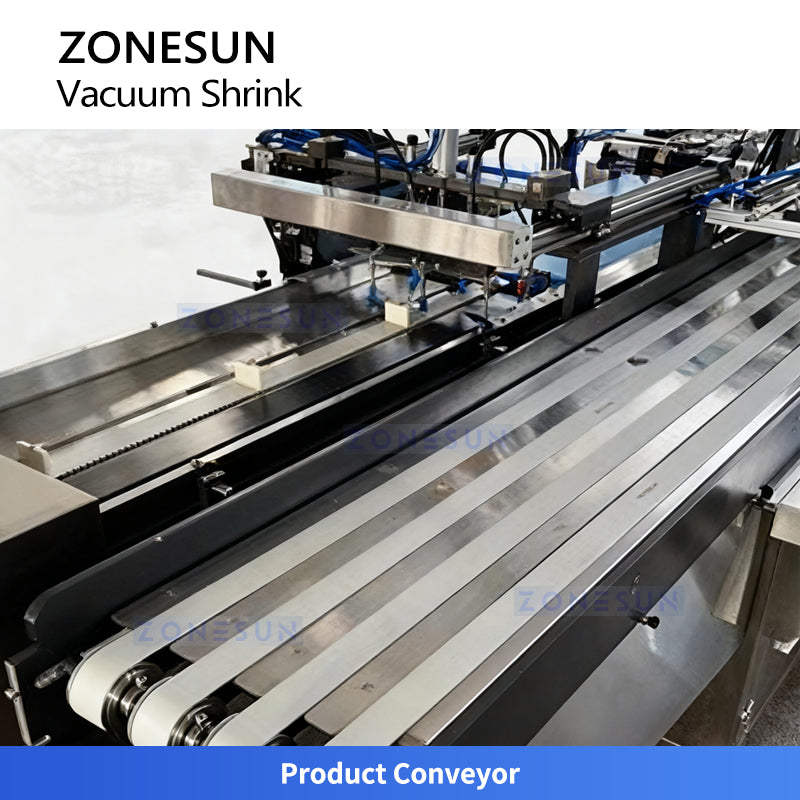

Product Conveyor
Simply place the products to be packaged onto the conveyor belt for smooth and continuous feeding.
Vacuuming Device
High-speed vacuum system equipped with suction cups for precise, efficient, and automatic bag handling.
