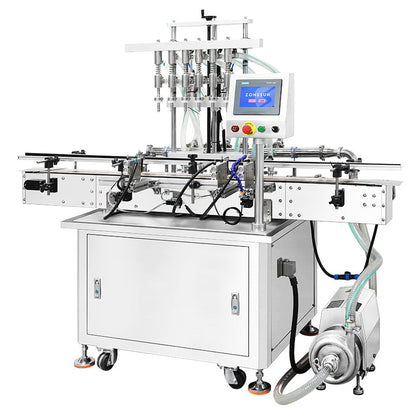

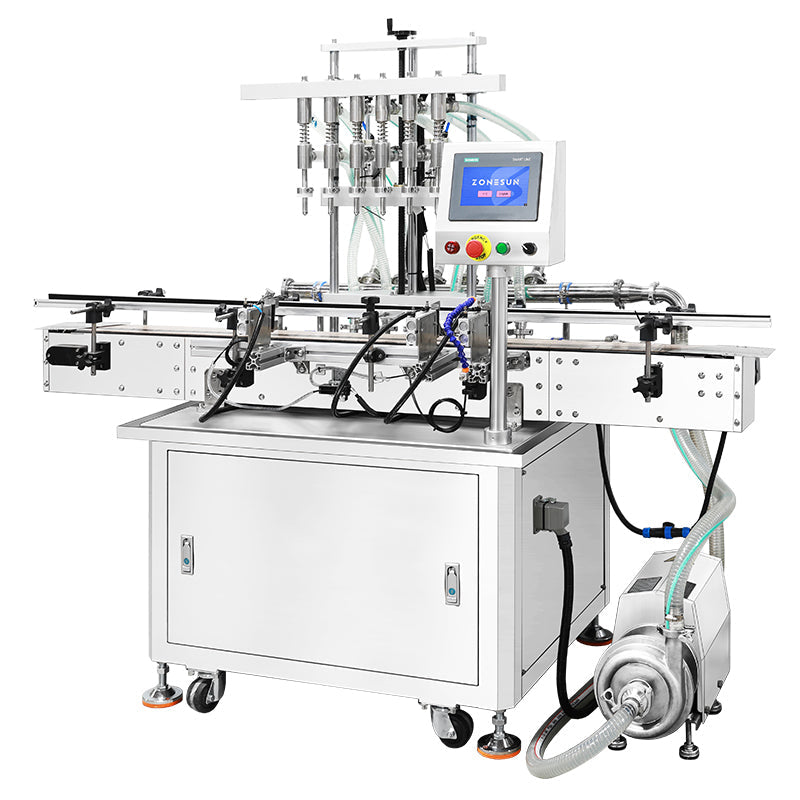

ZONESUN ZS-VTZL100 Automatic 6-Head Liquid Level Filling Machine for Whiskey & Beverages

ZONESUN ZS-VTZL100 Automatic 6-Head Liquid Level Filling Machine for Whiskey & Beverages

$8,199.00 USD
$0.00 USD $8,199.00 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

Description

The ZONESUN ZS-VTZL100 is an automatic 6-head centrifugal pump liquid level filling machine, engineered for precision and high-speed bottling of whiskey, rum, and other liquid products. Its advanced pump control system paired with a backflow nozzle guarantees consistent liquid level control without foaming or spillage. Fully compatible with automated packaging lines, it seamlessly integrates with capping and labeling equipment—making it an ideal solution for beverage and gum filling in food-grade manufacturing environments.



ZS-VTZL100 Technical Specification
Machine model ZS-VTZL100
Total Power 2.5 kW
Recommended Filling Volume 100–750 ml (Rigid Bottles)
Suitable Bottle Diameter 30–110 mm
Suitable Bottle Height 100–310 mm
Suitable Bottle Neck Diameter 25–40 mm
Working Speed About 50 Bottles Per Minute
Filling Accuracy ±2 ml
Machine Size Approx. 1906 × 880 × 1702 mm
ZONESUN ZS-VTZL100 Automatic 6-Head Centrifugal Pump Liquid Level Filling Machine

Applications

  • Distilleries & Beverage Bottling: Perfectly suited for filling whiskey, rum, vodka, spirits, and clear liquors with consistent liquid heights across every bottle.
  • Beverage & Juice Manufacturing: Ideal for high-speed, drip-free bottling of various low-viscosity beverages, functional drinks, and flavored waters.
  • Food & Liquid Condiments: Excellent for bottling liquid seasonings, edible oils, syrups, and thin food-grade solutions that require clean, sanitary handling.
  • Daily Chemical & Cosmetic Sector: Efficiently handles low-viscosity liquid products such as liquid detergents, toner, rubbing alcohol, and mouthwash.

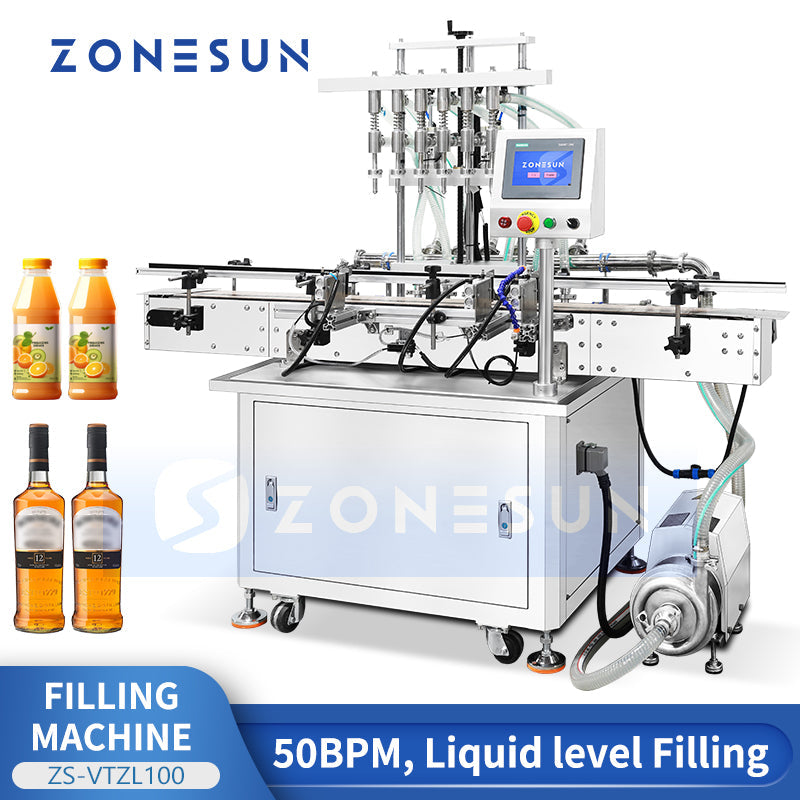

ZONESUN ZS-VTZL100 Automatic 6-Head Centrifugal Pump Liquid Level Filling Machine for Whiskey, Beverage, and Gum

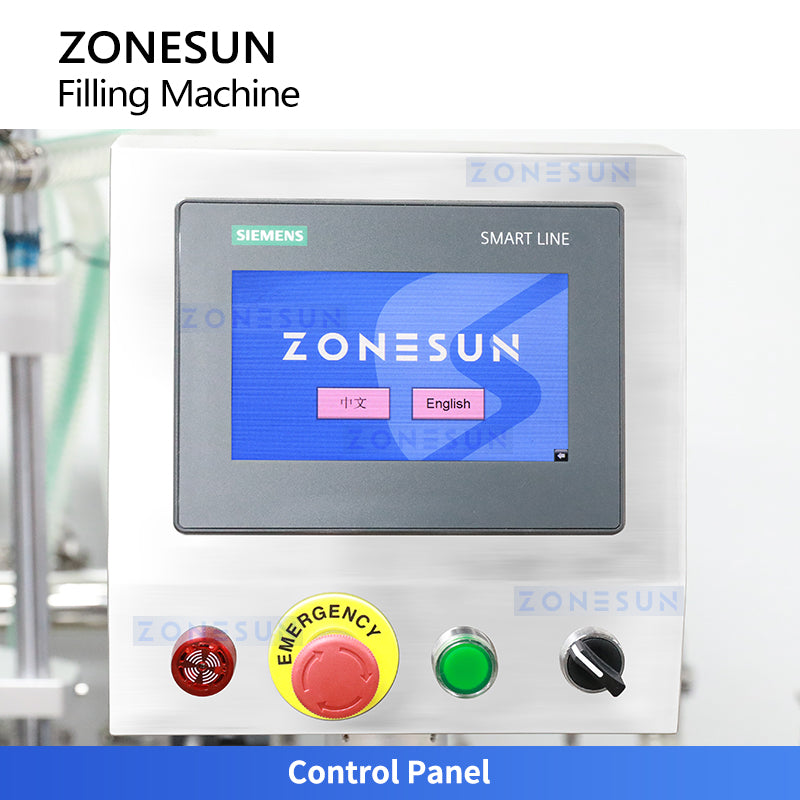

CONTROL PANEL

  • Premium Branding Components: Utilizes authentic control components to deliver top-tier industrial stability and ensure absolute safety during operation.
  • Intuitive Parameter Calibration: Features a vibrant touch screen interface that makes parameter settings and system monitoring significantly more intuitive.

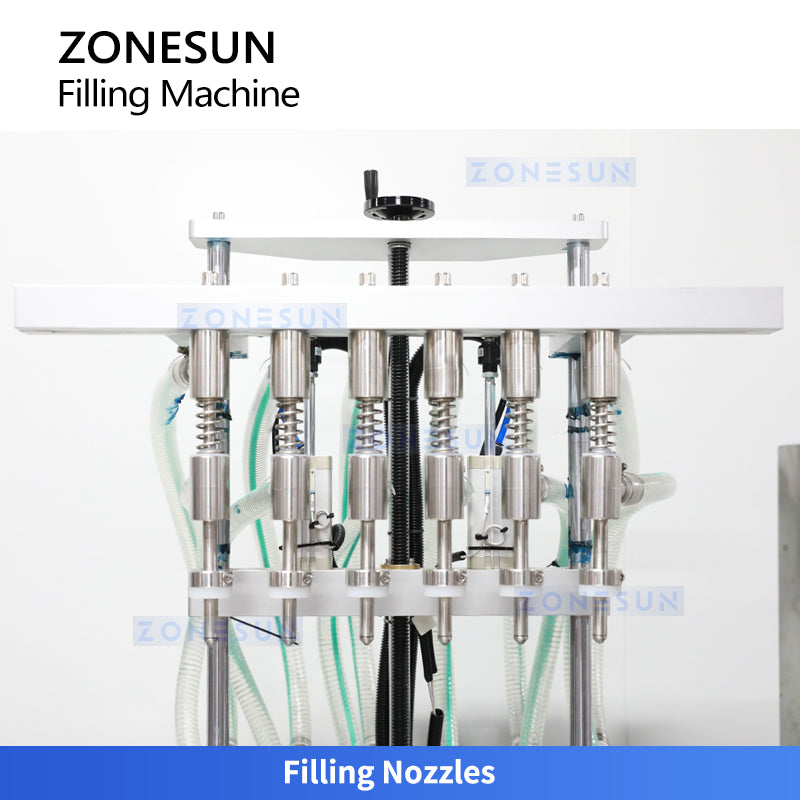

FILLING NOZZLES

  • Guaranteed Filling Accuracy: Engineered with advanced backflow filling nozzles that effectively ensure maximum filling accuracy and uniform liquid levels.
  • Fully Customizable Nozzles: Shown here in a high-efficiency 6-head setup, multi filling nozzles can be flexibly customized (e.g., 2, 4, 8 heads) to match your specific production capacity.

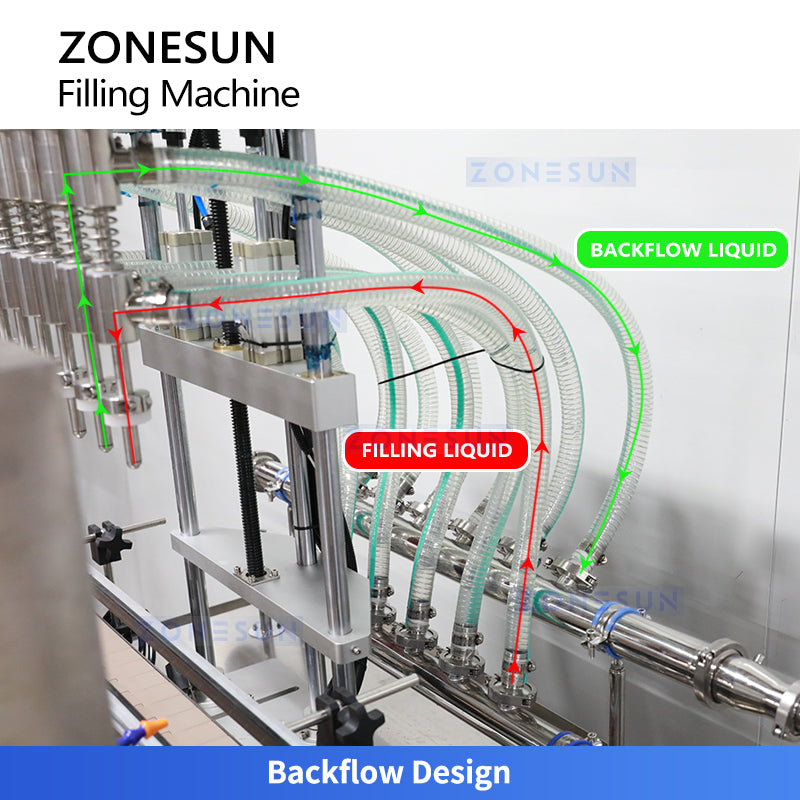

BACKFLOW DESIGN

  • Dynamic Excess Liquid Return: Engineered with a premium backflow design that allows extra liquid to flow back to the storage tank effortlessly, preventing spills.
  • Guaranteed Filling Accuracy: Dynamically balances the liquid level inside each container to ensure supreme filling accuracy and a perfectly uniform presentation.

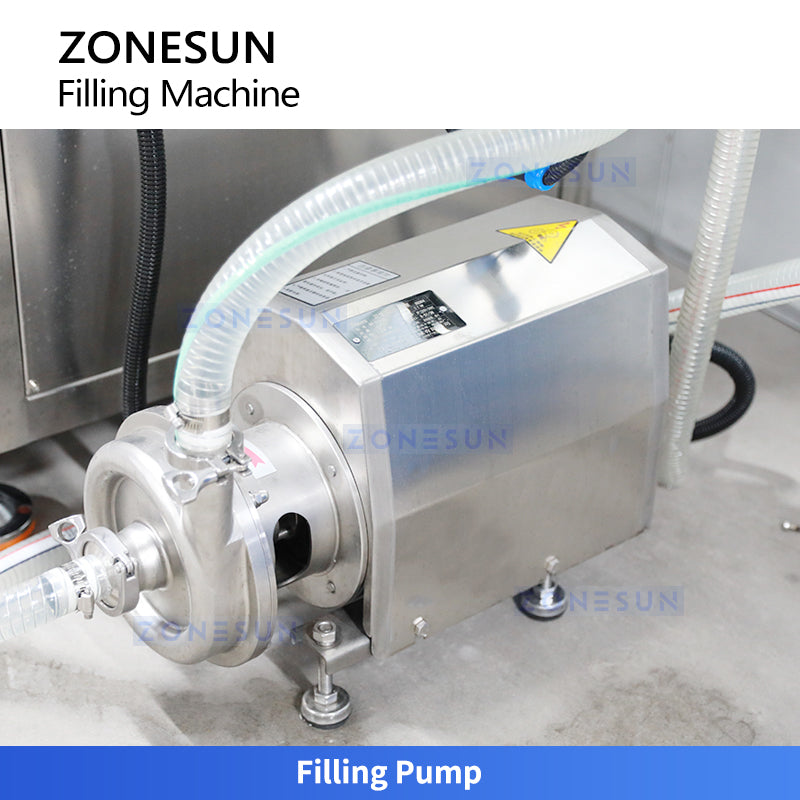

FILLING PUMP

  • Premium Centrifugal Pump: Equipped with an industrial-grade centrifugal pump to deliver consistent, heavy-duty fluid transfer power for the entire line.
  • Optimized for Low-Viscosity Fluids: Highly efficient for pumping low-viscosity fluids like water, liquor, juice, and more, ensuring smooth, pulse-free dispensing.

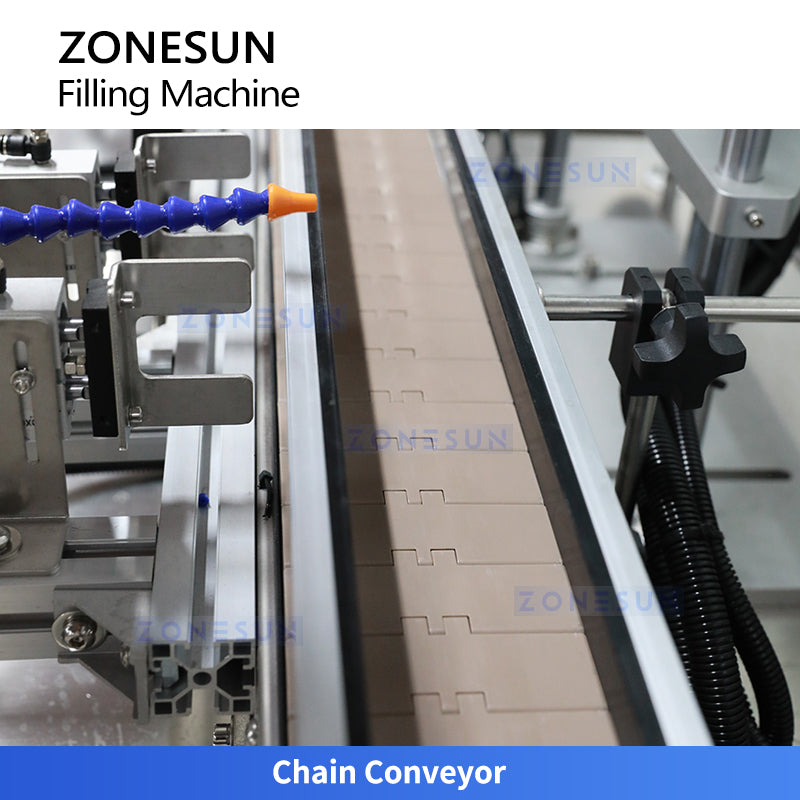

CHAIN CONVEYOR

  • Fully Customizable Dimensions: Both the length and width can be easily customized to fit your specific production demands and plant layout requirements.
  • Seamless Process Integration: Highly extensible design that can perfectly integrate with a capper, bottle labeler, and other upstream/downstream equipment for full automation.
