ZONESUN ZS-XG1870S Automatic Spray Bottle Capping Machine Cleaning Spray Capper

Description

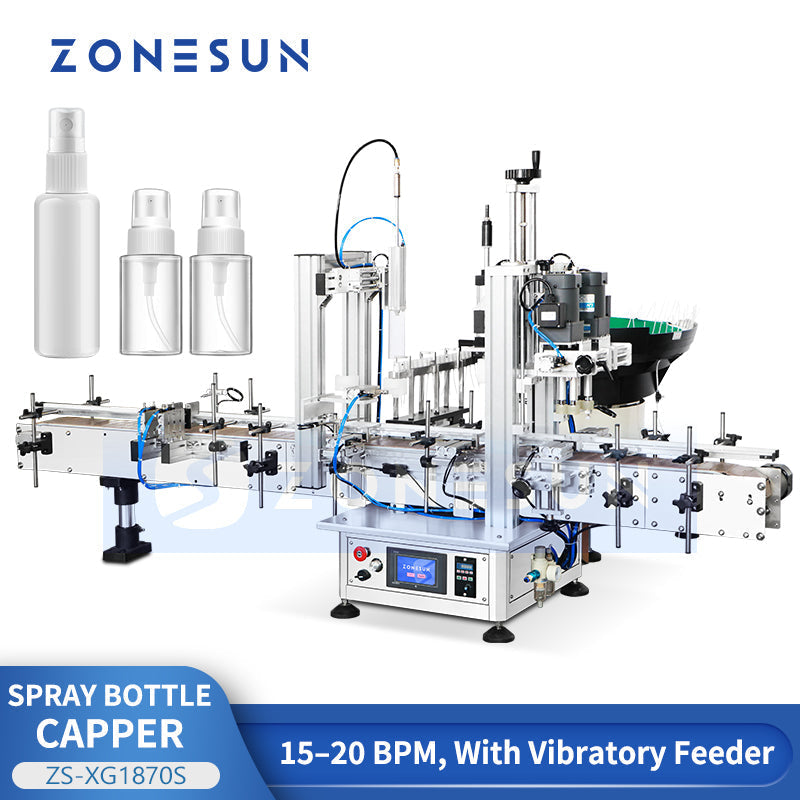

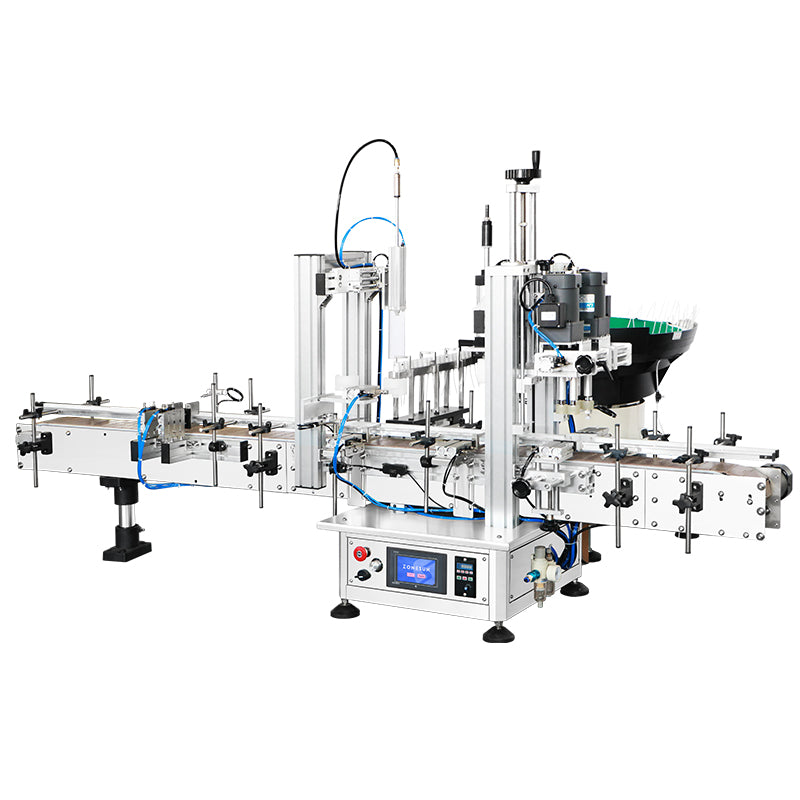

The ZONESUN ZS-XG1870S is a desktop automatic capping machine designed for spray bottles. Running at 15–20 bottles per minute, it streamlines cap picking, placing, positioning, and tightening in one process. A pneumatic suction system ensures precise cap handling, while the positioning structure prevents misalignment from long spray tubes. With a vibratory bowl feeder, it delivers continuous cap supply without manual input. Compact yet efficient, it is ideal for hair oil, mosquito repellent, and cleaning sprays, making it a reliable choice for small to medium-scale production lines.

Parameter

• Machine Model: ZS-XG1870S
• Working Voltage: AC220V / 110V, 50–60Hz
• Bottle Height: 60–270 mm
• Bottle Caps Diameter: 18–70 mm
• Working Speed: 15–20 bottles/min (depending on bottle and cap size)
• Working Pressure: 0.4–0.6 MPa
• Conveyor Length: About 2000 mm
• Air Compressor Connection Size: OD 8 mm
• Machine Size (L×W×H): About 2000 × 1600 × 1300 mm
• Package Size (Main Machine): About 1170 × 780 × 1290 mm
• Package Size (Vibratory Bowl Sorter): About 710 × 690 × 720 mm
• Package Weight (Main Machine): About 130 kg
• Package Weight (Vibratory Bowl Sorter): About 50 kg

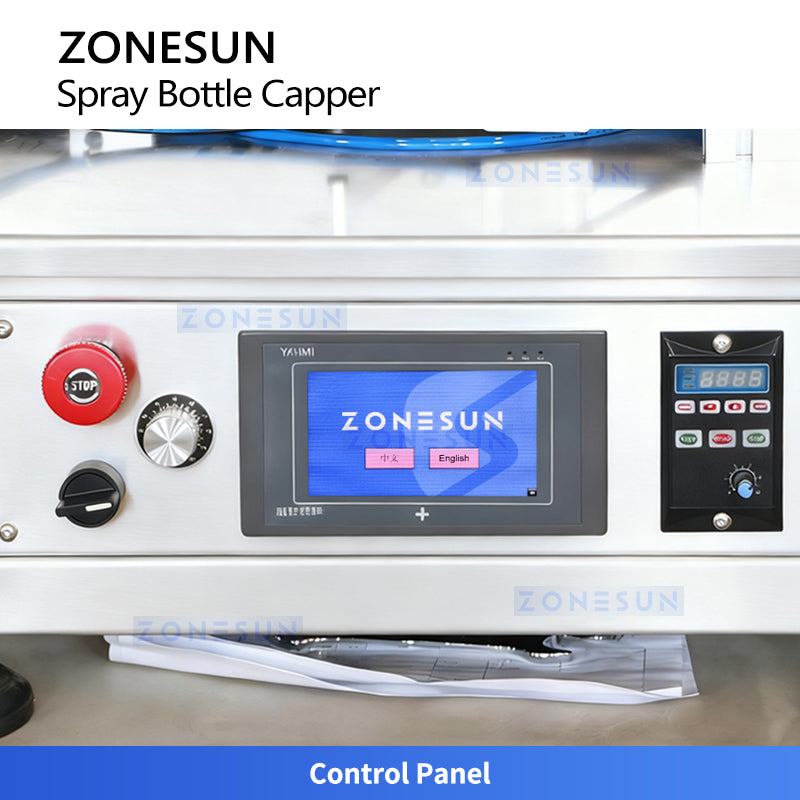

CONTROL PANEL

User-friendly touch screen interface for fast parameter setup and precise capping control.

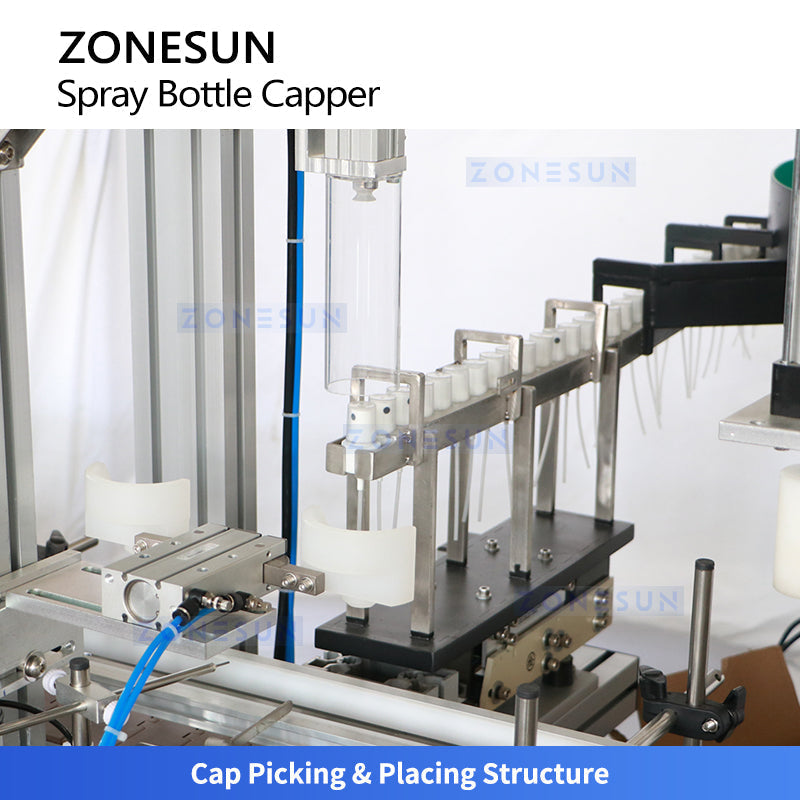

CAP PICKING & PLACING

Uses suction cups to accurately pick and place caps, ensuring stable and precise capping.

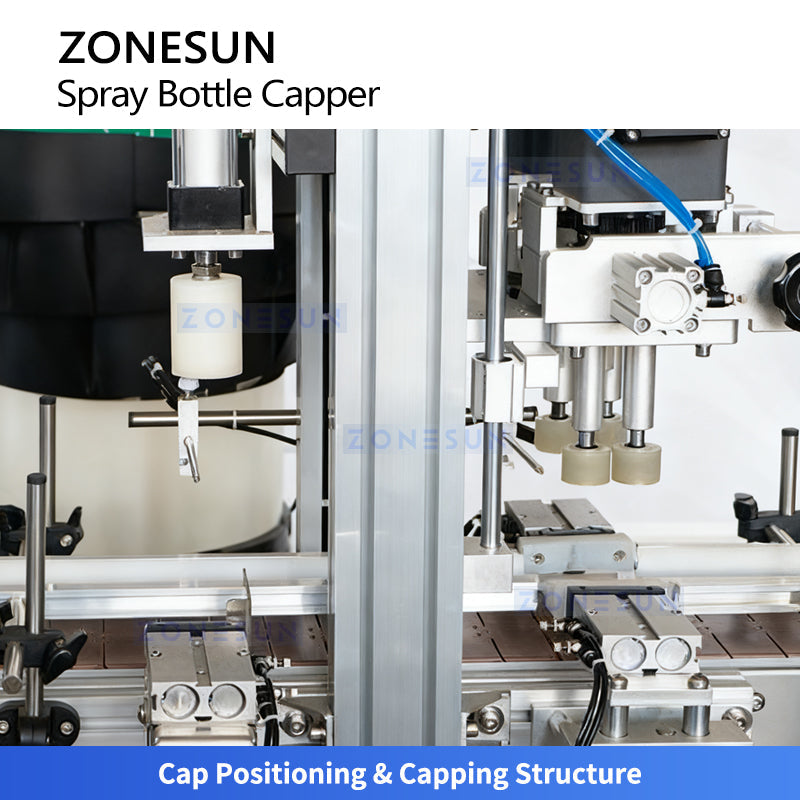

• ANTI-DEVIATION DESIGN

Specially designed positioning structure ensures smooth dip-tube insertion without bending or clogging.

• HIGH-EFFICIENT TIGHTENING

Ensures firm, consistent capping for spray mechanisms, delivering leak-proof performance every time.

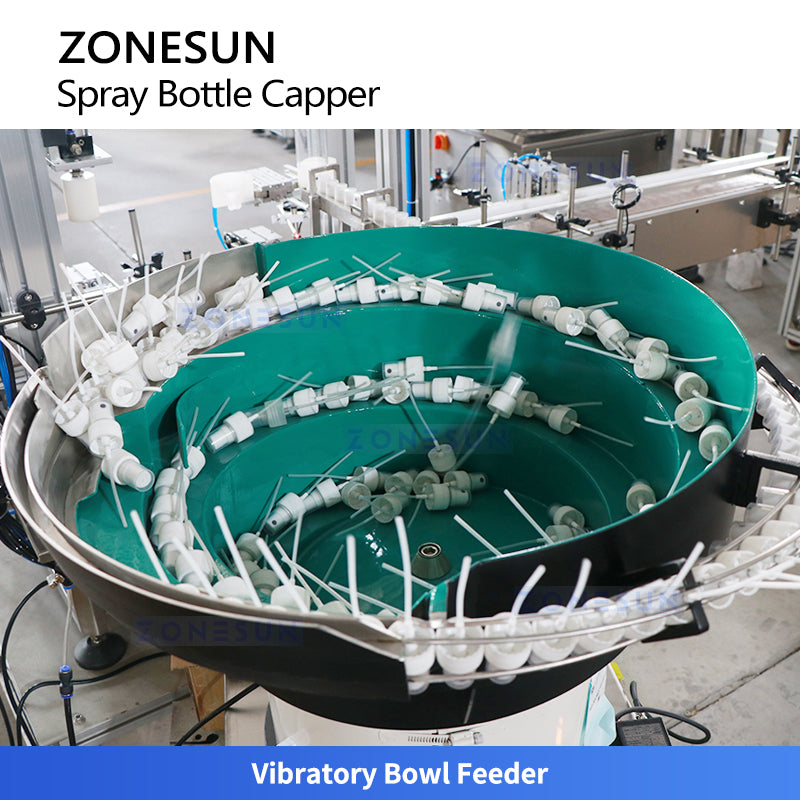

• SMART CAP SORTING

Ensures caps are properly oriented before feeding to reduce downtime and prevent jams.

• BOOST EFFICIENCY

Eliminates manual loading, driving smooth and uninterrupted production line performance.

• SEAMLESS INTEGRATION

Easily connects with filling, labeling, or packaging machinery for a fully automated production line.

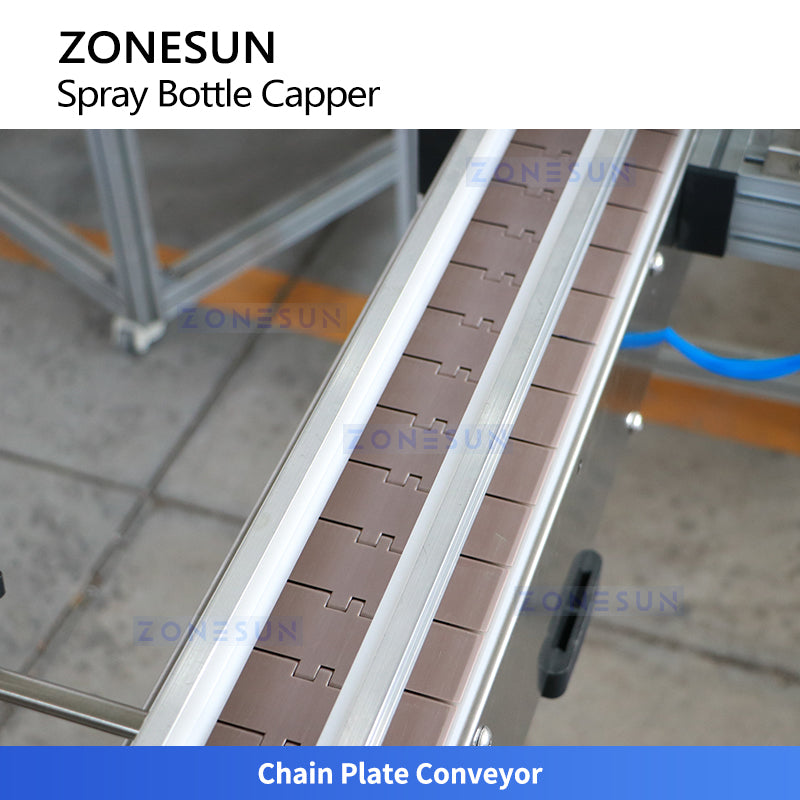

• STABLE & EFFICIENT CONVEYING

Ensures continuous and steady bottle delivery, preventing spills and maximizing output.
