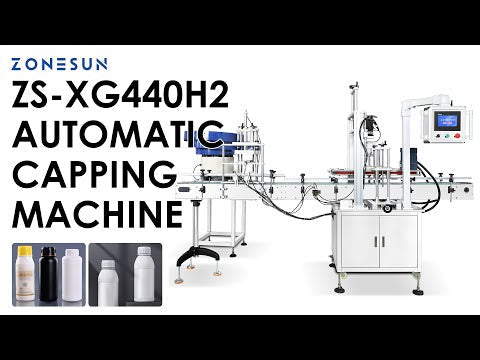

ZONESUN ZS-XG440H2 Automatic Capping Machine for Oil Drum F-Style Bottles
ZONESUN ZS-XG440H2 Automatic Capping Machine for Oil Drum F-Style Bottles
Regular price
$7,200.00 USD
Regular price
$0.00 USD
Sale price
$7,200.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

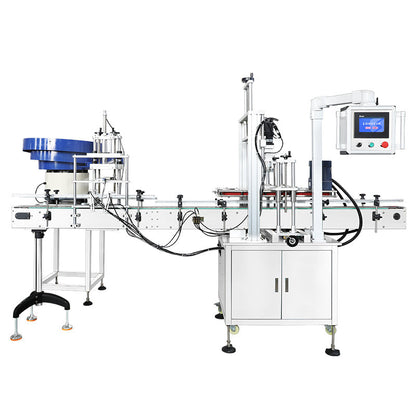

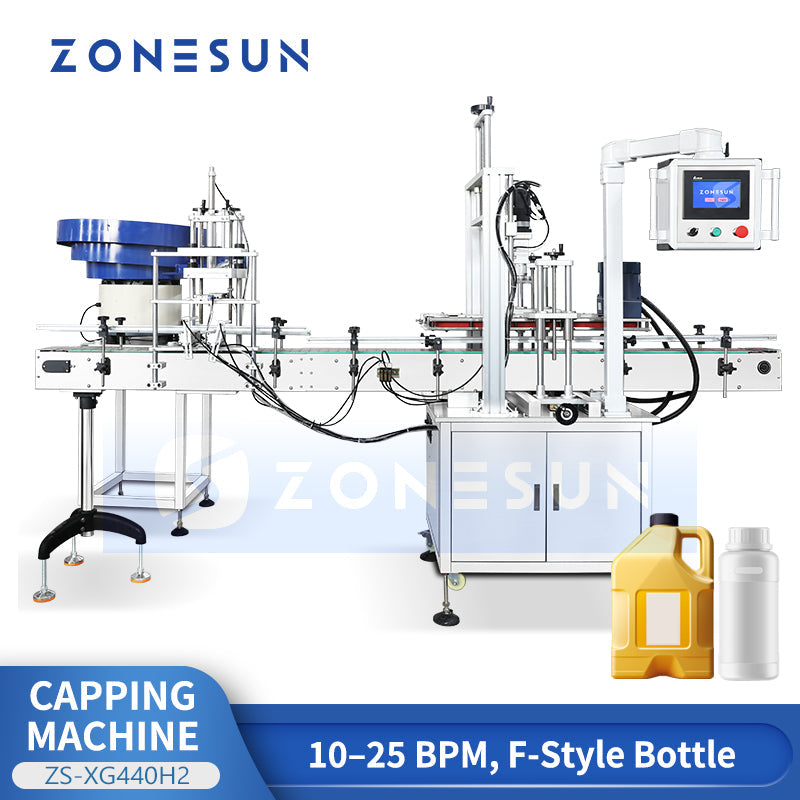

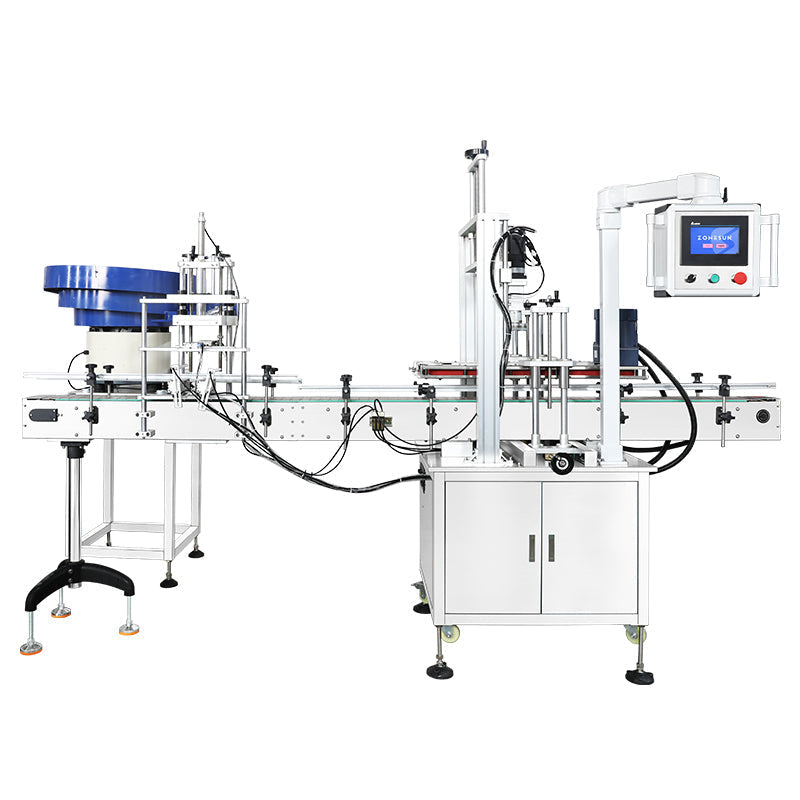

The ZONESUN ZS-XG440H2 Automatic Capping Machine is specifically designed for high-speed and efficient sealing of F-style bottles. Featuring a servo-driven capping motor and precision cap placing structure, it ensures stable screwing even for bottles with raised handles and limited clearance. The integrated electric eye system detects bottle position to coordinate cap drop and screwing, while the bottle clamping conveyor prevents tipping and misalignment during transport. With a production capacity of 10–25 bottles per minute, this machine is ideal for oil drums and similar large-format containers.
Parameter
- Model: ZS-XG440H2
- Working Voltage: AC 220V / 110V, 50–60 Hz
- Power Consumption: 300 W
- Applicable Bottle Height: 50–350 mm
- Applicable Cap Diameter: 20–50 mm
- Working Speed: 10–25 bottles/min (depends on bottle and cap size)
- Working Pressure: 0.4–0.6 MPa
- Capping Torque: 4–9 kgf/cm
- Machine Dimensions: Approx. 2500 × 1250 × 1660 mm
- Packing Dimensions: Approx. 2600 × 840 × 1680 mm
- Gross Weight: Approx. 320 kg

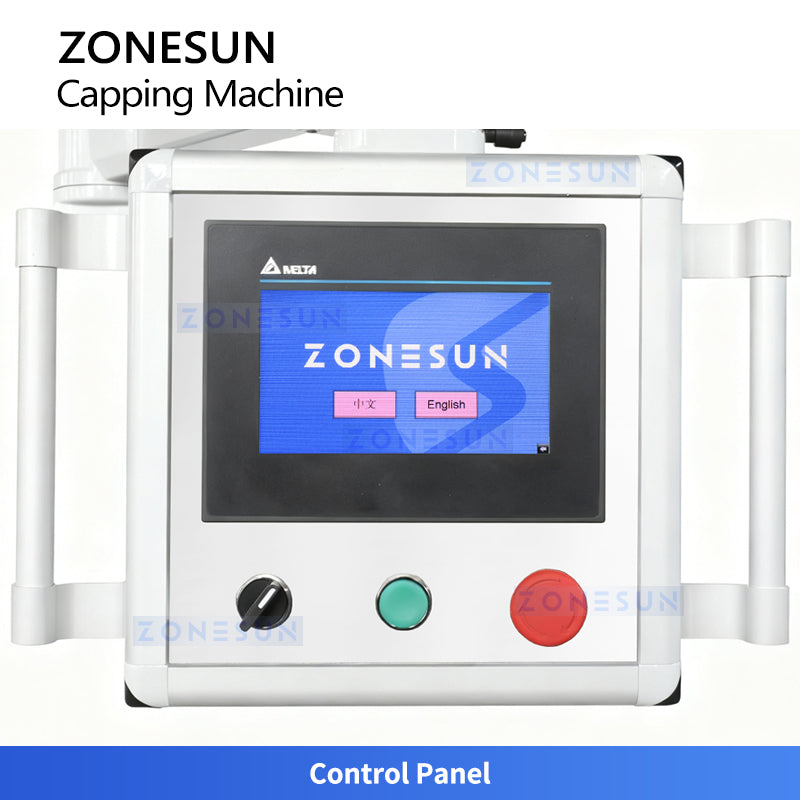

Smart Control Panel
- Real-Time Data Display: Monitor production rate, operating efficiency, temperature, and pressure at a glance.
- Global Compatibility: Multi-language system interface for seamless operation worldwide.

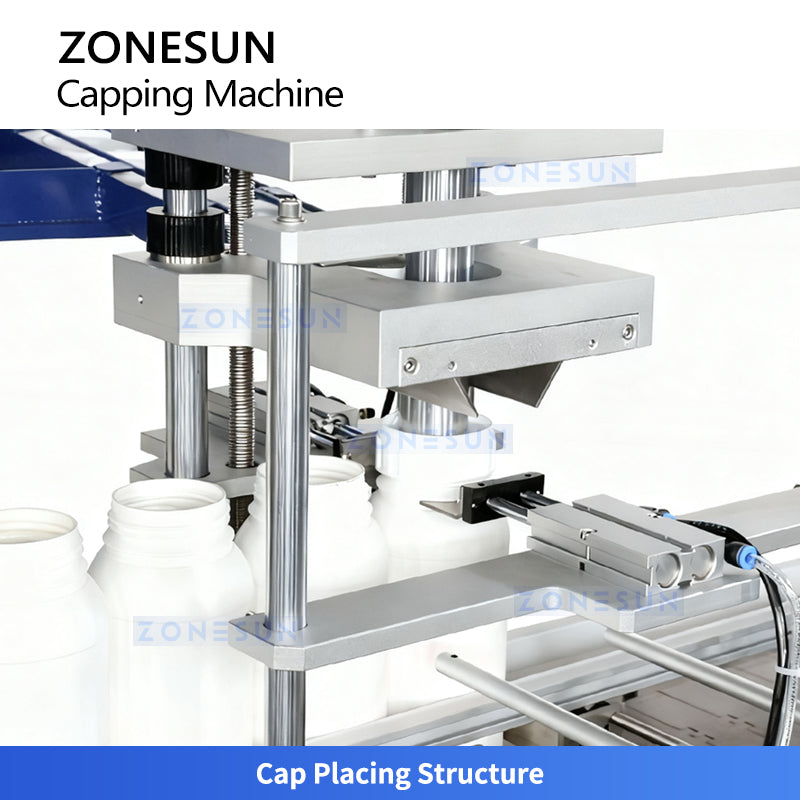

Precision Cap Placing
- Handle-Friendly Design: Specially engineered for bottles with raised handles near the bottle mouth.
- Accurate Placement: Reliably positions and places caps even in narrow or limited clearance spaces.

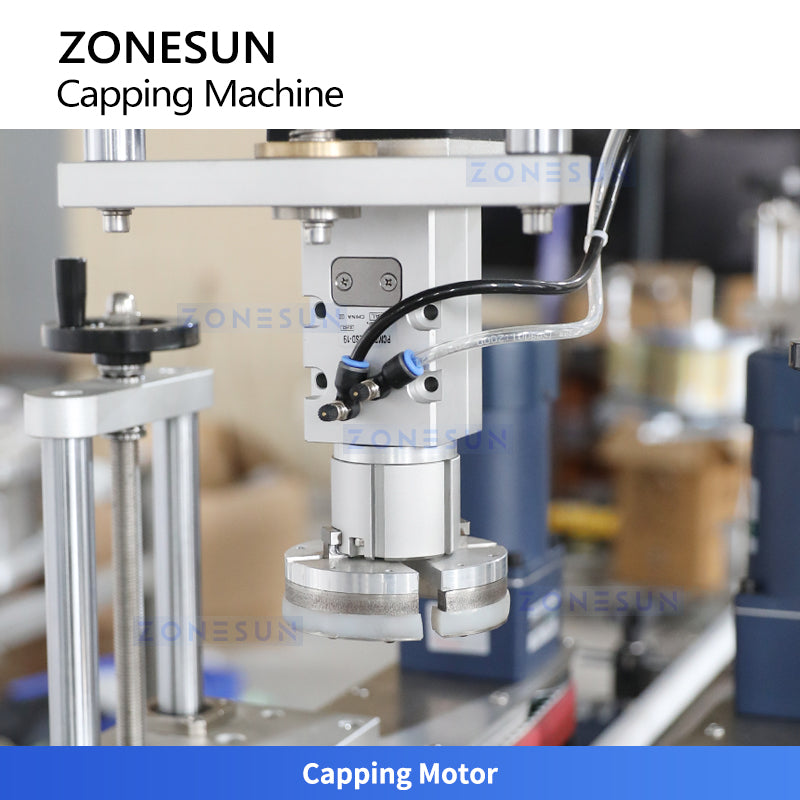

High-Performance Capping Motor
- Precise Torque Control: Powers the capping head to ensure accurate, stable, and damage-free screwing.
- High-Speed Efficiency: Specially optimized for fast and reliable sealing of F-style bottles.

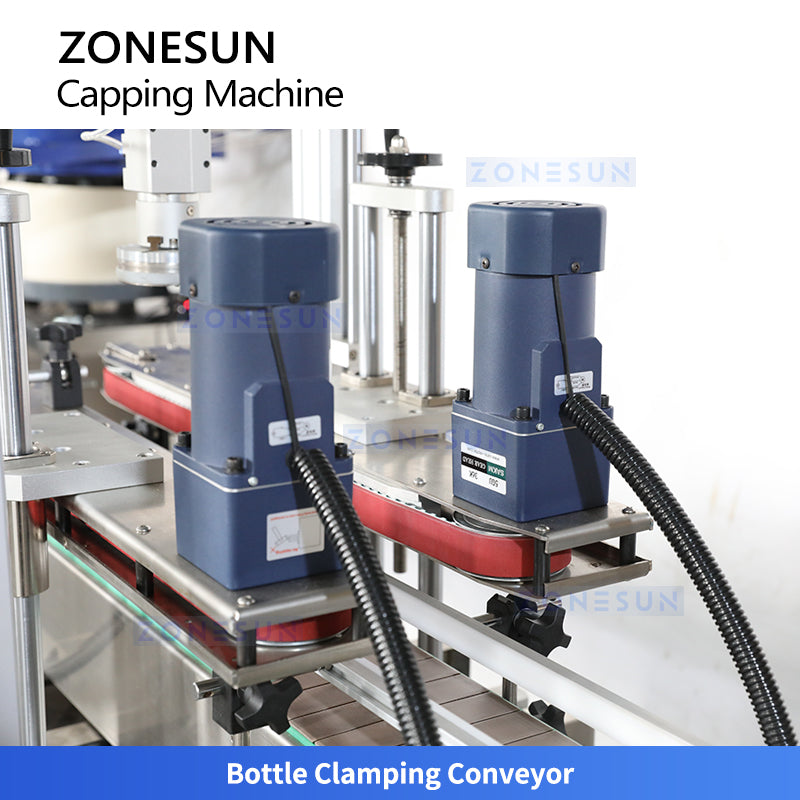

Stable Clamping Conveyor
- Anti-Tipping & Anti-Collision: Firmly grips bottles during conveyance to ensure seamless and stable transport.
- Zero Waste: Minimizes product spill, tipping, and bottle damage for safer, reliable production.

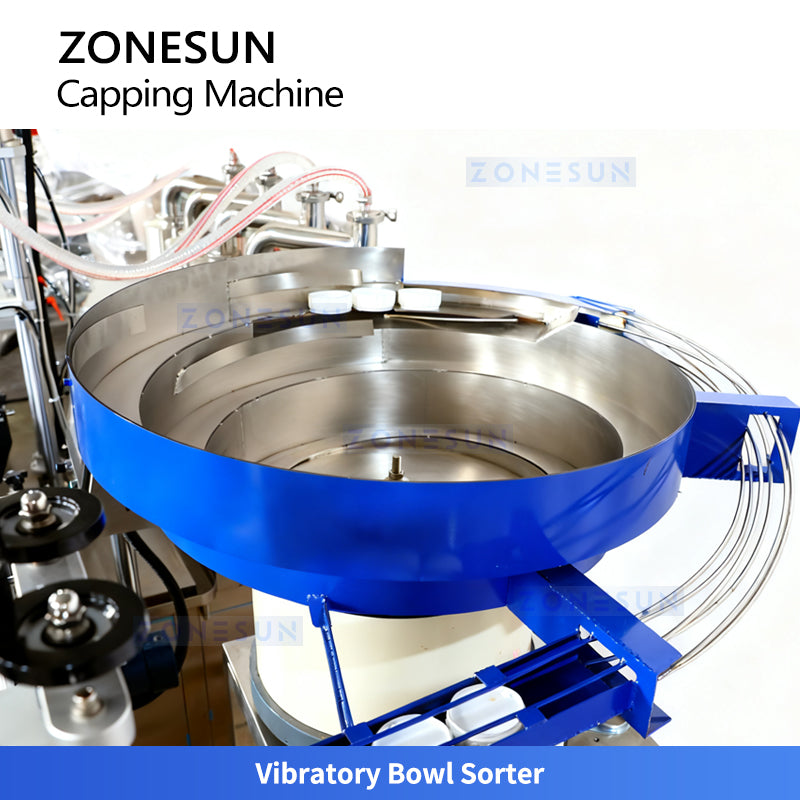

Customizable Vibratory Bowl
- Tailored Sorting Solution: Fully customizable to accommodate various bottle caps and sorting requirements.
- Adjustable Controls: Easily change bowl size, shape, and vibration amplitude for maximum operating efficiency.
Smart Electric Eye Sensor
- Precision Detection: Accurately detects bottle position to instantly trigger automated cap dropping and screwing.
- High-Speed Synchronization: Ensures perfect timing and seamless, stable sealing even during rapid production.
