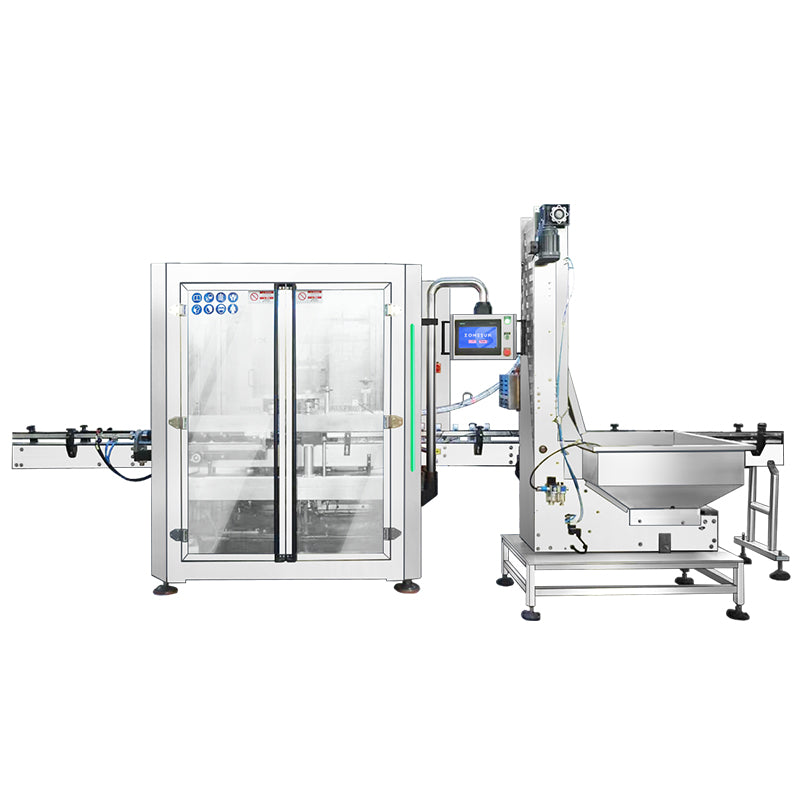

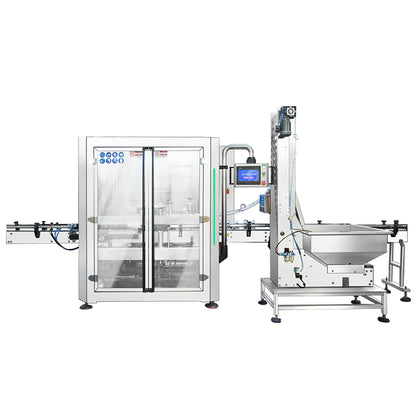

ZONESUN ZS-XG440M Automatic 8-Head Rotary Capping Machine with Cap Elevator
ZONESUN ZS-XG440M Automatic 8-Head Rotary Capping Machine with Cap Elevator
Regular price
$29,999.00 USD
Regular price
$0.00 USD
Sale price
$29,999.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The ZONESUN ZS-XG440M is a fully automatic 8-head screw capping machine designed for high-speed and reliable capping of plastic bottles used in soft drinks, cosmetics, and daily chemical products. It features an automatic cap elevator for continuous cap feeding, adjustable torque control for secure sealing, and a user-friendly interface for simple operation. Built for efficiency, consistency, and easy integration into existing filling lines, this machine ensures smooth performance even during long production runs.
PARAMETER
| Specification | Details |
|---|---|
| Machine Model | ZS-XG440M |
| Power Supply | 110/220 V, 50–60 Hz |
| Rated Power | 2500 W |
| Working Speed | Approx. 4,000–6,000 bottles/hour |
| Capping Heads | 8 heads |
| Applicable Bottle Height | 30–320 mm |
| Applicable Cap Diameter | φ12–16 mm |
| Machine Dimensions | Approx. 3000 × 900 × 2000 mm Approx. 118.1 × 35.4 × 78.7 in |
| Machine Weight | Approx. 300 kg |
Application
This equipment is a high-efficiency sealing system integrating automatic cap elevating/sorting, smooth bottle starwheel feeding, and high-speed servo capping, with a production capacity of 4,000-6,000 BPH. It is specially engineered for large-scale bottling lines in the beverage, water, and daily chemical industries.
- Bottled Water & Carbonated Drinks: Widely utilized for high-speed plastic screw capping of mineral water, purified water, and various sparkling drinks, ensuring precise torque control to prevent air and liquid leakage.
- Juices & Functional Beverages: Perfectly suited for the automated capping of fresh juices, vitamin drinks, and flavored water products, meeting food-grade hygienic packaging standards.
- Multi-Shape Plastic & Glass Bottles: Highly compatible with various bottle designs, including round bottles and square bottles (such as tea or soda bottles). It offers quick changeovers for different bottle shapes and efficiently tightens diverse plastic cap specifications.
8 CAPPING HEADS
- Efficient 8-Head System: Equipped with 8 high-performance capping heads to automatically pick, place, and screw caps with flawless precision.
- High-Speed Throughput: Engineered for mass production, delivering an impressive output of 4000-6000 BPH to supercharge your line.
CAP GUIDE RAIL
- Automatic Transport: Seamlessly feeds caps into the capping zone automatically to keep your high-speed production line running smoothly.
- Customizable Sizes: The guide rail dimensions can be tailored to perfectly accommodate various cap diameters and heights.
CAP ELEVATOR MACHINE
- Automatic Elevating: Automatically conveys caps from the bulk hopper up into the guide rail, enabling a fully unattended cap-feeding process.
- Labor Saving: Features a large-capacity hopper to drastically reduce the frequency of manual refills, saving time and human labor.
- Tailored Optimization: The machine can be fully customized based on your specific cap size and shape to ensure stable and precise feeding.
STARWHEEL
- Tailored Optimization: Fully customizable based on your specific bottle size and shape to ensure a perfect fit during entry and exit.
- Smooth Bottle Feeding: Crafted from premium, wear-resistant materials, the precision-engineered contours prevent bottles from tipping or jamming.
