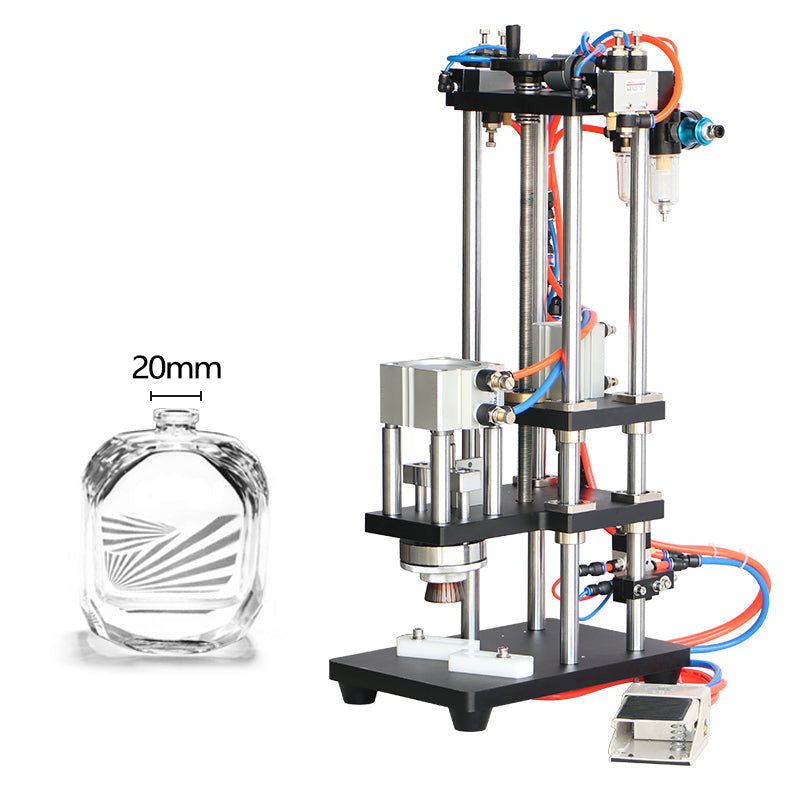

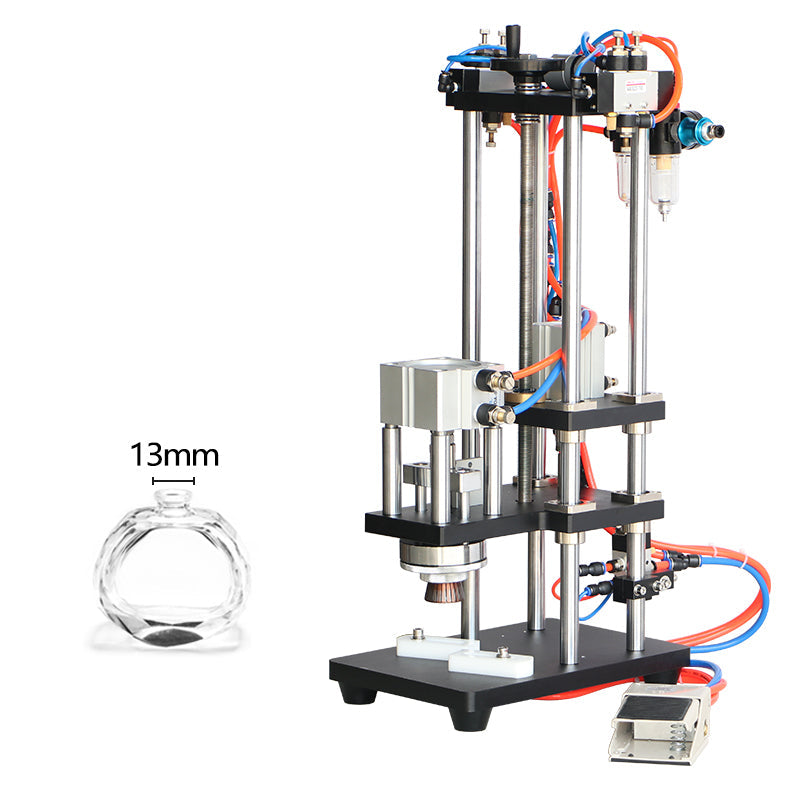

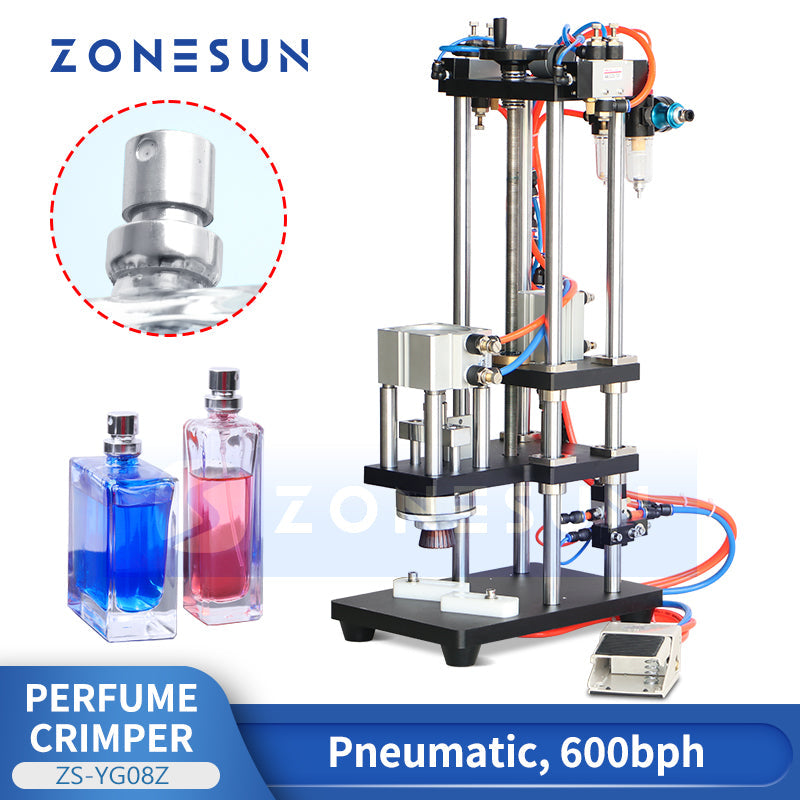

ZONESUN ZS-YG08Z Pneumatic Perfume Bottle Capping Machine
ZONESUN ZS-YG08Z Pneumatic Perfume Bottle Capping Machine
Couldn't load pickup availability
Description

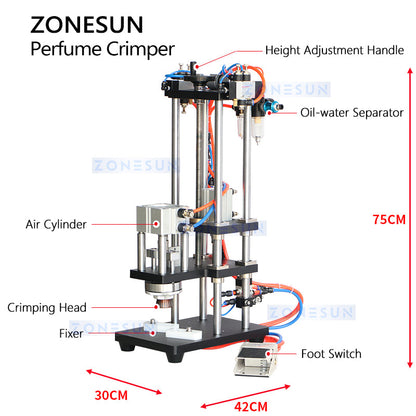

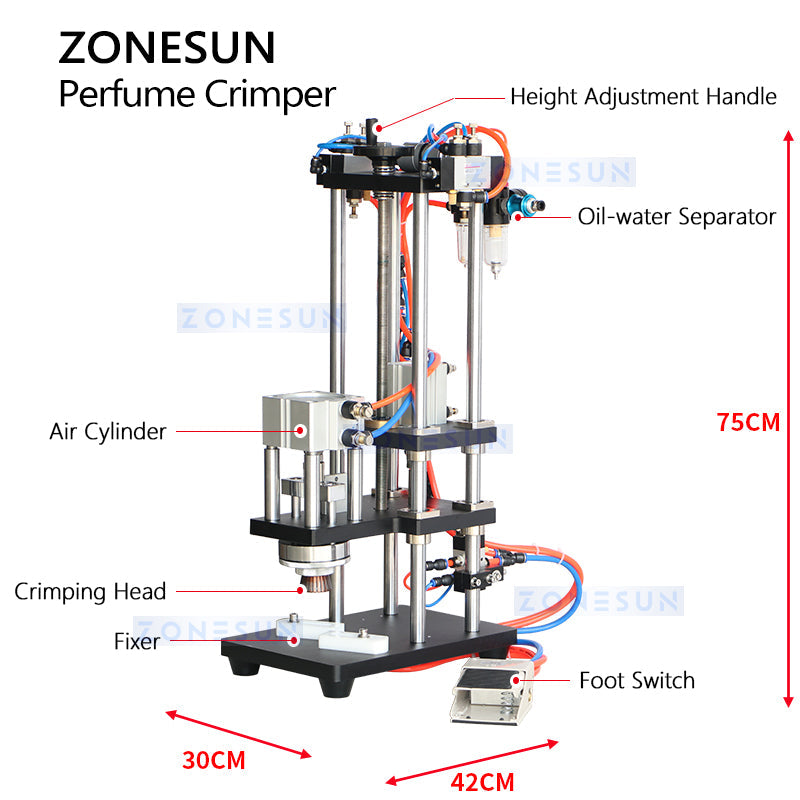

The ZONESUN ZS-YG08Z Pneumatic Perfume Bottle Capping Machine is designed for precise and efficient sealing of perfume bottles. Powered by an external air compressor, it features a foot switch for easy operation and a height-adjustable head for accurate capping. The removable and interchangeable capping head accommodates multiple sizes, making it versatile for various bottle mouth dimensions. Ideal for perfume manufacturers seeking consistent, professional results.
Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
| Specification | Details |
|---|---|
| Model | ZS-YG08Z |
| Suitable Bottle Opening | 13 / 15 / 18 / 20 mm Customizable |
| Suitable Bottle Height | ≤280 mm |
| Working Speed | Approx. 10 bottles/min |
| Air Supply | 0.5–0.8 MPa |
| Machine Dimensions | 30 × 42 × 75 cm |
| Machine Weight | Approx. 25 kg |
Application
- Fragrance & Cosmetics Industry: Perfect for sealing spray pump heads onto perfume bottles, cologne bottles, body mists, and essential oil sprays.
- Versatile Bottle Sizes: Accommodates standard bottle opening sizes—13mm, 15mm, 18mm, and 20mm (customizable for non-standard sizes)—with interchangeable capping heads.
- Flexible Bottle Heights: Supports bottles up to 280mm in height with an easily adjustable capping head for fast product switching.
- Efficient Semi-Automatic Workflow: Powered by a pneumatic system (0.5–0.8 MPa) with a foot switch control, allowing operators to effortlessly achieve a speed of up to 10 bottles/min with leak-proof seal quality.

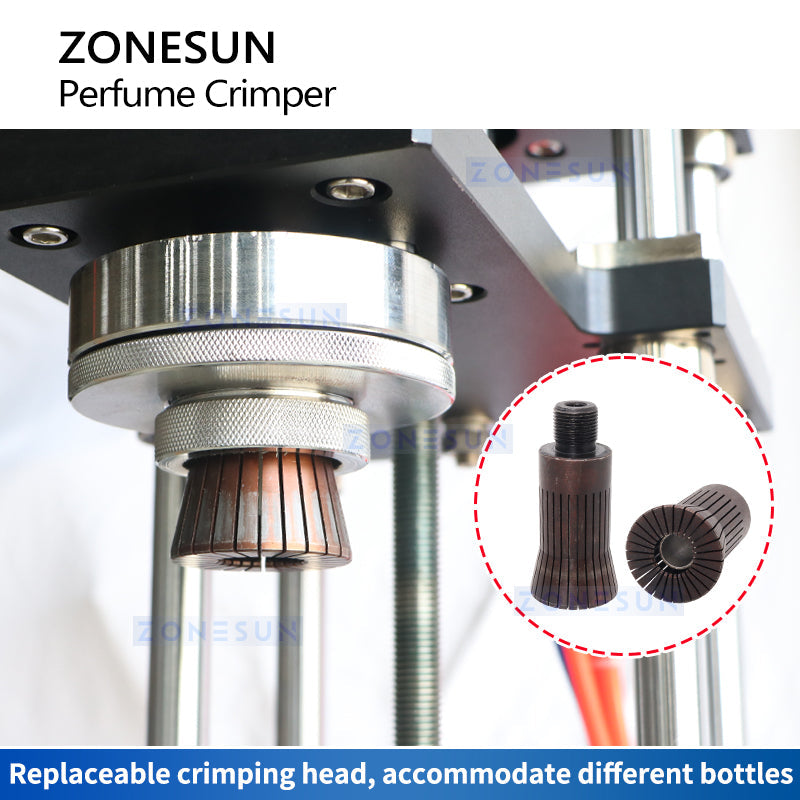

Replaceable Crimping Head
Replaceable crimping head, accommodate different bottles easily to achieve high production flexibility.

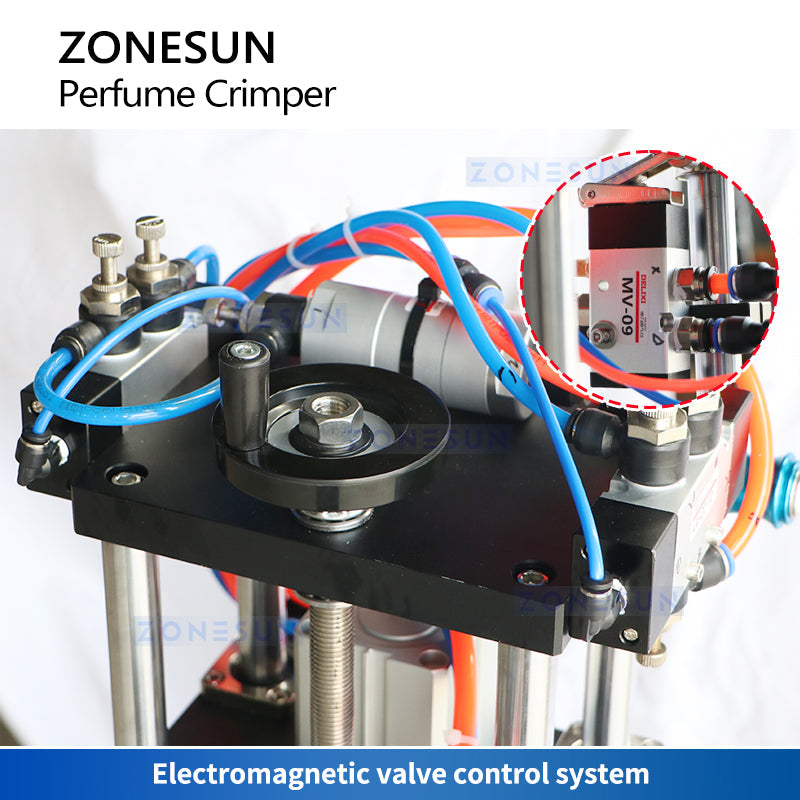

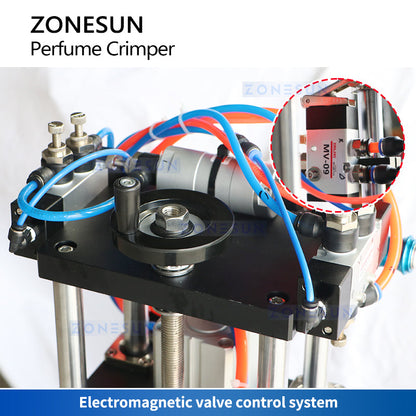

Solenoid Valve Controls
The lifting and crimping mechanism of the machine is controlled by electromagnetic valves. These valves regulate the flow of air to the lifting and crimping cylinder, causing the crimping head to descend and complete the crimping process.

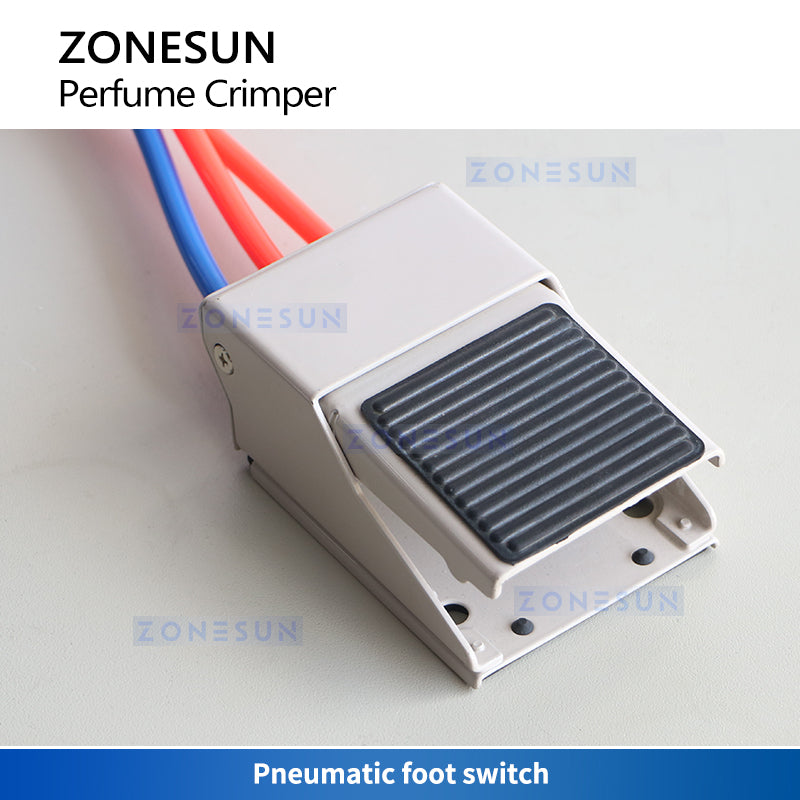

Pneumatic Foot Switch
The pneumatic foot pedal offers a user-friendly and efficient way to activate the crimping operation. This hands-free operation reduces fatigue and increases productivity, as the operator can focus on positioning the bottle and preparing for the next sealing task.

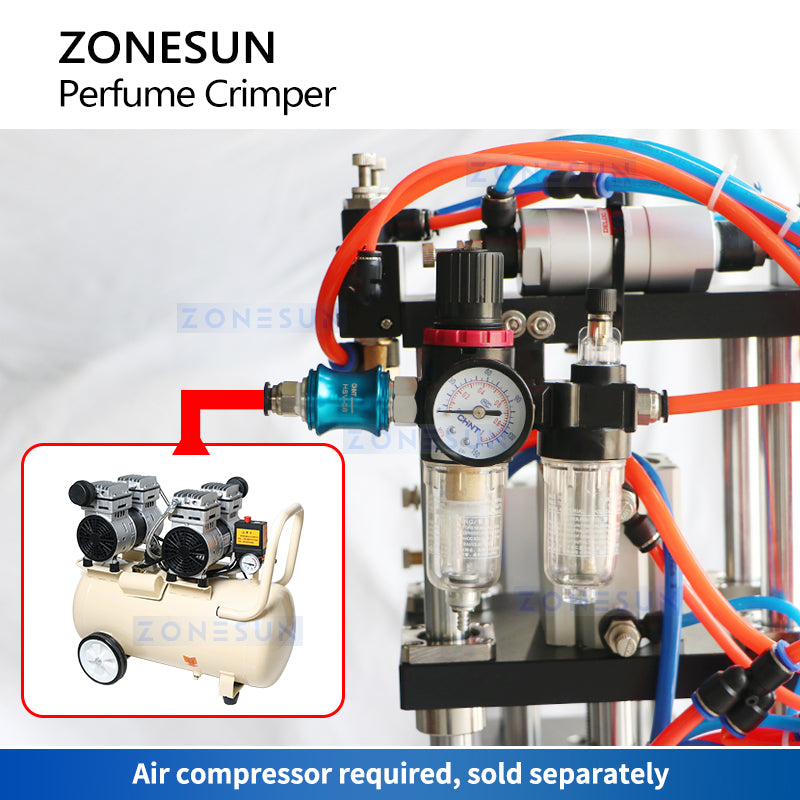

Pneumatic Supply
Air compressor required, sold separately. Please contact us to get the matching specifications for your production line.
