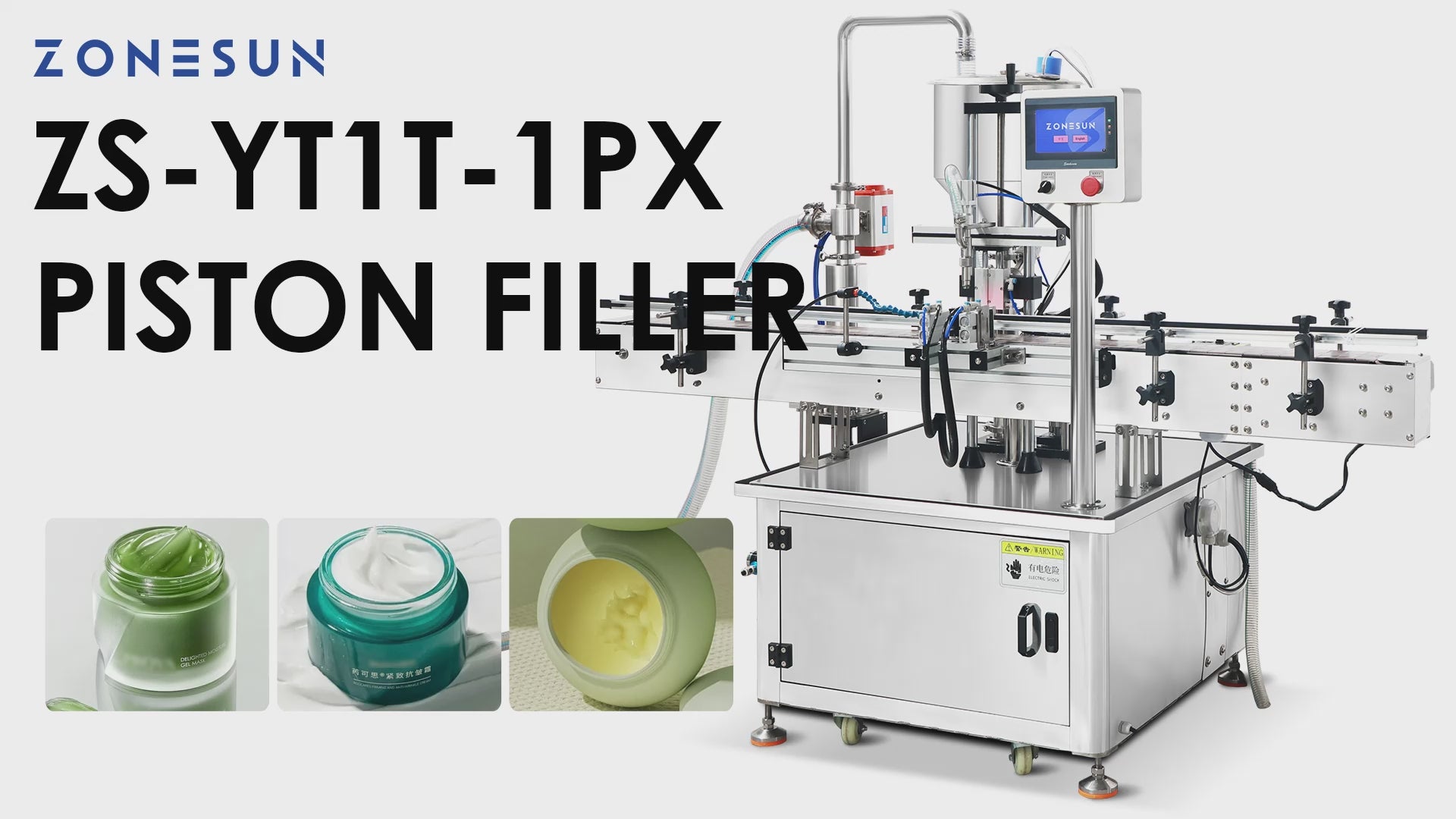

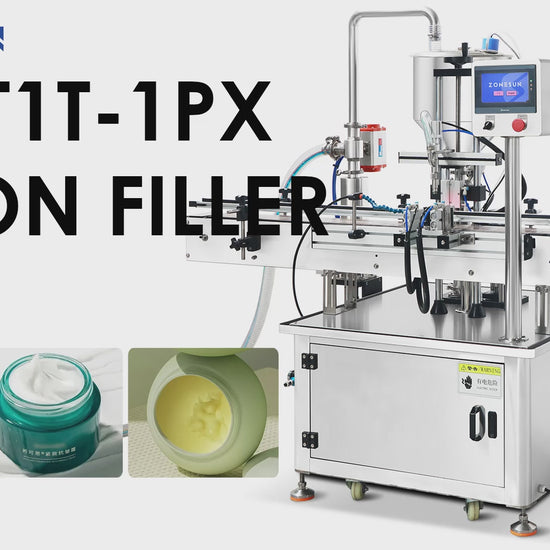

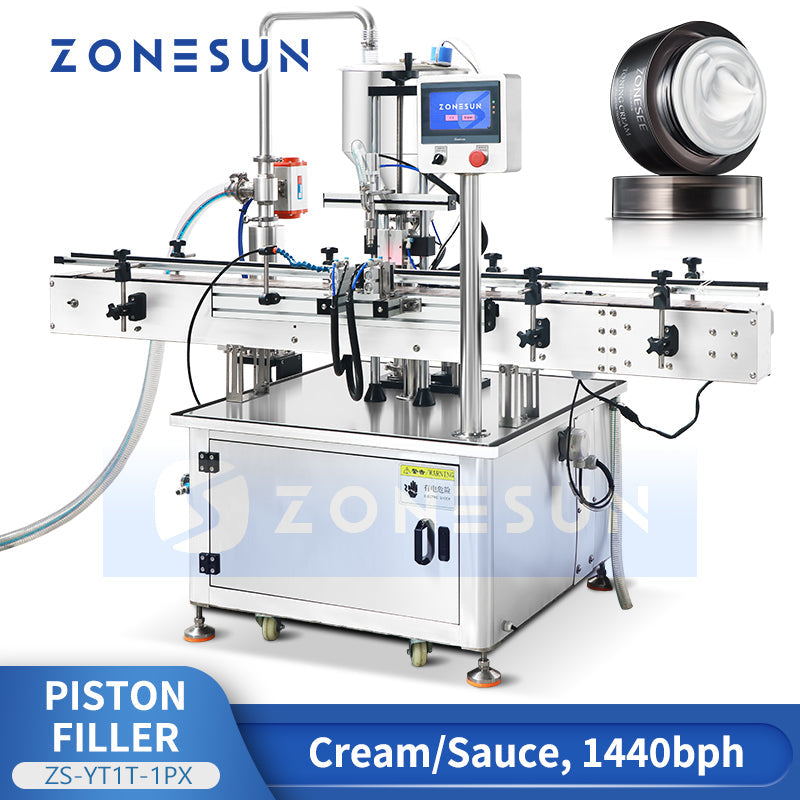

ZONESUN ZS-YT1T-1PX Automatic Servo Piston Liquid & Paste Filling Machine with Hopper
ZONESUN ZS-YT1T-1PX Automatic Servo Piston Liquid & Paste Filling Machine with Hopper
Regular price
$4,699.00 USD
Regular price
Sale price
$4,699.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

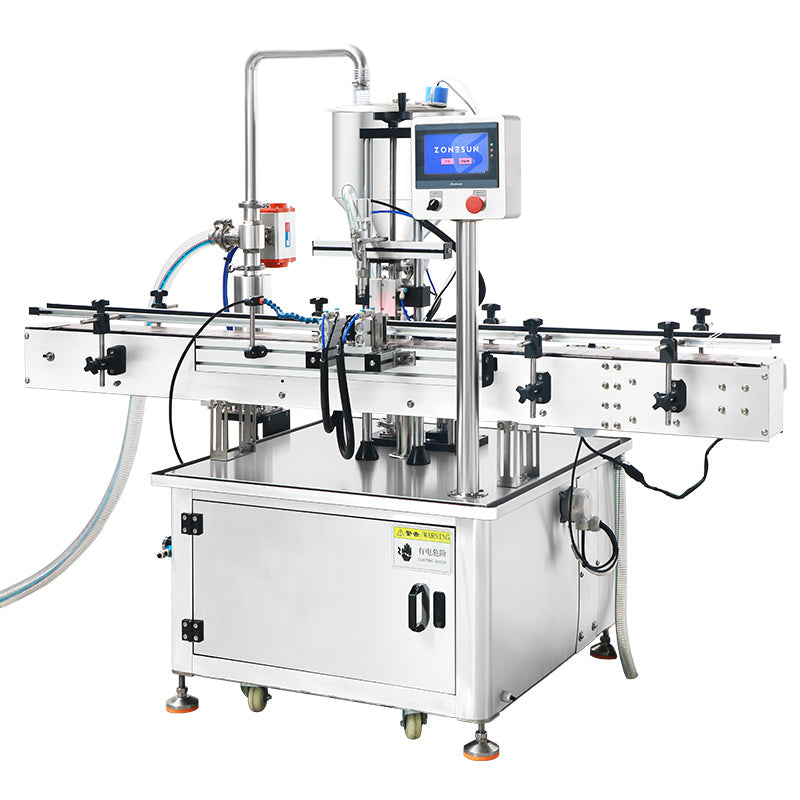

The Zonesun ZS‑YT1T‑1PX Servo Piston Filler is an automatic filling solution designed for precision, speed, and versatility. Powered by a servo motor and advanced piston pump, it ensures consistent filling accuracy for viscous liquids, creams, and pastes. Its single pneumatic filling head, top‑mounted hopper with liquid level sensor, and side piston pump enable smooth, uninterrupted material feeding. Ideal for industries such as food, cosmetics, pharmaceuticals, and chemicals, it supports clean, efficient, and reliable production.
| Specification | ZS-YT1T-1PX |
|---|---|
| Machine Voltage | 110V / 220V, 50-60 Hz |
| Power | 2 kW |
| Filling Range | 5 - 100 ml · 50 - 500 ml · 100 - 1000 ml |
| Filling Pump Type | Piston pump |
| No. of Filling Nozzles | 1 |
| Filling Accuracy | ≤ ± 1% |
| Capacity | ~ 10-24 bottles/min |
| Hopper Volume | 30 L |
| Machine Size (L × W × H) | 2000 × 920 × 1670 mm |
Applicable Industries & Products
The ZONESUN ZS-YT1T-1PX servo piston filler is engineered for versatile liquid and paste dosing across multiple industries:
- Cosmetics & Personal Care: Facial creams, lotion, body butter, shampoo, hair conditioner, gel, foundation, and liquid soap.
- Food & Beverage: Honey, jam, sauces, ketchup, peanut butter, chili paste, salad dressing, syrup, edible oil, and juice.
- Pharmaceuticals & Health: Syrups, ointments, medical gels, oral liquids, and essential oils.
- Daily Chemicals & Industrial: Liquid detergent, disinfectant, lubricants, liquid glue, and industrial pastes.
Supported Containers & Viscosity Range
- Suitable Containers: Bottles, jars, tubs, pouches, and cans (Glass, PET, Plastic, Aluminum).
- Viscosity Compatibility: Ideal for thin liquids (water-like) to highly viscous pastes (non-pourable).

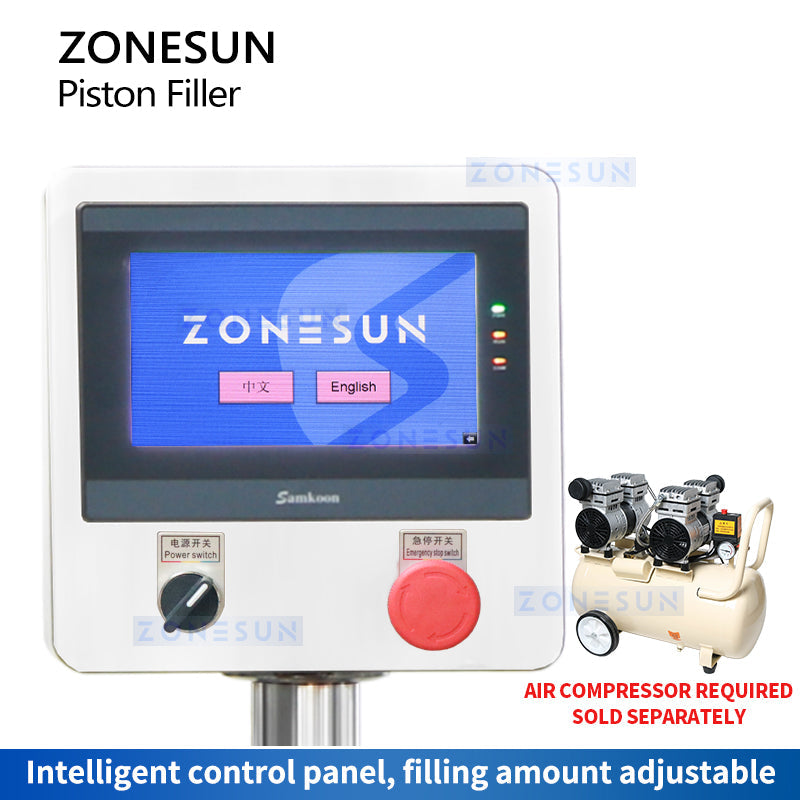

CONTROL BUTTON
- Direct Smart Control: Set filling volume directly on the touch screen, eliminating tedious adjustments for intuitive operation.
- Multi-Language Interface: Supports multi-language switching to remove operational barriers and simplify machine setup.
- Dual Safety Protection: Equipped with an independent power switch and a prominent emergency stop button for instant shutdown in emergencies.

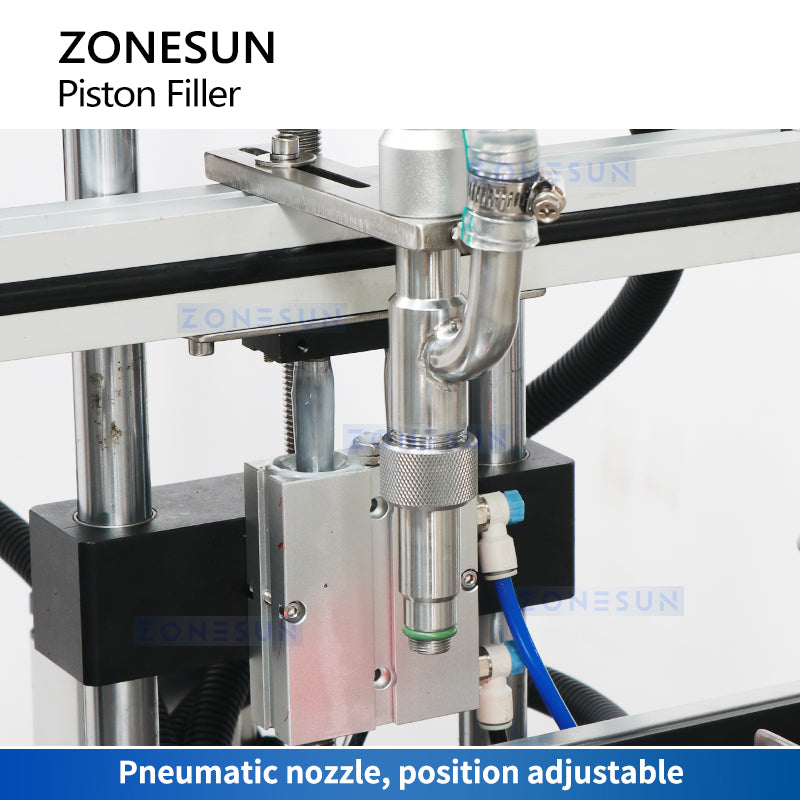

Controlling Element
- Final Controlling Element: Functions as the reliable final control component to ensure smooth and efficient material flow.
- Designed for Thick & Granular Media: Specially engineered for thick paste or high-viscosity liquids containing granules, preventing clogs.

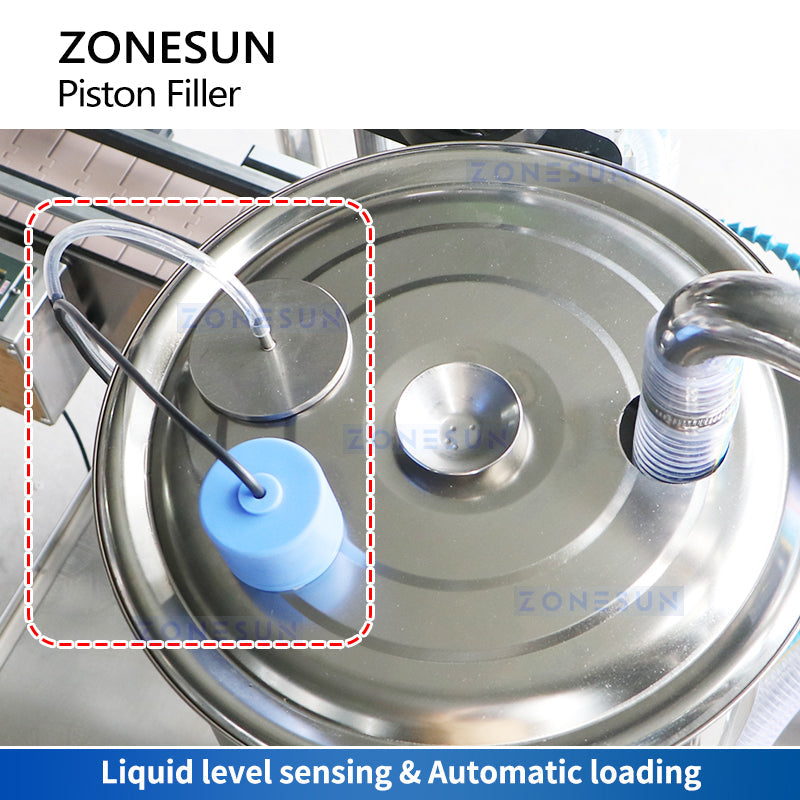

SENSOR
- Dual Sensor Protection (SENSOR): Integrated with both a Level Sensor & Pressure Sensor for multi-dimensional and precise detection.
- Smart & Timely Supply: Monitors the container status in real time to ensure the filling material can be supplied automatically and in time.

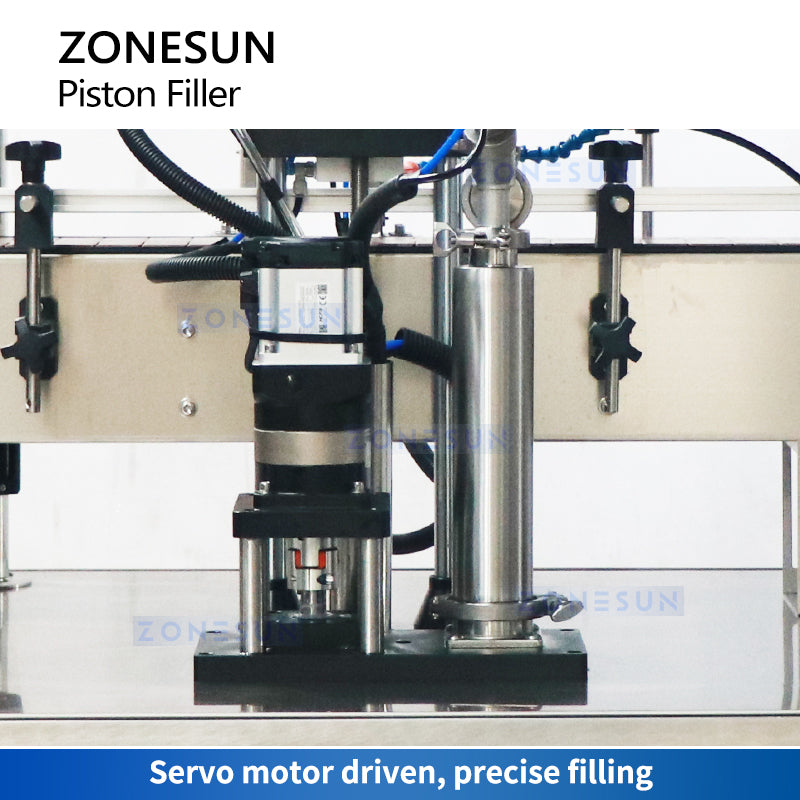

PISTON PUMP
- Servo Piston Pump (PISTON PUMP): Features an advanced piston pump system driven and precisely controlled by a servo motor.
- Direct Volume Setting: Allows users to set the filling volume directly through the system for hassle-free adjustments.
ELECTRIC CIRCUIT
- Neat Electric Circuit: Connect the circuit neatly and orderly, minimizing the risk of electrical faults.
- Stable Operation: The high-standard electrical layout ensures efficient current transmission, allowing the machine to work stably over long periods.

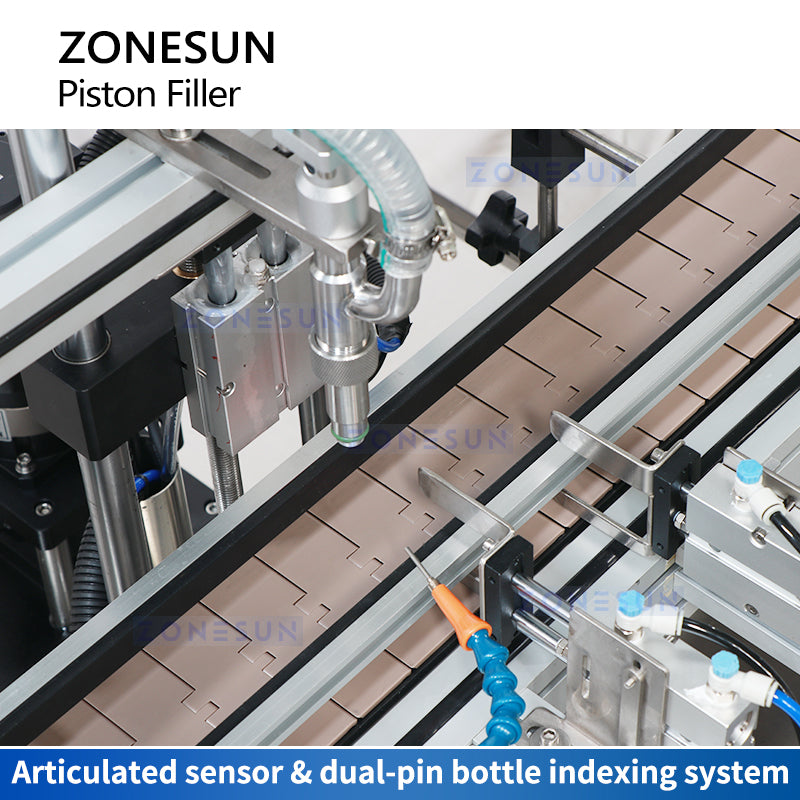

CONVEYOR BELT
- Customizable Conveyor Belt: Length and width of the conveyor belt can be customized to perfectly fit different bottle sizes.
- Easy Speed Control: Features an independent speed control panel, allowing the conveying speed to be adjusted easily.
