ZONESUN ZS-YT4T-4PX Automatic 4-Head Servo Piston Filling Machine for Liquid & Paste
ZONESUN ZS-YT4T-4PX Automatic 4-Head Servo Piston Filling Machine for Liquid & Paste
Couldn't load pickup availability
Description

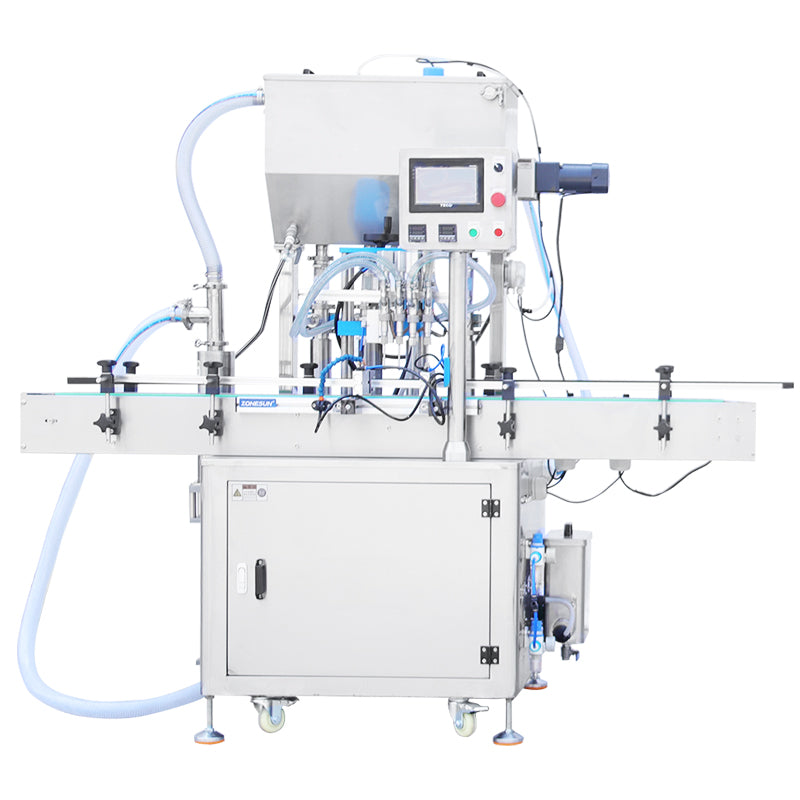

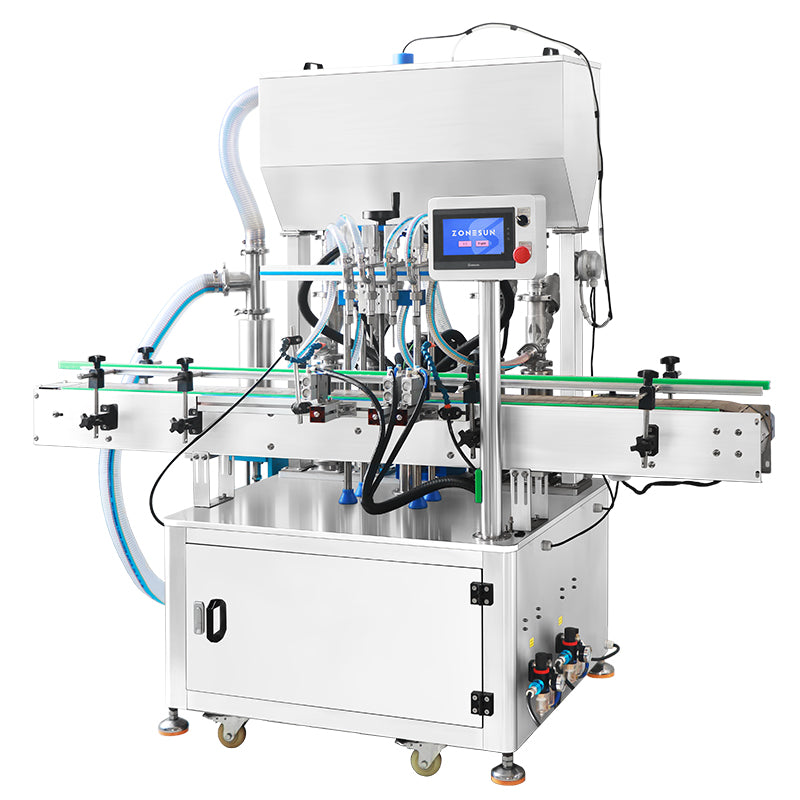

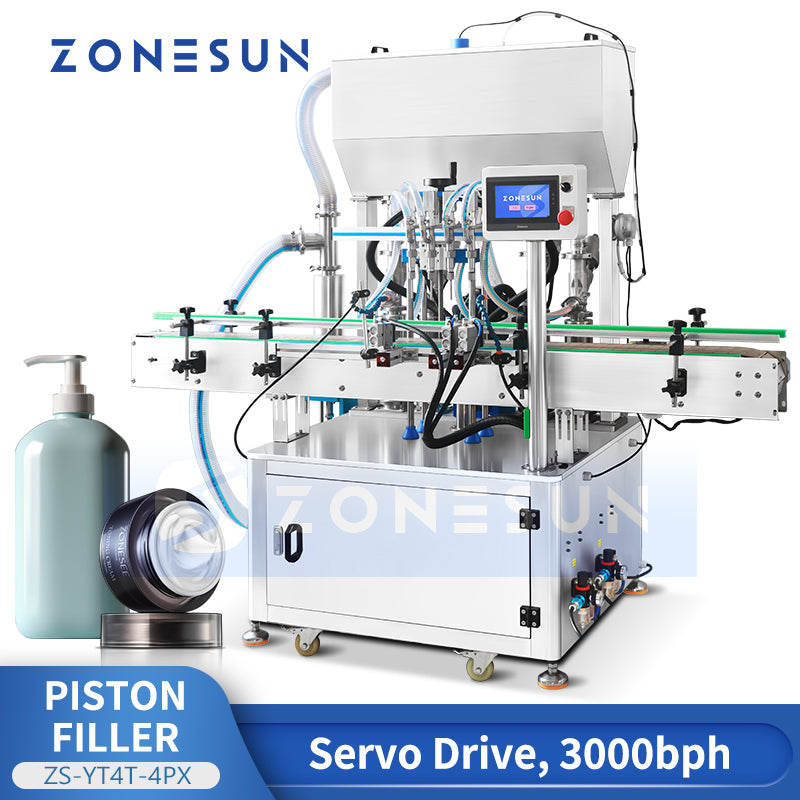

The Zonesun ZS‑YT4T‑4PX Servo Piston Filler is a high‑performance automatic filling machine built for precision, speed, and adaptability. With a capacity of up to 1440 bottles per hour, it can be configured with multiple filling heads to suit different production needs. The servo‑driven piston system ensures consistent accuracy, while the 7‑inch touch screen and independent conveyor control make operation and monitoring effortless. Its robust construction and versatile design make it ideal for filling creams, lotions, sauces, and other viscous products across food, cosmetics, and chemical industries.
| Model | ZS-YT4T-4PX |
|---|---|
| Voltage | 110/220V, 50-60 Hz, 1 kW |
| Filling Range | 10-180 ml / 30-500 ml / 100-1000 ml |
| Working Speed | ~ 30-50 bottles/min |
| Filling Pump Type | Piston pump |
| Filling Accuracy | ≤ ± 1% |
| Filling Heads | 4 (customizable) Inner dia.: 6 mm × 4 & 8 mm × 4 |
| Control Interface | 7-inch touch screen |
| Storage Tank Capacity | 90 L |
| Conveyor | 2000 × 114 mm (customizable) |
| Air Supply | 0.6-0.8 MPa (requires separate air compressor) |
| Machine Size (L × W × H) | 2000 × 800 × 1800 mm |
| Net Weight | 200 kg |
| Packaging Size | 2070 × 960 × 2010 mm (100-1000 ml) |
| Packaging Weight | 392 kg (100-1000 ml) |
✨ Built for Every Application Stage
- Cosmetics & Personal Care Lines: Perfect for filling viscous creams, lotions, shampoos, and conditioners into bottles or jars without stringing or messy drips.
- Food, Sauce & Condiment Processing: Effortlessly handles sticky or semi-liquid foods like honey, chili pastes, ketchup, salad dressings, and syrups at stable hourly outputs.
- Daily Chemicals & Industrial Fluids: Reliable for packaging dish soaps, liquid detergents, hand sanitizers, and motor oils with strict anti-corrosion and clean-fill demands.
💡 Why Choose the 4-Head Servo Piston System?
By combining independent servo-driven pistons with multi-head synchronous discharging, the ZS-YT4T-4PX guarantees that every container receives the exact target volume (≤±1% accuracy)—drastically reducing costly product giveaway and maintaining uniform shelf presentation.

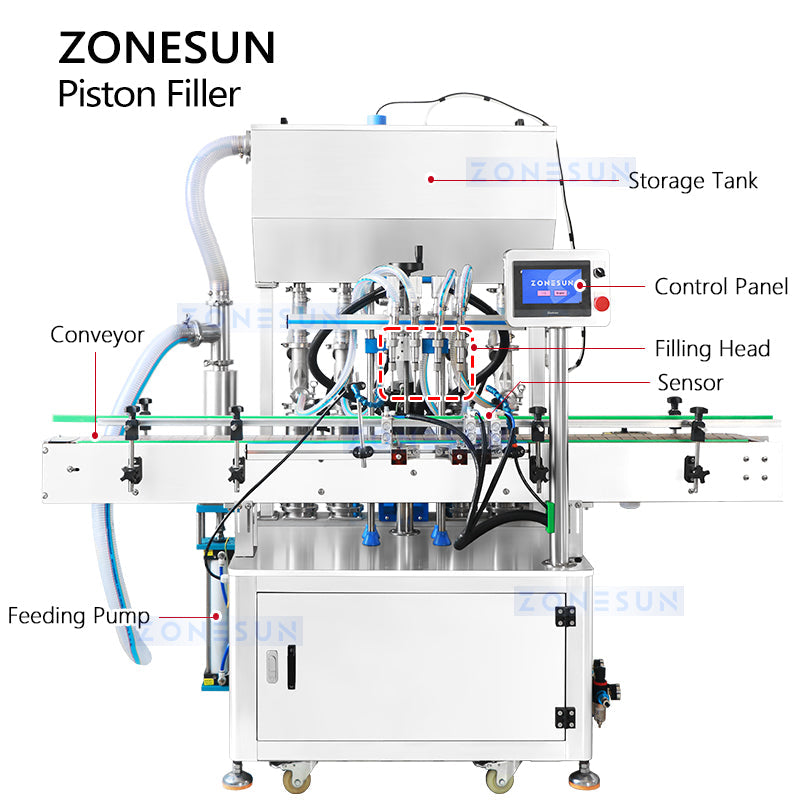

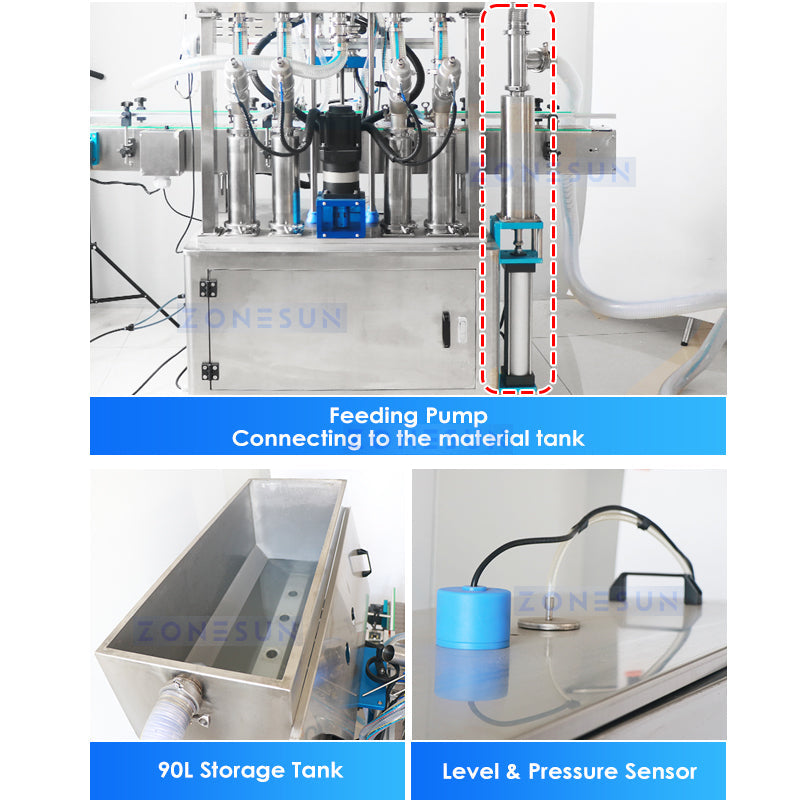

- High-Capacity Supply: Equipped with a 90L large storage tank to minimize refilling frequency, ensuring long-term continuous and highly efficient filling.
- Stable Material Feeding: Features a dedicated feeding pump directly connecting to the material tank, building a closed-loop system for continuous and stable material delivery.
- Smart Dual Monitoring: Integrated with both level and pressure sensors to monitor tank status in real time, delivering a fully automated and safe operation.
DRIVE

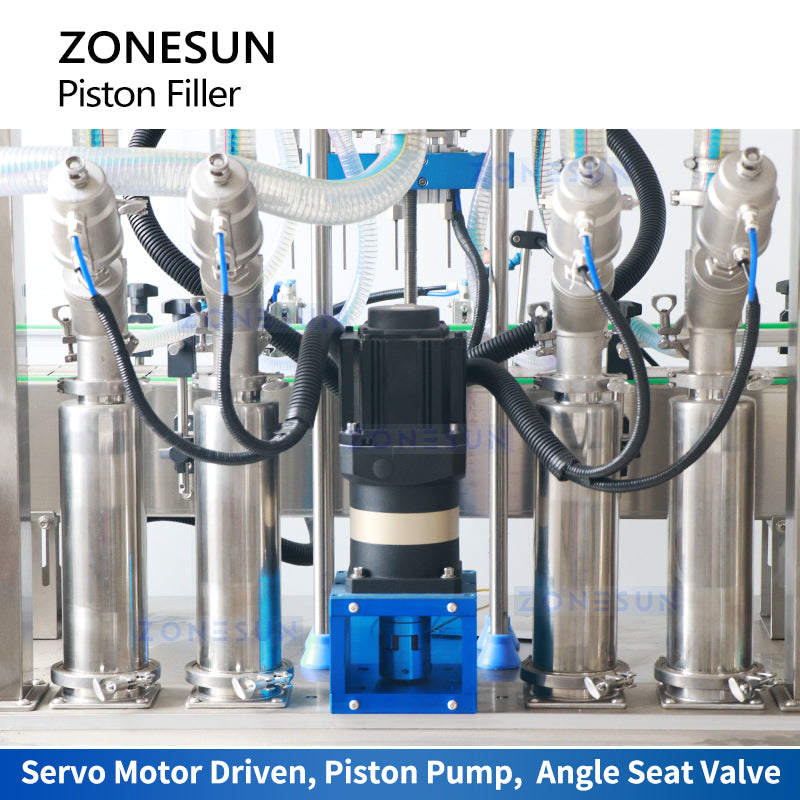

- High-Precision Piston Pump (DRIVE): Equipped with a high-precision piston pump that ensures accurate and consistent dispensing of liquids by using a positive displacement mechanism.
- Servo Fine-Tuning: Advanced servo motor technology allows for digital fine-tuning of the filling process, maximizing operational control.
- Enhanced Accuracy: The synergy of the displacement mechanism and servo technology further enhances the ultimate filling accuracy.
FILLING

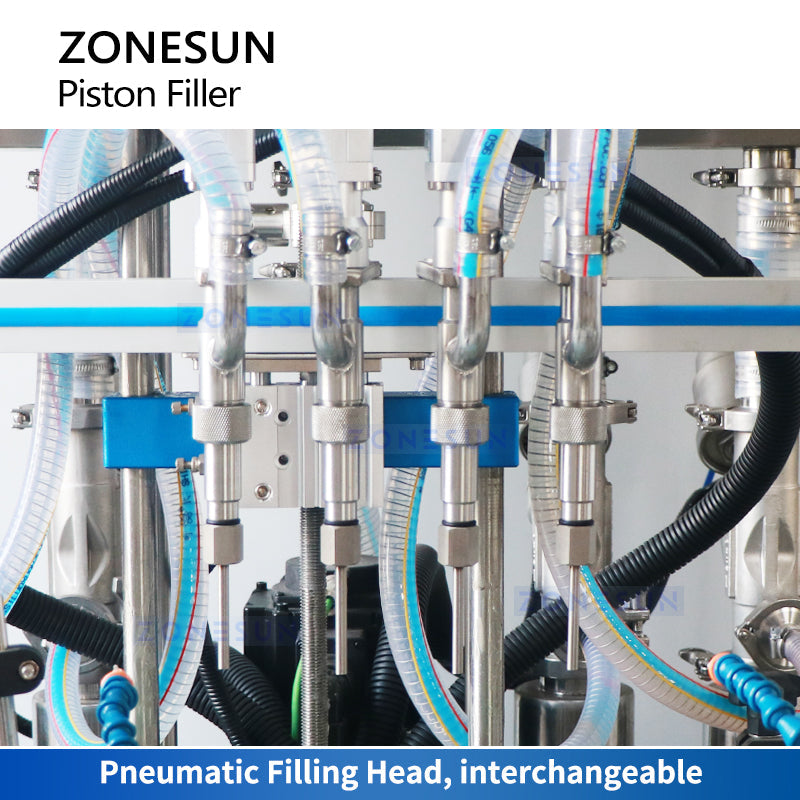

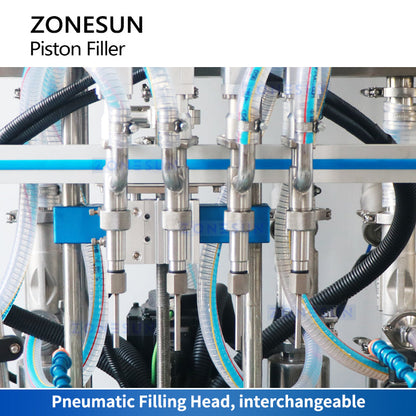

- High-Capacity 4-Head Configuration (FILLING): This 4-head configuration allows for increased production capacity and simultaneous filling of multiple containers.
- Pneumatic Valve Control: This type of filling head uses compressed air to control the opening and closing of the valve, ensuring highly efficient operation.
- Clean & Mess-Free Filling: Precise control guarantees clean and efficient filling without dripping or mess, maintaining a pristine workspace.

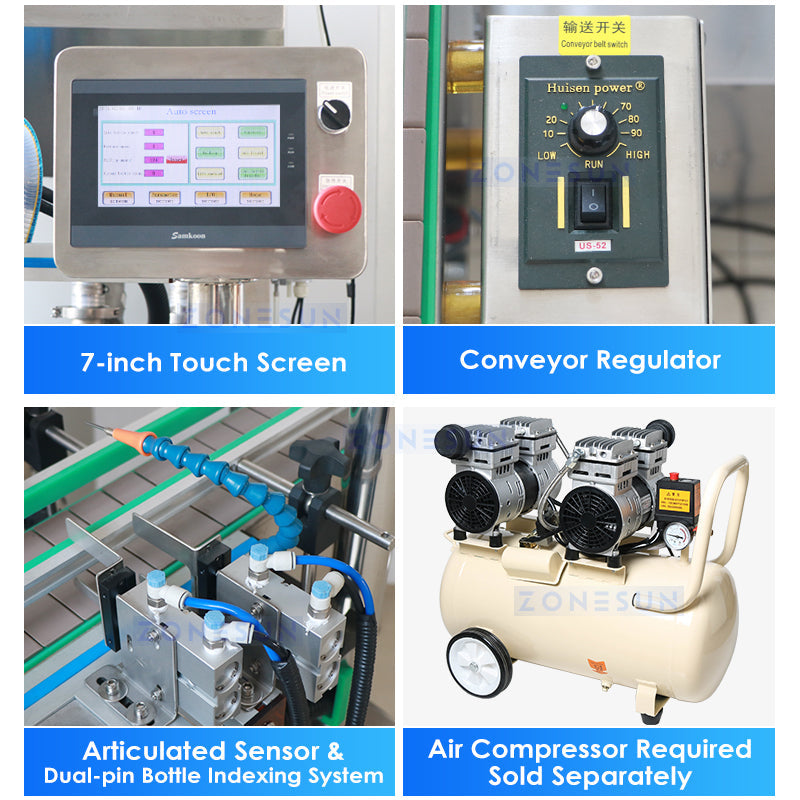

- Smart Touch & Speed Control: Equipped with a 7-inch Touch Screen for intuitive HMI digital operation, paired with a Conveyor Regulator for quick and effortless line-speed adjustments.
- High-Precision Bottle Indexing: Utilizes an Articulated Sensor & Dual-pin Bottle Indexing System to ensure accurate bottle stopping, perfect alignment, and smooth container counting during the transit process.
- Air Power Requirement: This pneumatic filling system requires an air compressor to operate, which is sold separately, providing stable and reliable pneumatic drive for the production line.
