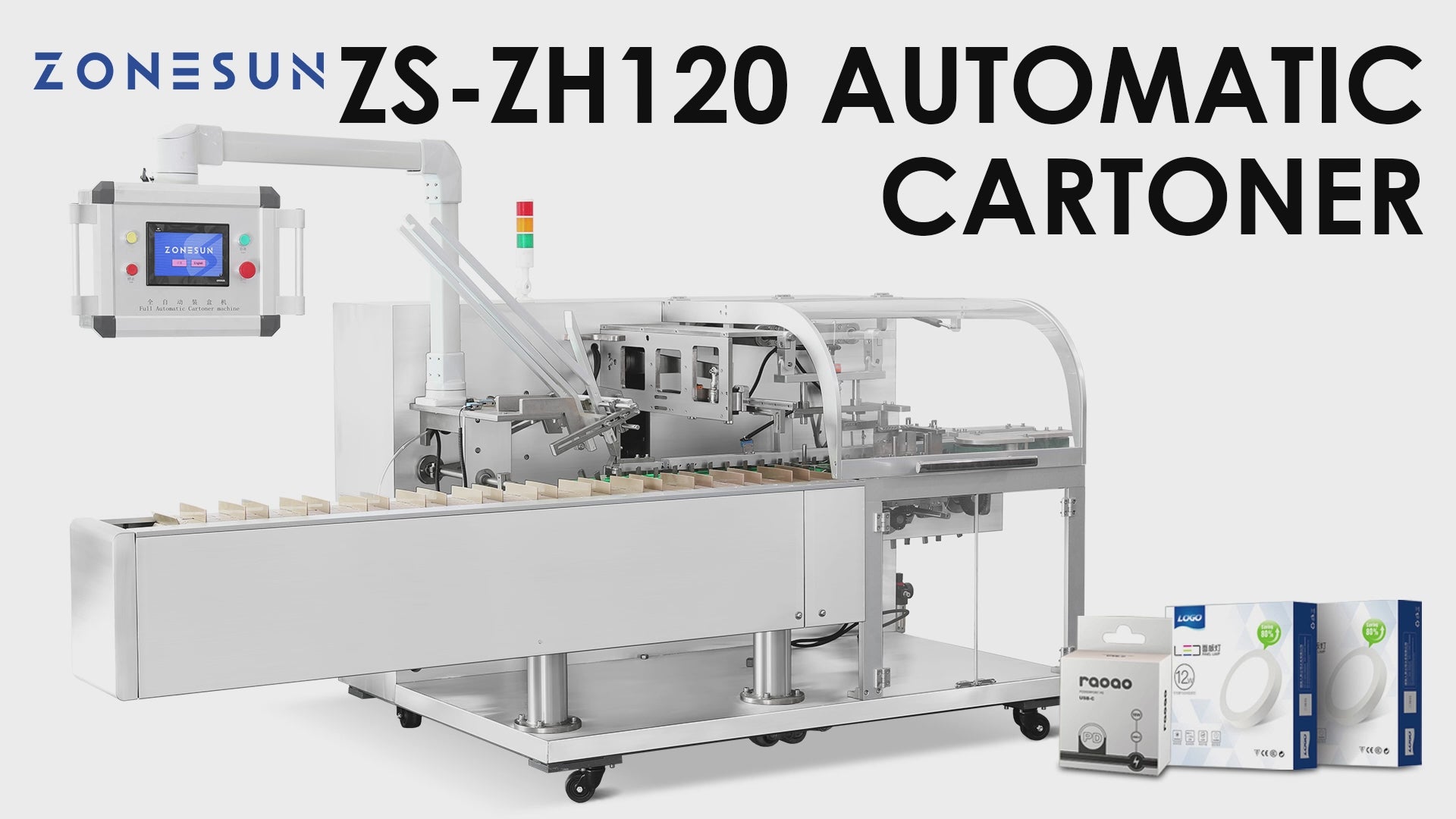

ZONESUN ZS-ZH120 Automatic Side-Load Cartoning Machine
ZONESUN ZS-ZH120 Automatic Side-Load Cartoning Machine
Regular price
$21,999.00 USD
Regular price
$0.00 USD
Sale price
$21,999.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description

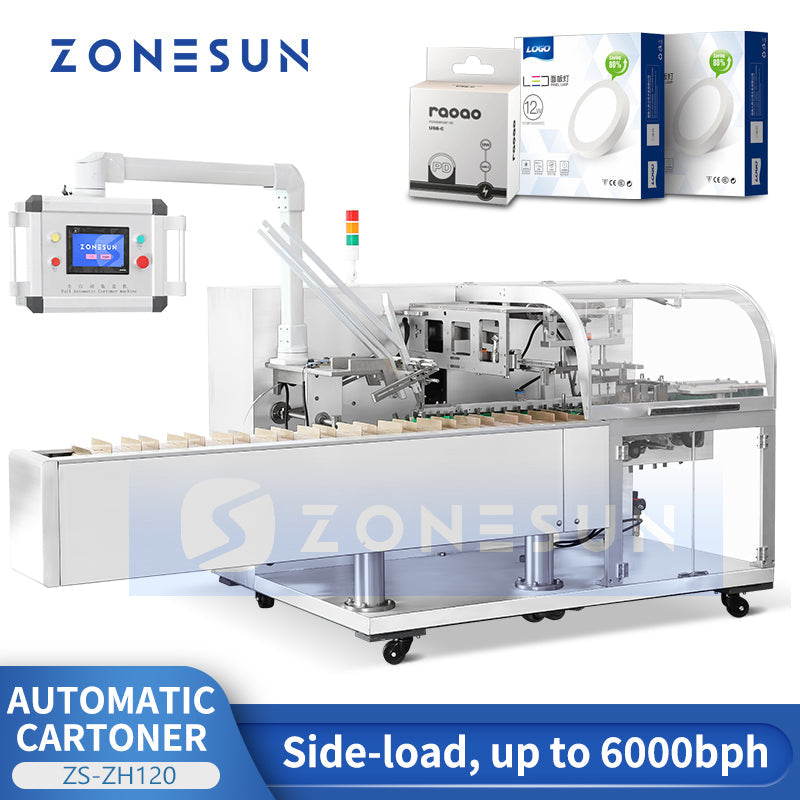

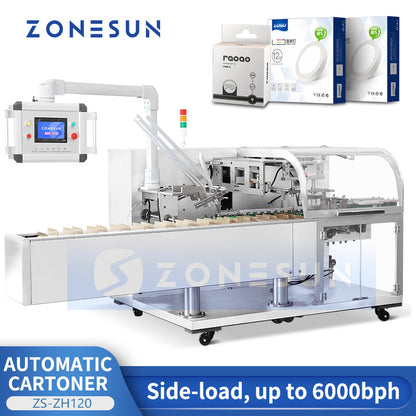

The ZONESUN ZS-ZH120 Automatic Carton Folding and Gluing Machine is designed for automated carton handling in packaging production lines. It supports carton feeding, opening and folding, with an optional hot-melt glue sealing system depending on the selected configuration. Carton size and production speed should be confirmed before ordering.
Key Feature
- Automatic Carton Handling: Automates compatible carton handling operations to reduce repetitive manual work.
- Flexible Carton Specifications: Supports different carton sizes within the confirmed operating range.
- Packaging Line Integration: Can be evaluated for integration with compatible upstream and downstream equipment.
- Configuration Options: Select the appropriate setup based on your carton dimensions, product size and target production speed.
Parameter
MODEL: ZS-ZH120

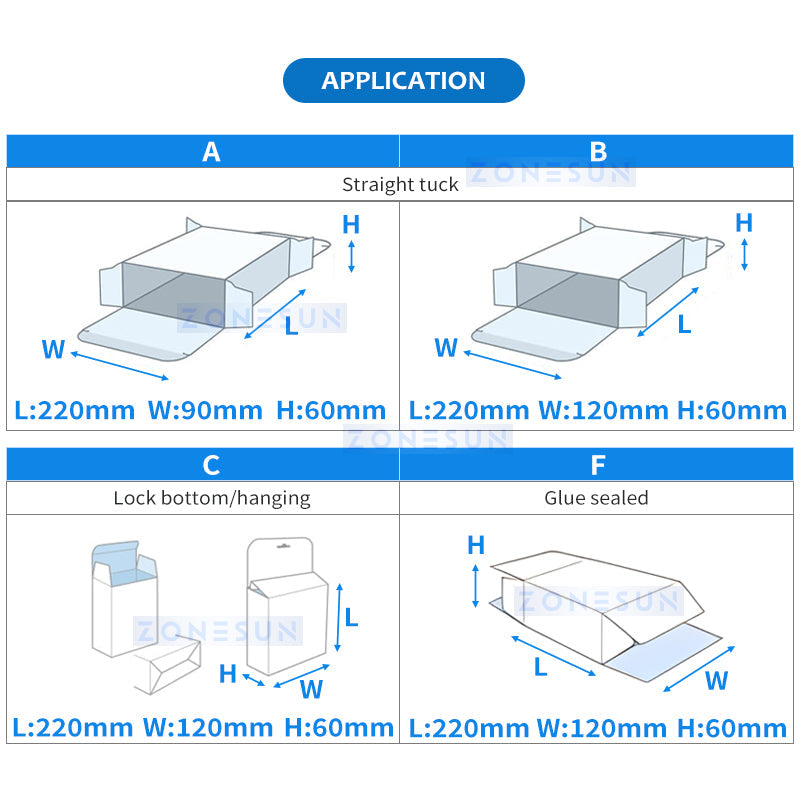

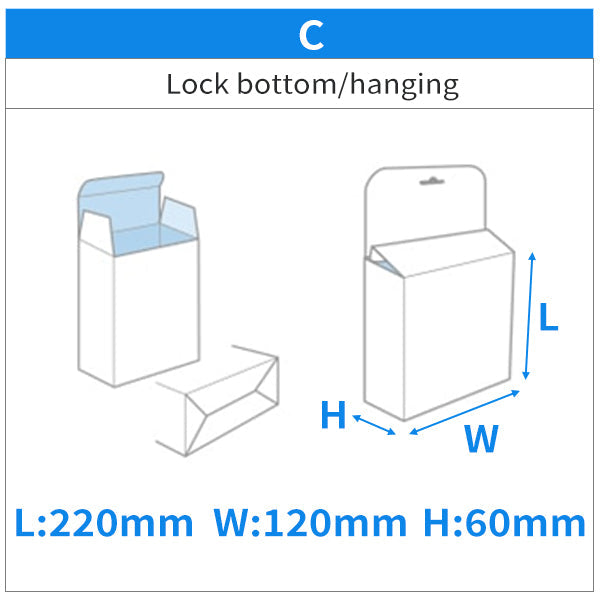

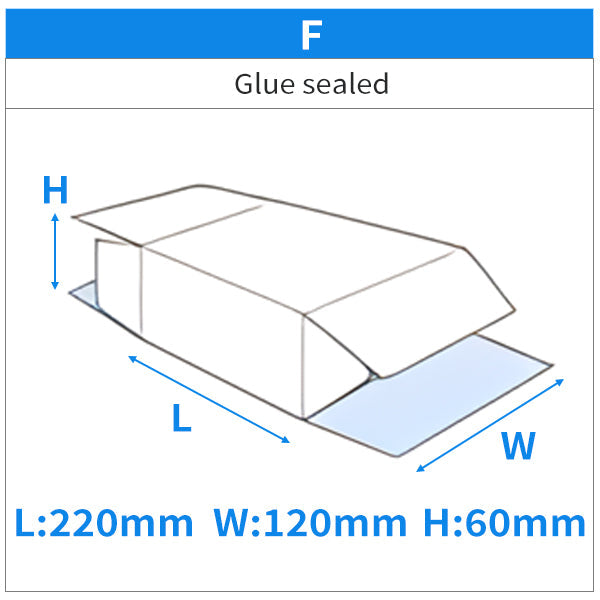

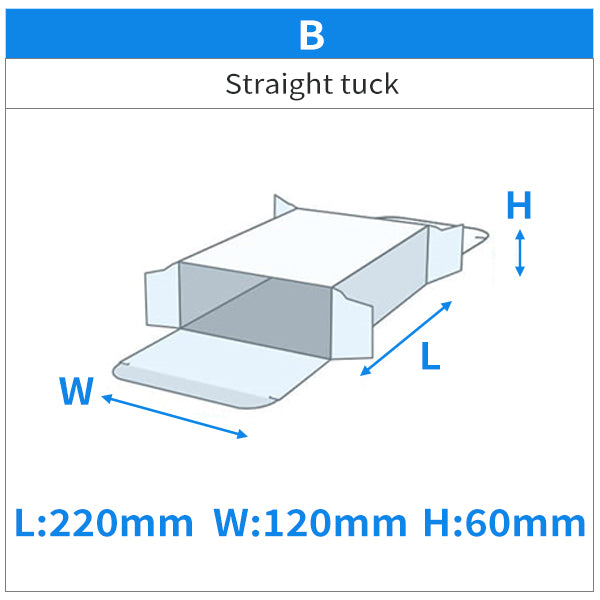

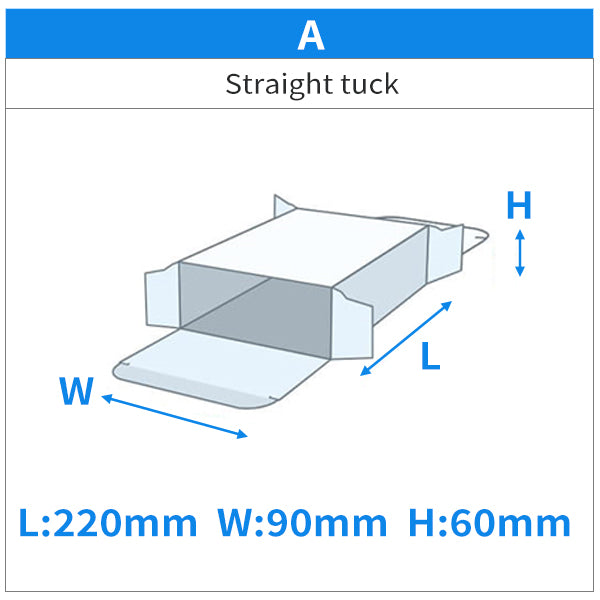

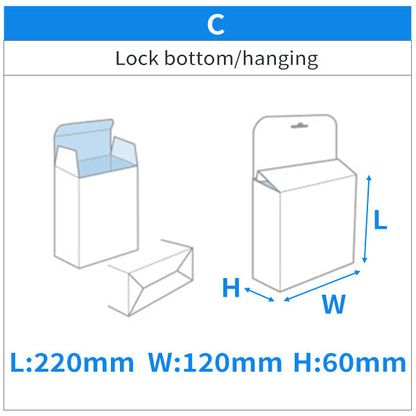

| Type | A | B | C | F |
|---|---|---|---|---|
| Capacity | 15–100 Cartons/Min. | 15–80 Cartons/Min. | 15–80 Cartons/Min. | 15–80 Cartons/Min. |
| Max. Carton Size | 220×120×80 mm | 220×120×80 mm | 220×120×80 mm | 220×120×80 mm |
| Min. Carton Size | 70×20×20 mm | 70×20×20 mm | 70×20×20 mm | 50×25×15 mm |
| Air Consumption | 20 m³/h, 0.5–0.7 MPa | 20 m³/h, 0.5–0.7 MPa | 20 m³/h, 0.5–0.7 MPa | 20 m³/h, 0.5–0.7 MPa |
| Power | 1.5 kW | 1.5 kW | 1.5 kW | 1.5 kW |
| Power Supply | AC 380 V/220 V50 Hz | AC 380 V/220 V50 Hz | AC 380 V/220 V50 Hz | AC 380 V/220 V50 Hz |
| Dimensions | 2600×1350×1650 mm | 2600×1350×1650 mm | 2600×1350×1650 mm | 2600×1350×1650 mm |
| Weight | 1200 kg | 1250 kg | 1250 kg | 1250 kg |


Application
This multi-functional side-load cartoner is expertly engineered to box a wide array of products across diverse manufacturing sectors:
- Cosmetics & Personal Care: Perfect for boxing facial mask sheets (as shown in the previous image), skincare creams, premium perfume bottles, essential oil sets, and makeup kits.
- Pharmaceuticals & Medical Care: Ideal for automated carding and cartoning of medicine blister packs, cough syrup bottles, sterile gauze pouches, and diagnostic test vials.
- Food & Snack Packets: Seamlessly cartons single-serve coffee sticks, protein bars, tea pouch assortments, and portion-controlled snack packs.
- Daily Hardware & Electronics: Suitable for retail-ready packaging of electronic components, printer ink cartridges, household hardware, and LED bulb boxes.



Carton Feeding System

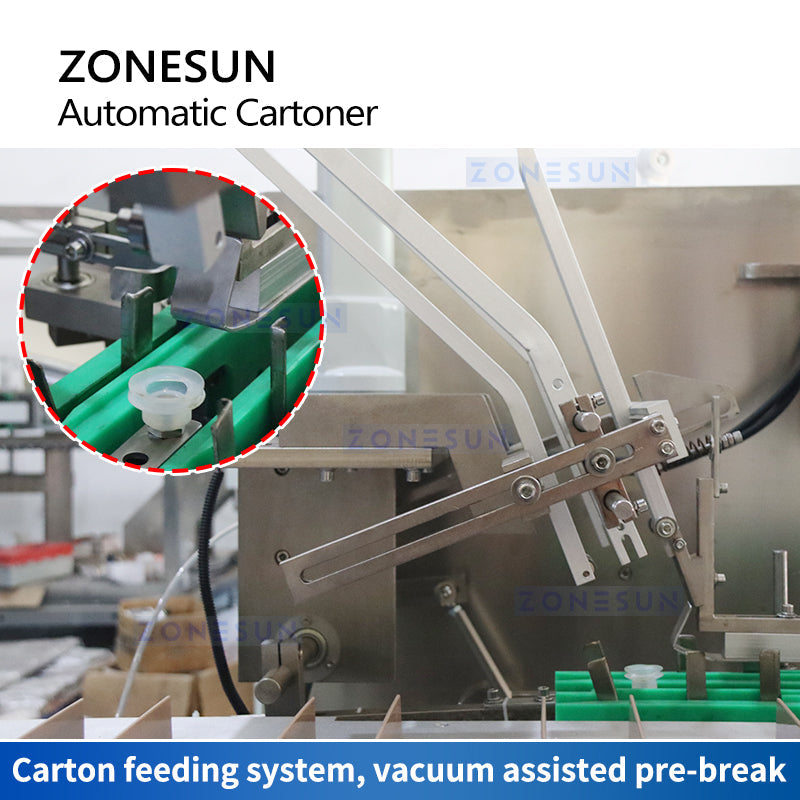

- Smooth and Precise Feeding: Driven by high-precision mechanical linkages and servo control, the system ensures a flawless and ultra-precise continuous carton supply. It maintains pinpoint accuracy regardless of line speed fluctuations.
- Vacuum-Assisted Pre-Break Mechanism: The innovative integration of a powerful vacuum suction pre-break mechanism automatically accomplishes precise box opening and pre-folding during the feeding phase. This process guarantees optimal carton handling, even for rigid materials or long-stored blanks.

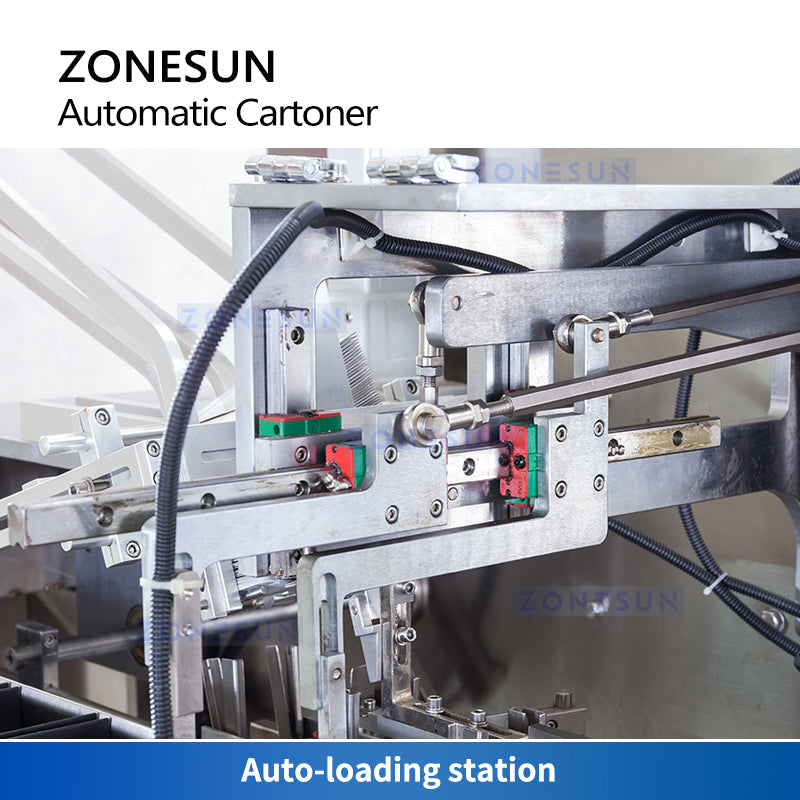

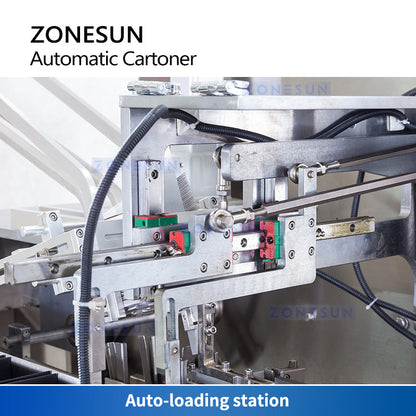

Auto-Loading Station
-
Seamless and Efficient Placement: Utilizing advanced material recognition and precise positioning technology, the station enables flawless automatic carton placement and high-speed recycling. The smooth movements guarantee a continuous, high-efficiency packaging flow.
- Maximum Productivity Boost: The optimized material transport pathway combined with steady picking structures shortens cycle times dramatically, leading to a significant upgrade in your overall factory output.

Closing System

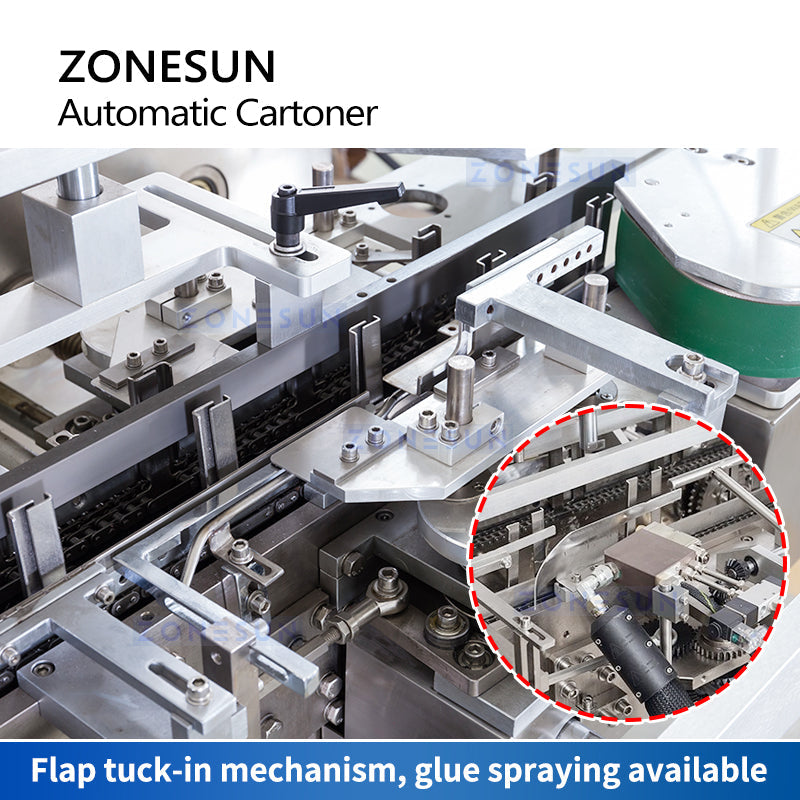

- Advanced Flap Tuck-in Mechanism: Engineered with a heavy-duty mechanical flap tuck-in mechanism, the system executes ultra-smooth folding and crisp insertions. It delivers squaring accuracy and seamless edge alignments for a professional, top-tier box finish.
- Flexible Glue Spraying Option: To fulfill heavy-duty or high-security shipping demands, the machine offers an optional integrated hot-melt glue spraying module. It ensures immediate, powerful adhesion for maximum tamper-evident and tear-resistant protection.

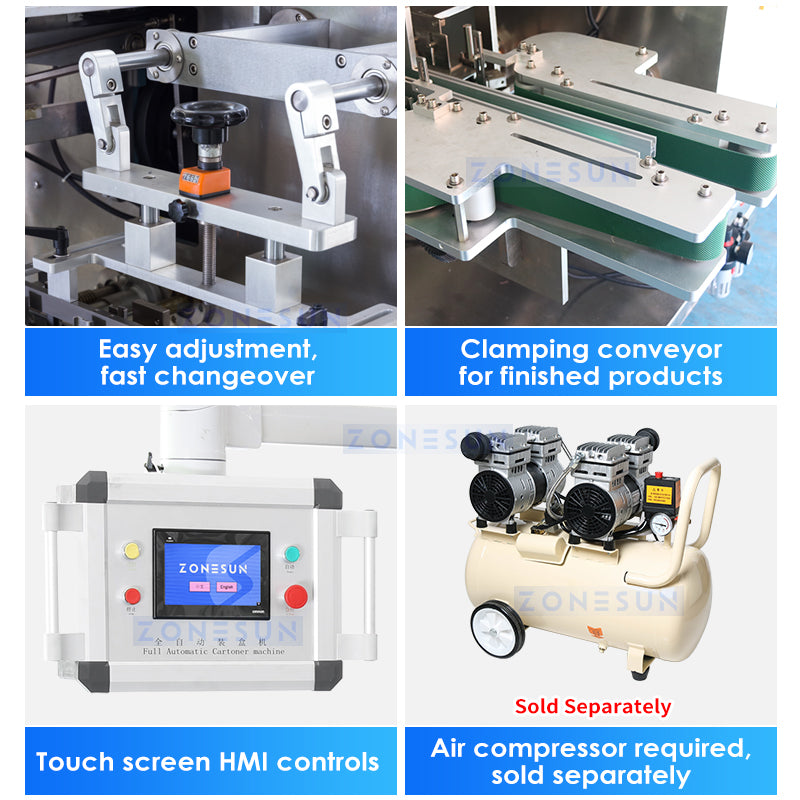

- Easy Adjustment & Fast Changeover: Modular design with digital scales. Switch between different carton sizes within minutes without complex tools, drastically reducing downtime.
- Clamping Conveyor for Finished Products: Dual-side clamping belts safely transfer sealed cartons without tipping or misalignment, ensuring an orderly discharge.
- Touch Screen HMI Controls: Responsive smart touchscreen featuring a user-friendly multi-language interface. Real-time data tracking and one-touch parameter setup.
- Air Compressor Required (Sold Separately): The pneumatic system requires an external air supply. Note: Air compressor is not included and must be purchased separately.
