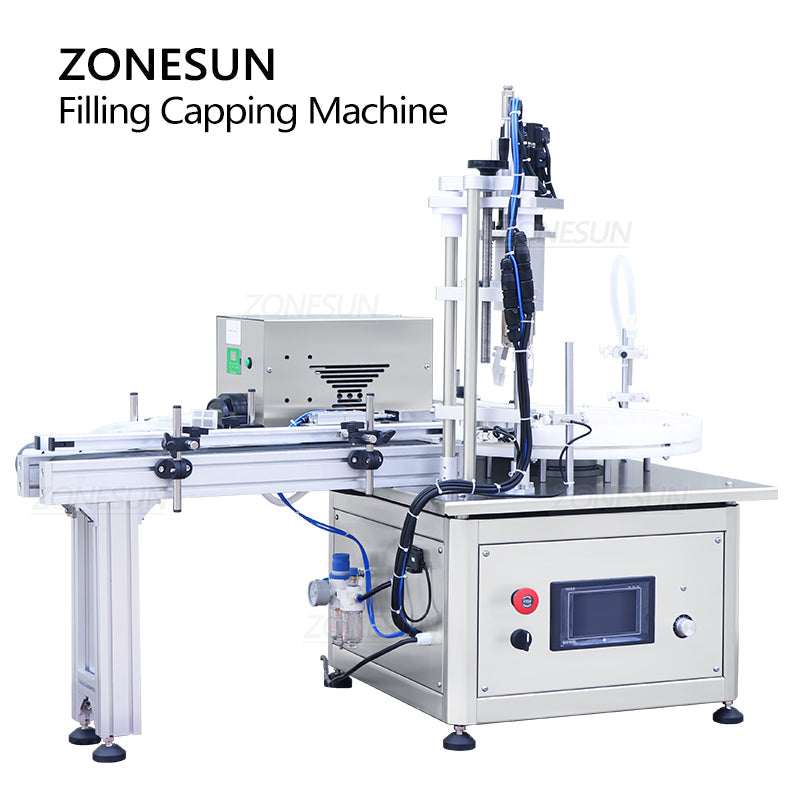

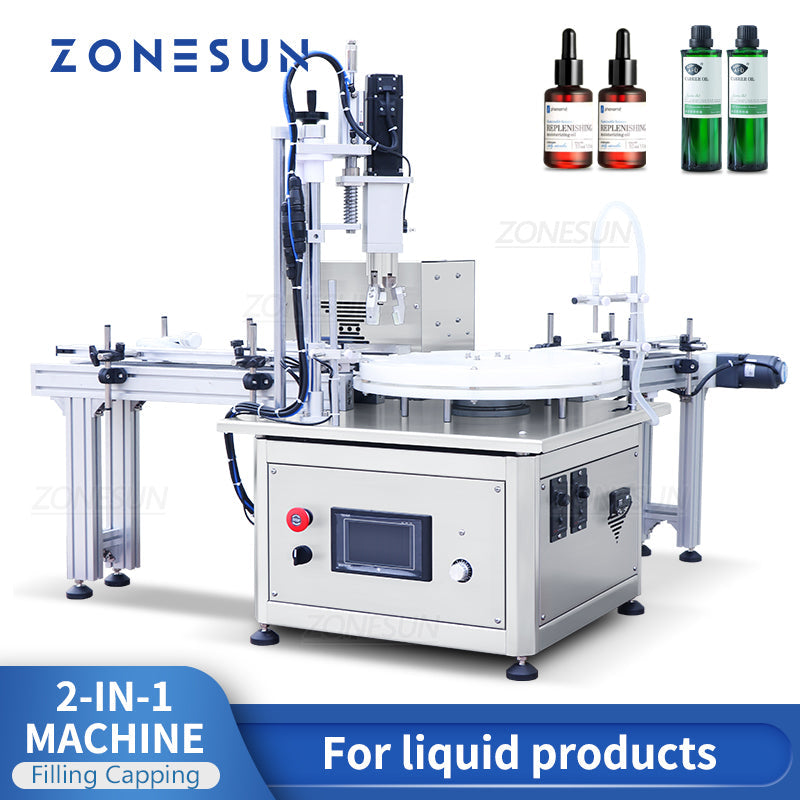

ZONESUN ZS-AFC1Z Automatic Peristaltic Pump Filling Capping Machine
ZONESUN ZS-AFC1Z Automatic Peristaltic Pump Filling Capping Machine
Couldn't load pickup availability
DESCRIPTION

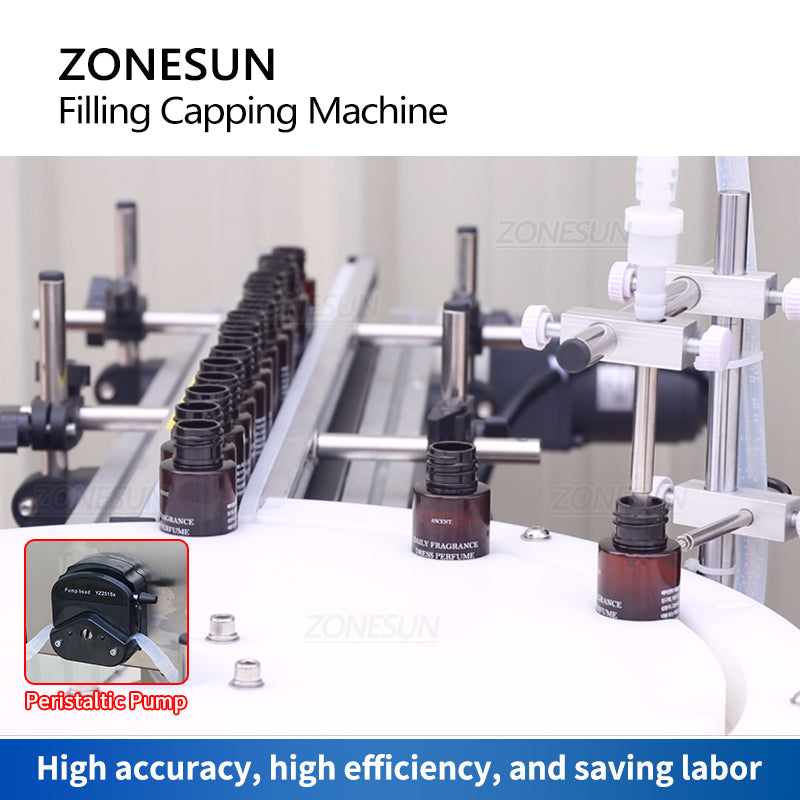

The ZONESUN ZS-AFC1Z Automatic Peristaltic Pump Liquid Filling and Capping Machine integrates precise filling and secure capping in one unit. Using a peristaltic pump, the liquid only passes through the tubing, minimizing contamination risks. Easy to maintain and highly accurate, it is ideal for packaging liquid skincare products, inks, eye drops, and other sensitive liquids in a clean and efficient manner.
PARAMETER
|
Model |
ZS-AFC1Z |
|
Machine voltage & power |
110/220V 50-60HZ 500W |
|
Machine pump |
Peristaltic pump |
|
Suitable bottle diameter |
10-40mm |
|
Filling range |
≤100ml |
|
Bottle height |
≤120mm (Customizable for higher bottles) |
|
Cap diameter |
Customized |
|
Size of filling nozzle |
Customized |
|
Working speed |
20-50bottles/min (Depends on liquid and bottle size) |
|
Conveyor belt size |
About 670*80mm |
|
Package size |
About 1200*700*1100mm |
|
Package weight |
About 128kg |
