ZONESUN ZS-DTMPZ1 Automatic Magnetic Pump Liquid Filling Machine with Conveyor Belt (5-6000ml)
ZONESUN ZS-DTMPZ1 Automatic Magnetic Pump Liquid Filling Machine with Conveyor Belt (5-6000ml)
Couldn't load pickup availability
Description

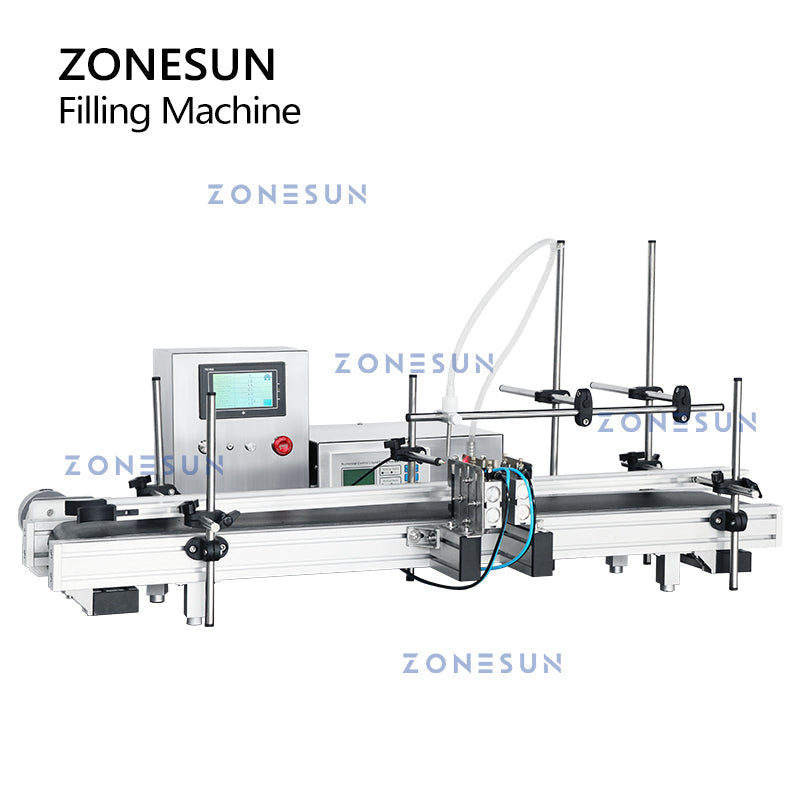

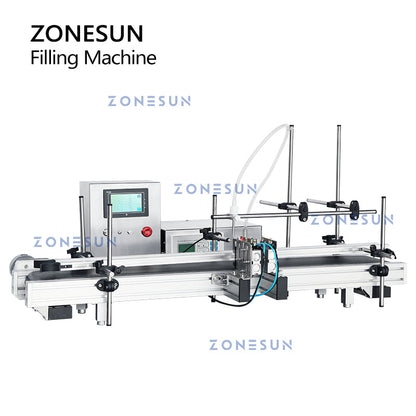

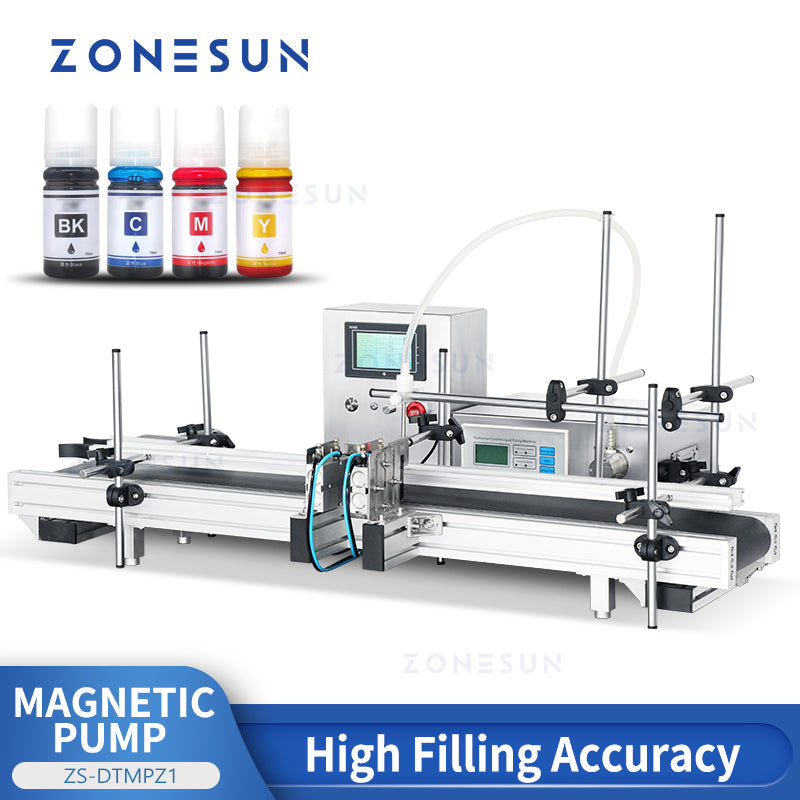

The ZONESUN ZS-DTMPZ1 Automatic Single Nozzle Magnetic Pump Liquid Filling Machine is a compact production line consisting of a filler, control box, and conveyor. Equipped with a high-precision magnetic pump, it allows operators to directly set the filling volume for convenient and accurate operation. Suitable for thin liquids such as water and juice, it is widely used in the food, biological, and daily chemical industries for efficient, reliable, and hygienic filling.
| Machine Model | ZS-DTMPZ1 |
|---|---|
| Voltage | 220V/110V 50-60Hz |
| Power | About 170W |
| Filling Speed | About 20-25bottles/min (depending on liquid and bottle size) |
| Max Flow Rate | 6L/min(based on water) |
| Filling Range | 5-6000ml |
| Filling Accuracy | 0.2%-1% |
| Conveyor Belt Size | About 1020*140mm(L*W) |
Applications
The ZONESUN ZS-DTMPZ1 is engineered with a high-grade 316L stainless steel magnetic pump, making it ideal for accurately dispensing low-viscosity, non-viscous, and light oil liquids without cross-contamination.
1. Applicable Liquids
- Beverages & Water: Mineral water, pure water, fruit juice (without pulp), tea drinks, coffee liquids, energy shots.
- Cosmetics & Personal Care: Toner, makeup remover, essential oils, perfumes, body mists, facial serums, alcohol-based lotions.
- Daily Chemicals & Household: Disinfectants, liquid detergents, glass cleaners, deodorizers, room sprays.
- Pharmaceuticals & Lab Solutions: Oral liquids, liquid reagents, saline solutions, iodine, alcohol (75%), diagnostic reagents.
- Food Ingredients: Vinegar, soy sauce, edible wine, flavoring extracts, thin syrups, liquid additives.
2. Target Industries
Designed for small to medium-scale production lines, desktop automated operations, and OEM/ODM packaging in:
- Food & Beverage Manufacturing
- Cosmetics & Skincare Packaging
- Pharmaceutical & Medical Laboratories
- Chemical & Cleaning Supplies Packaging
- Craft Beverage & Artisan Bottling Facilities
Note on Compatibility: This machine is NOT recommended for highly thick/viscous liquids (such as honey, shampoo, toothpaste, or heavy cream) or liquids containing large particles/pulp.
PRODUCT DETAILS
CONTROL PANEL

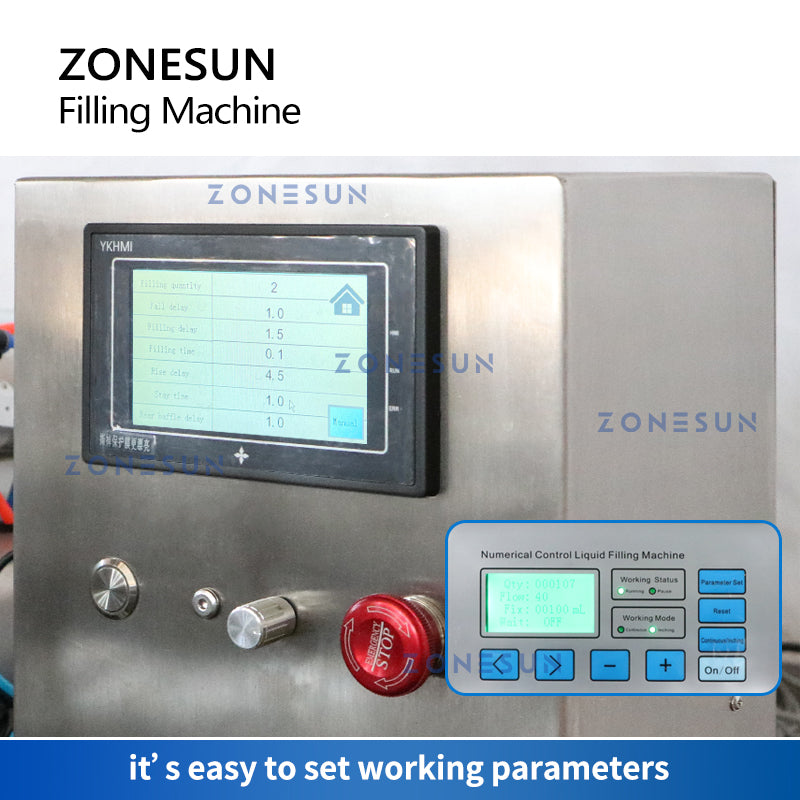

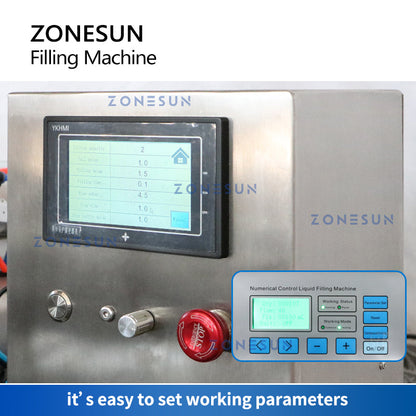

Directly set the filling volume, easy and convenient.
FILLING

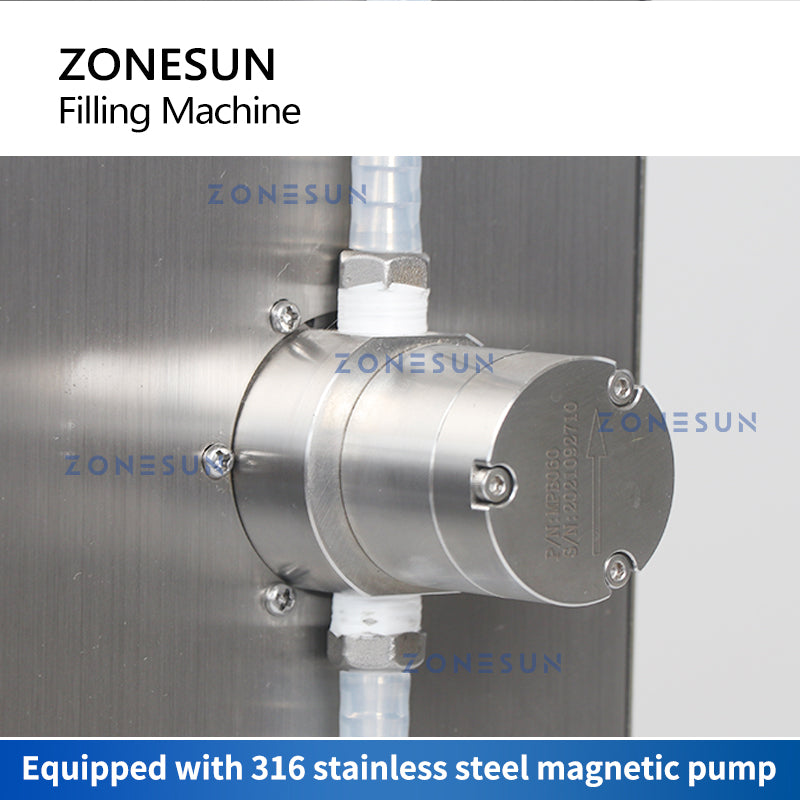

Magnetic pump, 316L stainless steel, accurate and corrosion-resistant.
RUNNING

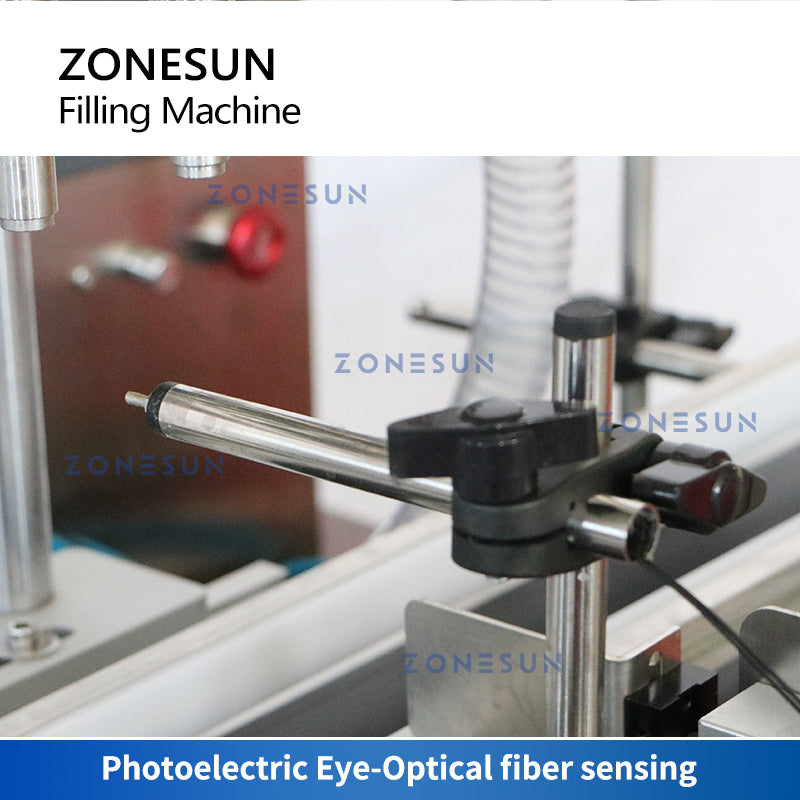

Photoelectric eye, smart detecting.
TRANSPORTING
Stronger conveyor, max load: 10kg.
