ZONESUN ZS-DTPP4E Pneumatic 4-Nozzle Peristaltic Pump Liquid Filling Machine for Essential Oil, Gel & Juice
ZONESUN ZS-DTPP4E Pneumatic 4-Nozzle Peristaltic Pump Liquid Filling Machine for Essential Oil, Gel & Juice
Regular price
$2,999.00 USD
Regular price
Sale price
$2,999.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

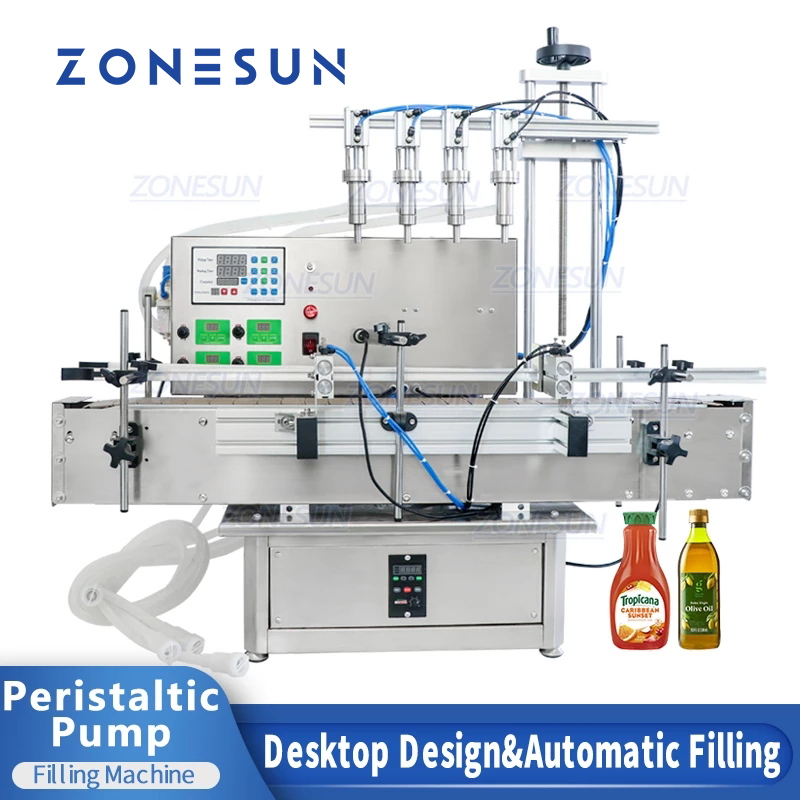

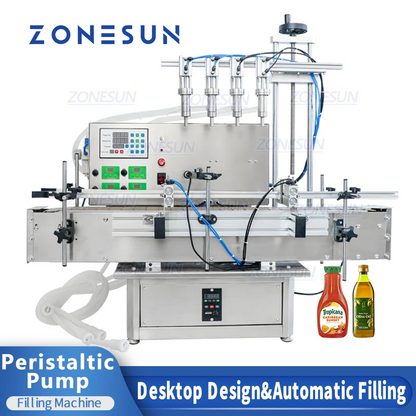

The ZONESUN ZS-DTPP4E is a semi-automatic liquid filling machine equipped with four pneumatic peristaltic pump nozzles, designed for precise and hygienic filling of both fluid and viscous products. The peristaltic pump ensures that liquid does not contact internal pump components, making it ideal for sensitive products like essential oils, juice, ink, and gel. Each nozzle operates independently, allowing flexible control over filling speed and volume. The machine supports integration with automatic capping and labeling systems, enabling a streamlined production line. Compact and efficient, the ZS-DTPP4E is widely used in cosmetics, pharmaceuticals, and beverage industries.
| Parameter | Specification |
|---|---|
| Machine Model | ZS-DTPP4E |
| Voltage | AC 110V / 220V, 50–60Hz |
| Power | 60W (Each Pump) |
| Recommended Filling Volume | 10–1000 ml (Gel is better ≤ 100 ml) |
| Maximum Flow | 4000 ml/min for each nozzle (based on water) |
| Filling Nozzles | 4 (we can customize the nozzles based on your demands) |
| Working Speed | 30–50 bottles/min (based on bottles and liquids) |
| Air Pressure | 0.3–0.4 MPa |
| Filling Accuracy | ≤ ±1% (for water) |
| Delay Range | 0.01s – 999.9s |
| Belt Length | 1.0 m |
| Size of Air Compressor Connector | OD 8mm |
| Suitable Bottle Height | < 220mm (Can be customized, max height 300mm) |
| Machine Size | About 1100 × 580 × 1070 mm |
| Conveyor Size | About 1100 × 115 mm |
Applications
- Cosmetics & Personal Care: Essential oils, serums, toners, micellar water, and facial gels.
- Pharmaceuticals & Healthcare: Liquid oral drops, medical test reagents, and sanitizing solutions.
- Food & Beverage: Fruit juices, syrups, food coloring, and extracts.
- Chemicals & Inks: Specialty printer inks, laboratory reagents, and viscous cleaning liquids.
- Premium Stainless Steel Framework: Flexibly made of high quality stainless steel, this machine is with good appearance and can work for a long time, rendering excellent wear resistance for high-intensity commercial workloads.
- Streamlined Control & Digital Tuning: Integrated with a comprehensive digital display controller. The simple running program makes the machine easier to control and adjust, which saves a lot of time on debugging the machine during setup.

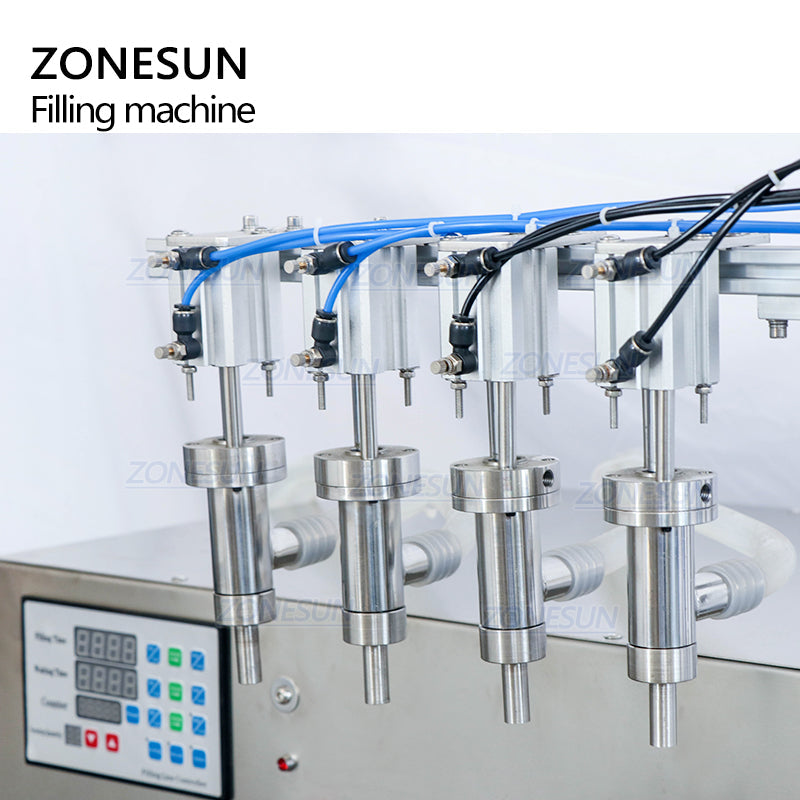

- Pneumatic Anti-Dripping Execution: Designed with high quality pneumatic filling nozzles, this kind of filling nozzle is with anti-dripping function; it can effectively prevent from dripping liquid after filling, ensuring superior production quality and volume accuracy.
-
Smart Sensor Automation: Integrated with advanced tracking optics, the electric eye can be used to detect bottles and send a signal to the system, so the machine can realize automated working while drastically improving working accuracy

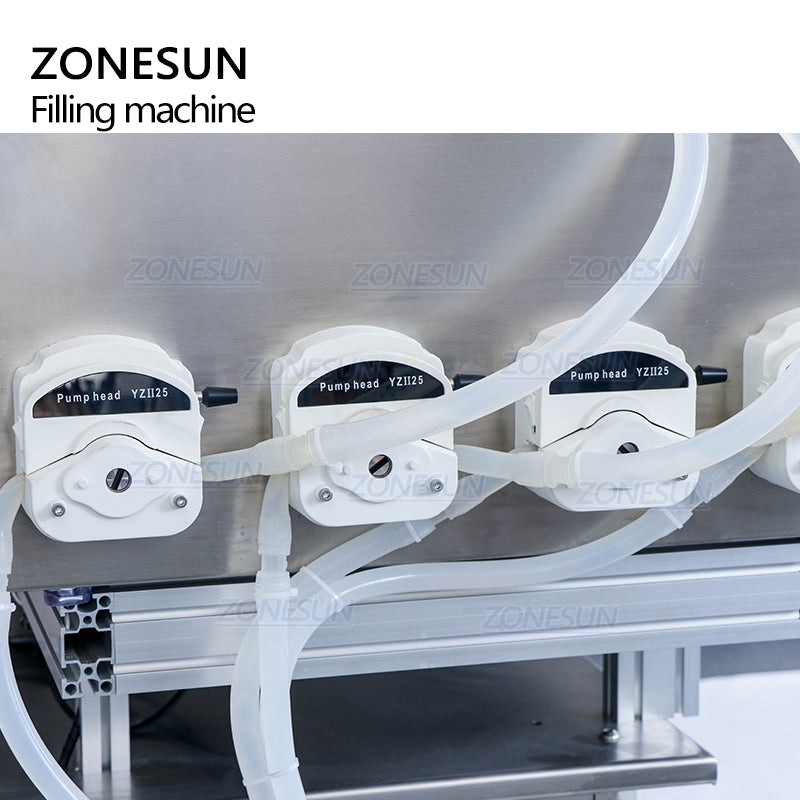

- Independently Controlled Peristaltic Pumps: Equipped with robust 4L/min peristaltic pumps, where each pump can be controlled separately. The filling hose can be changed easily, making this kind of filling machine perfectly good for filling liquid with different kinds of fragrance like essential oils and perfume without cross-contamination.
- Adjustable Heavy-Duty Chain Conveyor: Engineered for absolute container stability, the feeding inlet of the conveyor belt can be adjusted according to bottle diameter, ensuring the bottle can be transported smoothly and stably. The chain conveyor belt features a larger loading capacity, making it suitable for larger filling volumes.
