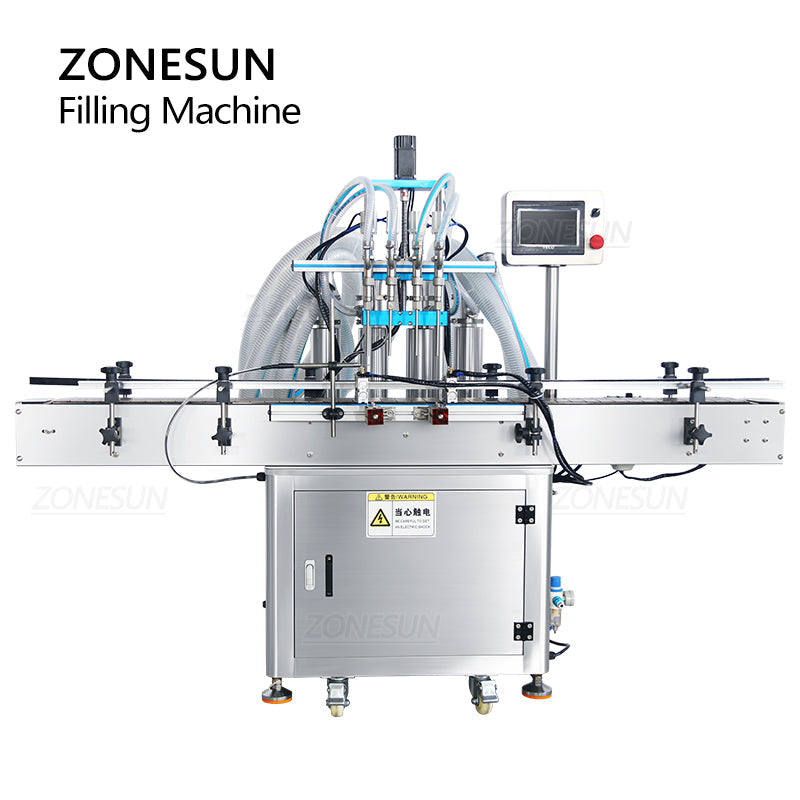

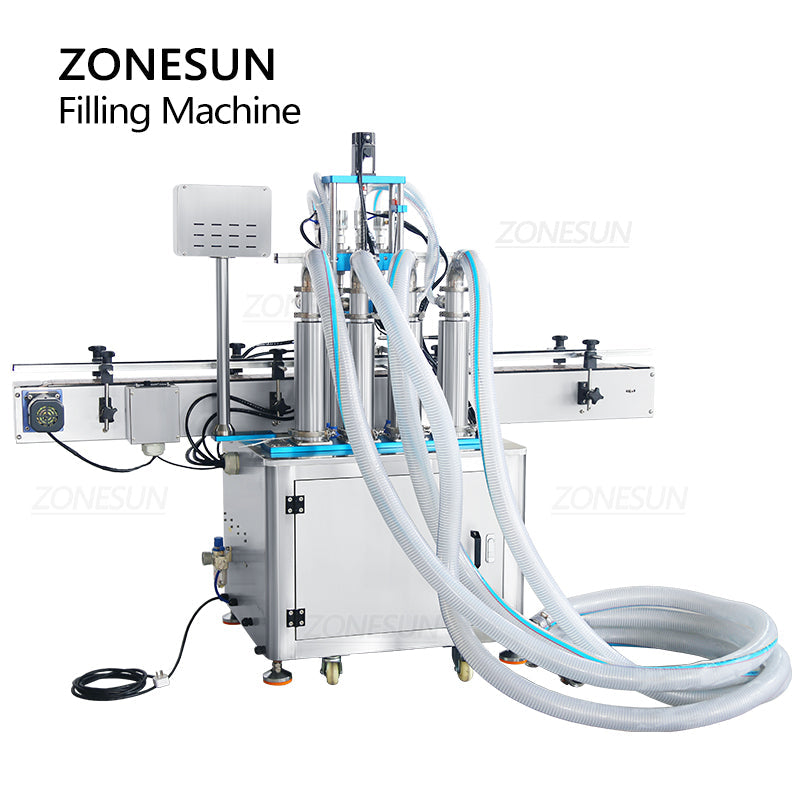

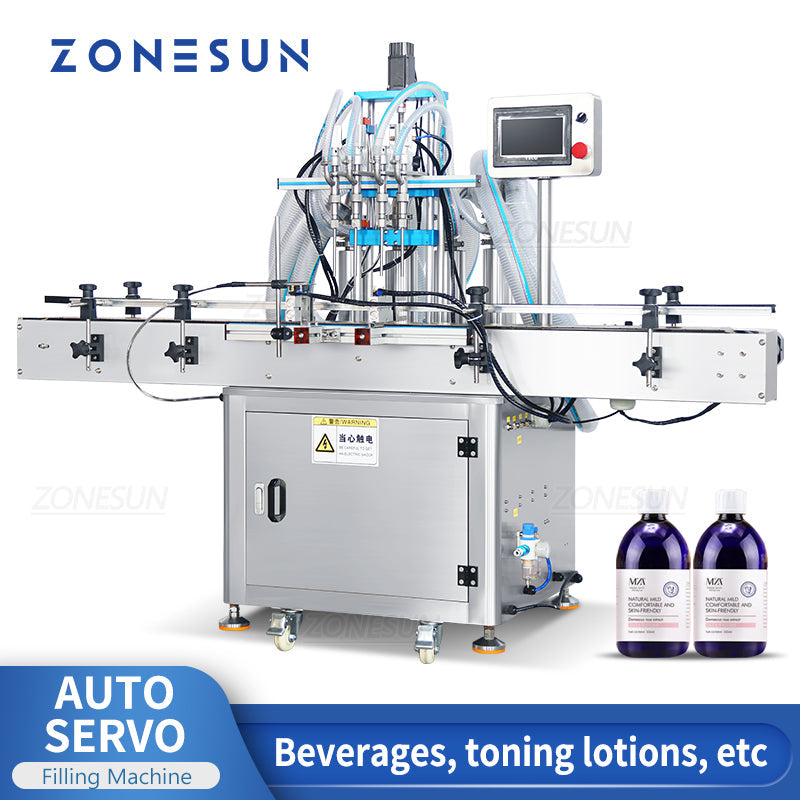

ZONESUN ZS‑SV4HS 4‑Nozzle Servo Piston Pump Liquid Filling Machine
ZONESUN ZS‑SV4HS 4‑Nozzle Servo Piston Pump Liquid Filling Machine
Couldn't load pickup availability
DESCRIPTION
The ZONESUN ZS‑SV4HS 4‑Nozzle Servo Piston Pump Liquid Filling Machine delivers exceptional precision and efficiency for a wide range of liquid products. Powered by a high‑performance servo motor, it ensures consistent, accurate filling volumes, even for liquids with varying viscosities. The PLC control system offers intuitive operation and easy parameter adjustments, reducing setup time and operator training. Suitable for food, daily chemical, cosmetic, and other liquid‑based industries, this machine can be customized to meet specific production requirements. Built with durable materials and a hygienic design, it supports both small‑batch and large‑scale manufacturing.
PARAMETER
|
Model |
ZS-SV4HS |
|
Machine voltage |
110/220V 50-60HZ |
|
Power |
About 6KW |
|
Filling Range |
100-1000ml(Can be customized) |
|
Filling Speed |
About 30-70 bottles/min (depending on bottle size and filling material) |
|
Filling Error |
About±0.5% |
|
Air Pressure |
0.5-0.8Mpa |
|
Conveyor belt size |
About 114*2000mm(W*L) |
|
Machine Weight |
About 130kg |
|
Package Size |
About 2070*760*1670mm |
|
Package Weight |
About 275kg |
PRODUCT DETAILS

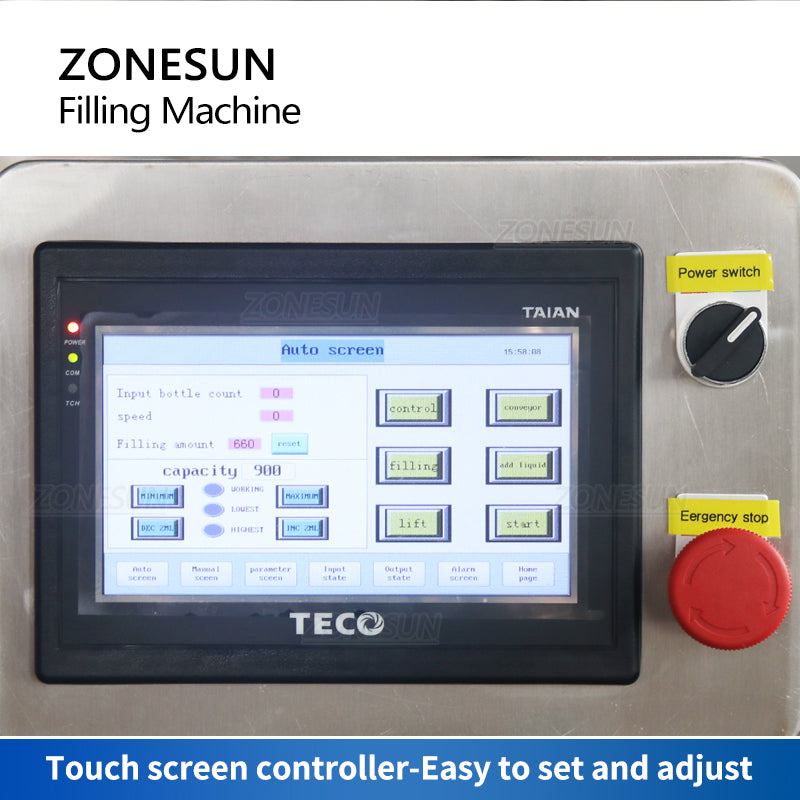

Touch screen controller
Easy to set and adjust each parameter according to the production needs.

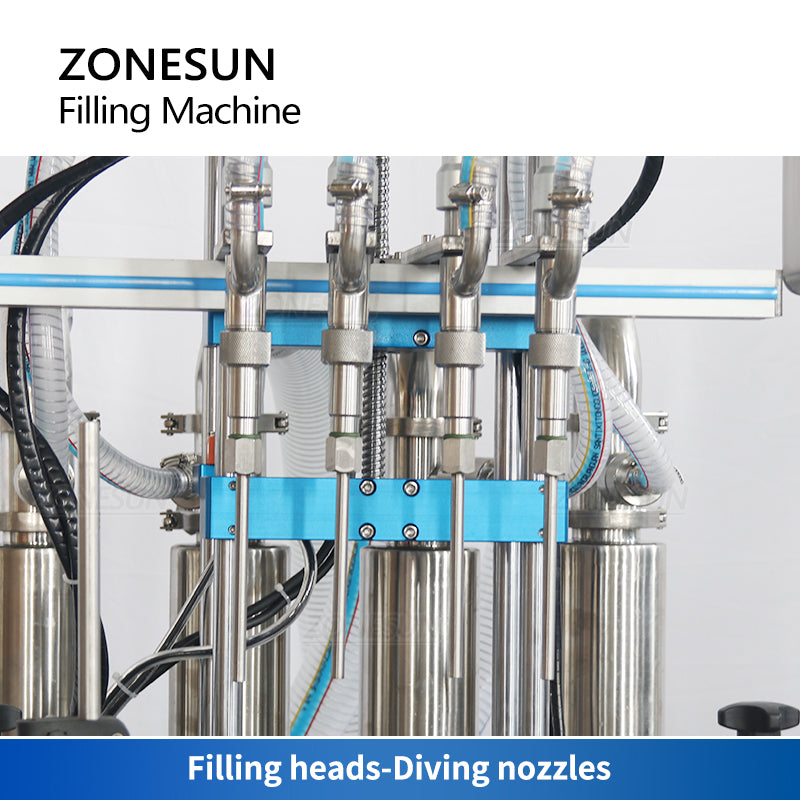

Filling heads
With diving nozzles, it can prevent liquid from foaming and splashing out during filling.

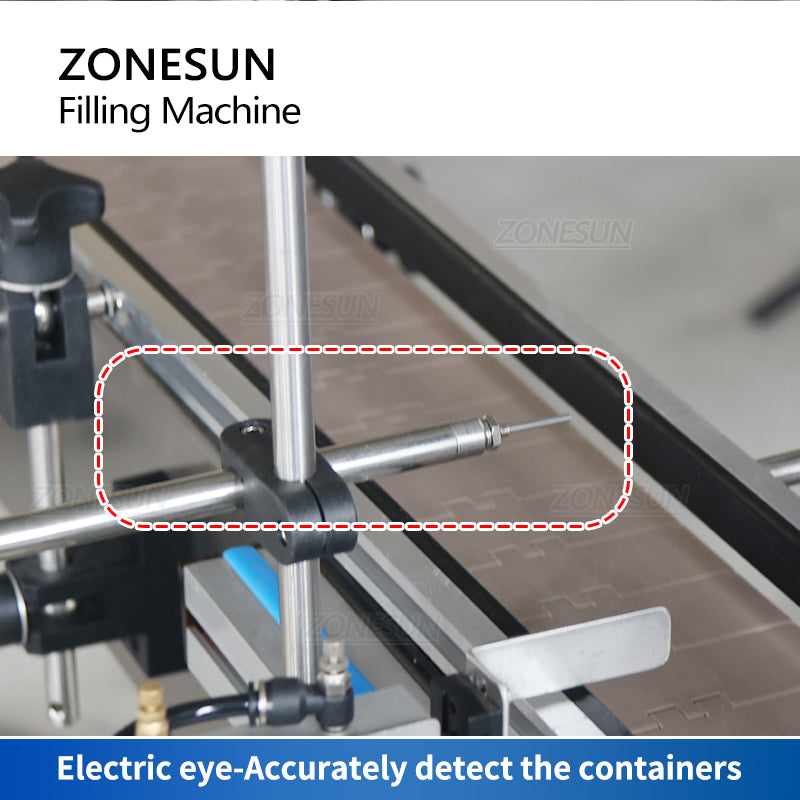

Electric eye
Accurately detect the containers, and send signals to the controller to make the machine complete the filling process.
Conveyor
Stable conveying of a wide variety of containers with its high load capacity.
