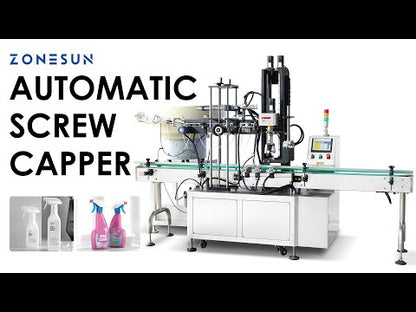

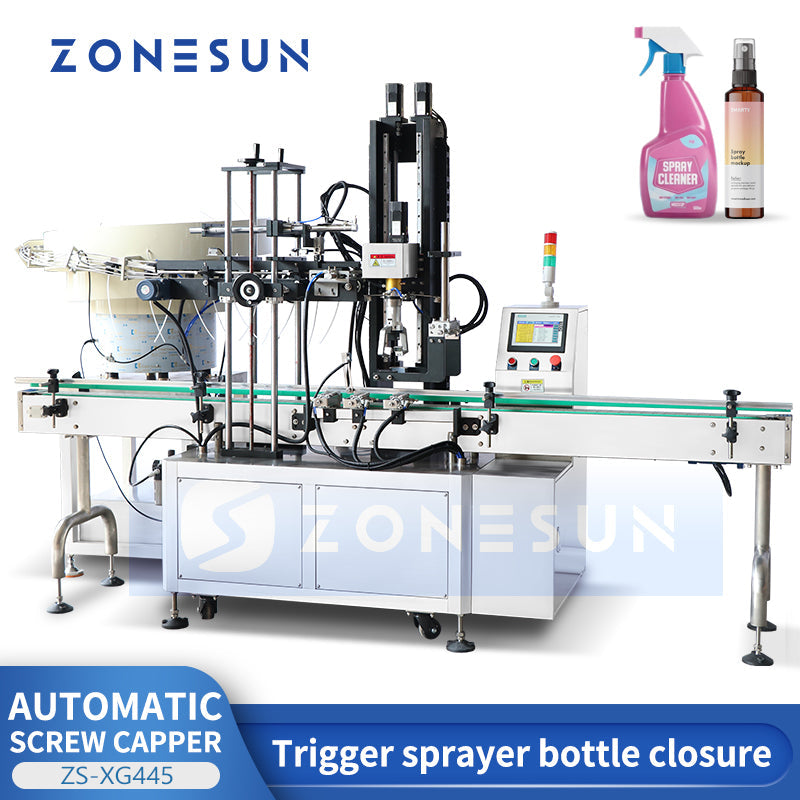

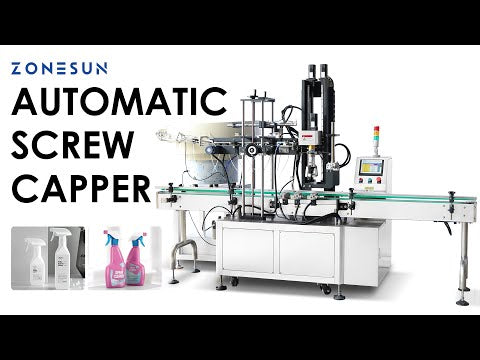

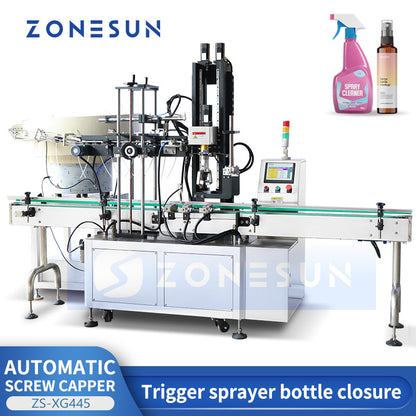

ZONESUN ZS-XG445 Automatic Trigger Spray Bottle Capping Machine with Vibratory Bowl Feeder

Name: ZONESUN ZS-XG445 Automatic Trigger Spray Bottle Capping Machine with Vibratory Bowl Feeder
Brand: ZONESUN
SKU: 00200800079-0232
Price: 17899.0 USD
Availability: InStock

ZONESUN ZS-XG445 Automatic Trigger Spray Bottle Capping Machine with Vibratory Bowl Feeder

$17,899.00 USD

Sale Sold out

Shipping calculated at checkout.

Voltage 110V 220V

Product variants

Quantity

Description

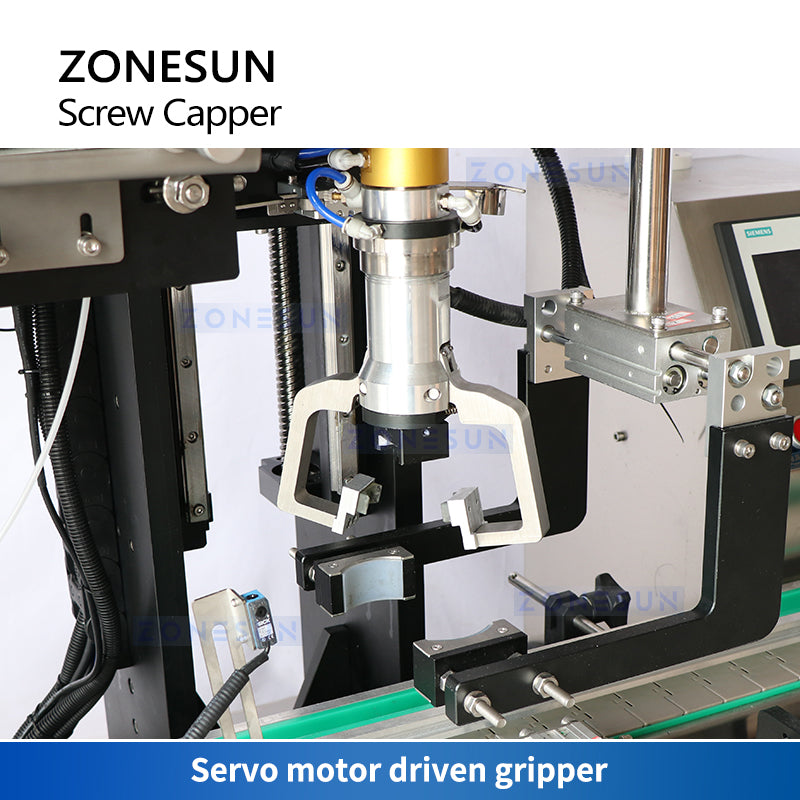

The ZONESUN ZS-XG445 Automatic Trigger Pump Bottle Capping Machine with Cap Vibratory Feeder is engineered for efficient and precise capping of trigger spray bottles. The vibratory bowl feeder automatically sorts and orients trigger sprayers, while the servo motor-driven gripper applies them with controlled torque for a secure, consistent seal. Ideal for high-speed production lines in cleaning products, cosmetics, and other liquid packaging industries.

Specifications

Specification	Details
Machine Model	ZS-XG445
Power Supply	110/220 V
Rated Power	900 W
Working Capacity	5–25 bottles/min, depending on bottle and cap size
Machine Material	SUS 304 stainless steel
Required Air Pressure	0.6–0.8 MPa
Applicable Bottles	Customized according to bottle samples
Cap Feeding Method	Pneumatic cap pick-up
Capping Method	Servo motor-driven screw capping

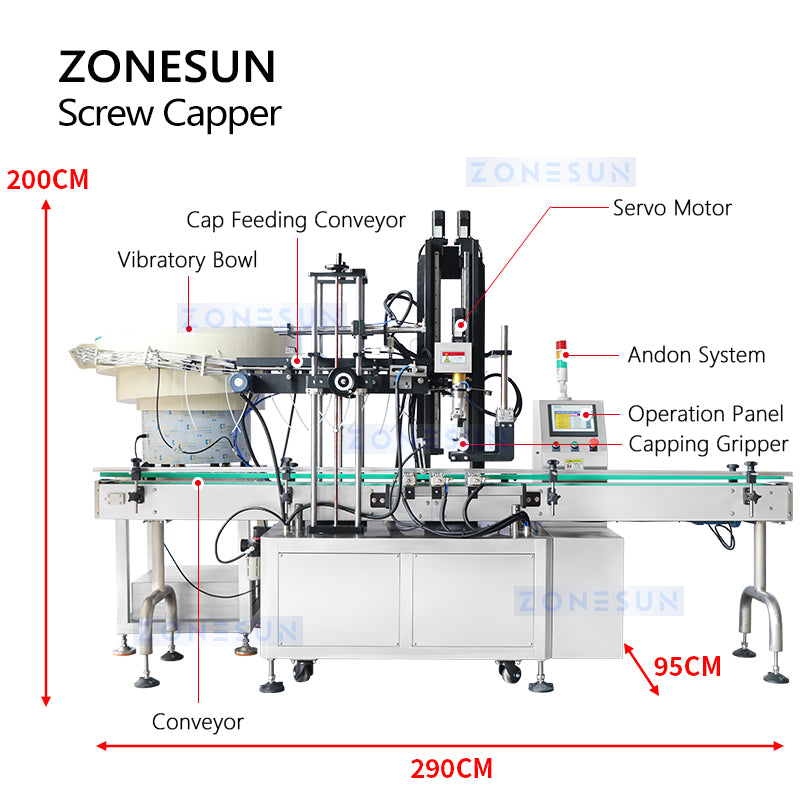

Machine Dimensions	Approx. 2900 × 950 × 2000 mm
Packaging Dimensions	Machine: Approx. 3020 × 905 × 2140 mm Vibratory bowl sorter: Approx. 1870 × 1220 × 840 mm
Packaging Weight	Machine: Approx. 600 kg Vibratory bowl sorter: Approx. 316 kg

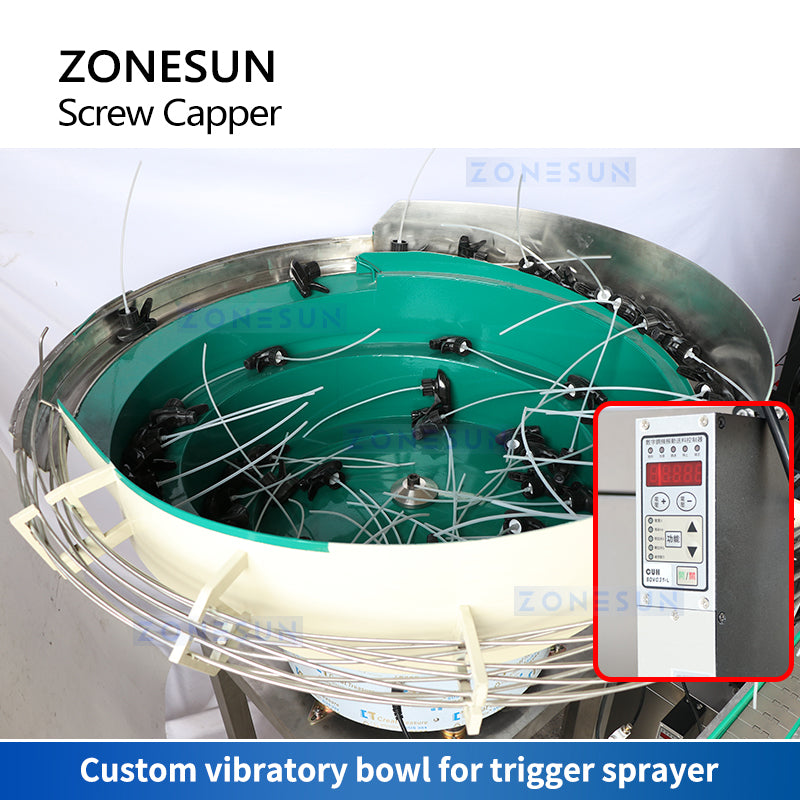

VIBRATORY BOWL

Custom Design for Complex Sprayers： Specially customized for trigger sprayers with long dip tubes. The precision track design eliminates jamming and orientation errors.
Intelligent Controller, Adjustable Feeding Speed：Equipped with a dedicated digital frequency-modulated controller for intuitive adjustments of vibration frequency and feeding speed to match your line's pace.
